TOTO TEU2LAIA#SS EcoPower High Efficiency Concealed Urinal 0.5 GPF Flush Valve
EcoPower® High-Efficiency Concealed Urinal Flush Valve Only - 0.5 GPF (IoT-Enabled)
SKU: TEU2LAIA#SS
Color: Stainless Steel
Options: IoT-Enabled
IoT Options: Without CC
Engineered to require no electricity or routine battery replacement, EcoPower technology is the perfect marriage of hands-free operation, low maintenance, easy installation and ecology.
MODELS
TEU2LA11#SS
TEU2LAR#SS (0.5 GPF flush valve)
VB1311#RB (3/4" vacuum breaker tube, 3/4" angle stop, back spud)
TEU2LA12#SS
TEU2LAR#SS (0.5 GPF flush valve)
VB0912#RB (3/4" vacuum breaker tube, 3/4" angle stop, top spud)
TEU2LA21#SS
TEU2LAR#SS (0.5 GPF flush valve)
VB1321#RB (1-1/4" vacuum breaker tube, 3/4" angle stop, back spud)
OPTIONAL ACCESSORIES
Z-4000-J - Adapter for ground joint angle stops
Features
14" x 12" Stainless Steel cover plate with tamper proof screws
Hydropower self-generating system
0.5 GPF
Adjustable tail piece connection
Neutral rough
Manual flush override
Self Adjusting detection range
6-second detection time with 3-second flush delay
Automatic maintenance flush after 12 hours of inactivity
ADA Compliant
IoT Features
Wireless communication
Connects seamlessly with Georgia Pacific's KOLO™ Smart Monitoring System or other IoT monitoring platforms
Service agreement required to enable IoT or Smart Features
ECOPOWER flush valve's operation is independent of its IoT capability
Some of the IoT-enabled Smart Features include: failure detection, usage, water consumption, and battery/capacitor charge
Additional product benefits and features are available by contacting TOTO IoT/Smart Products Experts (or Division) or a TOTO sales representative
SPECIFICATIONS
Material Bronze casting
Power supply ECOPOWER
Sensor detection time Factory setting at six (6) seconds minimum
Sensor detection range Self-adjusting to environment
Discharge quantity Preset to 0.5 GPF
Operating temperature 32°-104°F (0°-40°C)
Water supply pressure 15 psi - 125 psi*
Water supply connection 3/4" NPT
Warranty Three year limited
PRODUCT SPECIFICATION
TOTO® Model No. _____________________________
Product shall be 0.5 GPF.
Product shall be an automatic infrared sensor-activated, urinal flush valve.
Product shall use hydropower, ECOPOWER flush valve system.
Product shall have heavy-duty 14" x 12" stainless steel cover plate with satin finish.
Product shall have adjustable tail piece connection.
Product shall have neutral rough.
Product shall have smart sensor with self-adjusting detection range.
Product shall have manual flush override.
Product shall have 6-second detection time to prevent ghost flushing.
Product shall have piston with debris screen and solenoid with self cleaning mechanism.
Product shall be ADA compliant.
CODES/STANDARDS
Meets or exceeds ASSE 1037, CSA B125.3
Certifications: IAPMO(cUPC), EPA WaterSense, ASSE, State of Massachusetts, and others
Code Compliance: UPC, IPC, NSPC, NPC Canada, and others
ADA compliant
Complies with CA Prop 65 warning requirements
Product Specifications

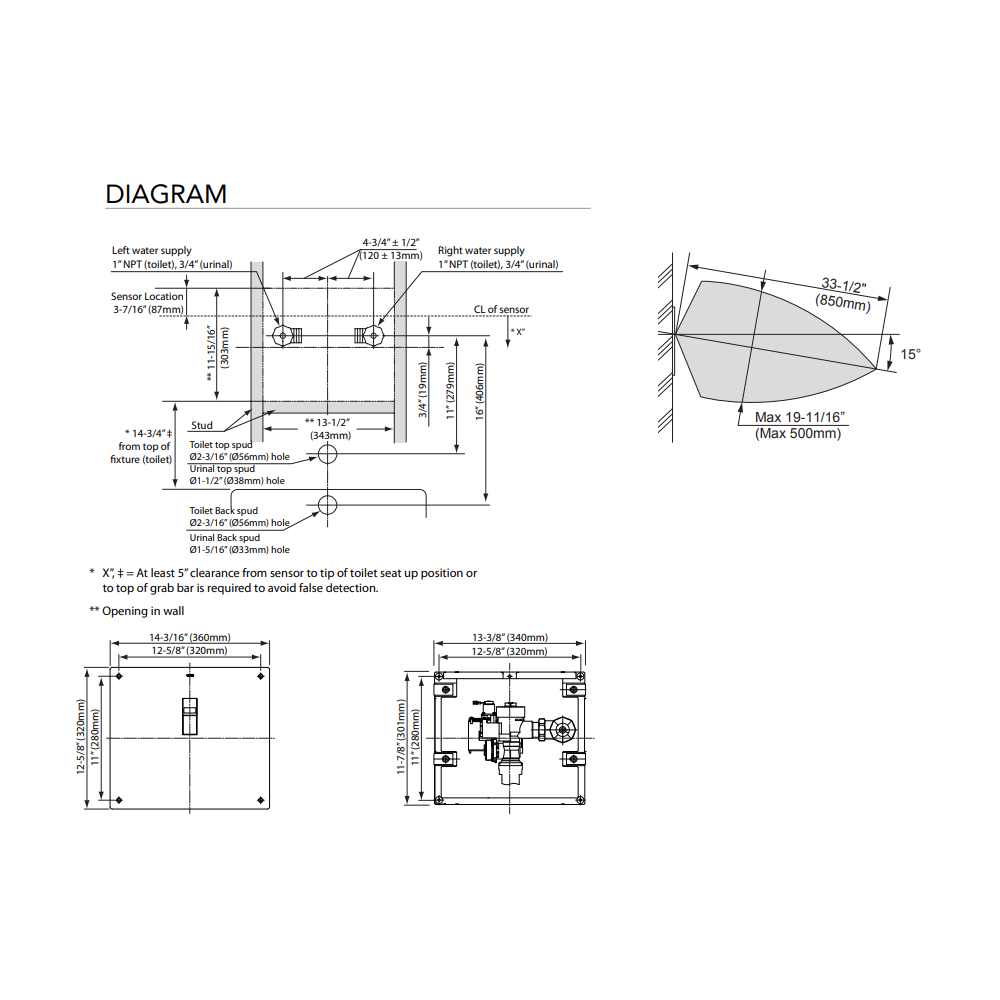

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
