TOTO TEU2LAI412#SS EcoPower High Efficiency Concealed Urinal 0.5 GPF Flush Valve
EcoPower® High-Efficiency Concealed Urinal Flush Valve
0.5 GPF (V.B. Set) (Top Spud) (IoT-Enabled)
SKU: TEU2LAi412#SS
Color: Stainless Steel
Options: IoT-Enabled
IoT Options: TeraCode CC
Engineered to require no electricity or routine battery replacement, EcoPower technology is the perfect marriage of hands-free operation, low maintenance, easy installation and ecology.
MODELS
TEU2LAi2#SS
TEU2LAiA#SS (0.5 gpf flush valve)
THP3395 (IoT Communication Card)
TEU2LAi211#SS
TEU2LAiA#SS (0.5 gpf flush valve)
VB1311R#RB (3/4" VB tube, 3/4" angle stop, back spud)
THP3395 (IoT Communication Card)
TEU2LAi212#SS
TEU2LAiA#SS (0.5 gpf flush valve)
VB0912R#RB (3/4" VB tube, 3/4" angle stop, top spud)
THP3395 (IoT Communication Card)
TEU2LAi221#SS
TEU2LAiA#SS (0.5 gpf flush valve)
VB1321R#RB (1-1/4" VB tube, 3/4" angle stop, back spud)
THP3395 (IoT Communication Card)
TEU2LAi4#SS
TEU2LAiA#SS (0.5 gpf flush valve)
THP3566 (IoT Communication Card)
TEU2LAi411#SS
TEU2LAiA#SS (0.5 gpf flush valve)
VB1311R#RB (3/4" VB tube, 3/4" angle stop, back spud)
THP3566 (IoT Communication Card)
TEU2LAi412#SS
TEU2LAiA#SS (0.5 gpf flush valve)
VB0912R#RB (3/4" VB tube, 3/4" angle stop, top spud)
THP3566 (IoT Communication Card)
TEU2LAi421#SS
TEU2LAiA#SS (0.5 gpf flush valve)
VB1321R#RB (1-1/4" VB tube, 3/4" angle stop, back spud)
THP3566 (IoT Communication Card)
Features
Concealed Flush Valve with 3/4" angle stop and 3/4" Vacuum Breaker Set
14" x 12" Stainless Steel cover plate with tamper proof screws
Hydropower self-generating system
0.5 GPF
Adjustable tail piece connection
Neutral rough
Manual flush override
Self Adjusting detection range
6-second detection time with 3-second flush delay
Automatic maintenance flush after 12 hours of inactivity
For Urinal with 3/4" top spud inlet
ADA Compliant
IoT Features
Wireless communication
Connects seamlessly with Georgia Pacific's KOLO™ Smart Monitoring System or other IoT monitoring platforms
Service agreement required to enable IoT or Smart Features
ECOPOWER flush valve's operation is independent of its IoT capability
Some of the IoT-enabled Smart Features include: failure detection, usage, water consumption, and battery/capacitor charge
Additional product benefits and features are available by contacting TOTO IoT/Smart Products Experts (or Division) or a TOTO sales representative
SPECIFICATIONS
Material Bronze casting
Sensor detection time Factory setting at six (6) seconds minimum
Sensor detection range Self-adjusting to environment
Discharge quantity Preset to 0.5 GPF / 1.9 LPF
Operating temperature 32-104°F (0-40°C)
Water source Tap water (Municipal Supply Only)
Water supply connection 3/4" NPT
Warranty Three year limited
Water supply pressure Min: 15 psi (flowing)
Max: 125 psi (static)
PRODUCT SPECIFICATION
TOTO® Model No. ______________
Product shall be 0.5 GPF.
Product shall be an automatic infrared sensor activated, urinal flush valve.
Product shall use hydropower, ECOPOWER flush valve system.
Product shall have heavy-duty 14" x 12" stainless steel cover plate with satin finish and solid bronze valve body.
Product shall have neutral rough-in and adjustable tail piece connection.
Product shall have smart sensor with self-adjusting detection range.
Product shall have manual flush override.
Product shall have 6-second detection time to prevent ghost flushing.
Product shall have solenoid with self-cleaningmechanism.
CODES/STANDARDS
Meets or exceeds ASSE 1037/ASME A112.1037/CSA B125.37
FCC compliant to Part 15
Certifications: IAPMO(cUPC), EPA WaterSense, State of Massachusetts, and others
Code Compliance: UPC, IPC, NSPC, NPC Canada, and others
ADA compliant
Complies with CA Prop 65 warning requirements
Complies with CA Title 20 regulations and CalGreen when paired with a water closet which has an equivalent water consumption.
Product Specifications

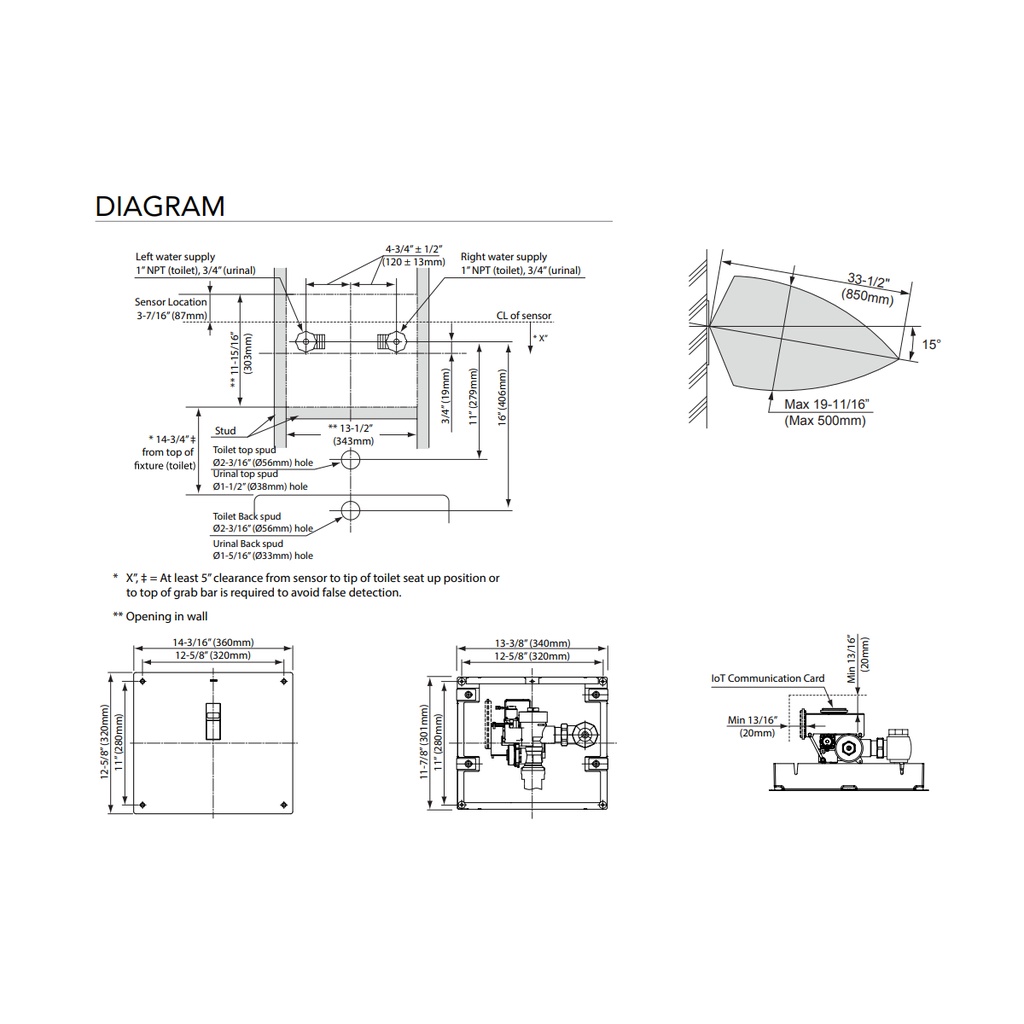

CAD Drawing
