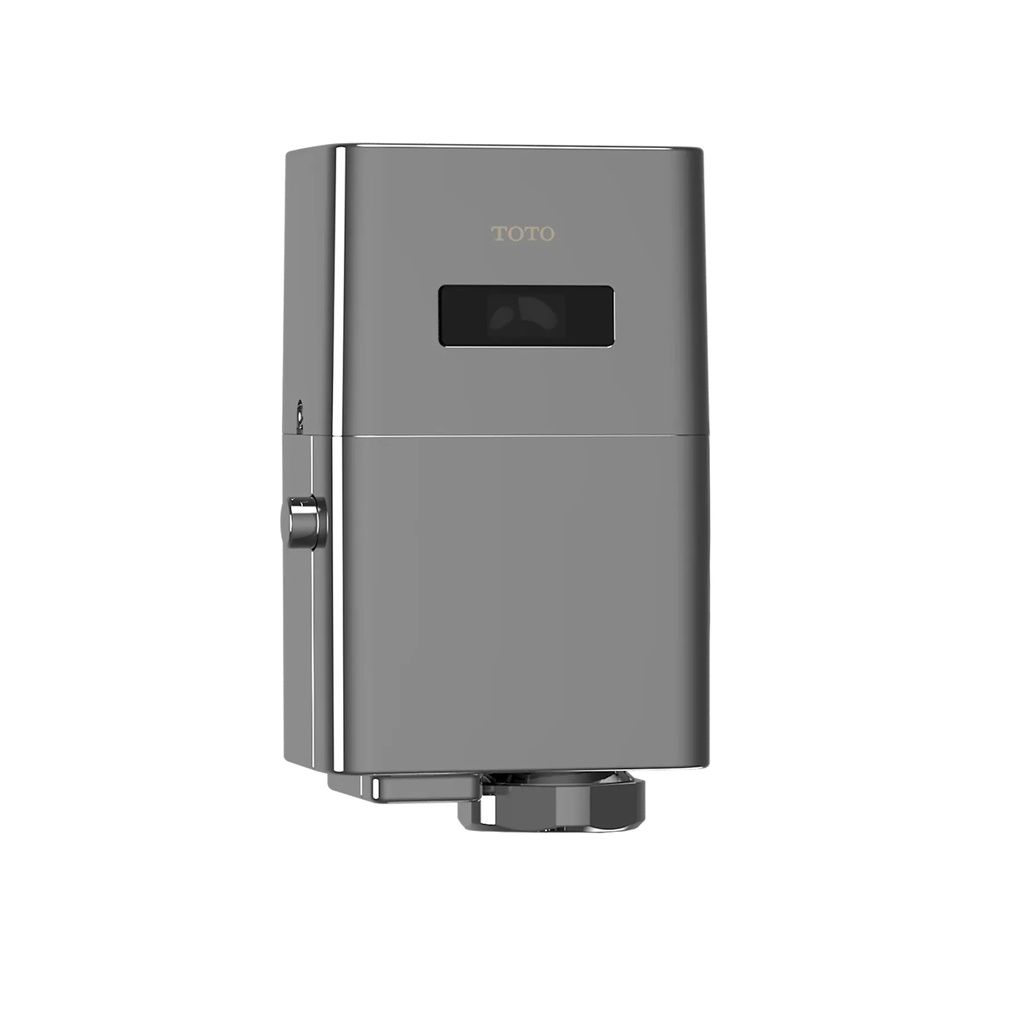

TOTO TEU1GAI4#CP EcoPower Urinal 1.0 GPF Flush Valve Polished Chrome
EcoPower® Urinal Flush Valve Only - 1.0 GPF (IoT-Enabled)
Color: Polished Chrome Finish
Options: IoT-Enabled
IoT Options: TeraCode CC
Engineered to require no electricity or routine battery replacement, EcoPower technology is the perfect marriage of hands-free operation, low maintenance, easy installation and ecology.
MODELS
TEU1GAi2#CP
TEU1GAiA#CP (1.0 gpf urinal flush valve)
THP3395 (IoT Communication Card)
TEU1GAi212#CP
TEU1GAiA#CP (1.0 gpf urinal flush valve)
VB0912R#CP (3/4" VB tube, 3/4" angle stop)
THP3395 (IoT Communication Card)
TEU1GAi222#CP
TEU1GAiA#CP (1.0 gpf urinal flush valve)
VB0922R#CP (1-1/4" VB tube, 3/4" angle stop)
THP3395 (IoT Communication Card)
TEU1GAi4#CP
TEU1GAiA#CP (1.0 gpf urinal flush valve)
THP3566 (IoT Communication Card)
TEU1GAi412#CP
TEU1GAiA#CP (1.0 gpf urinal flush valve)
VB0912R#CP (3/4" VB tube, 3/4" angle stop)
THP3566 (IoT Communication Card)
TEU1GAi422#CP
TEU1GAiA#CP (1.0 gpf urinal flush valve)
VB0922R#CP (1-1/4" VB tube, 3/4" angle stop)
THP3566 (IoT Communication Card)
OPTIONAL ACCESSORIES
Z-4000-J - Adapter for ground joint angle stops
Features
1.0 GPF
Self-powered hydroelectric flush valve system
No minimum daily usage requirement
Durable chrome plated body with tamper-proof screws and solid bronze valve body
Neutral rough-in and adjustable tail piece connection
True mechanical flush override
Smart sensor with self-adjusting detection range
6-second detection time with no flush delay
Automatic maintenance flush after 12 hours of inactivity
For urinal with 3/4" top spud inlet
ADA compliant
IoT Features
Wireless communication
Connects seamlessly with Georgia Pacific's KOLO™ Smart Monitoring System or other IoT monitoring platforms
Service agreement required to enable IoT or Smart Features
ECOPOWER flush valve's operation is independent of its IoT capability
Some of the IoT-enabled Smart Features include: failure detection, usage, water consumption, and battery/capacitor charge
Additional product benefits and features are available by contacting TOTO IoT/Smart Products Experts (or Division) or a TOTO sales representative
SPECIFICATIONS
Material Bronze casting
Sensor detection time Factory setting at six (6) seconds minimum
Sensor detection range Self-adjusting to environment
Discharge quantity Preset to 1.0 GPF / 3.8 LPF
Operating temperature 32-104°F (0-40°C)
Water source Tap water (Municipal Supply Only)
Water supply connection 3/4" NPT
Warranty Three year limited
Water supply pressure Min: 15 psi (flowing)
Max: 125 psi (static)
PRODUCT SPECIFICATION
TOTO® Model No. ______________ Product shall be 1.0 GPF.
Product shall be an automatic infrared sensor activated, urinal flush valve.
Product shall use hydropower, ECOPOWER flush valve system.
Product shall have durable chrome plated body with tamperproof screws and solid bronze valve body.
Product shall have neutral rough-in and adjustable tail piece connection.
Product shall have smart sensor with self-adjusting detection range.
Product shall have true mechanical flush override.
Product shall have 6-second detection time to prevent ghost flushing.
Product shall have solenoid with self-cleaning mechanism.
CODES/STANDARDS
Meets or exceeds ASSE 1037/ASME A112.1037/CSA B125.37
FCC compliant to Part 15
Certifications: IAPMO(cUPC), State of Massachusetts, and others
Code Compliance: UPC, IPC, NSPC, NPC Canada, and others
ADA compliant
Complies with CA Prop 65 warning requirements
Product Specifications

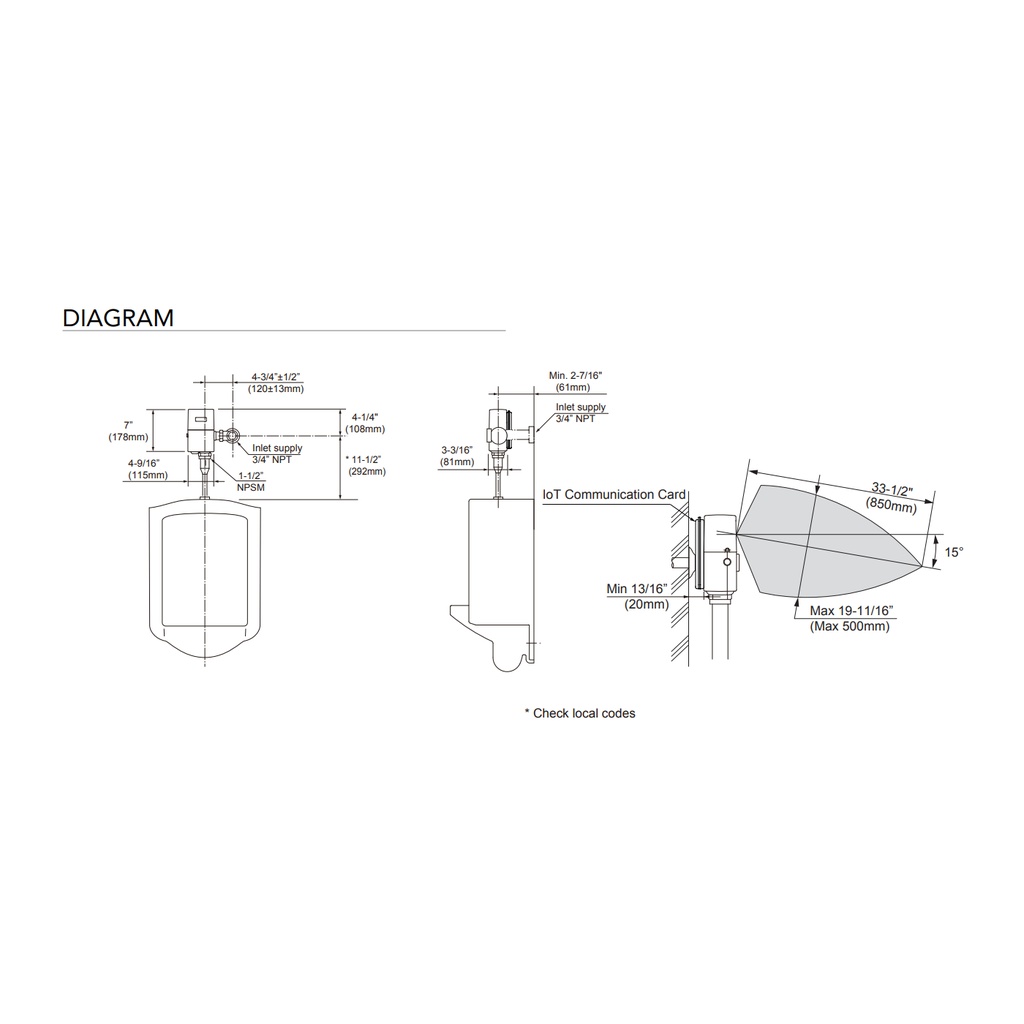

CAD Drawing
