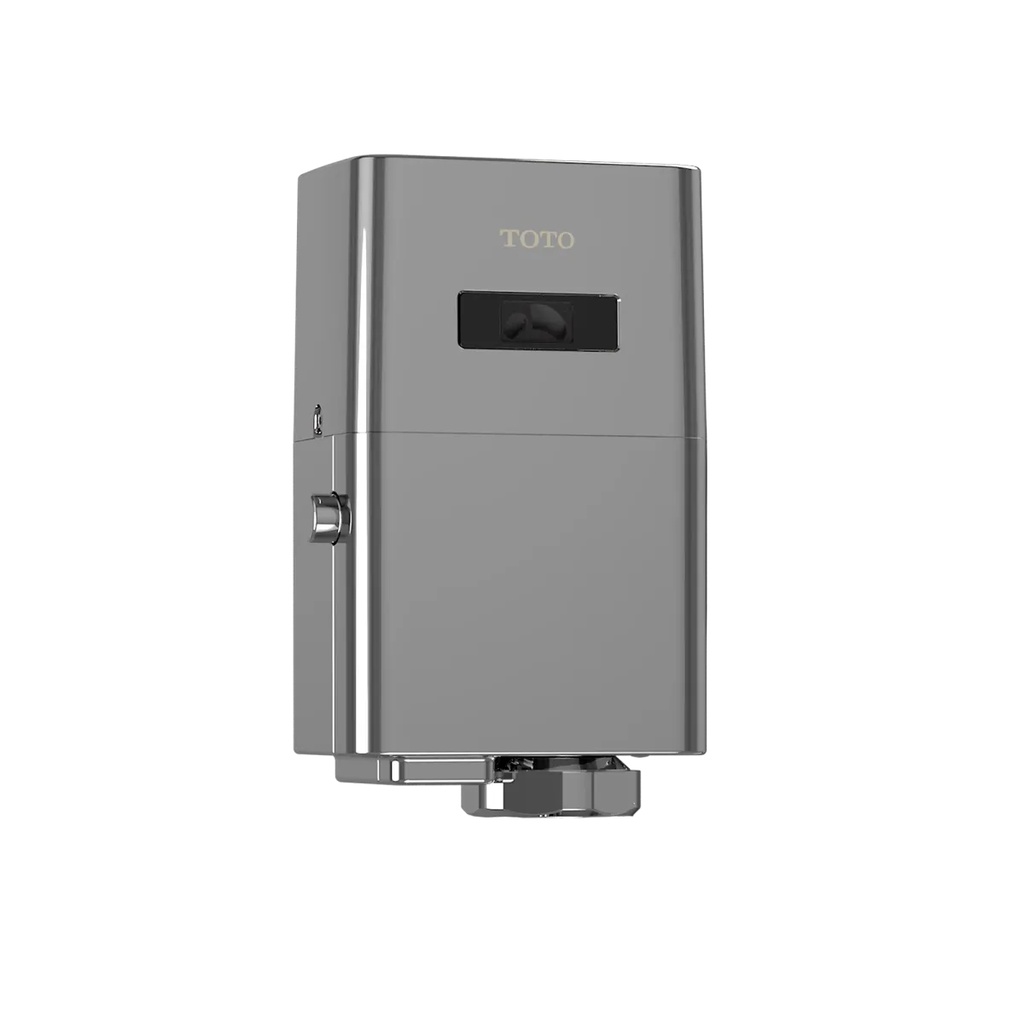

TOTO TET6UAR#CP EcoPower Ultra High Efficiency Toilet 1.0 GPF Flush Valve
EcoPower® Ultra-High-Efficiency Toilet Flush Valve Only - 1.0 GPF
SKU: TET6UAR#CP
Color: Polished Chrome Finish
Options: Standard Model
The water-powered turbine in the EcoPower flush valve charges the power supply during usage and provides maximum performance in even the most demanding, high-traffic commercial spaces.
MODELS
TET6UA32#CP
TET6UAR#CP (1.0 gpf flush valve)
VBXX32#CP (1-1/2" vacuum breaker tube, 1" angle stop)
THP3291A#CP (24" Long 1-1/2" Chrome plated vacuum breaker tube)
OPTIONAL ACCESSORIES
Z-4000-J - Adapter for ground joint angle stops
Features
1.0 GPF
Self-powered hydroelectric flush valve system
No minimum daily usage requirement
Durable chrome plated body with tamper-proof screws and solid bronze valve body
Self-cleaning piston valve with 360° filter screen
Neutral rough-in and adjustable tail piece connection
True mechanical flush override
Smart sensor with self-adjusting detection range
6-second detection time to prevent ghost fl ushing
For toilet with 1-1/2" top spud inlet using 24" vacuum breaker tube
ADA Compliant
SPECIFICATIONS
Material Bronze casting
Power supply ECOPOWER
Sensor detection time Factory setting at six (6) seconds minimum
Sensor detection range Self-adjusting to environment
Discharge quantity Preset to 1.0 gpf/3.8 lpf
Operating temperature 32°-104°F (0°-40°C)
Water supply pressure Min: 35 psi (flowing) Max: 125 psi (static)
Water supply connection 1" NPT
Warranty Three year limited
PRODUCT SPECIFICATION
TOTO® Model No. ______________________________
Product shall be 1.0 GPF.
Product shall be an automatic infrared sensor-activated, toilet flush valve designed to pair with 24" vacuum breakers.
Product shall use hydropower, ECOPOWER flush valve system.
Product shall have durable chrome plated body with tamper-proof screws and solid bronze valve body.
Product shall have smart sensor with self-adjusting detection range.
Product shall have neutral rough-in and adjustable tail piece connection.
Product shall have smart sensor with self-adjusting detection range.
Product shall have true mechanical flush override.
Product shall have 6-second detection time to prevent ghost flushing.
Product shall have piston with debris screen and solenoid with self-cleaning mechanism.
Product shall be ADA compliant.
CODES/STANDARDS
Meets or exceeds 1037/ASME A112.1037/CSA B125.37
Certifications: IAPMO(cUPC), EPA WaterSense, ASSE, State of MAssachusetts, and others
Code Compliance: UPC, IPC, NSPC, NPC Canada, and others
Complies with CA Title 20 regulations and CalGreen
ADA compliant
Complies with CA Prop 65 warning requirements
Product Specifications

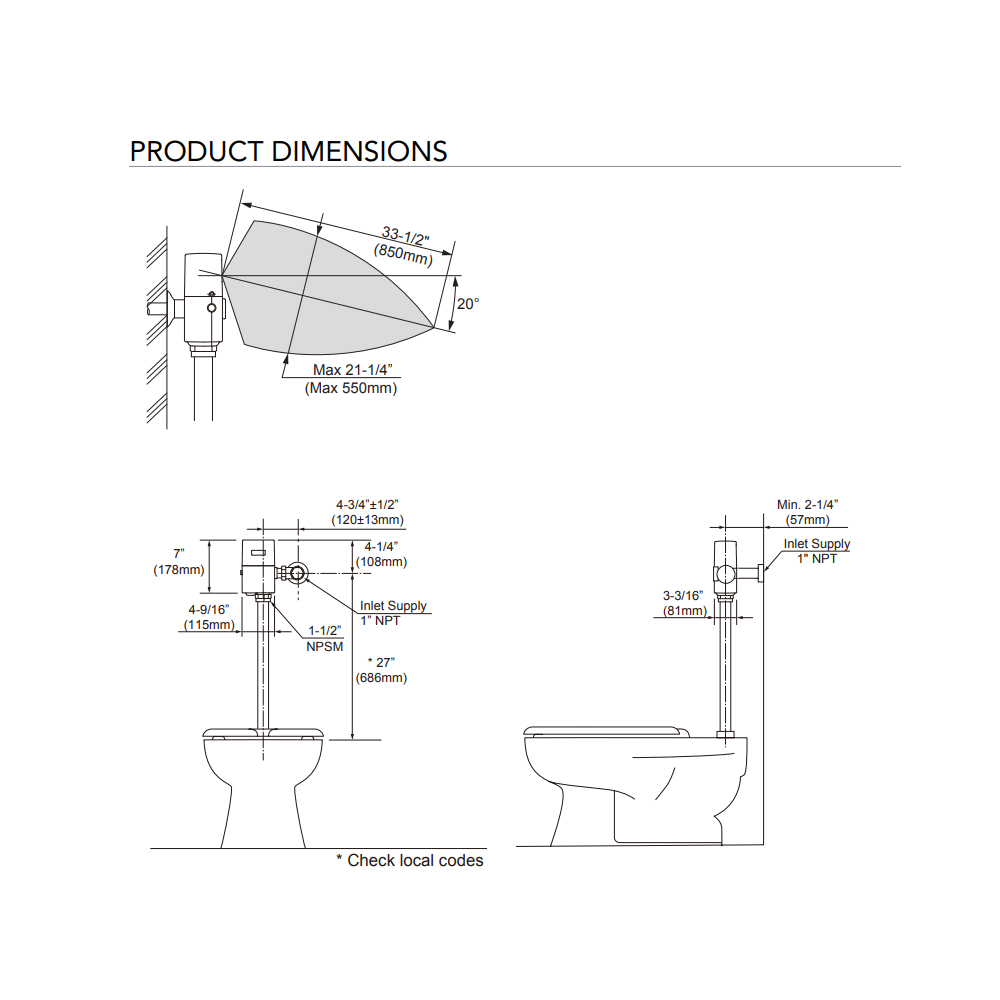

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
