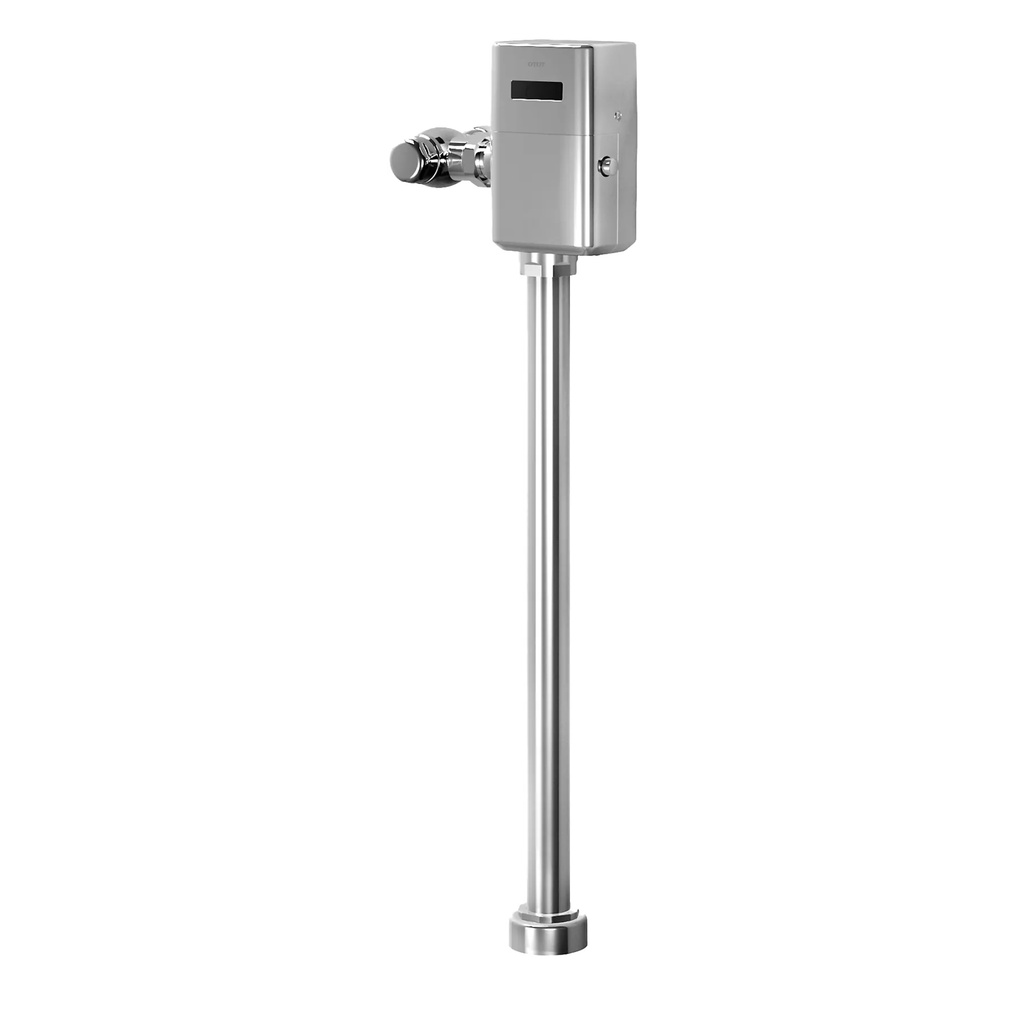

TOTO TET6GBIA32#CP EcoPower Toilet 1.6 GPF Flush Valve Polished Chrome
EcoPower® Toilet Flush Valve (V.B. Set) - 1.6 GPF
SKU: TET6GBIA32#CP
Color: Polished Chrome Finish
Options: IoT-Enabled
IoT Options: Without CC
The water-powered turbine in the EcoPower flush valve charges the power supply during usage and provides maximum performance in even the most demanding, high-traffic commercial spaces.
MODELS
TET6GB32#CP
TET6GB#CP (1.6 GPF flush valve)
VBXX32#CP (1-1/2" vacuum breaker tube, 1" angle stop)
THP3291B#CP (24-1/2" Long 1-1/2" Chrome plated vacuum breaker tube)
OPTIONAL ACCESSORIES
Z-4000-J - Adapter for ground joint angle stops
Features
1.6 GPF
Self-Powered hydroelectric flush valve system
No minimum daily usage requirement
Durable Chrome plated body with tamper-proof screws and solid bronze valve body
Self-cleaning piston valve with 360 degree filter screen
Neutral rough-in and adjustable tail piece connection
True mechanical flush override
Smart sensor with self-adjusting detection range
6 Second detection time to prevent ghost flushing
ADA Compliant
For toilet with 1-1/2" top spud inlet using 24-1/2" vacuum breaker tube
Exposed flush valve with 1" angle stop and 1-1/2" vacuum breaker set
SPECIFICATIONS
Material Bronze casting
Power supply ECOPOWER
Sensor detection time Factory setting at six (6) seconds minimum
Sensor detection range Self-adjusting to environment
Discharge quantity Preset to 1.6 GPF / 6.0 LPF
Operating temperature 32-104°F (0-40°C)
Water source Tap water (Municipal Supply Only)
Water supply pressure Min: 15 psi (flowing)
Max: 125 psi (static)
Water supply connection 1" NPT
Warranty Three year limited
PRODUCT SPECIFICATION
TOTO® Model No. ______________ Product shall be 1.6 GPF.
Product shall be an automatic infrared sensoractivated, toilet flush valve desgined to pair with 24-1/2" vacuum breakers.
Product shall use hydropower, ECOPOWER flush valve system.
Product shall have durable chrome plated body with tamper-proof screws and solid bronze valve body.
Product shall have smart sensor with self-adjusting detection range.
Product shall have neutral rough-in and adjustable tail piece connection.
Product shall have true mechanical flush override.
Product shall have 6 second detection time to prevent ghost flushing.
Product shall have piston with debris screen and solenoid with self-cleaning mechanism.
CODES/STANDARDS
Meets or exceeds ASSE 1037/ASME A112.1037/CSA B125.37
Certifications: IAPMO(cUPC), State of Massachusetts, and others
Code Compliance: UPC, IPC, NSPC, NPC Canada, and others
ADA compliant
Complies with CA Prop 65 warning requirements
Product Specifications

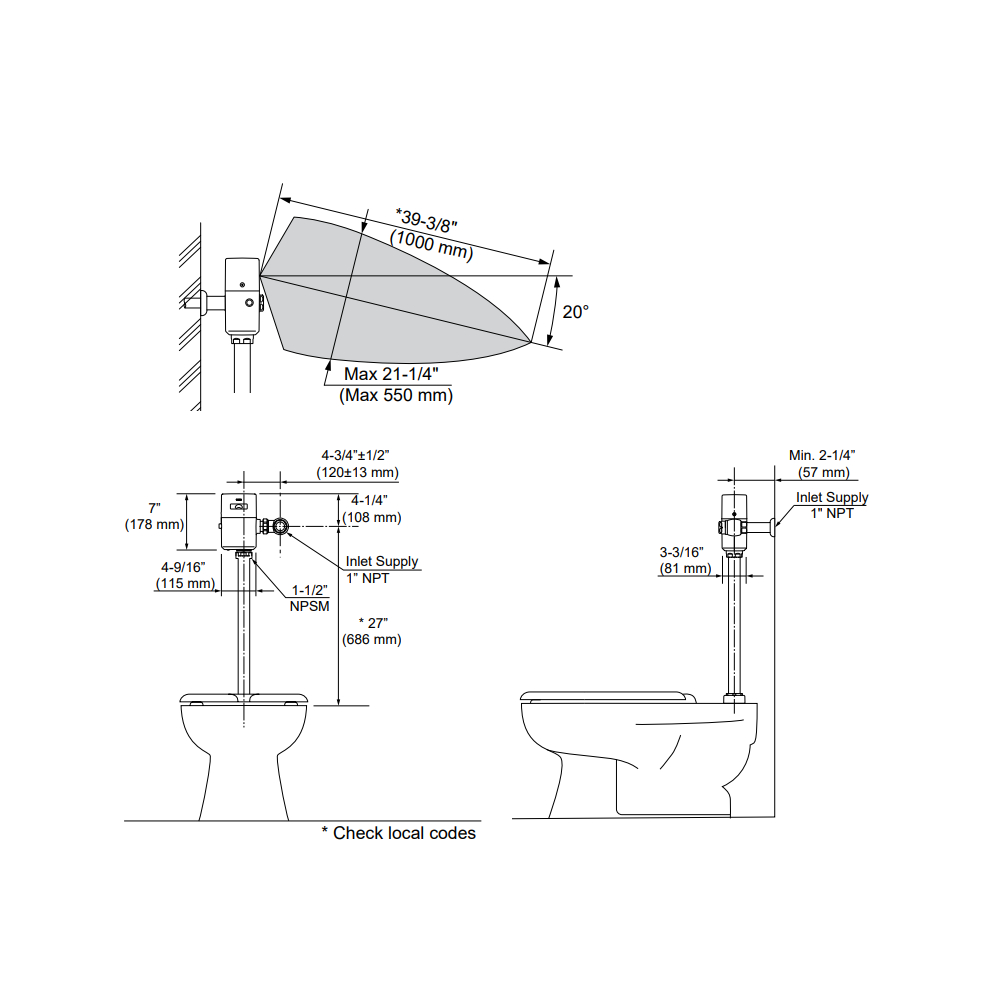

CAD Drawing
