TOTO TET3LBI431#SS EcoPower High Efficiency Concealed 4"x4" Toilet Flush Valve Stainless Steel
EcoPower® High-Efficiency Concealed 4"x4" Toilet Flush Valve (V.B. Set) - 1.28 GPF
SKU: TET3LBI431#SS
Spud Location: Back Spud Wall
Options: IoT-Enabled
IoT Options: TeraCode CC
The water-powered turbine in the EcoPower flush valve charges the power supply during usage and provides maximum performance in even the most demanding, high-traffic commercial spaces.
MODELS
TET3LB31#SS (Backspud wall)
TET3LB#SS (1.28 GPF flush valve)
VB1331R#RB (1-1/2" vacuum breaker tube, 1" angle stop)
TET3LB32#SS (Top spud)
TET3LB#SS (1.28 GPF flush valve)
VB0932R#RB (1-1/2" vacuum breaker tube, 1" angle stop)
TET3LB33#SS (Backspud floor)
TET3LB#SS (1.28 GPF flush valve)
VB1333R#RB (1-1/2" vacuum breaker tube, 1" angle stop)
OPTIONAL ACCESSORIES
Z-4000-J - Adapter for ground joint angle stops
Features
1.28 GPF
Self-powered hydroelectric flush valve system
No minimum daily usage requirement
4” x 4” stainless steel cover plate with brushed satin finish and solid bronze valve body
Self-cleaning piston valve with 360° filter screen
Neutral rough-in and adjustable tail piece connection
Manual flush override
Smart sensor with self-adjusting detection range
6 second detection time to prevent ghost flushing
Concealed flush valve with 1” angle stop and 1-1/2” vacuum breaker set
Contributes to earning credits in LEED®
Protects trap seal with a maintenance flush if not used in a 24 hr period
ADA Compliant
SPECIFICATIONS
Material Bronze casting
Power supply ECOPOWER
Sensor detection time Factory setting at six (6) seconds minimum
Sensor detection range Self-adjusting to environment
Discharge quantity Preset to 1.28 GPF / 4.8 LPF
Operating temperature 32-104°F (0-40°C)
Water source Tap water (Municipal Supply Only)
Water supply pressure Min: 25 psi (flowing)
Max: 125 psi (static)
Water supply connection 1" NPT
Warranty Three year limited
PRODUCT SPECIFICATION
TOTO® Model No. ______________ Product shall be 1.28 GPF.
Product shall be an automatic infrared sensor-activated, toilet flush valve.
Product shall use hydropower, ECOPOWER flush valve system.
Product shall have 4" x 4" cover plate with brushed stainless steel finish and solid bronze valve body.
Product shall have smart sensor with self-adjusting detection range.
Product shall have neutral rough-in and adjustable tail piece connection.
Product shall have manual flush override.
Product shall have 6 second detection time to prevent ghost flushing.
Product shall have piston with debris screen and solenoid with self-cleaning mechanism.
CODES/STANDARDS
Meets or exceeds ASSE 1037/ASME A112.1037/CSA B125.37
Certifications: IAPMO(cUPC), EPA WaterSense, State of Massachusetts, and others
Code Compliance: UPC, IPC, NSPC, NPC Canada, and others
ADA compliant
Complies with CA Prop 65 warning requirements
Complies with CA Title 20 regulations and CalGreen when paired with a water closet which has an equivalent water consumption.
Product Specifications

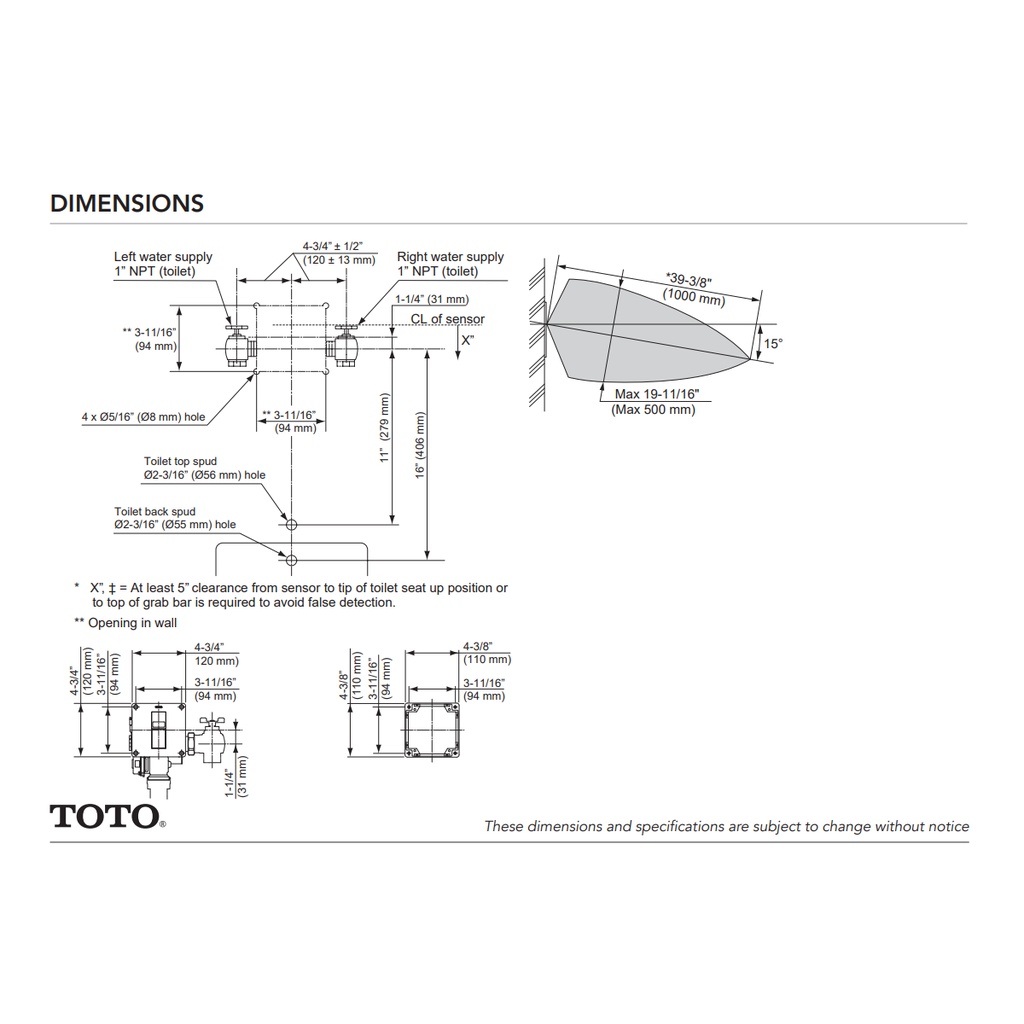

CAD Drawing
