TOTO TET2GBIA#SS EcoPower Concealed Toilet Flush Valve Stainless Steel
EcoPower® Concealed Toilet Flush Valve Only - 1.6 GPF
SKU: TET2GBIA#SS
Options: IoT-Enabled
IoT Options: Without CC
The water-powered turbine in the EcoPower flush valve charges the power supply during usage and provides maximum performance in even the most demanding, high-traffic commercial spaces.
MODELS
TET2GB31#SS (Backspud wall)
TET2GB#SS (1.6 GPF flush valve)
VB1331R#RB (1-1/2" vacuum breaker tube, 1" angle stop)
TET2GB32#SS (Top spud)
TET2GB#SS (1.6 GPF flush valve)
VB0932R#RB (1-1/2" vacuum breaker tube, 1" angle stop)
TET2GB33#SS (Backspud floor)
TET2GB#SS (1.6 GPF flush valve)
VB1333R#RB (1-1/2" vacuum breaker tube, 1" angle stop)
OPTIONAL ACCESSORIES
Z-4000-J - Adapter for ground joint angle stops
Features
1.6 GPF
Self-powered hydroelectric flush valve system
No minimum daily usage requirement
Heavy duty 14” x 12” stainless steel cover plate with satin finish and solid bronze valve body
Self-cleaning piston valve with 360° filter screen
Neutral rough-in and adjustable tail piece connection
Manual flush override
Smart sensor with self-adjusting detection range
6-second detection time with 3-second flush delay
Protects trap seal with a maintenance flush if not used in a 24 hr period
ADA Compliant
SPECIFICATIONS
Material Bronze casting
Power supply ECOPOWER
Sensor detection time Factory setting at six (6) seconds minimum
Sensor detection range Self-adjusting to environment
Discharge quantity Preset to 1.6 GPF / 6.0 LPF
Operating temperature 32-104°F (0-40°C)
Water source Tap water (Municipal Supply Only)
Water supply pressure Min: 25 psi (flowing)
Max: 125 psi (static)
Water supply connection 1" NPT
Warranty Three year limited
PRODUCT SPECIFICATION
TOTO® Model No. ______________ Product shall be 1.6 GPF.
Product shall be an automatic infrared sensor-activated, toilet flush valve.
Product shall use hydropower, ECOPOWER flush valve system.
Product shall have heavy-duty 14" x 12" stainless steel cover plate with satin finish and solid bronze valve body.
Product shall have smart sensor with self-adjusting detection range.
Product shall have neutral roughin and adjustable tail piece connection.
Product shall have manual flush override.
Product shall have 6 second detection time to prevent ghost flushing.
Product shall have piston with debris screen and solenoid with self-cleaning mechanism.
CODES/STANDARDS
Meets or exceeds ASSE 1037/ASME A112.1037/CSA B125.37
Certifications: IAPMO(cUPC), State of Massachusetts, and others
Code Compliance: UPC, IPC, NSPC, NPC Canada, and others
ADA compliant
Complies with CA Prop 65 warning requirements
Product Specifications

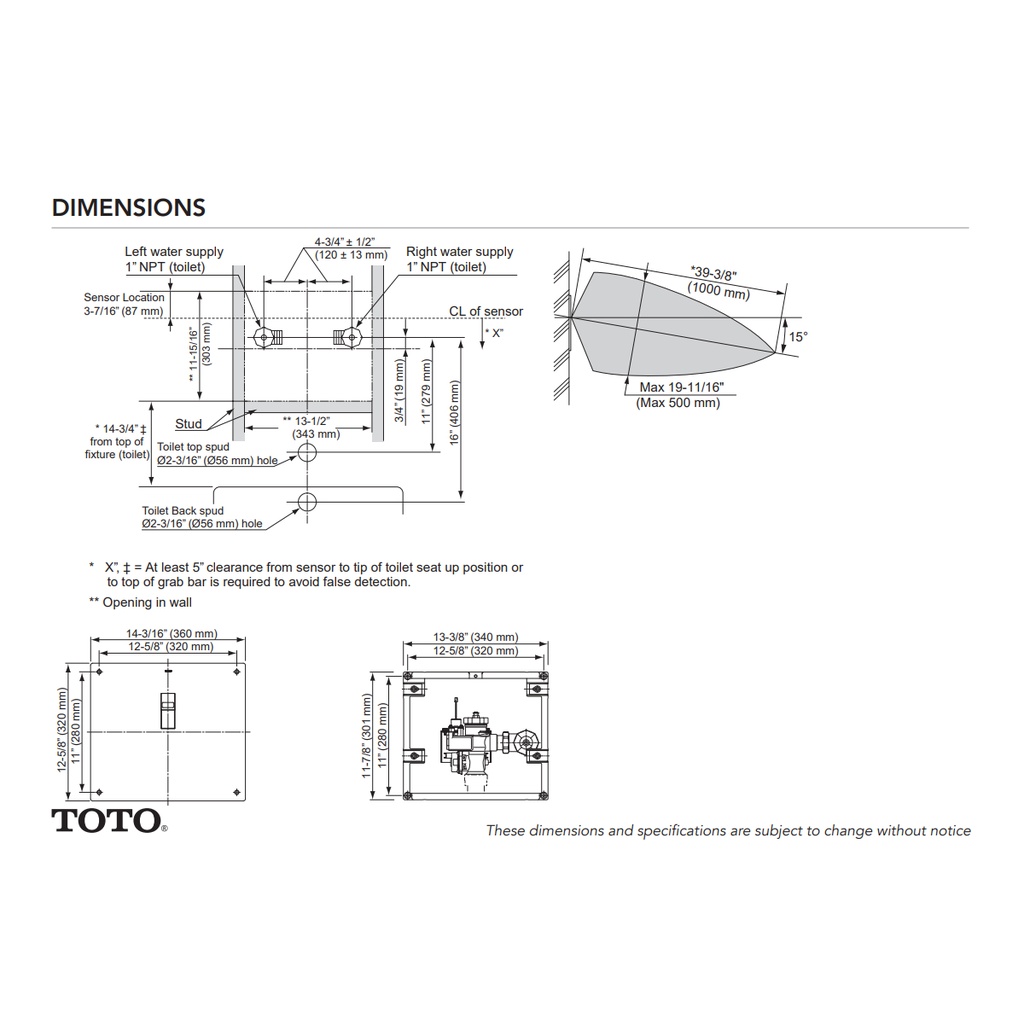

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
