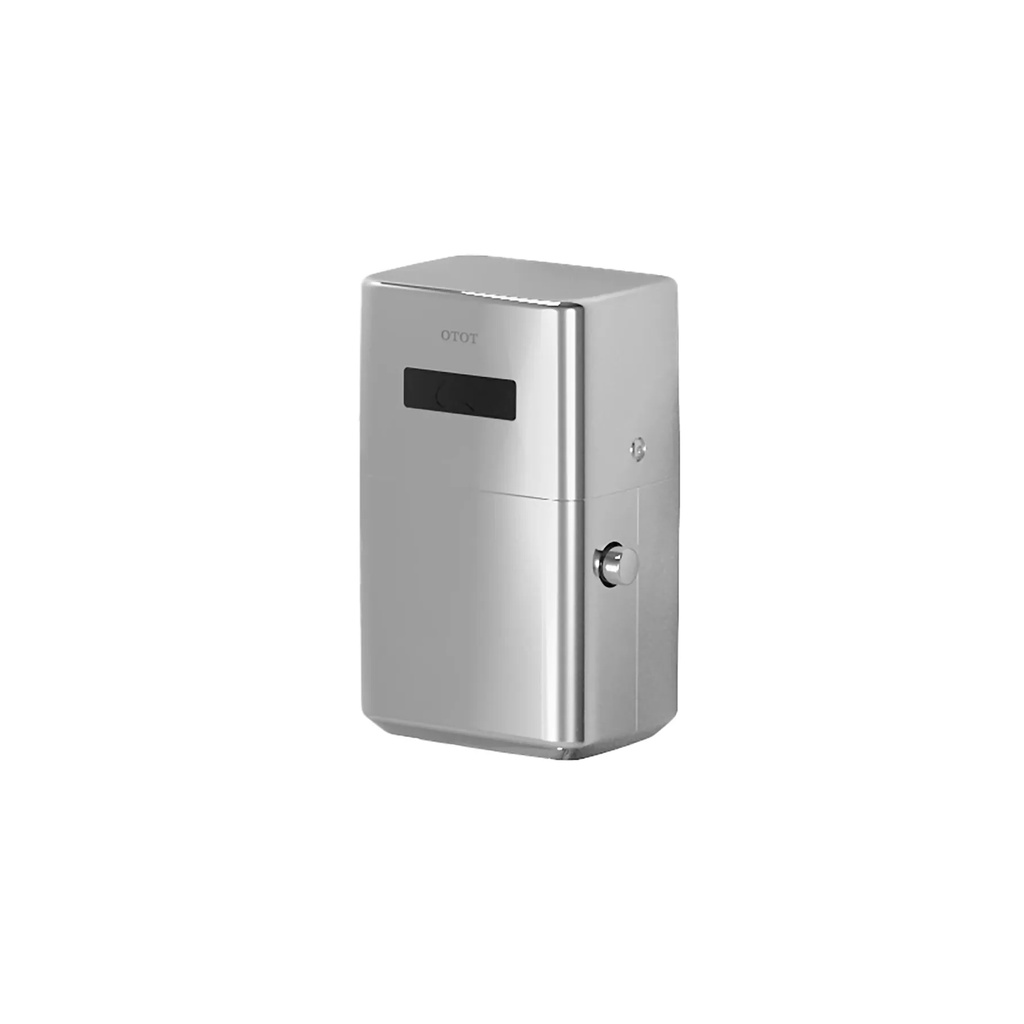

TOTO TET1UBIA#CP EcoPower Ultra High Efficiency Toilet Flush Valve Polished Chrome
EcoPower® Ultra-High-Efficiency Toilet Flush Valve Only - 1.0 GPF
SKU: TET1UBIA#CP
Options: IoT-Enabled
IoT Options: Without CC
The water-powered turbine in the EcoPower flush valve charges the power supply during usage and provides maximum performance in even the most demanding, high-traffic commercial spaces. A special version of this flush valve works with reclaimed water systems.
MODELS
TET1UB32#CP
TET1UB#CP (1.0 GPF flush valve)
VB0932B#CP (1-1/2" vacuum breaker tube, 1" angle stop)
OPTIONAL ACCESSORIES
Z-4000-J - Adapter for ground joint angle stops
Features
1.0 GPF
Self-Powered hydroelectric flush valve system
No minimum daily usage requirement
Durable Chrome plated body with tamper-proof screws and solid bronze valve body
Self-cleaning piston valve with 360 degree filter screen
Neutral rough-in and adjustable tail piece connection
True mechanical flush override
Smart sensor with self-adjusting detection range
6 Second detection time to prevent ghost flushing
For toilet with 1-1/2” top spud inlet
Protects trap seal with a maintenance flush if not used in a 24 hr period
ADA Compliant
EPD coated valve body (Reclaimed Water Model)
Model available for use with Reclaimed Water Systems (See options above)
See product Spec Sheet (X) version for Reclaimed Water Quality Parameters
SPECIFICATIONS
Material Bronze casting
Power supply ECOPOWER
Sensor detection time Factory setting at six (6) seconds minimum
Sensor detection range Self-adjusting to environment
Discharge quantity Preset to 1.0 GPF / 3.8 LPF
Operating temperature 32-104°F (0-40°C)
Water source Tap water (Municipal Supply Only)
Water supply pressure Min: 25 psi (flowing)
Max: 125 psi (static)
Water supply connection 1" NPT
Warranty Three year limited
PRODUCT SPECIFICATION
TOTO® Model No. ______________ Product shall be 1.0 GPF.
Product shall be an automatic infrared sensor-activated, toilet flush valve.
Product shall use hydropower, ECOPOWER flush valve system.
Product shall have durable chrome plated body with tamper-proof screws and solid bronze valve body.
Product shall have smart sensor with self-adjusting detection range.
Product shall have neutral rough-in and adjustable tail piece connection.
Product shall have true mechanical flush override.
Product shall have 6 second detection time to prevent ghost flushing.
Product shall have piston with debris screen and solenoid with self-cleaning mechanism.
CODES/STANDARDS
Meets or exceeds ASSE 1037/ASME A112.1037/CSA B125.37
Certifications: IAPMO(cUPC), EPA WaterSense, State of Massachusetts, and others
Code Compliance: UPC, IPC, NSPC, NPC Canada, and others
ADA compliant
Complies with CA Prop 65 warning requirements
Complies with CA Title 20 regulations and CalGreen when paired with a water closet which has an equivalent water consumption
Product Specifications

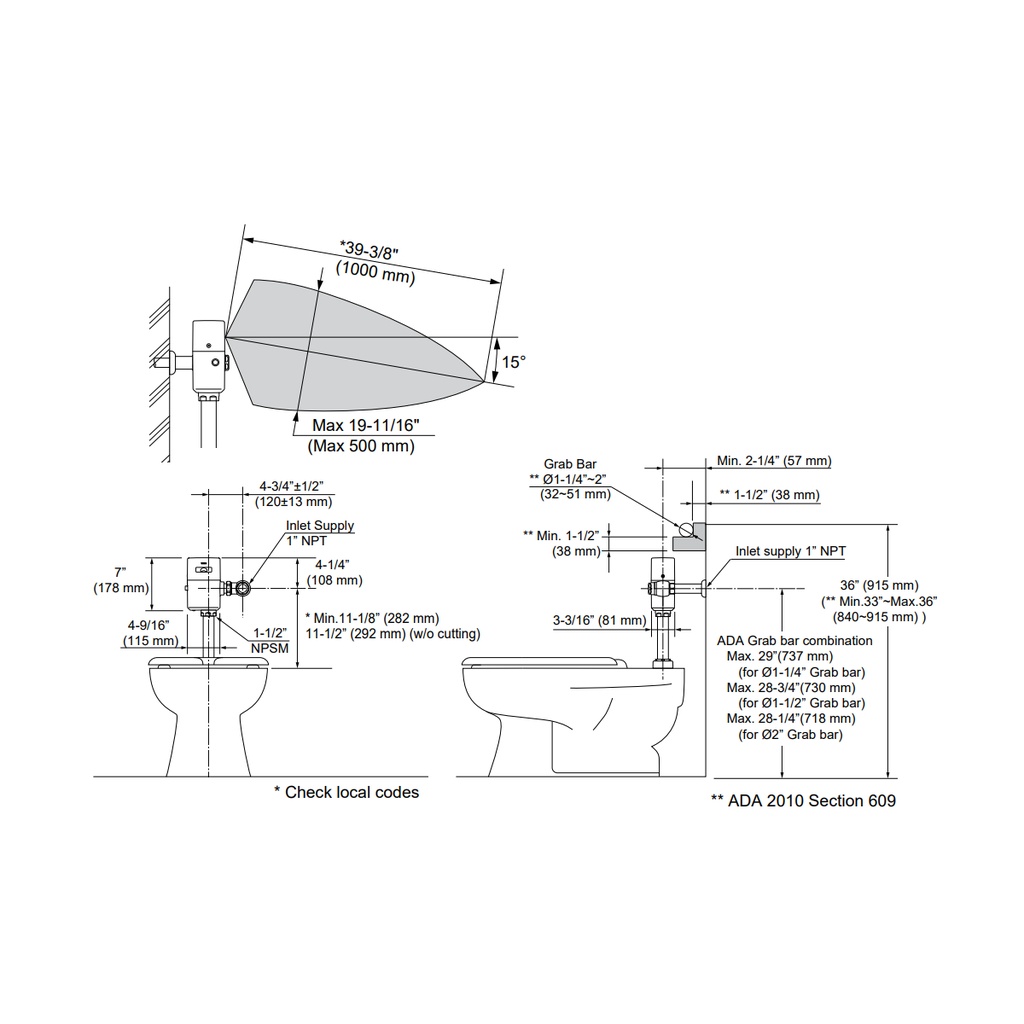

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
