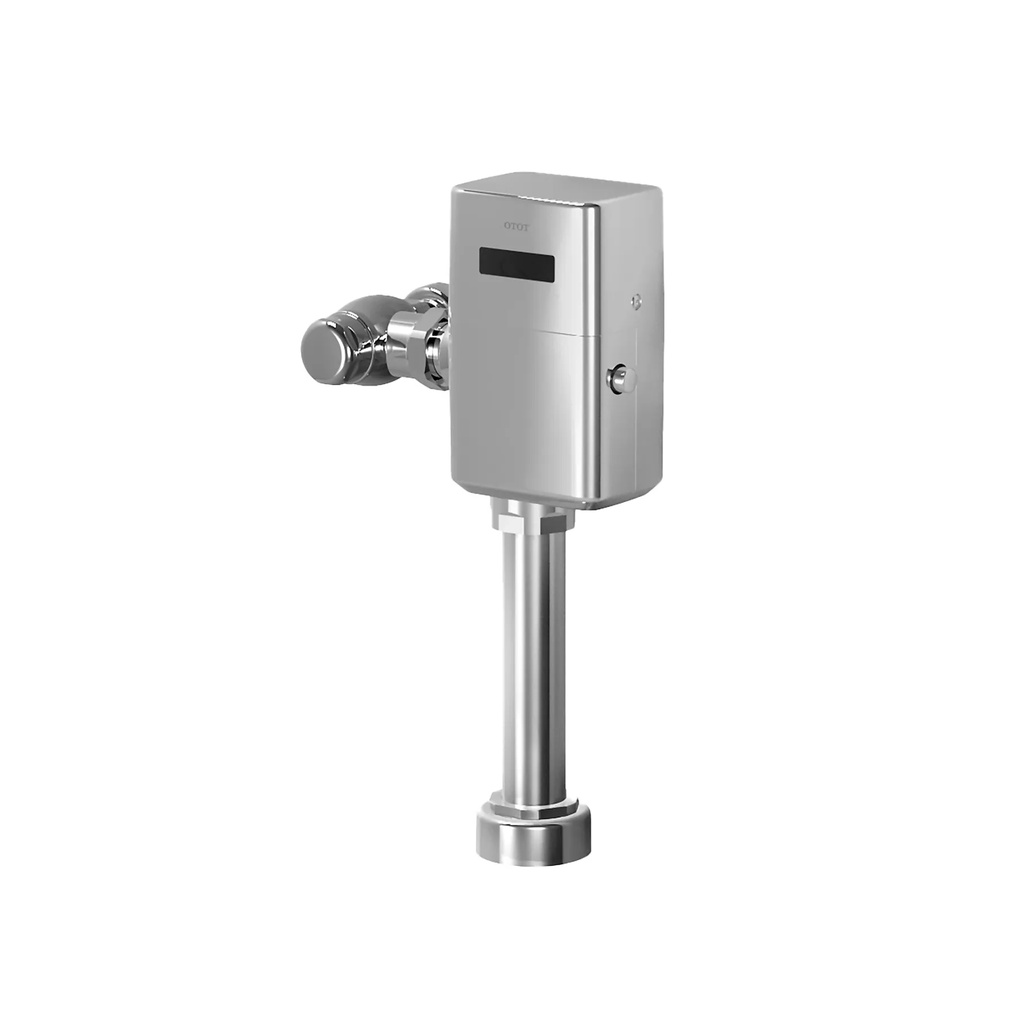

TOTO TET1LBI432#CP EcoPower Ultra High Efficiency Toilet Flush Valve Polished Chrome
EcoPower® Ultra-High-Efficiency Toilet Flush Valve (V.B. Set) - 1.28 GPF
SKU: TET1LBI432#CP
Options: IoT-Enabled
IoT Options: TeraCode CC
The water-powered turbine in the EcoPower flush valve charges the power supply during usage and provides maximum performance in even the most demanding, high-traffic commercial spaces. A special version of this flush valve works with reclaimed water systems.
MODELS
TET1LB32#CP
TET1LB#CP (1.28 GPF flush valve)
VB0932B#CP (1-1/2" vacuum breaker tube, 1" angle stop)
OPTIONAL ACCESSORIES
Z-4000-J - Adapter for ground joint angle stops
Features
1.28 GPF
Self-Powered hydroelectric flush valve system
No minimum daily usage requirement
Durable Chrome plated body with tamper-proof screws and solid bronze valve body
Self-cleaning piston valve with 360 degree filter screen
Neutral rough-in and adjustable tail piece connection
True mechanical flush override
Smart sensor with self-adjusting detection range
6 Second detection time to prevent ghost flushing
For toilet with 1-1/2” top spud inlet
Exposed flush valve with 1” angle stop and 1-1/2” vacuum breaker set
Contributes to earning credits in LEED®
Protects trap seal with a maintenance flush if not used in a 24 hr period
ADA Compliant
EPD coated valve body (Reclaimed Water Model)
Model available for use with Reclaimed Water Systems (See options above)
See product Spec Sheet (X) version for Reclaimed Water Quality Parameters
SPECIFICATIONS
Material Bronze casting
Power supply ECOPOWER
Sensor detection time Factory setting at six (6) seconds minimum
Sensor detection range Self-adjusting to environment
Discharge quantity Preset to 1.28 GPF / 4.8 LPF
Operating temperature 32-104°F (0-40°C)
Water source Tap water (Municipal Supply Only)
Water supply pressure Min: 25 psi (flowing)
Max: 125 psi (static)
Water supply connection 1" NPT
Warranty Three year limited
Product Specifications

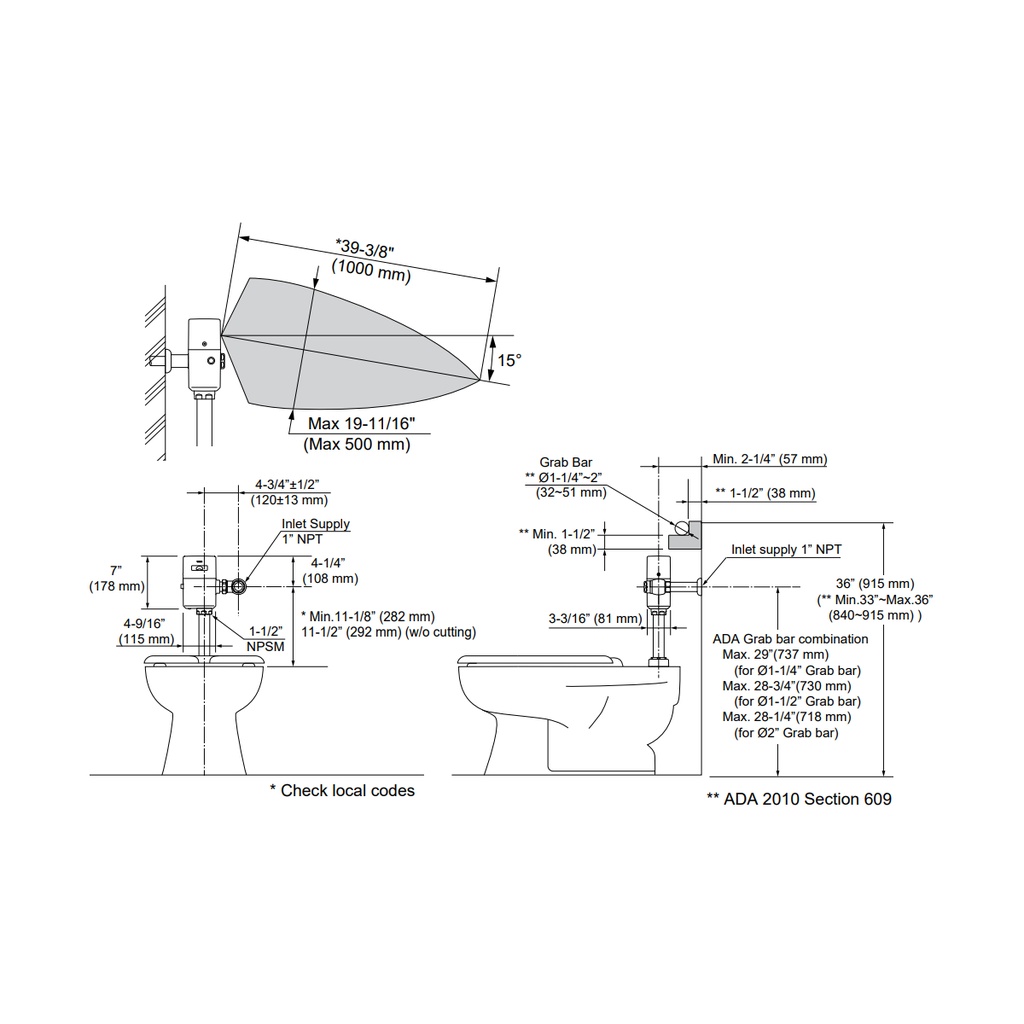

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
