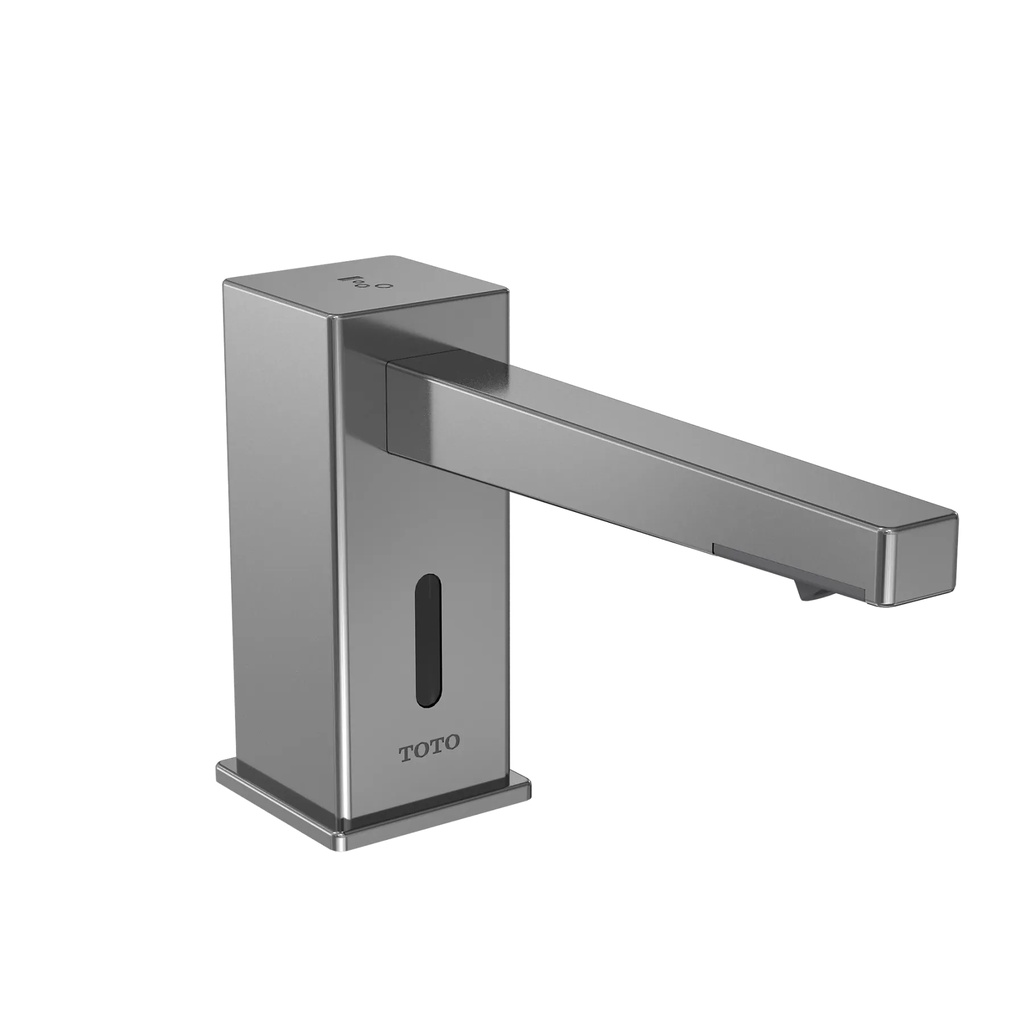

TOTO TES205AEI4#CP Touchless Sensor Soap Dispenser Polished Chrome
Touchless Sensor Soap Dispenser - Square
SKU: TES205AEI4#CP
Controller Options: 3 Spouts, Controller, 3L Tank, Sub-tank
Options: IoT-Enabled
IoT Options: TeraCode CC
TOTO's soap dispensers offer automatic, touchless operation for a more hygienic and comfortable experience. The new controller is designed with a compact body that uses less space and is separate from the soap reservoir creating easier installation and cleaner aesthetic. TOTO Biodegradable, Green Seal™ Soap TSFB is required for this dispenser.
OPTIONAL ACCESSORIES
THP3140#CP
Escutcheon 1-1/8"~1 -1/2"(28 mm~38 mm)
THP3374
Mounting bracket for tank
MODELS
TES201AE#CP (1 Spout)
TLK08001G#CP (Spout x 1 pc)
TLK01101UA (Controller for 1 Spout & Resevoir)
TES202AE#CP (2 Spouts)
TLK08001G#CP (Spout x 2 pcs)
TLK01102U (Controller for 2 Spouts & Resevoir)
TES203AE#CP (3 Spouts)
TLK08001G#CP (Spout x 3 pcs)
TLK01103U (Controller for 3 Spouts & Resevoir)
Features
Sensor Operated automatic foaming soap dispenser
Smart Sensor Senses User Presence
Self-adjusting sensor spout with base unit, mounting hardware and supply lines
ADA Compliant
Available in multi-spout configurations (See options above)
TOTO Soap required
SPECIFICATIONS
Power Supply AC 120V
Wattage
(TLK01101UA) 4W
(TLK01102U) 6.5W
(TLK01103U) 9W
Warranty *Three Year Warranty
Tank Capacity Approximately 0.8 gallon (3L)
Soap Output Volume 0.04 oz (factory setting)
Power Cord Length 55" (1.4 m)
Humidity Max. 90% RH
Ambient Temperature 34-104°F (1-40°C)
Sensor Detection Range
5-1/8" ~ 7-7/8" (130 ~ 200 mm)
Sensor is self-adjusting
PRODUCT SPECIFICATION
TOTO Model #______________
Product shall be automatic infrared sensor activated.
Product shall have automatic sensor adjustment upon installation.
Soap dispenser and controller w/ reservoir will be sold separately.

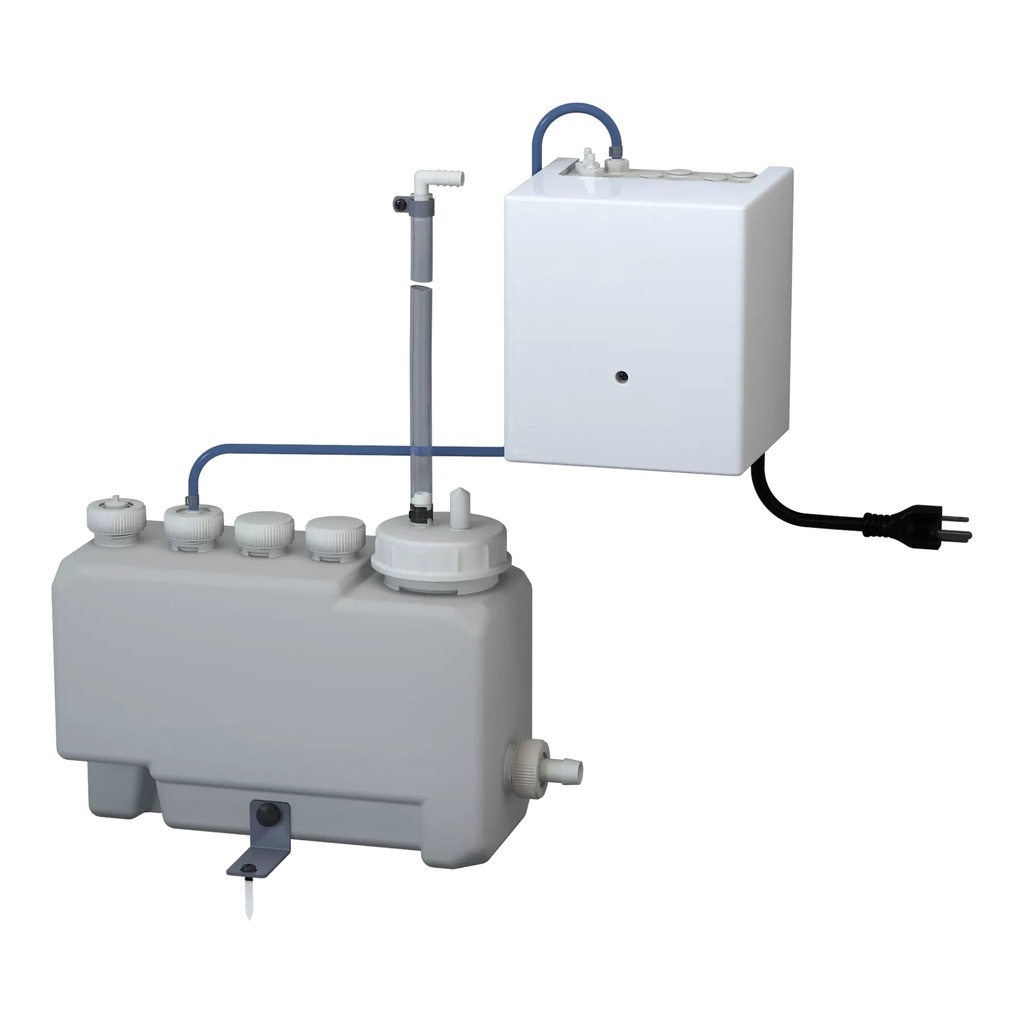

Product shall have a controller pump with 0.8 gallon (3L) reservoir.
CODES/STANDARDS
Meets and exceeds UL1951, CSA C22.2 #68
Certifications: UL
Code Compliance: NEC, CEC
ADA Compliant
Compliance with CA Prop 65 warning requirements
Product Specifications

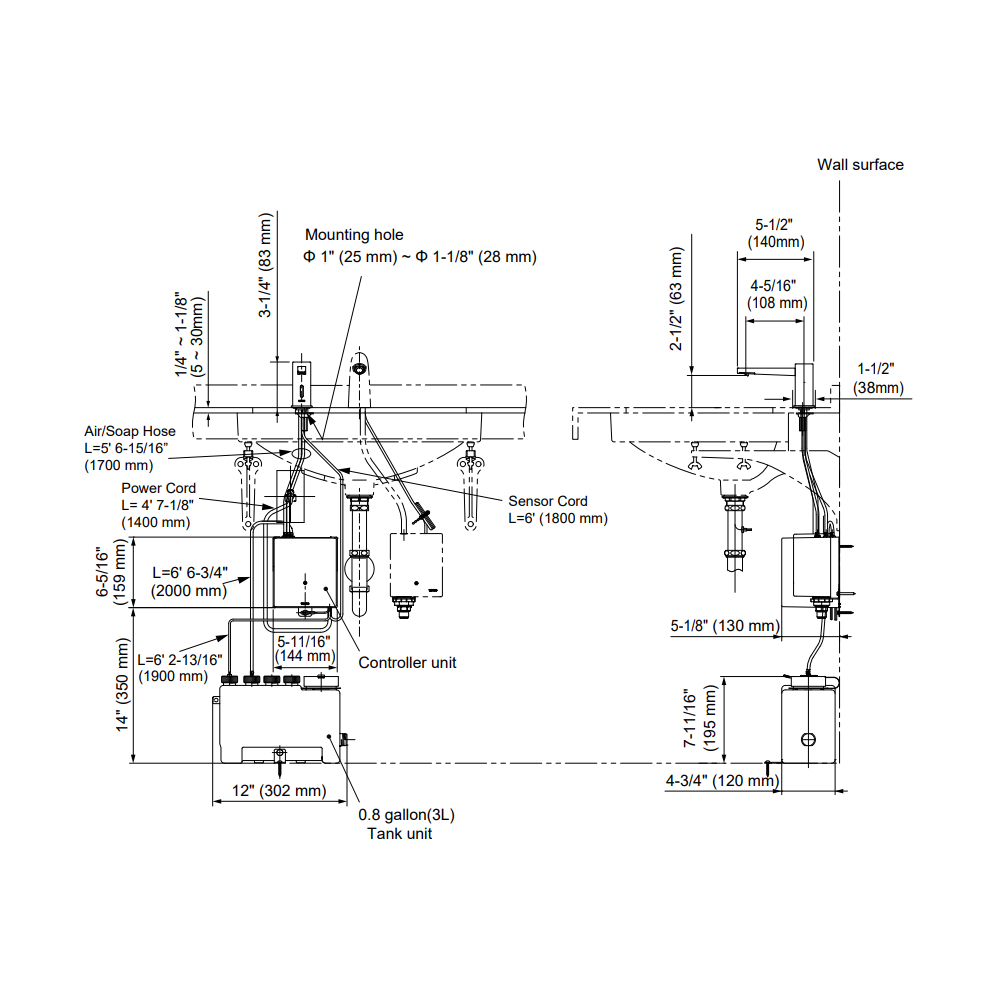

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
