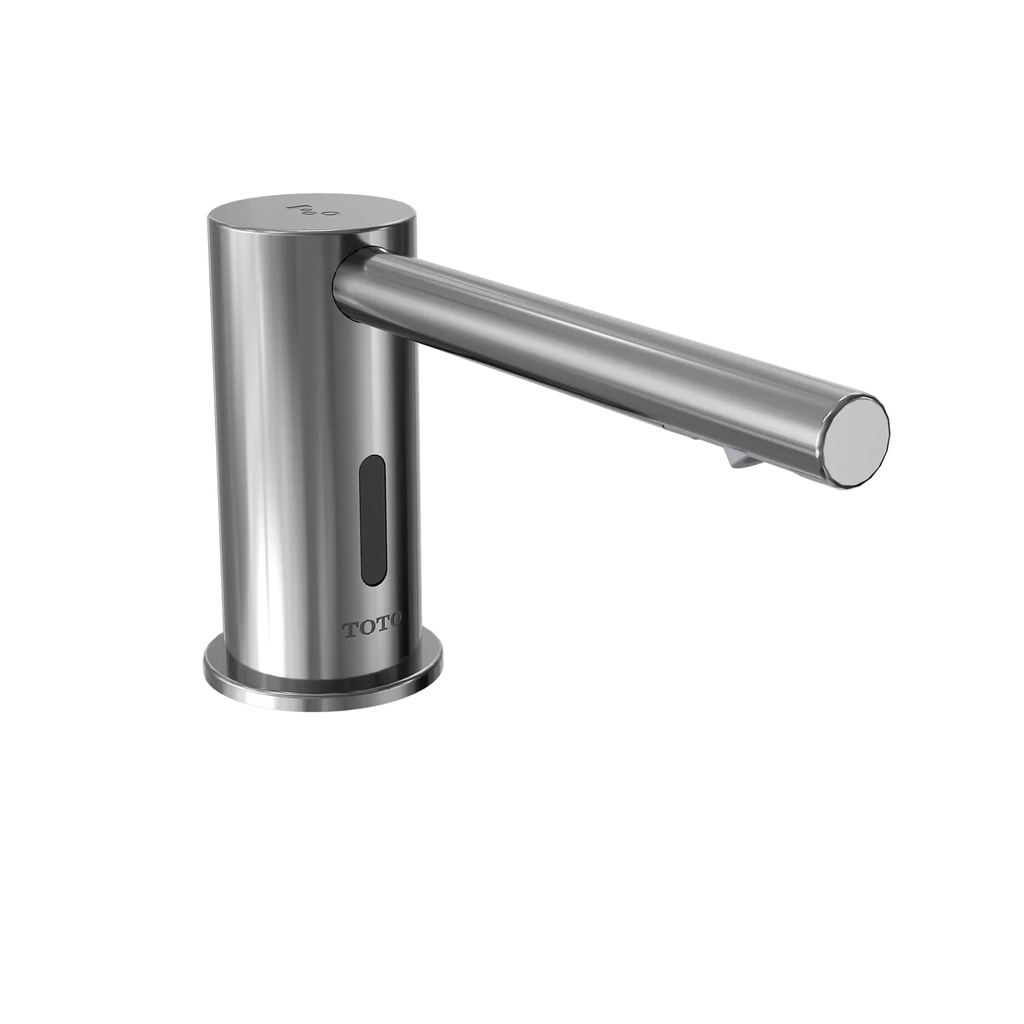

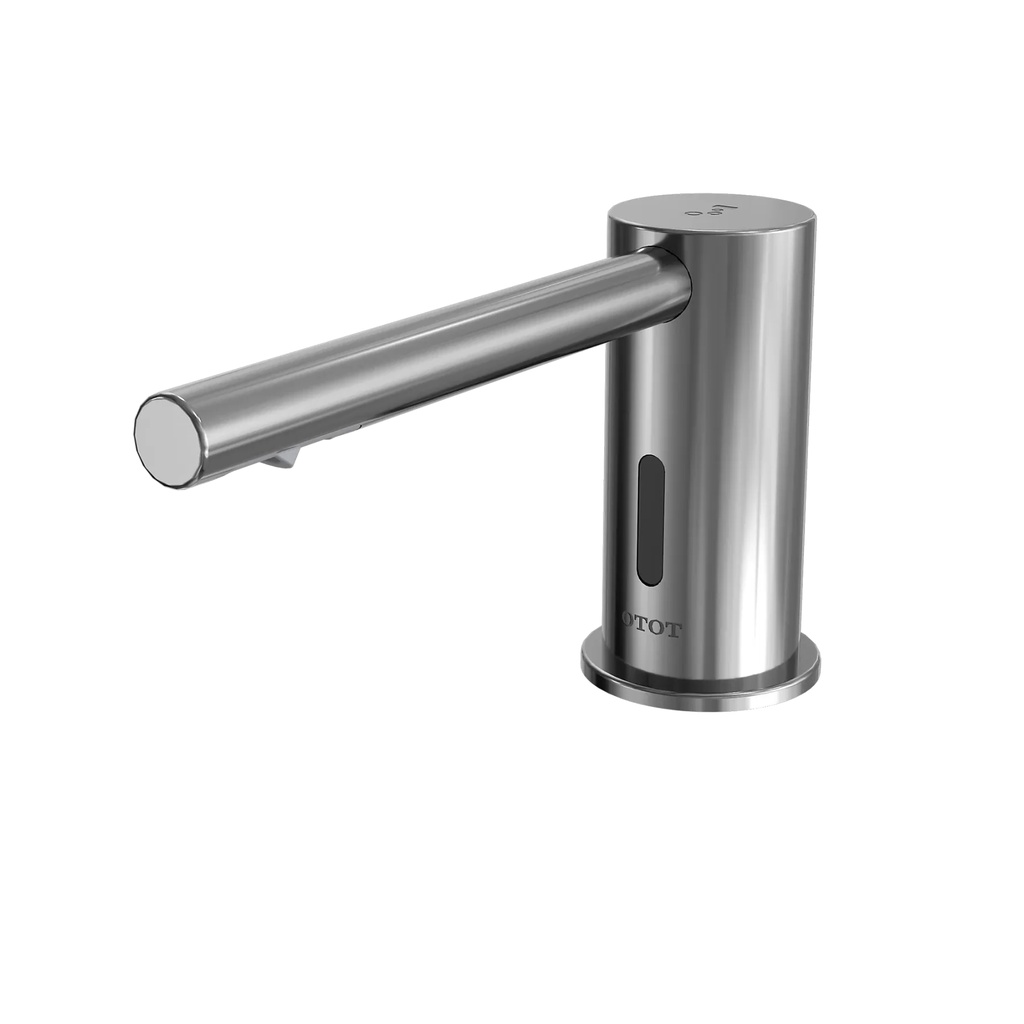

TOTO TES203ABIA#CP Touchless Sensor Soap Dispenser Polished Chrome
Touchless Sensor Soap Dispenser - Round (IoT-Enabled)
SKU: TES203ABIA#CP
Controller Options: 3 Spouts, Controller, 3L Tank
Options: IoT-Enabled
IoT Options: Without CC
TOTO's soap dispensers offer automatic, touchless operation for a more hygienic and comfortable experience. The new controller is designed with a compact body that uses less space and is separate from the soap reservoir creating easier installation and cleaner aesthetic. TOTO Biodegradable, Green Seal™ Soap TSFB is required for this dispenser.
MODELS
TES201ABi2#CP (1 Spout)
TLK07001G#CP (Spout x 1 pc)
TLK01101UiA (Controller for 1 Spout & Resevoir)
THP3395 (IoT Communication Card)
TES202ABi2#CP (2 Spouts)
TLK07001G#CP (Spout x 2 pcs)
TLK01102UiA (Controller for 2 Spouts & Resevoir)
THP3395 (IoT Communication Card)
TES203ABi2#CP (3 Spouts)
TLK07001G#CP (Spout x 3 pcs)
TLK01103UiA (Controller for 3 Spouts & Resevoir)
THP3395 (IoT Communication Card)
TES201ABi4#CP (1 Spout)
TLK07001G#CP (Spout x 1 pc)
TLK01101UiA (Controller for 1 Spout & Resevoir)
THP3566 (IoT Communication Card)
TES202ABi4#CP (2 Spouts)
TLK07001G#CP (Spout x 2 pcs)
TLK01102UiA (Controller for 2 Spouts & Resevoir)
THP3566 (IoT Communication Card)
TES203ABi4#CP (3 Spouts)
TLK07001G#CP (Spout x 3 pcs)
TLK01103UiA (Controller for 3 Spouts & Resevoir)
THP3566 (IoT Communication Card)
OPTIONAL ACCESSORIES
THP3140#CP
Escutcheon 1-1/8"~1 -1/2"(28 mm~38 mm)
THP3374
Mounting bracket for tank
Features
Sensor Operated automatic foaming soap dispenser
Smart Sensor Senses User Presence
Self-adjusting sensor spout with base unit, mounting hardware and supply lines
ADA Compliant
Available in multi-spout configurations (See options above)
TOTO Soap required
IoT Features
Wireless Communication
Connects seamlessly with Georgia-Pacific's (GP) KOLO™ Smart Monitoring System and through an API to facilities monitoring platforms
Service agreement with GP required to enable IoT or Smart Features
Touchless soap dispenser's operation is independent of its IoT capability
Some of the IoT-enabled Smart Features include: failure detection, usage, soap consumption
Additional product benefits and features are available by contacting TOTO IoT/Smart Products Experts (or Division) or a TOTO sales representative
Sensor operated foaming soap dispenser
Self-adjusting sensor spout with base unit, mounting hardware and supply lines
Chrome plated
Single-hole mount
TOTO Soap required

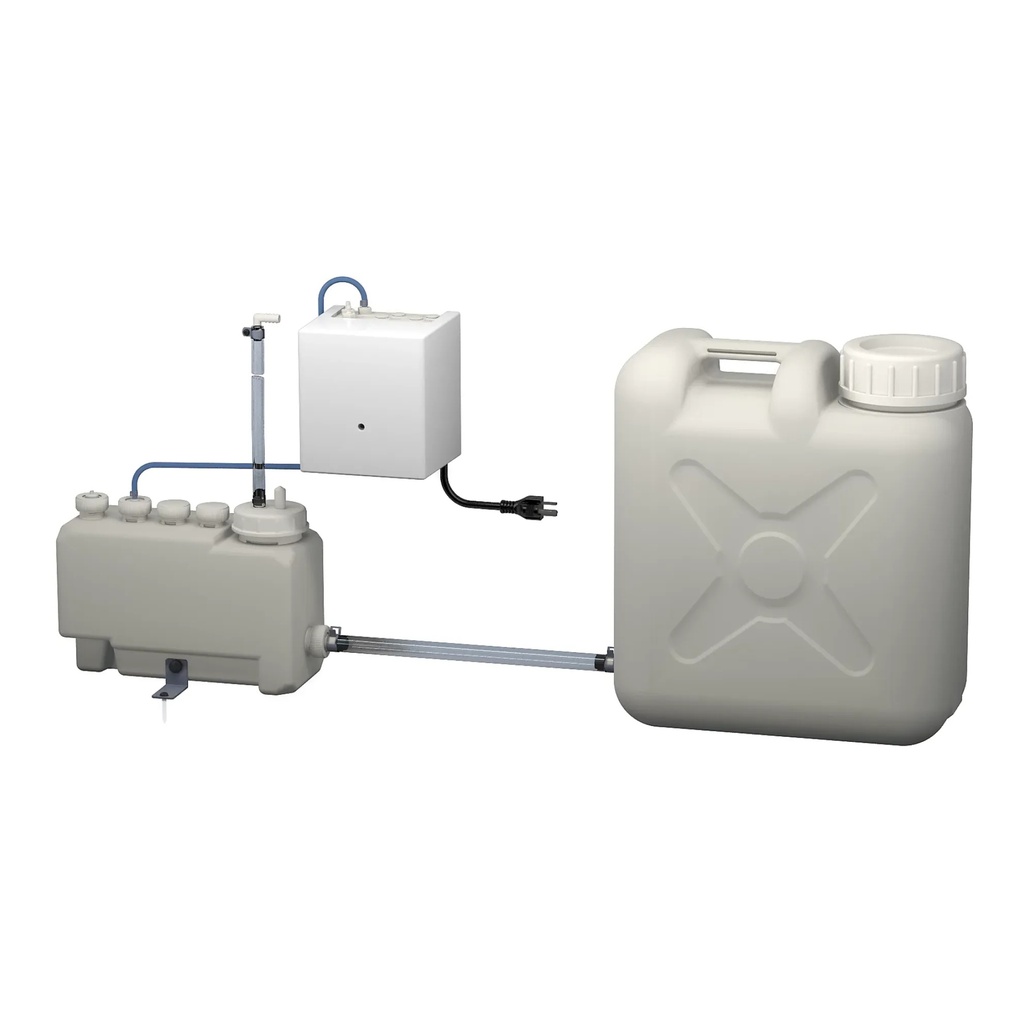

Refillable tank system
ADA compliant
SPECIFICATIONS
Power Supply AC 120V
Warranty *Three Year Warranty
Tank Capacity Approximately 0.8 gallon (3L)
Soap Output Volume 0.04 oz (factory setting)
Power Cord Length 55" (1.4 m)
Humidity Max. 90% RH
Ambient Temperature 34-104°F (1-40°C)
Sensor Detection Range
5-1/8" ~ 7-7/8" (130 ~ 200 mm)
Sensor is self-adjusting
PRODUCT SPECIFICATION
TOTO Model #______________
Product shall be automatic infrared sensor activated.
Product shall have automatic sensor adjustment upon installation.
Soap dispenser and controller w/ resevoir will be sold separately.

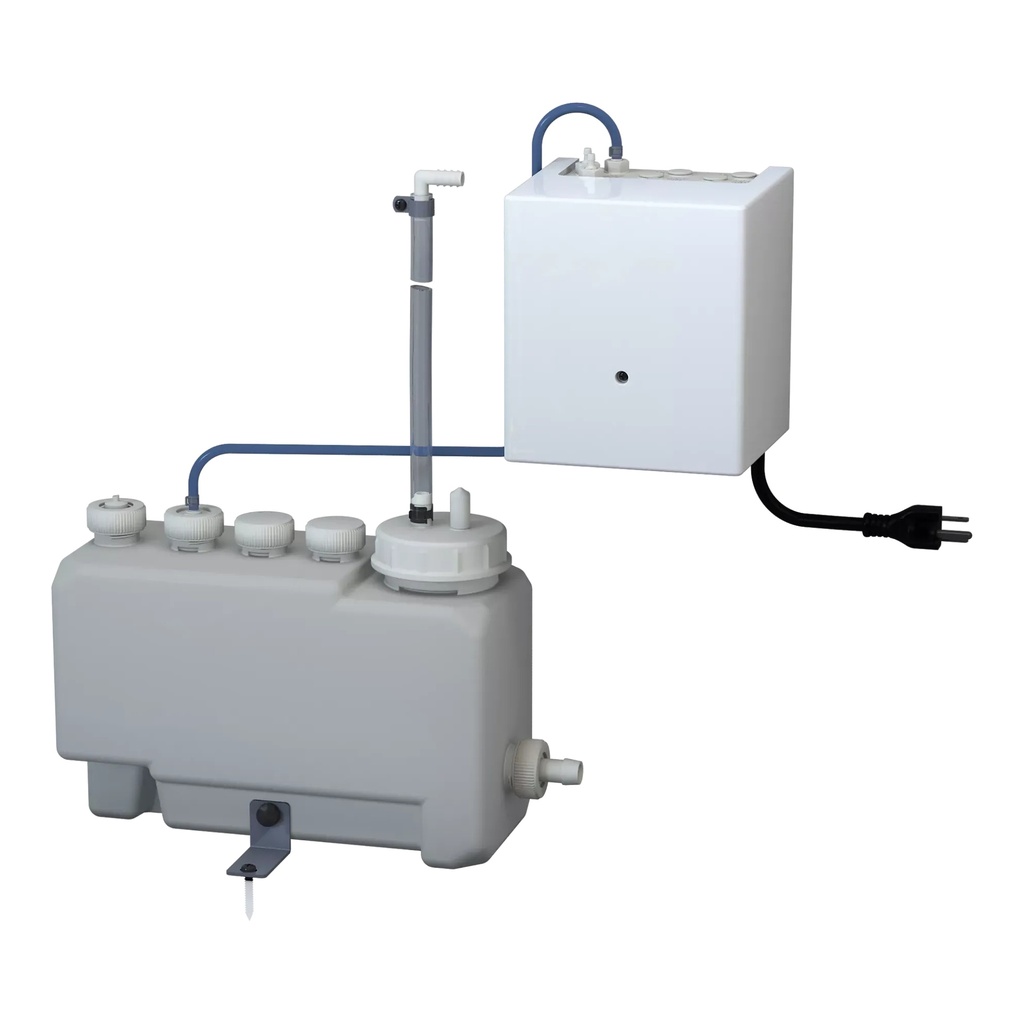

Product shall have a controller pump with 0.8 gallon (3L) resevoir.
CODES/STANDARDS
Meets and exceeds UL1951, CSA C22.2 #68
Certifications: UL
Code Compliance: NEC, CEC
ADA Compliant
Compliance with CA Prop 65 warning requirements
FCC compliant to Part 15
Product Specifications

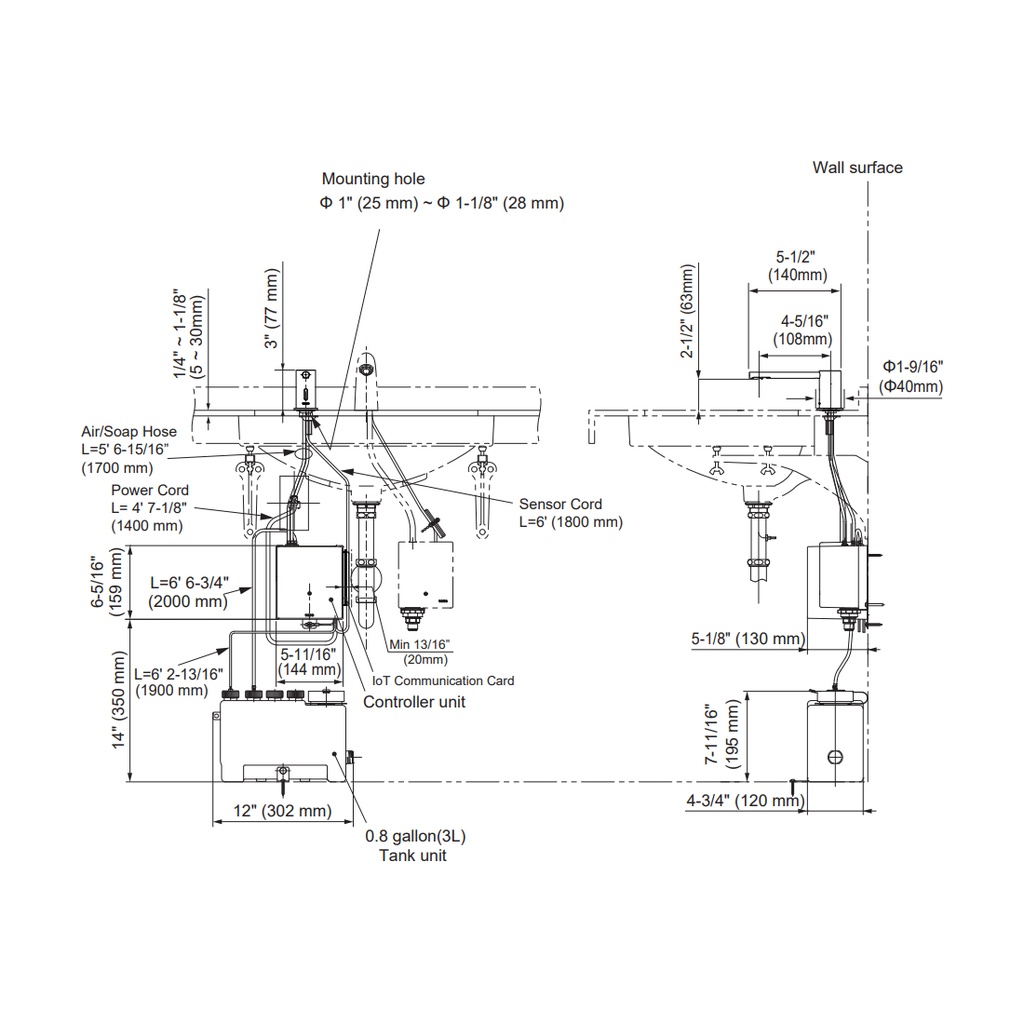

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
