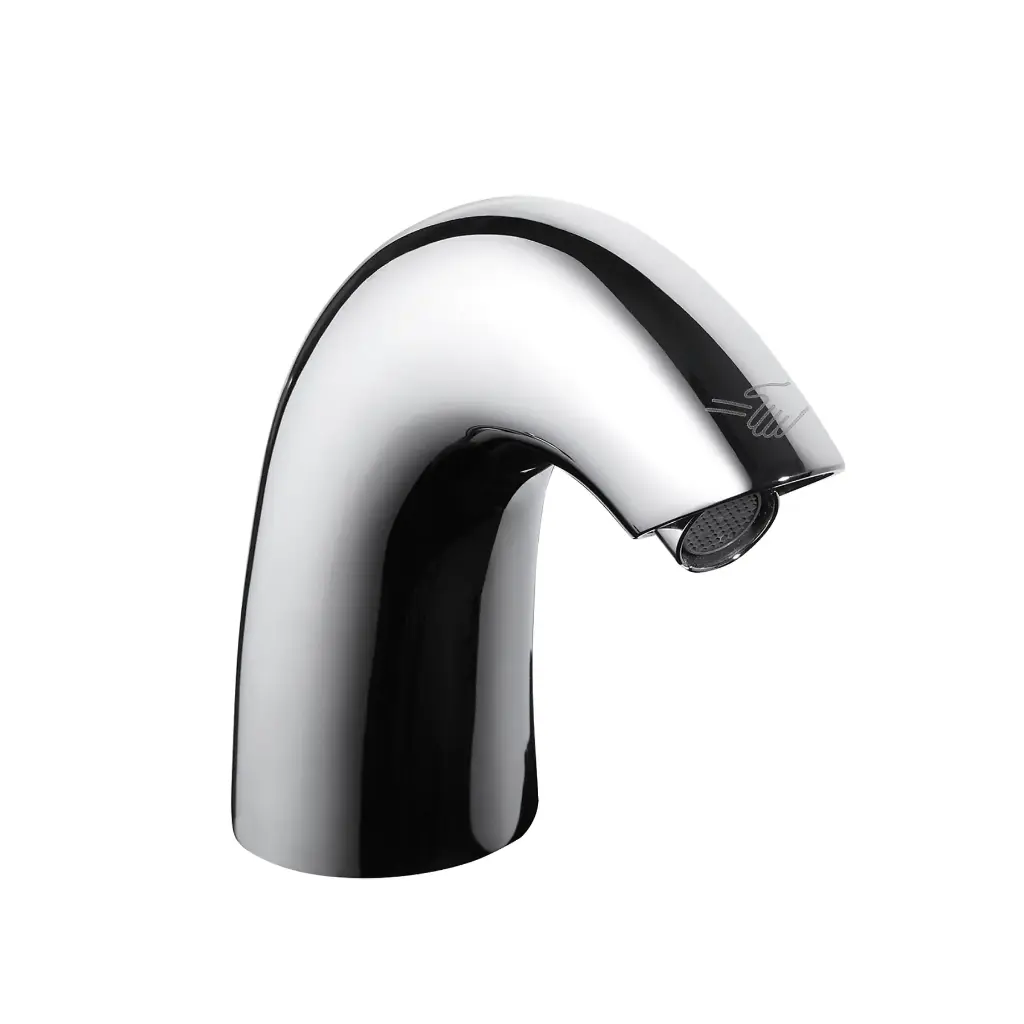

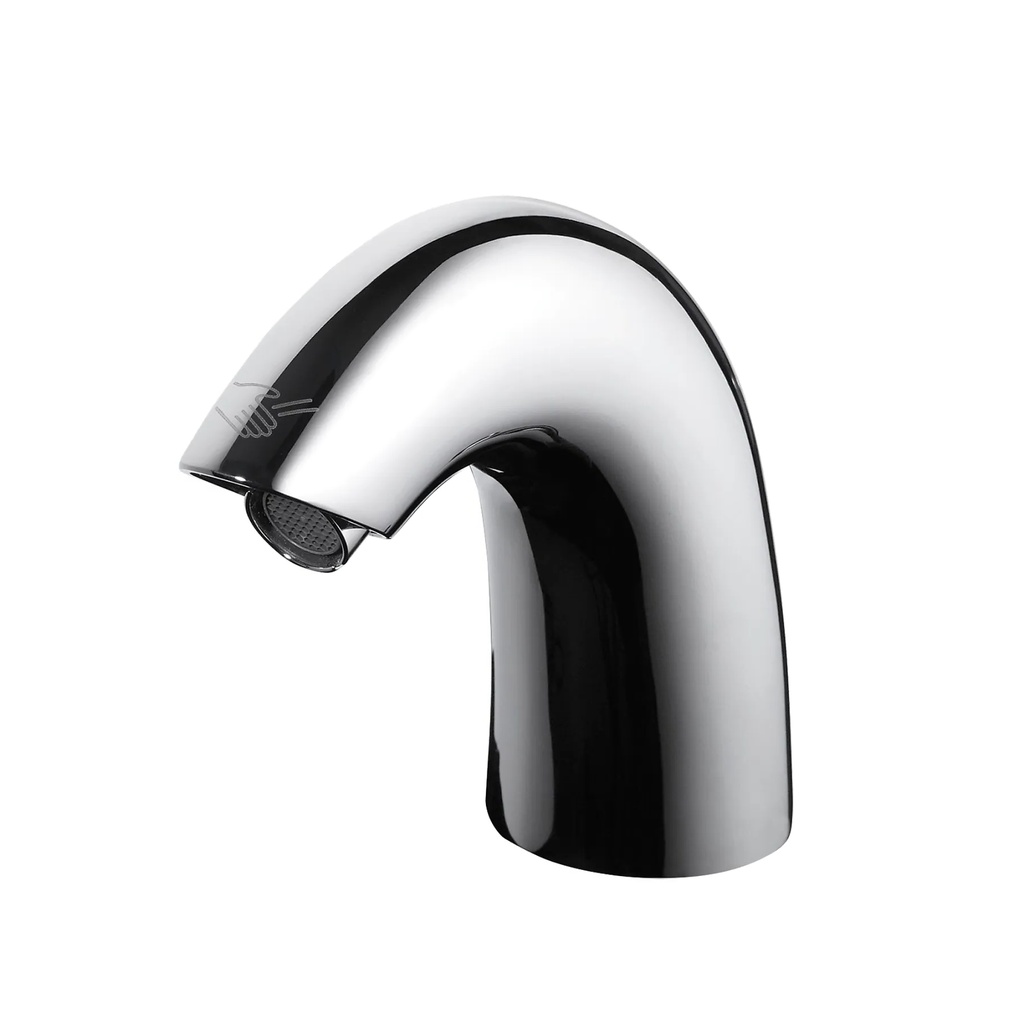

TOTO TEL105-D10ET#CP Standard EcoPower 0.5 GPM Faucet Polished Chrome
Standard EcoPower Faucet - 0.5 GPM
SKU: TEL105-D10ET#CP
Flow Rate: .09 GPC 10 Sec - On Demand
Valve Options: Thermo mixing Valve
LIMITED INVENTORY
The Standard EcoPower sensor faucet harnesses the energy of running water to power itself. The intuitive Smart Sensor technology accurately detects the user for rapid water disbursement.
COLORS/FINISHES
#CP Polished Chrome
#BN Brushed Nickel
#PN Polished Nickel
MODELS
TEL105-D10E
TELS105 (Standard Spout)
TELC105R-D10E (Controller: 0.09gpc, 10 sec on-demand)
TEL105-D10EM
TEL105-D10E (Standard Spout Kit)
TLM10 (Mixing Valve)
TEL105-D10ET
TEL105-D10E (Standard Spout Kit)
TLE05701U (Thermostatic Mixing Valve)
TEL105-C20E
TELS105 (Standard Spout)
TELC105R-C20E (Controller: 0.19gpc, 20 sec continuous)
TEL105-C20EM
TEL105-C20E (Standard Spout Kit)
TLM10 (Mixing Valve)
TEL105-C20ET
TEL105-C20E (Standard Spout Kit)
TLE05701U (Thermostatic Mixing Valve)
OPTIONAL ACCESSORIES
THP3158#CP - 4" Cover Plate
THP3159#CP - 8" Cover Plate
THP3237 - Swivel Coupling
Features
Operated entirely by hydropower. No external power source needed.
Strategic location of sensor at tip of spout for instant response time.
No wiring. Easy installation and low-cost maintenance.
0.5 GPM water-saving flow rate.
ADA compliant
Consists of Spout and Controller
Mixing Valve options available
SPECIFICATIONS
Power Supply: EcoPower
Sensor Detection Range: 5-1/8" - 7-7/8" (130 - 200mm)
Sensor is self-adjusting
Water Supply Pressure: Min (Dynamic/Flowing) Pressure: 15psi (100kPa)
Max (Static) Pressure: 80 psi (551kPa)
Water Supply: G1/2 (1/2 NPSM compatible)
Inlet Temperature Range: 32-110°F(0-42°C)
Ambient Temperature: 32-104°F(0-40°C)
Humidity: Max. 90% RH
Flow Rate: 0.09 gpc* - max 10 second On-Demand**
(0.09 gpc = 0.5 gpm x 10/60 sec)
Equipped with 0.5 gpm flow control
0.19 gpc* - 20 second Continuous***
(0.19 gpc = 0.5 gpm x 20/60 sec)
Equipped with 0.5 gpm flow control
Warranty: Three years
PRODUCT SPECIFICATION
TOTO Model #______________
The faucet shall have hydropowered self-generating, EcoPower System.
The faucet shall have maximum of 10 seconds ondemand flow (0.09gpc), or 20 seconds continuous flow (0.19gpc).
Product shall have anti-scald shape memory alloy thermostatic mixing valve (-ET models only).
The faucet shall have self-adjusting sensor.
CODES/STANDARDS
Operates below federally mandated consumption limit of 0.25gpc
Complies to California Green Building Code, CALGreen of 0.20 gpc
Meets or exceeds ASME A112.18.1M/CSA B125.1, and NSF372-2011
Certifications: IAPMO(cUPC), State of Massachusetts, and others
California Green Code and City of Los Angeles Water Efficiency Ordinance
ADA compliant Complies with federal and state statutes as low-lead (contains a weighted average of 0.25% lead or less)
Product Specifications

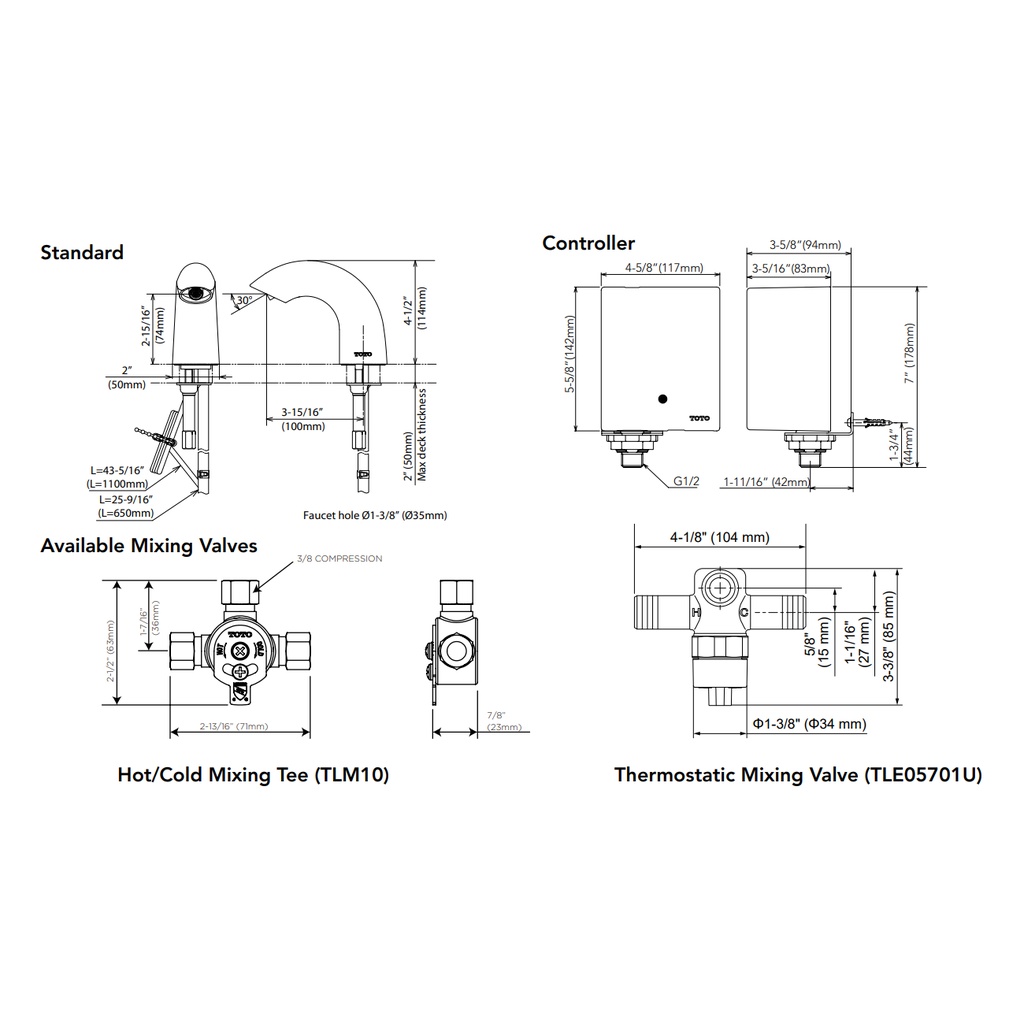

CAD Drawing
