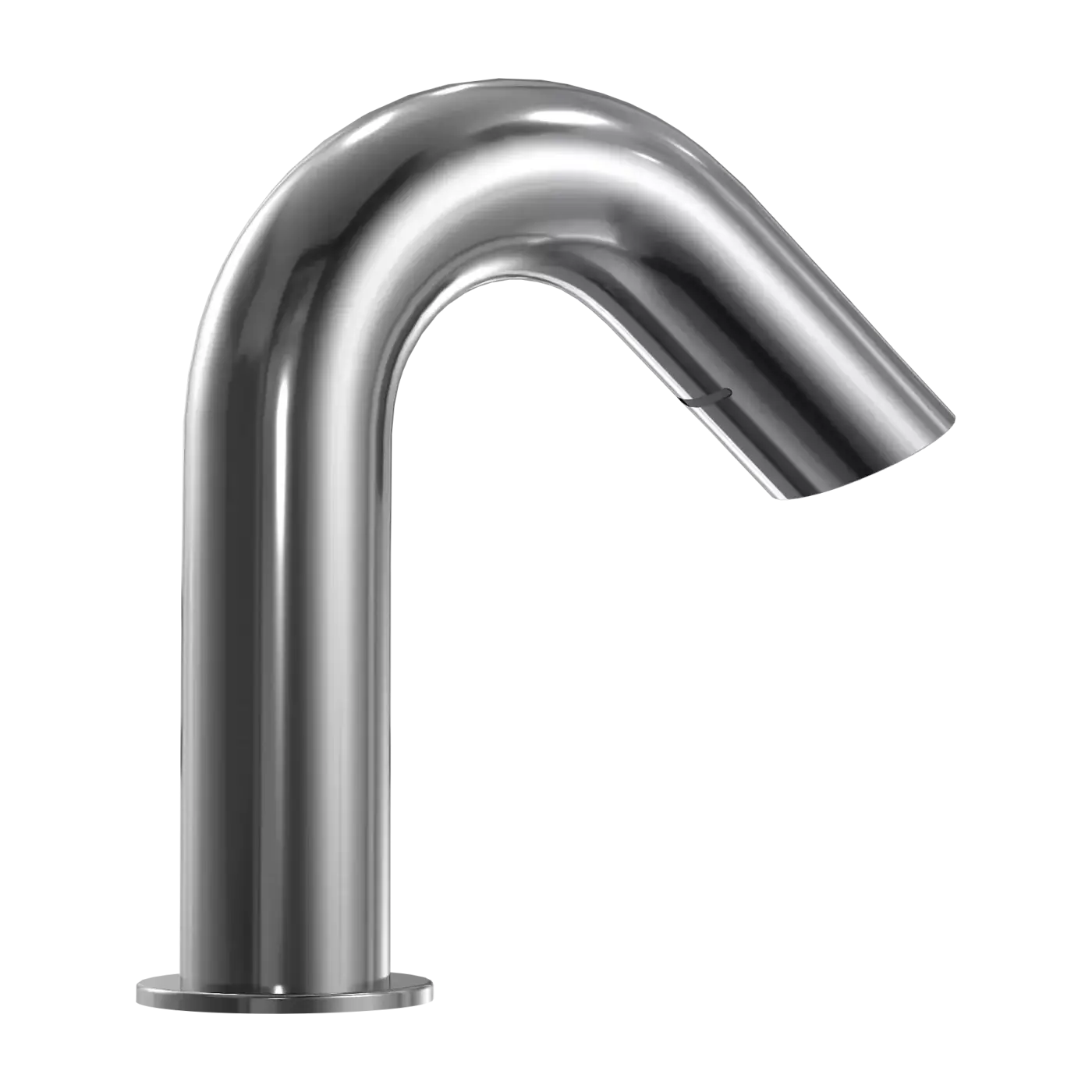

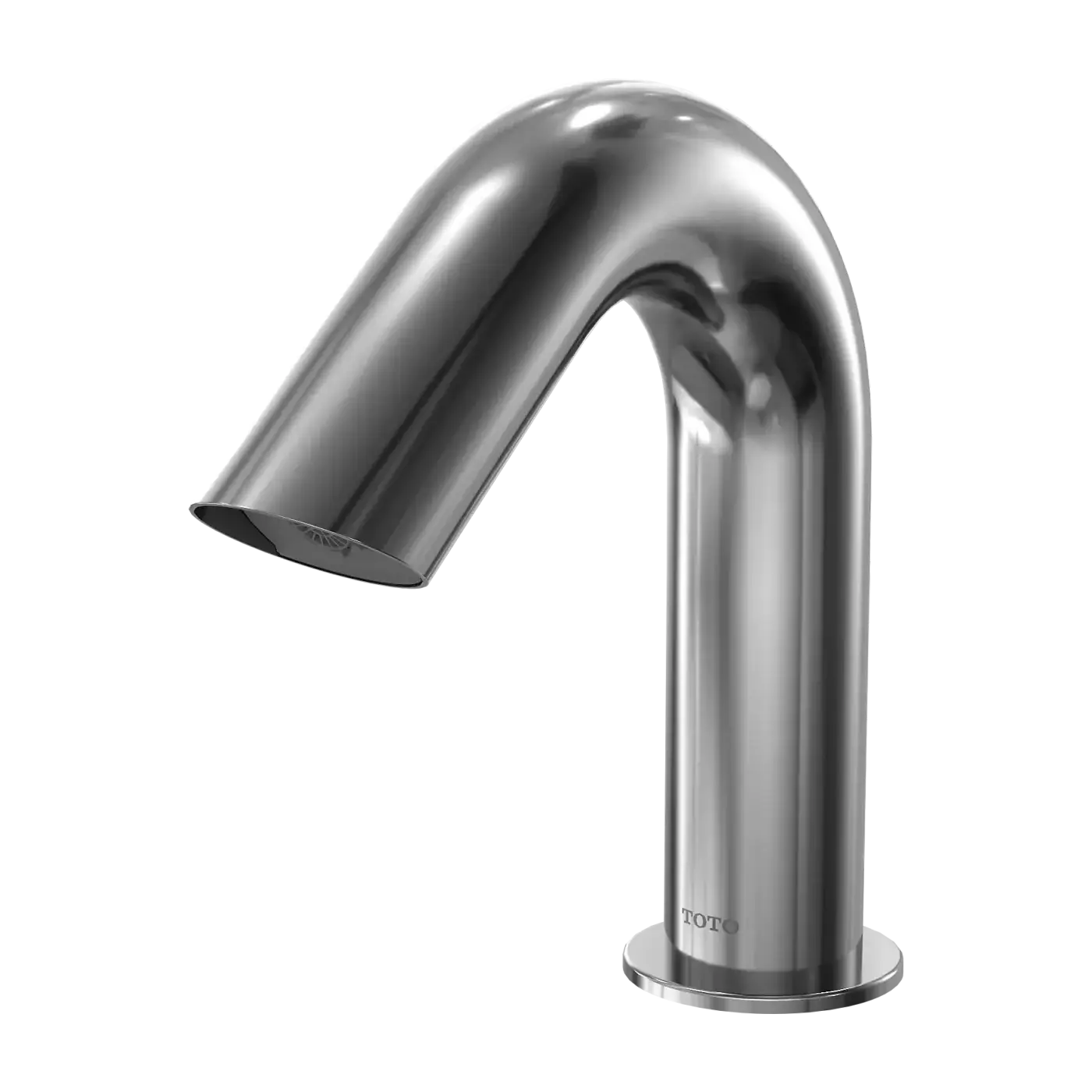

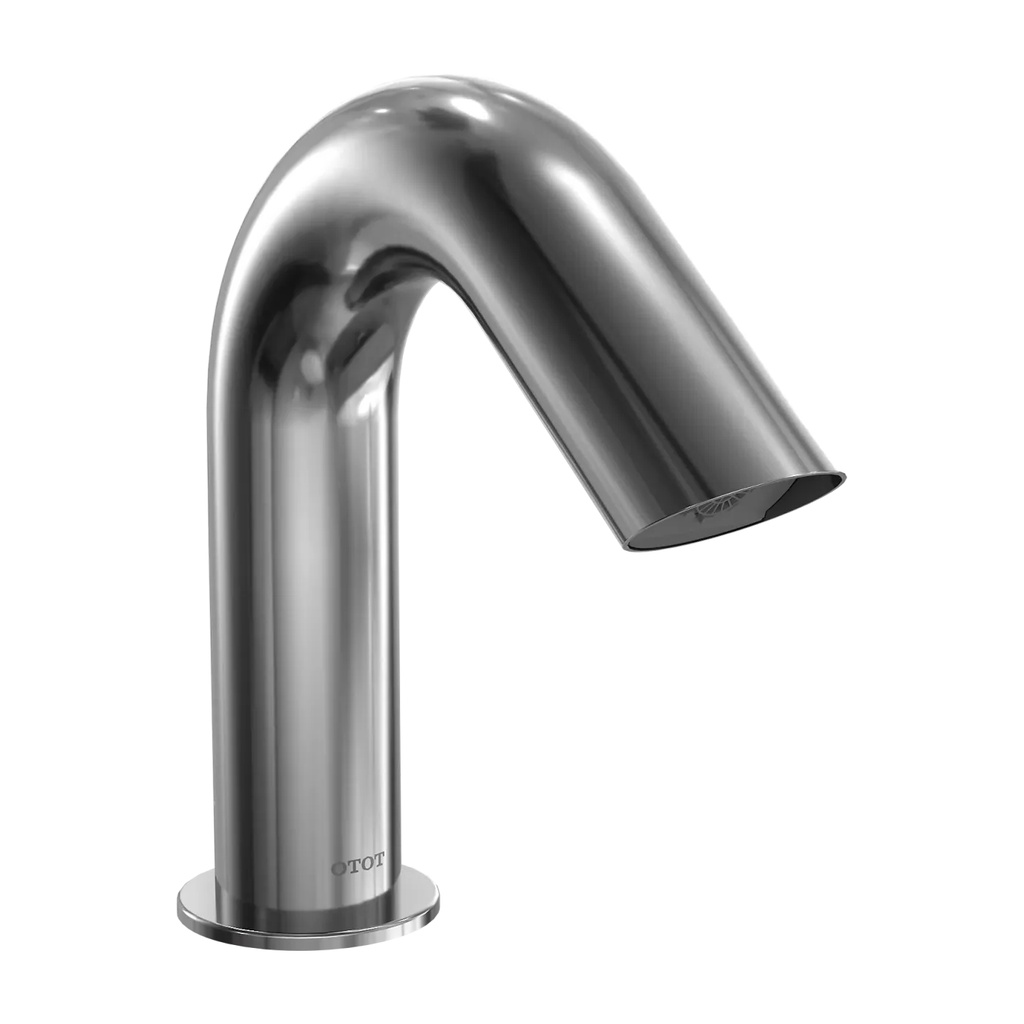

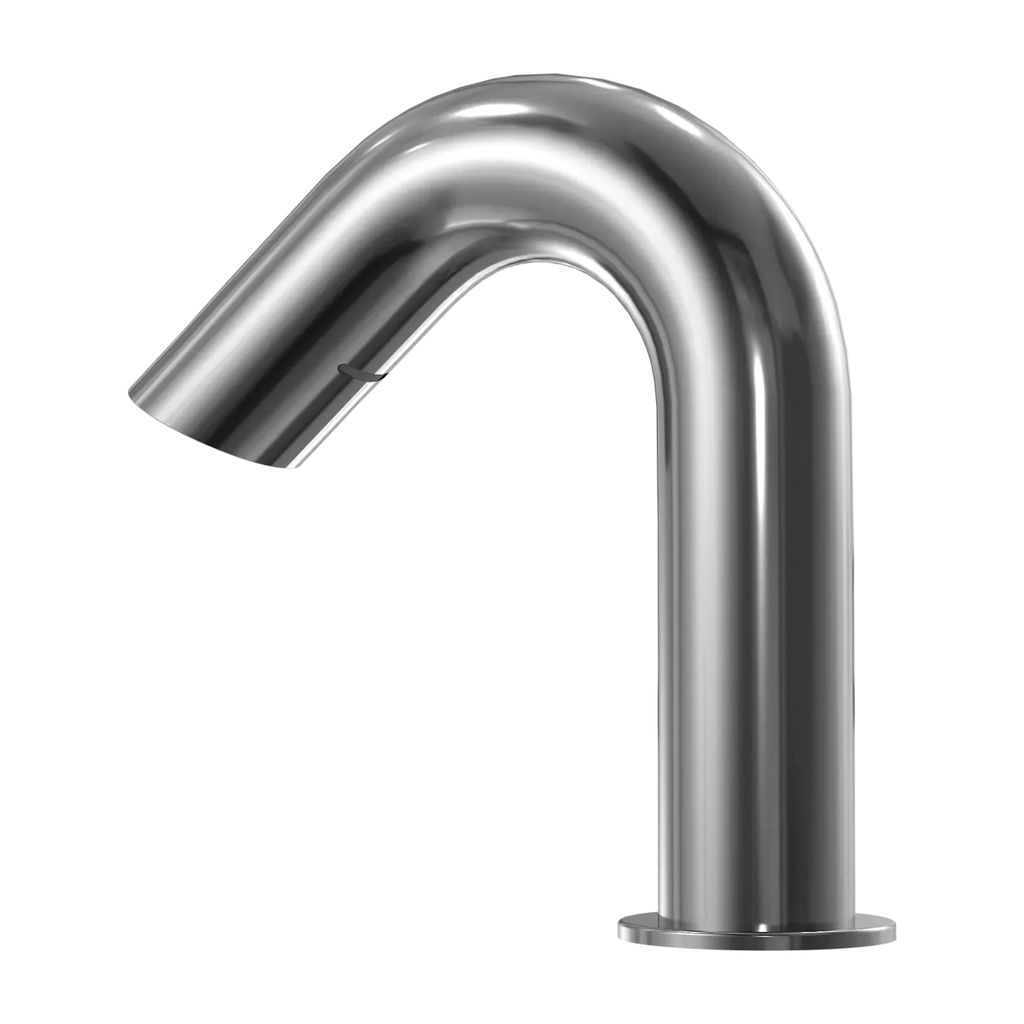

TOTO T28S51S#CP Standard-R EWater+ 0.5 GPM Touchless Faucet Polished Chrome
Standard-R EWater+? Touchless Faucet - 0.5 GPM
SKU: T28S51S#CP
Color: Polished Chrome Finish
Flow Rate: .08 GPC 10 Sec - On Demand
Power Option: AC Power
Valve Options: None
The Standard-R Touch-less Faucet features a bold, modern design and is ADA compliant. Meeting the most rigorous water-saving standards, this faucet is powered by AC power.
Product Components
TLE31002U1#CP - Spout
TLE02502U - Controller
OPTIONAL ACCESSORIES
THP3158#CP - 4" Cover Plate
THP3159#CP - 8" Cover Plate
THP3237 - Swivel Coupling
MODELS?T28S51S#$$
TLE31002U1#$$ (Standard-R EWATER+ Spout 10 sec on-demand)
TLE02502U (Controller: EWATER+, AC, 0.08 gpc)
?T28S51SM#$$
TLE31002U1#$$ (Standard-R EWATER+ Spout 10 sec on-demand)
TLE02502U (Controller: EWATER+, AC, 0.08 gpc)
TLM10 (Mixing Valve)
?T28S51ST#$$
TLE31002U1#$$ (Standard-R EWATER+ Spout 10 sec on-demand)
TLE02502U (Controller: EWATER+, AC, 0.08 gpc)
TLE05701U (Thermostatic Mixing Valve)
Features
AC Powered system
Micro-sensor positioned underneath the spout head provides accurate hand detection and ensures smooth, consistent water distribution
EWATER?+ mists the drain area of lavatory with Ewater, reducing the need for harsh cleaning chemicals
Vandal resistant aerator housing
0.5 GPM aerated water-saving flow rate
Durable chrome plated spout body
ADA Compliant
Kit includes spout body, controller box, and mounting hardware (supply lines not included)
Equipped with 0.5 GPM flow control. 0.08 GPC, 10 second on-demand flow
Mixing Valve options available. (See options above)
SPECIFICATIONS
Power Supply AC 120V
Water Supply G 1/2" (1/2" NPSM compatible)
Inlet Temperature Range 39-110?F (4-43?C)
Ambient Temperature 32-104?F (0-40?C)
Warranty Three years
Humidity Max. 90% RH
Flow Rate 0.08 gpc (0.32 Lpc)** - max 10 second
On Demand*** (0.08 gpc = 0.5 gpm x 10/60 sec)
Equipped with 0.5 gpm flow control
Sensor Detection Range 5-1/8" ~ 7-7/8" (130 ~ 200 mm)
Sensor is self-adjusting
Water Supply Pressure
Min (Dynamic/Flowing) Pressure: 15 psi (100 kPa)
Max (Static) Pressure: 80 psi (551 kPa)
PRODUCT SPECIFICATION
TOTO Model #______________ The faucet shall have maximum of 10 seconds on-demand flow (0.08 gpc).
The faucet shall have self-adjusting sensor.
Product equipped with 0.5 gpm flow regulator
CODES/STANDARDS
Operates below federally mandated consumption limit of 0.25 gpc
Complies to California Green Building Code, CALGreen max flow of 0.20 gpc
Meets or exceeds ASME A112.18.1/CSA B125.1, and NSF 372
Meets or exceeds UL 1951, CSA C22.2 No.14 and 68
Certifications: IAPMO(cUPC), California Energy Commission (CEC), State of Massachusetts, and others
Complies with City of Los Angeles Water Efficiency Ordinance
ADA compliant
Complies with Federal and State statutes as low-lead (contains a weighted average of 0.25% lead or less)
Complies with CA Prop 65 warning requirements
Product Specifications

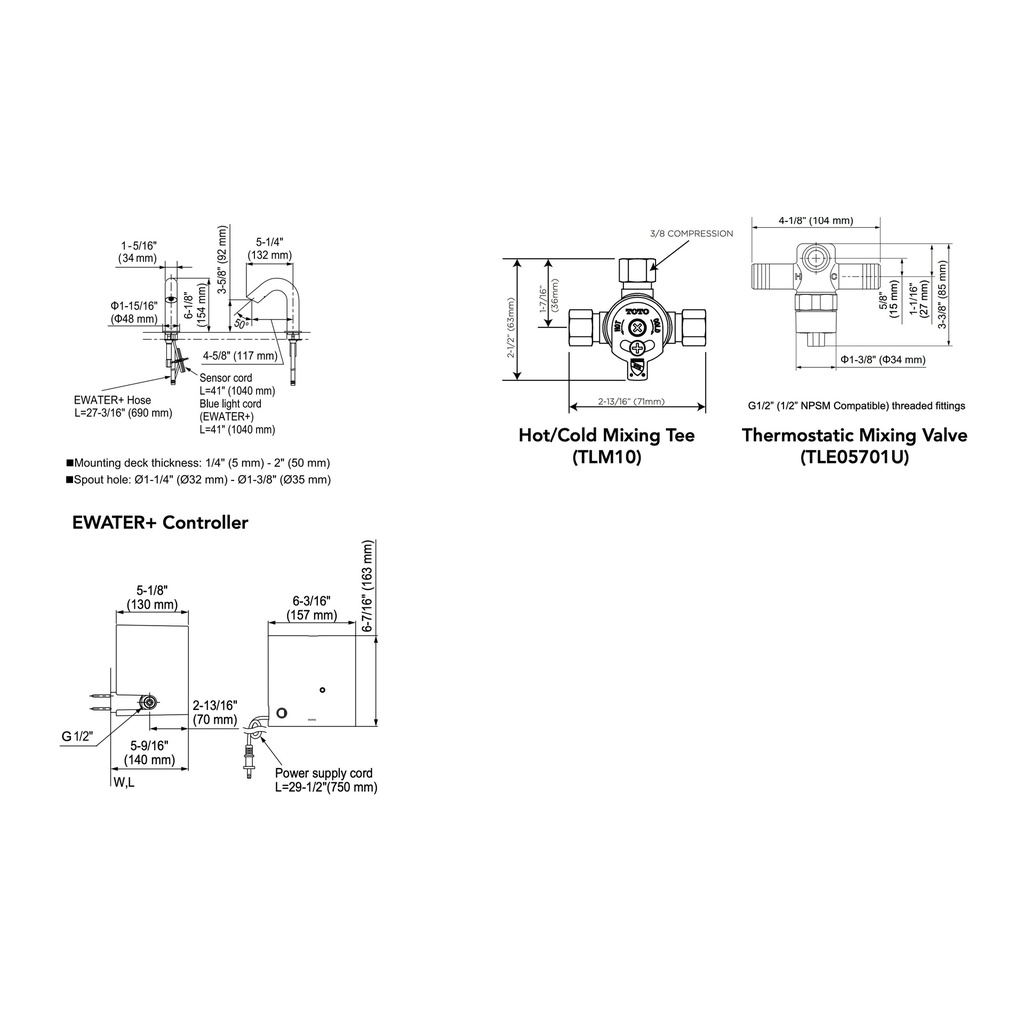

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
