TOTO T27S51AM#CP Standard-S 0.5 GPM Touchless Faucet Polished Chrome
Standard-S Touchless Faucet - 0.5 GPM
SKU: T27S51AM#CP
Polished Chrome Finish
Flow Rate: .08 GPC 10 Sec - On Demand
Power Option: AC Power
Valve Options: Mixing Valve
The Standard-S Touch-less Faucet
features a bold, modern design and is ADA compliant. Meeting the most rigorous water-saving standards, this faucet can be powered by self-generating hydo-power or AC power.
Product Components
TLE27002U1#CP - Spout
TLE01502U - Controller
MODELS
T27S51Ei2#$$
TLE27002U1#$$ (Standard-S Spout 10 sec on-demand)
TLE03502U1iA (Controller: ECOPOWER, 0.08 gpc, 10 sec on-demand)
THP3395 (IoT Communication Card)
?T27S51Ei4#$$
TLE27002U1#$$ (Standard-S Spout 10 sec on-demand)
TLE03502U1iA (Controller: ECOPOWER, 0.08 gpc, 10 sec on-demand)
THP3566 (IoT Communication Card)
OPTIONAL ACCESSORIES
THP3158#CP - 4" Cover Plate
THP3159#CP - 8" Cover Plate
THP3237 - Swivel Coupling
TLM10 - Mixing Valve
TLE05701U - Thermostatic Mixing Valve
Features
The choice of self-generating hydro-powered ECOPOWER? system, or AC system (See options above)
Micro-sensor positioned underneath the spout head provides accurate hand detection and ensures smooth, consistent water distribution
Vandal resistant aerator housing
0.5 GPM aerated water-saving flow rate
Durable chrome plated spout body
ADA Compliant
Kit includes spout body, controller box, and mounting hardware (supply lines not included)
Equipped with 0.5 GPM flow control. 0.08 GPC, 10 second on-demand flow or 0.17 GPC 20 second continuous flow (See options above)
Mixing Valve options available. (See options above)
SPECIFICATIONS
Power Supply Hydropower Generation
(self-powering power supply)
Water Supply G 1/2" (1/2" NPSM compatible)
Inlet Temperature Range 39-110?F (4-43?C)
Ambient Temperature 32-104?F (0-40?C)
Warranty Three years
Humidity Max. 90% RH
Flow Rate 0.08 gpc (0.32 Lpc)** - max 10 second
On Demand*** (0.08 gpc = 0.5 gpm x 10/60 sec)
Equipped with 0.5 gpm flow control
Sensor Detection Range 5-1/8" ~ 7-7/8" (130 ~ 200 mm)
Sensor is self-adjusting
Water Supply Pressure
Min (Dynamic/Flowing) Pressure: 15 psi (100 kPa)
Max (Static) Pressure: 80 psi (551 kPa)
PRODUCT SPECIFICATION
TOTO Model #______________ Self-generating hydropowered ECOPOWER system.
The faucet shall have maximum of 10 seconds on-demand flow (0.08 gpc)
The faucet shall have self-adjusting sensor.
Product equipped with 0.5 gpm flow regulator
CODES/STANDARDS
Operates below federally mandated consumption limit of 0.25 gpc
Complies to California Green Building Code, CALGreen max flow of 0.20 gpc
Meets or exceeds ASME A112.18.1/CSA B125.1, and NSF 372
Certifications: IAPMO(cUPC), California Energy Commission (CEC), State of Massachusetts, and others
Complies with City of Los Angeles Water Efficiency Ordinance
ADA compliant
Complies with Federal and State statutes as low-lead (contains a weighted average of 0.25% lead or less)
Complies with CA Prop 65 warning requirements FCC compliant to Part 15
Product Specifications

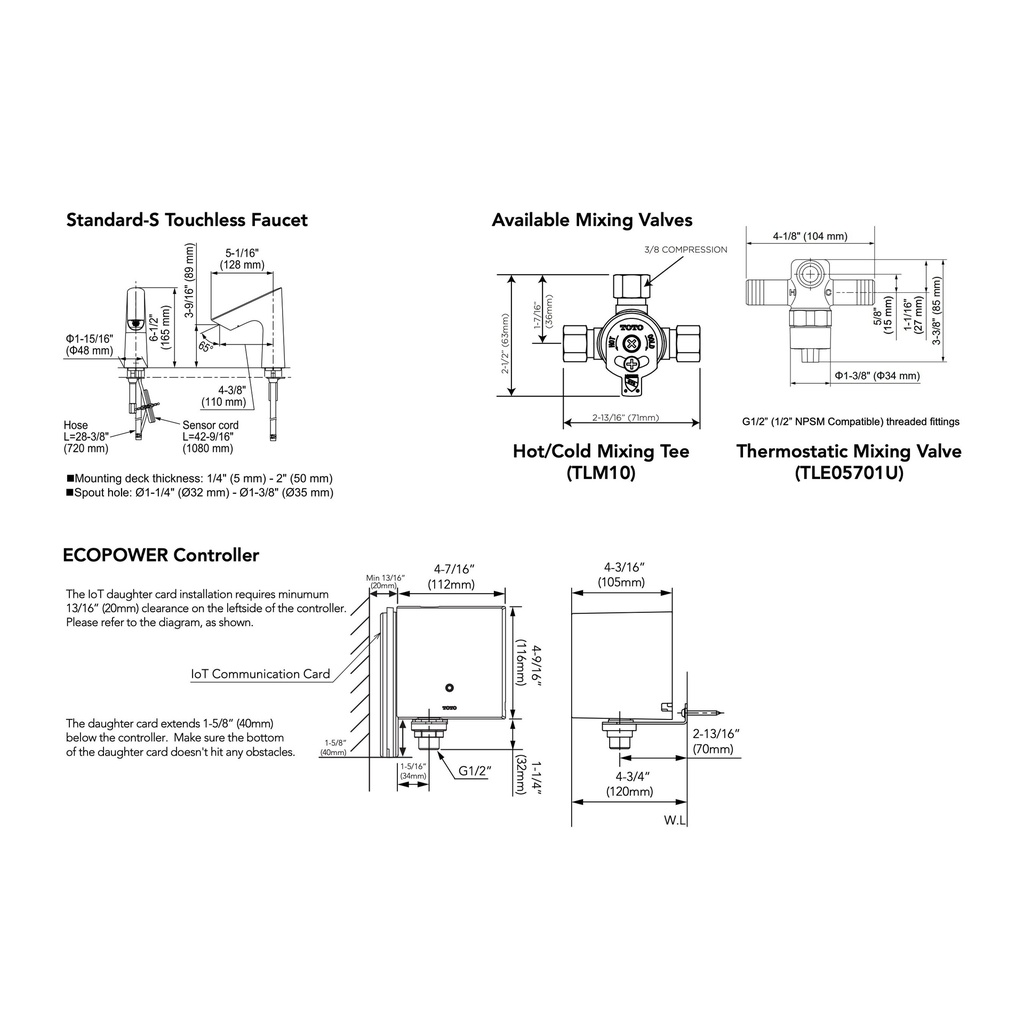

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
