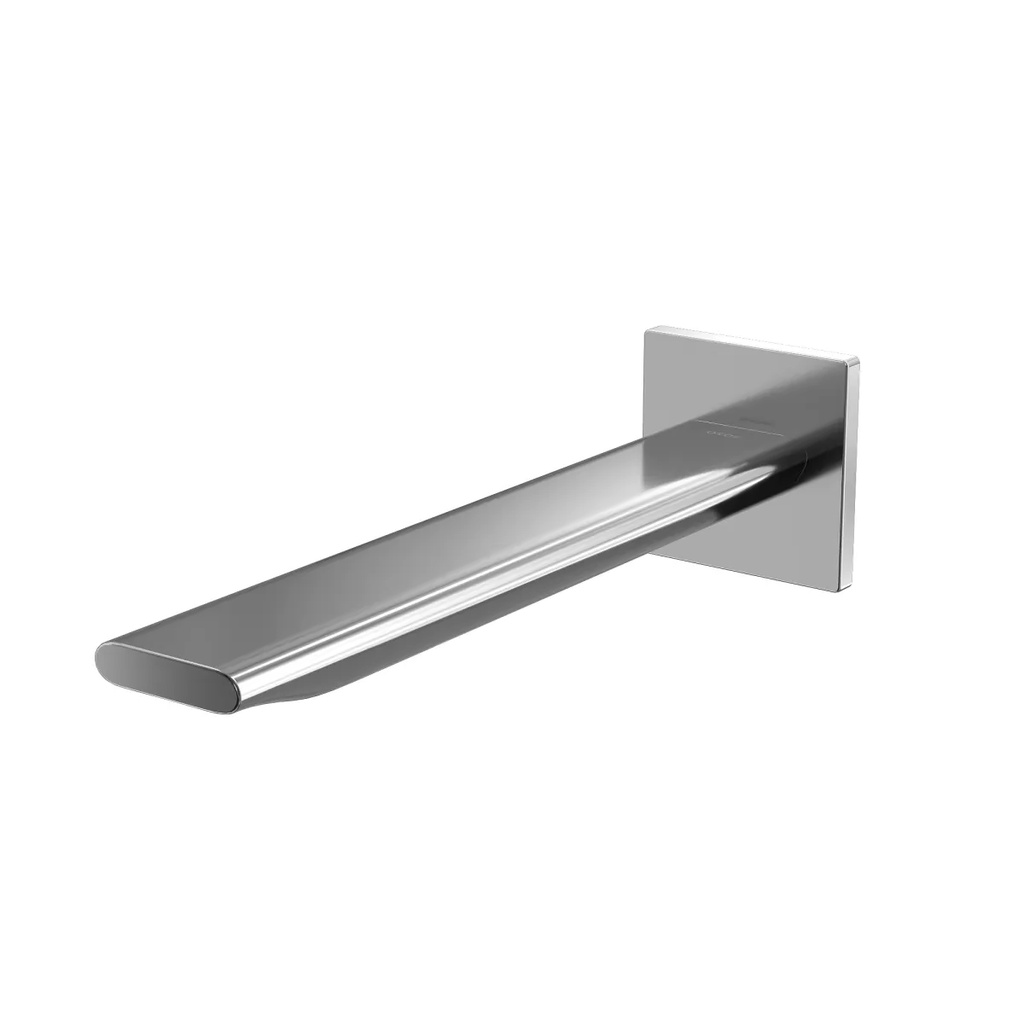

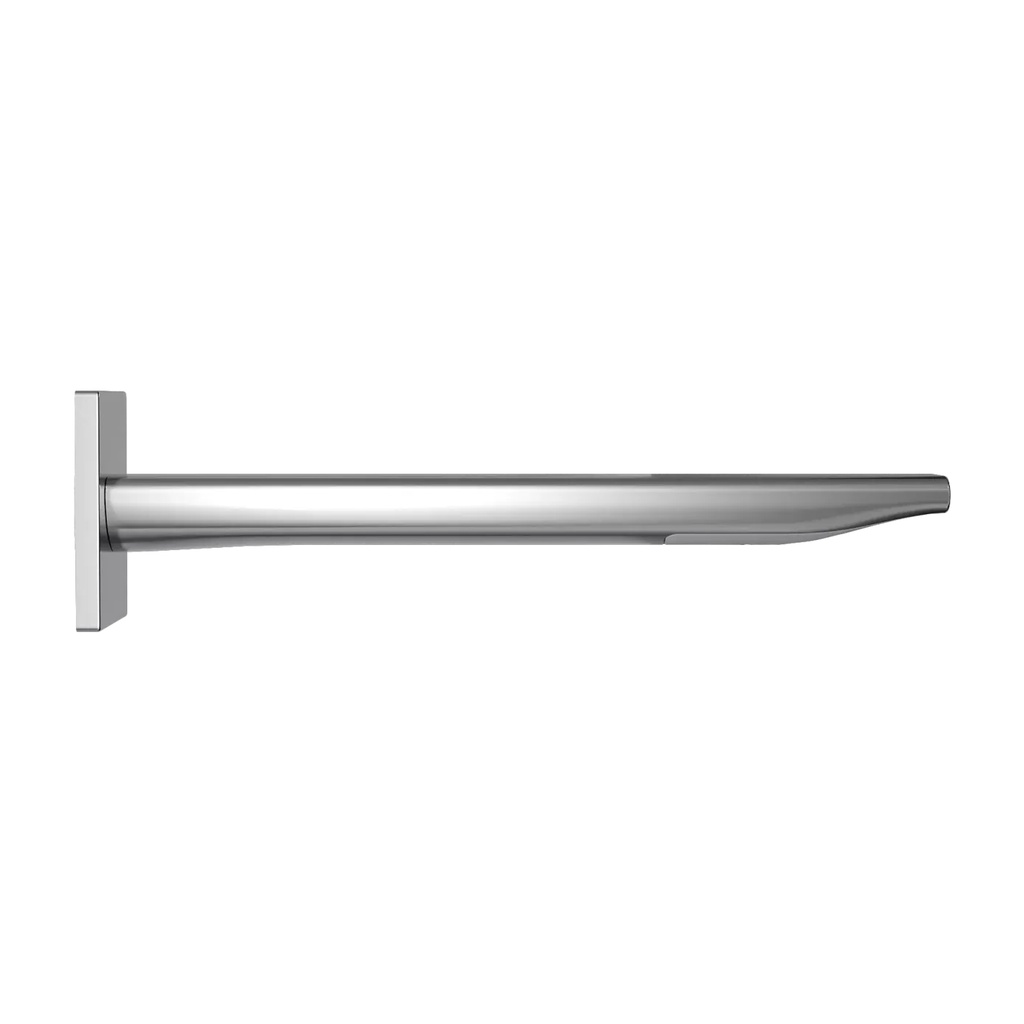

TOTO T23L53AM#CP Libella 0.5 GPM Touchless Wall Mount Faucet Polished Chrome
Libella? Touchless Wall-Mount Faucet - 0.5 GPM
SKU: T23L53AM#CP
Color: Polished Chrome Finish
Flow Rate: .17 GPC 20 Sec - Continuous
Power Option: AC Power
Valve Options: Mixing Valve
The Libella? Touch-less Wall-mount Faucet features a bold, modern design and is ADA compliant. Meeting the most rigorous water-saving standards, this faucet can be powered by self-generating hydo-power or AC power.
Product Components
TLE23010U1#CP - Spout
TLE01502U - Controller
MODELS?T23L51E#$$
TLE23010U1#$$ (Libella WM L Spout 10 sec ondemand)
TLE03502U1 (Controller: ECOPOWER, 0.08 gpc, 10 sec on-demand)
?T23L51EM#$$
TLE23010U1#$$ (Libella WM L Spout 10 sec ondemand)
TLE03502U1 (Controller: ECOPOWER, 0.08 gpc, 10 sec on-demand)
TLM10 (Mixing Valve)
?T23L51ET#$$
TLE23010U1#$$ (Libella WM L Spout 10 sec ondemand)
TLE03502U1 (Controller: ECOPOWER, 0.08 gpc, 10 sec on-demand)
TLE05701U (Thermostatic Mixing Valve)
?T23L51A#$$
TLE23010U1#$$ (Libella WM L Spout 10 sec ondemand)
TLE01502U (Controller: AC, 0.08 gpc)
?T23L51AM#$$
TLE23010U1#$$ (Libella WM L Spout 10 sec ondemand)
TLE01502U (Controller: AC, 0.08 gpc)
TLM10 (Mixing Valve)
?T23L51AT#$$
TLE23010U1#$$ (Libella WM L Spout 10 sec ondemand)
TLE01502U (Controller: AC, 0.08 gpc)
TLE05701U (Thermostatic Mixing Valve)
Features
The choice of self-generating hydro-powered ECOPOWER? system, or AC system (See options above)
Micro-sensor positioned underneath the spout head provides accurate hand detection and ensures smooth, consistent water distribution
Vandal resistant aerator housing
0.5 GPM aerated water-saving flow rate
Durable chrome plated spout body
ADA Compliant
Kit includes spout body, controller box, and mounting hardware (supply lines not included)
Equipped with 0.5 GPM flow control. 0.08 GPC, 10 second on-demand flow or 0.17 GPC 20 second continuous flow (See options above)
Mixing Valve options available. (See options above)
SPECIFICATIONS
Power Supply Hydropower Generation (self-powering power supply)
Sensor Detection Range 5-1/8" ~ 7-7/8" (130 ~ 200 mm)
Sensor is self-adjusting
Water Supply Pressure
Min (Dynamic/Flowing) Pressure: 15 psi (100 kPa)
Max (Static) Pressure: 80 psi (551 kPa)
Water Supply G 1/2" (1/2" NPSM compatible)
Inlet Temperature Range 39-110?F (4-43?C)
Ambient Temperature 32-104?F (0-40?C)
Warranty Three years
Humidity Max. 90% RH
Flow Rate 0.08 gpc (0.32 Lpc)** - max 10 second
On Demand*** (0.08 gpc = 0.5 gpm x 10/60 sec)
Equipped with 0.5 gpm flow control
PRODUCT SPECIFICATION
TOTO Model #______________ Choice of selfgenerating hydropowered ECOPOWER system or AC system.
The faucet shall have maximum of 10 seconds on-demand flow (0.08 gpc) The faucet shall have self adjusting sensor.
Product equipped with 0.5 gpm flow regulator
CODES/STANDARDS
Operates below federally mandated consumption limit of 0.25 gpc
Complies to California Green Building Code, CALGreen max flow of 0.20 gpc
Meets or exceeds ASME A112.18.1/CSA B125.1, and NSF 372
Meets or exceeds UL 1951, CSA C22.2 No.14 and 68 (AC systems only)
Certifications: IAPMO(cUPC), California Energy Commission (CEC), State of Massachusetts, and others
Complies with City of Los Angeles Water Efficiency Ordinance
ADA compliant
Complies with Federal and State statutes as low-lead (contains a weighted average of 0.25% lead or less)
Complies with CA Prop 65 warning requirements
Product Specifications

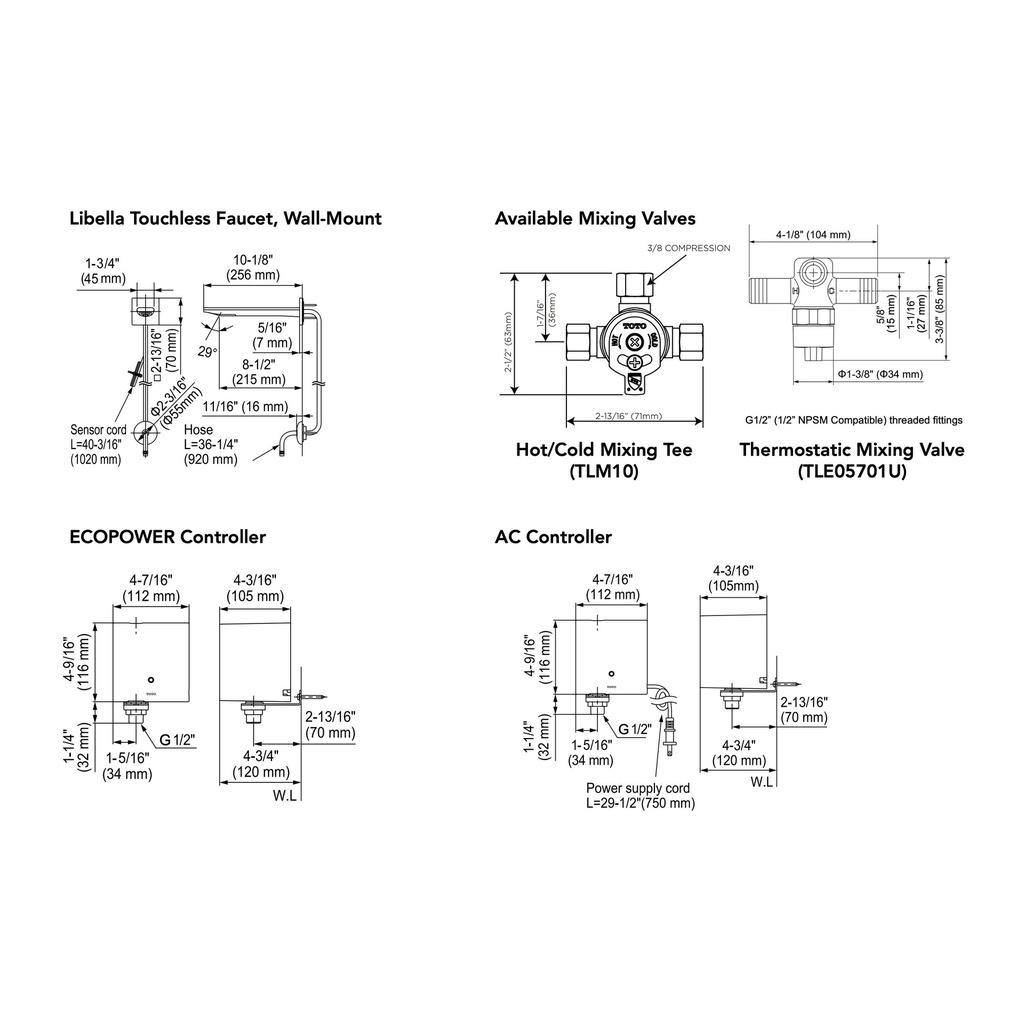

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
