TOTO T23L32ET#CP Libella 0.35 GPM Touchless Wall Mount Faucet Polished Chrome
Libella? Touchless Wall-Mount Faucet - 0.35 GPM
SKU: T23L32ET#CP
Color: Polished Chrome Finish
Flow Rate: .11 GPC 20 Sec - On Demand
Power Option: EcoPower
Valve Options: Thermo mixing Valve
The Libella? Touch-less Wall-mount Faucet features a bold, modern design and is ADA compliant. Meeting the most rigorous water-saving standards, this faucet can be powered by self-generating hydo-power or AC power.
Product Components

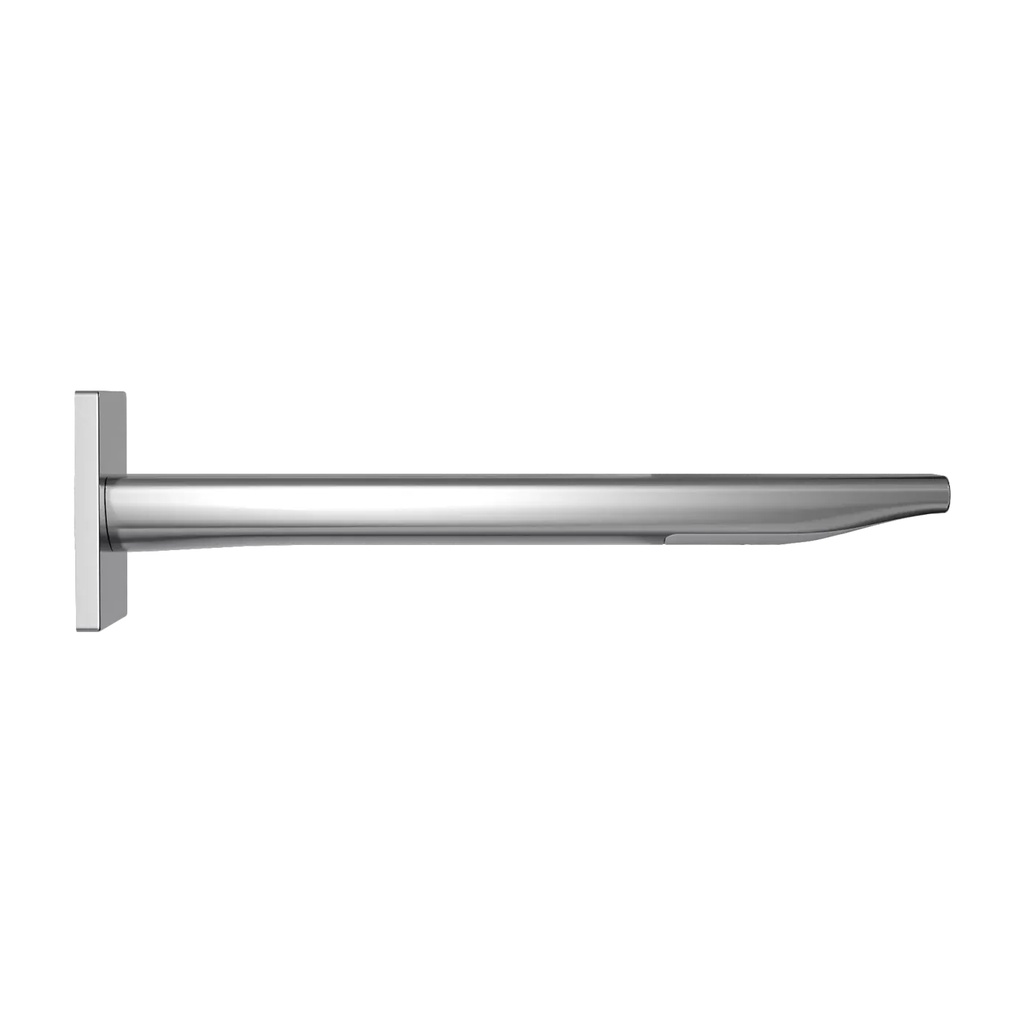

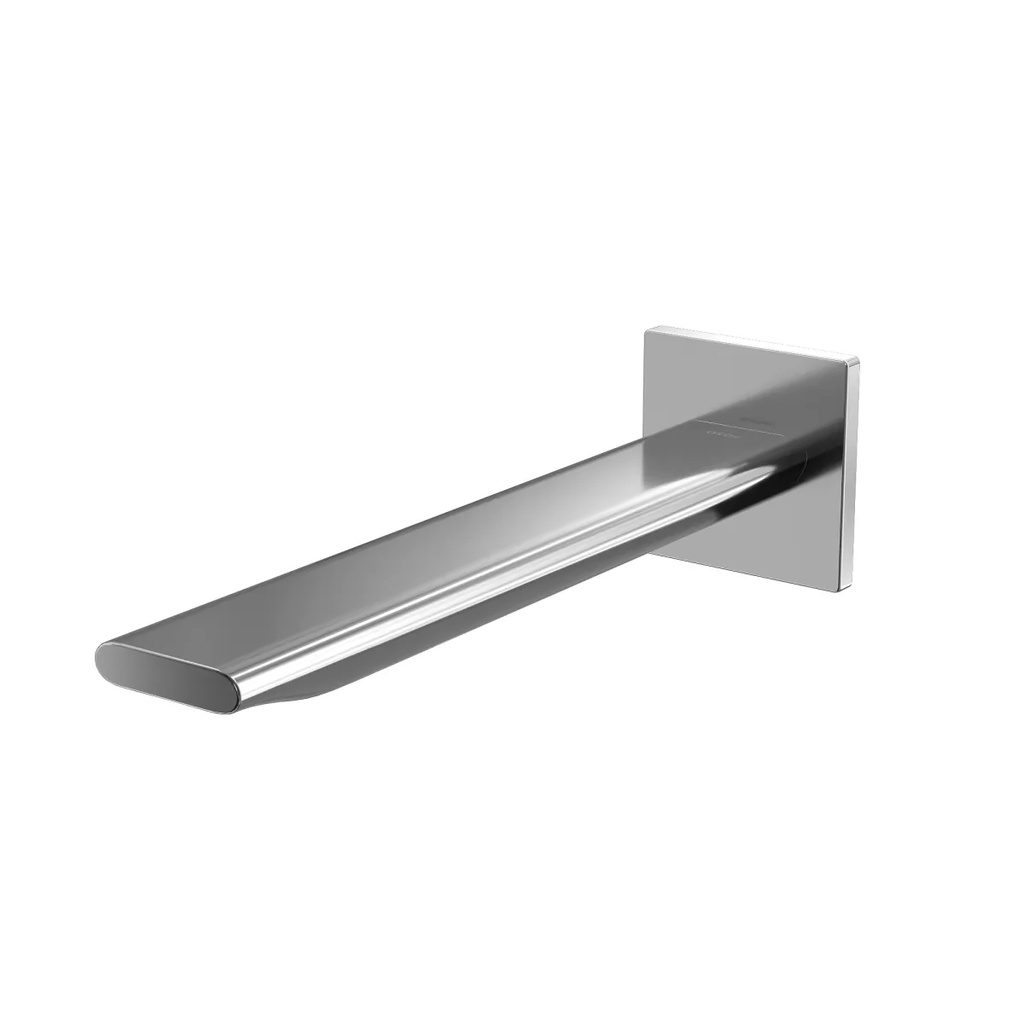

TLE23005U2#CP - Spout
TLE01501U - Controller
MODELS?T23L32E#$$
TLE23005U2#$$ (Libella WM L Spout 20 sec ondemand)
TLE03501U2 (Controller: ECOPOWER, 0.12 gpc, 20 sec on-demand)
?T23L32EM#$$
TLE23005U2#$$ (Libella WM L Spout 20 sec ondemand)
TLE03501U2 (Controller: ECOPOWER, 0.12 gpc, 20 sec on-demand)
TLM10 (Mixing Valve)
?T23L32ET#$$
TLE23005U2#$$ (Libella WM L Spout 20 sec ondemand)
TLE03501U2 (Controller: ECOPOWER, 0.12 gpc, 20 sec on-demand)
TLE05701U (Thermostatic Mixing Valve)
?T23L32A#$$
TLE23005U2#$$ (Libella WM L Spout 20 sec ondemand)
TLE01501U (Controller: AC, 0.12 gpc)
?T23L32AM#$$
TLE23005U2#$$ (Libella WM L Spout 20 sec ondemand)
TLE01501U (Controller: AC, 0.12 gpc)
TLM10 (Mixing Valve)
?T23L32AT#$$
TLE23005U2#$$ (Libella WM L Spout 20 sec ondemand)
TLE01501U (Controller: AC, 0.12 gpc)
TLE05701U (Thermostatic Mixing Valve
Features
The choice of self-generating hydro-powered ECOPOWER? system, or AC system (See options above)
Micro-sensor positioned underneath the spout head provides accurate hand detection and ensures smooth, consistent water distribution
Vandal resistant aerator housing
0.35 GPM aerated water-saving flow rate
Durable chrome plated spout body
ADA Compliant
Single-hole mount
Kit includes spout body, controller box, and mounting hardware (supply lines not included)
Equipped with 0.35 GPM flow control. 0.11 GPC, 20 sec on-demand flow
Mixing Valve options available. (See options above)
Contributes to earning LEED? credits
SPECIFICATIONS
Power Supply Hydropower Generation (self-powering power supply)
Sensor Detection Range
5-1/8" ~ 7-7/8" (130 ~ 200 mm)
Sensor is self-adjusting
Water Supply Pressure
Min (Dynamic/Flowing) Pressure: 15 psi (100 kPa)
Max (Static) Pressure: 80 psi (551 kPa)
Water Supply G 1/2" (1/2" NPSM compatible)
Inlet Temperature Range 39-110?F (4-43?C)
Ambient Temperature 32-104?F (0-40?C)
Warranty Three years
Humidity Max. 90% RH
Flow Rate 0.12 gpc (0.44 Lpc)** - max 20 second
On Demand*** (0.12 gpc = 0.35 gpm x 20/60 sec)
Equipped with 0.35 gpm flow control
PRODUCT SPECIFICATION
TOTO Model #______________ Choice of selfgenerating hydropowered ECOPOWER system or AC system. The faucet shall have maximum of 20 seconds on-demand flow (0.12 gpc).
The faucet shall have self-adjusting sensor.
Product equipped with 0.35 gpm flow regulator.
CODES/STANDARDS
Operates below federally mandated consumption limit of 0.25 gpc
Complies to California Green Building Code, CALGreen max flow of 0.20 gpc
Meets or exceeds ASME A112.18.1/CSA B125.1, and NSF 372
Meets or exceeds UL 1951, CSA C22.2 No.14 and 68 (AC systems only)
Certifications: IAPMO(cUPC), California Energy Commission (CEC), State of Massachusetts, and others
Complies with City of Los Angeles Water Efficiency Ordinance
ADA compliant
Complies with Federal and State statutes as low-lead (contains a weighted average of 0.25% lead or less)
Complies with CA Prop 65 warning requirements
Product Specifications

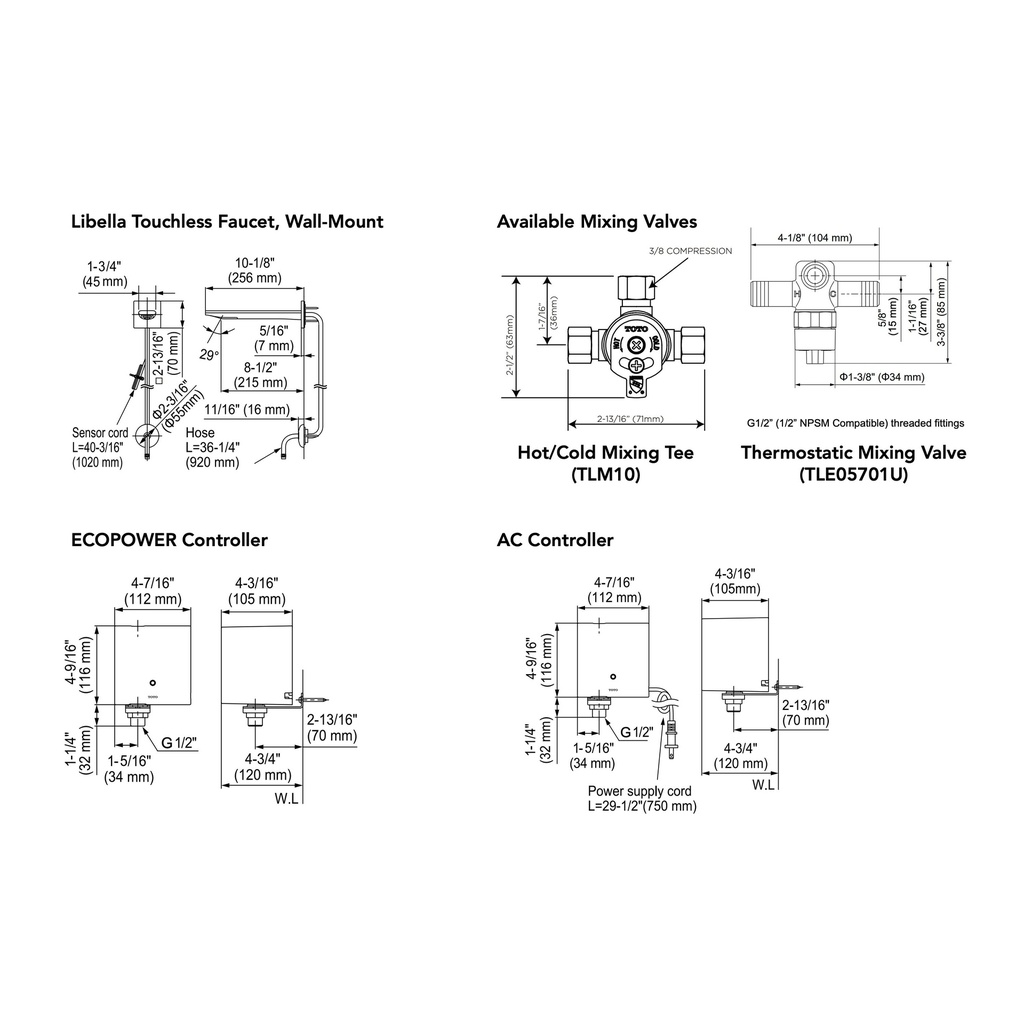

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
