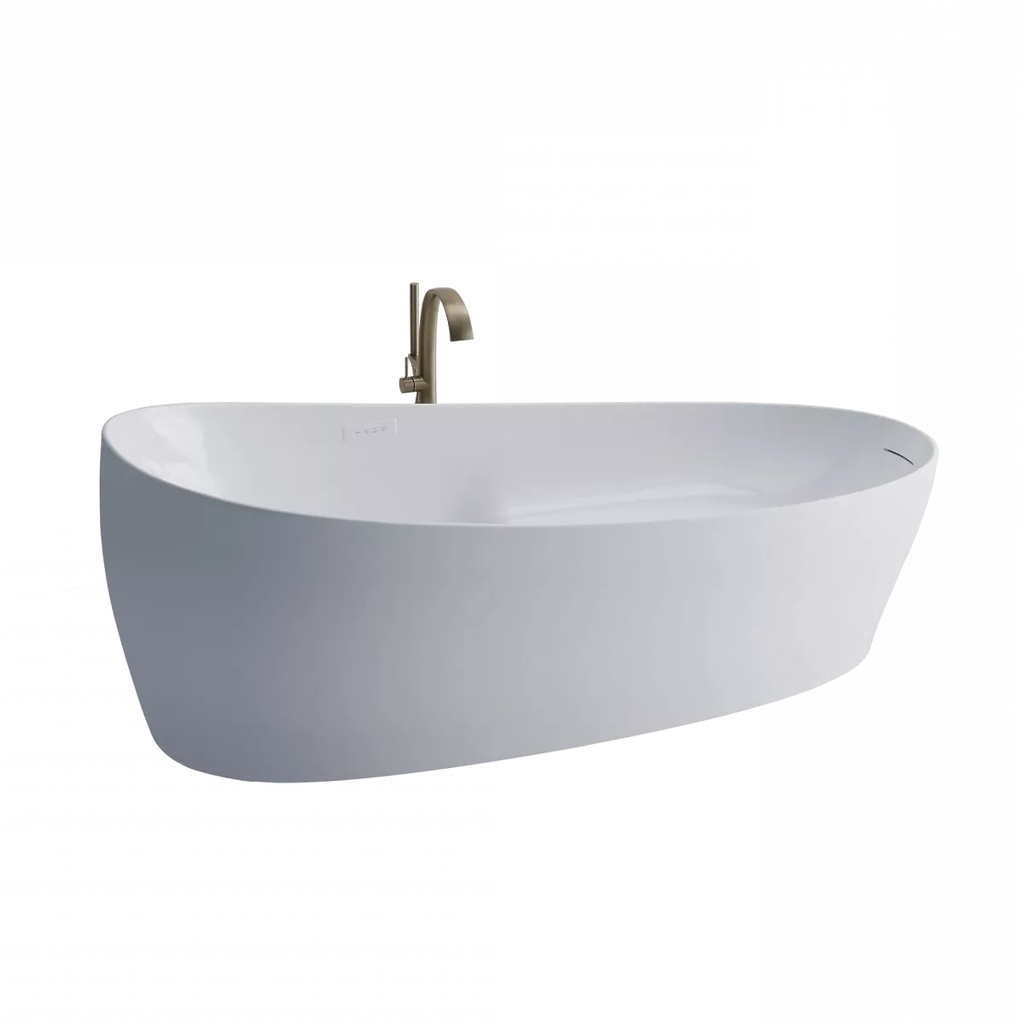

TOTO PJYD2200PWEU#GW Flotation Tub With Zero Dimension Gloss White
Flotation Tub With ZERO DIMENSION®
SKU: PJYD2200PWEU#GW
TOTO has developed the world’s first zero-gravity bathtub in which bathers have a simulated, near-weightless experience. TOTO calls this extraordinarily calming, tension-free bathing experience ZERO DIMENSION.
COLORS/FINISHES
#GW Gloss White
Made to Order
#TBL Matte Black and Gloss White
Features
86-5/8"L x 41-516"W x 30-11/16"H
Constructed with solid surface Galalato™ engineered to resist stain, retain heat, and minimize maintenance
Shaped to simulate a near “gravity-less” floating position for ultimate relaxation
Hydrohands® massaging water jets
Slip-resistant surface
Adjustable headrest with cascading water shoulder warmer
Mood creating LED lighting
Capacitive Keypad
Toe touch drain and push-button design for a smooth, one-piece tub appearance
0.5 hp blower
77.5 gallon capacity
SPECIFICATIONS
Size 86-5/8"L x 41-5/16"W x 30-11/16"H
Depth 15-1/2"
Water Depth 12-15/16"
Gallons 77.5 gal to Overflow
Material Galalato™ Reinforced Marble
Rated Voltage 120V AC, 60Hz
Rated Current 8.8 A
Rated Power
Consumption 1000 W
Warranty Three Year Limited Warranty
Shipping Weight 686 lbs.
Shipping Dimensions 91-1/4"L x 45-11/16"W x 39-11/16"H
PRODUCT SPECIFICATION
Flotation Tub with ZERO DIMENSION shall be 86-5/8"L x 41-5/16"W x 30-11/16"H.
Bath shall be freestanding with drain.
Bath shall have Hydrohands massaging water jets.
Bath shall have adjustable headrest with cascading shoulder warmer.
Bath shall have LED lighting. Bath shall have touch drain.
Bath shall have capacitive key pad control.
Bath shall have slip resistant surface.
Bath shall have solid surface material construction.
Bath shall be TOTO Model PJYD2200PWEU#___.
CODES/STANDARDS
Meets and exceeds ASME A112.19.7 / CSA B45.10, ASME A112.18.2 / CSA B125.2, CSA B45.5 / Z124, CSA 22.2 No. 218.2, UL 1795
Certifications: IAPMO (cUSPC & EGS), State of Massachusetts, and others
Model Code Compliance: UPC/USPC, IPC, NSPC, NPC Canada
Complies with CA Prop 65 warning requirements
Product Specifications

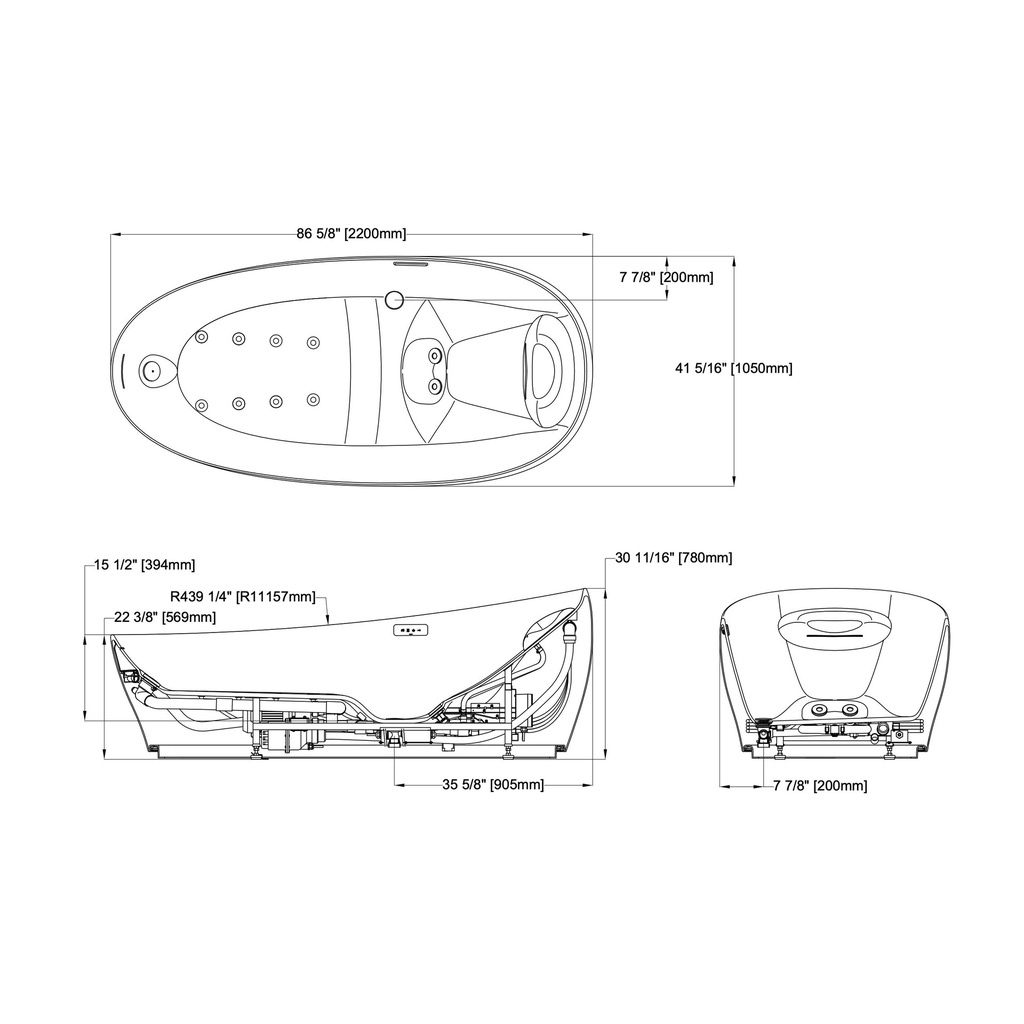

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
