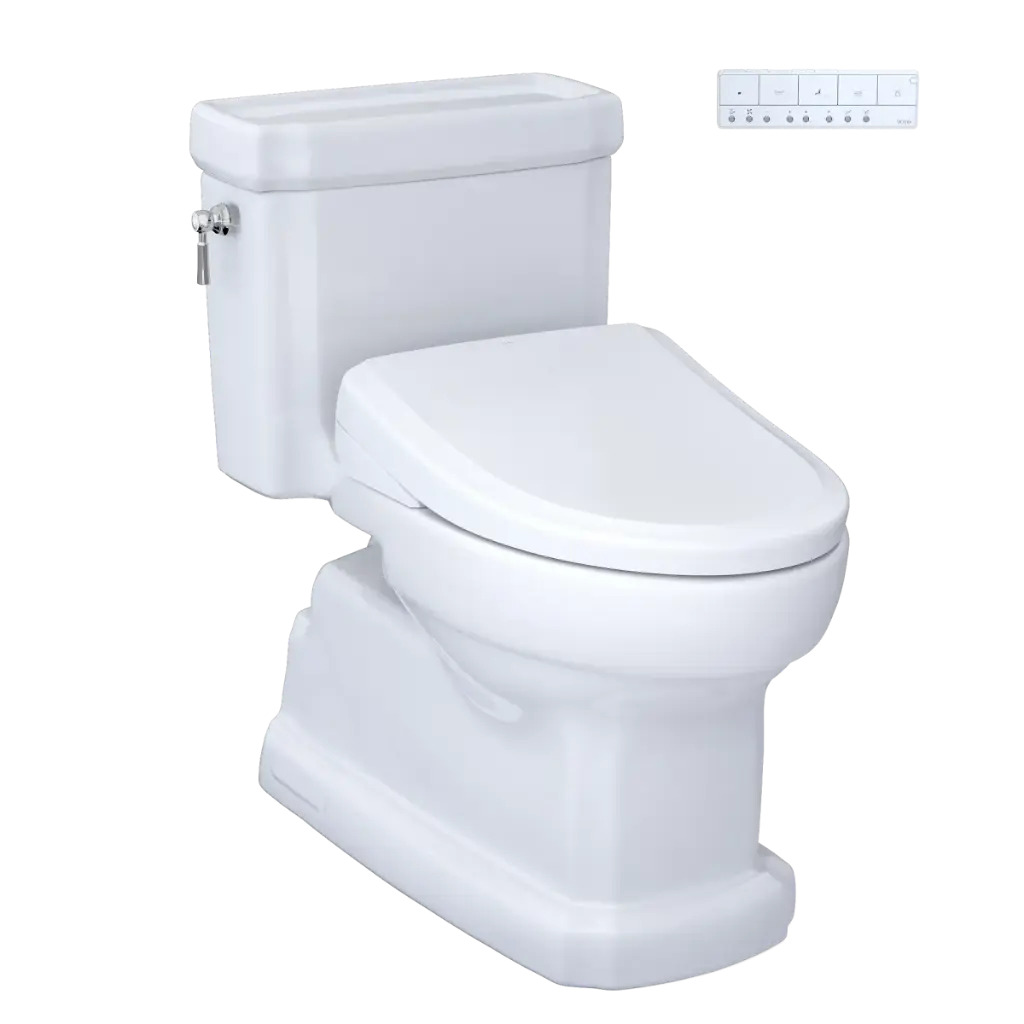

TOTO MW9744724CEFG#01 Guinevere Washlet+ S7 One Piece Toilet Cotton
Guinevere WASHLET®+ S7 One-Piece Toilet - 1.28 GPF
SKU: MW9744724CEFG#01
Auto Flush: Without Auto Flush
The WASHLET+ bidet seat system neatly conceals the WASHLET power cord and water supply hose for a clean installation. The system is comprised of a WASHLET and toilet which are specially designed for a seamless installation that compliments your bathroom's décor.
Product Components
CST974CEFGAT40#01 - Bowl
SW4724AT40#01 - WASHLET Bidet Seat
MODELS
MW9744724CEFGA (#01)
With CEFIONTECT ceramic glaze, WASHLET+ S7 with classic design and Auto Flush
CST974CEFGAT40
Elongated bowl with CEFIONTECT
SW4724AT40
WASHLET+ S7
THU857
Auto Flush Kit
MW9744724CEFG (#01)
Same as MW9744724CEFGA without Auto Flush
OPTIONAL COMPONENTS
TSU03W.10R
10" Unift Rough-In
TSU03W.14R
14" Unift Rough-In
THU458(#01, #BN, #PN, #MBL)
Trip Lever - Cotton, Brushed Nickel, Polished Nickel, Matte Black
Features
High-tech Electronic Bidet Seat and Toilet Combination
Concealed supply connection for seamless installation
High-efficiency TORNADO FLUSH® system - 1.28 GPF (4.8 LPF)
CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
Decorative one-piece with skirted design
Universal Height
Chrome plated trip lever
12" Rough-in
Elongated front bowl and WASHLET+ S7 classic lid and tank set
EWATER+® auto-cleans wand and bowl after every use
PREMIST® automatically mists the bowl before each use
Multifunction pearl white block-style remote control
Night light
Auto flush available as upgrade (see option above)
SPECIFICATIONS
Water Use 1.28 GPF (4.8 LPF)
Flush System TORNADO FLUSH®
Water Surface 7-7/8" x 9-7/8"
Trap Diameter 2-1/8"
Rough-in 12" (10" and 14" options available)
Trap Seal 2-3/16"
Warranty One Year Limited Warranty
Material Vitreous China
Shipping Weight MW9744724CEFG(A): 120 lbs
SW4724AT40: 14.5 lbs
MW9744724CEFG(A)
Shipping 30" L x 19" W x 29-5/8" H1 x 18-1/2" H2
Dimensions SW4724AT40
23-3/8" L x 17-5/8" W x 6-1/4" H
PRODUCT SPECIFICATION
The one-piece high-effciency TORNADO FLUSH system toilet shall be 1.28 GPF (4.8 LPF).
Toilet shall be 12" Unift rough-in.
Toilet shall have optional CEFIONTECT ceramic glaze and be at Universal Height.
Toilet shall have elongated front bowl with SoftClose seat and Polished Chrome trip lever. Toilet shall be TOTO Model MW9744724CEFG(A)#01.
CODES/STANDARDS
Meets and exceeds ASME A112.19.2/CSA B45.1
Certifcations: IAPMO (cUPC®), EPA WaterSense®, State of Massachusetts, City of Los Angeles, and others
Code compliance: UPC, IPC, NSPC, NPC Canada, and others
Legislative Compliance: California AB715, California Green Building Code, City of Los Angeles Water Effciency Ordinance, and others
ADA compliant for residential use with autofush feature model, or with trip lever located on the approach side
Complies with CA Prop 65 warning requirements
Product Specifications

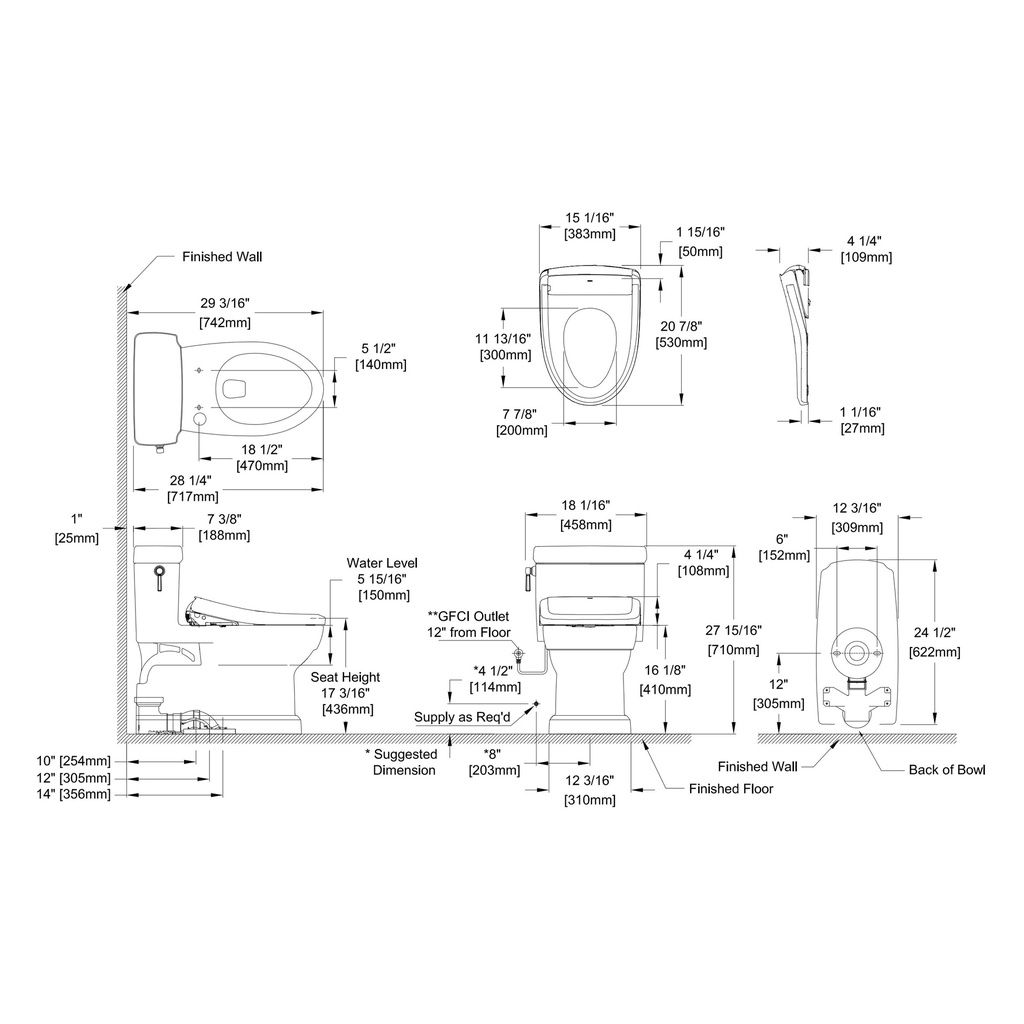

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
