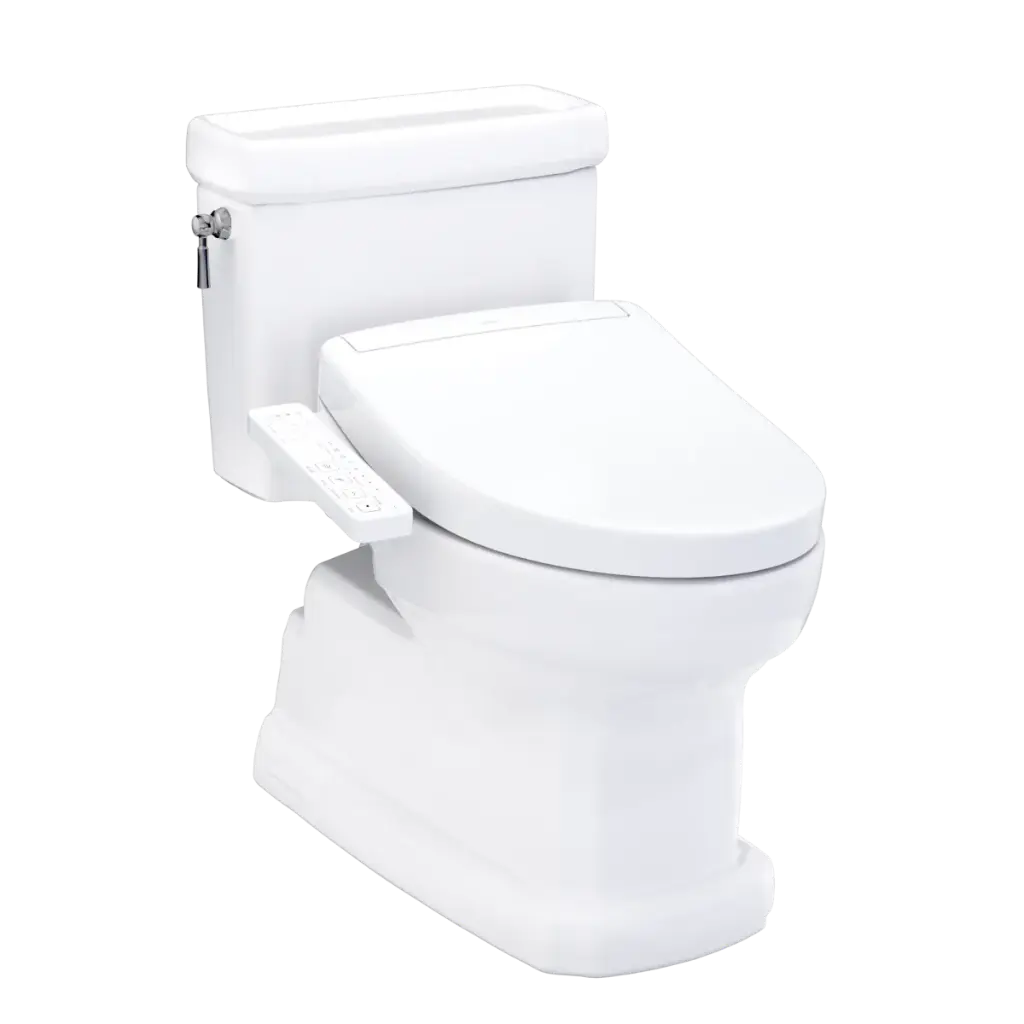

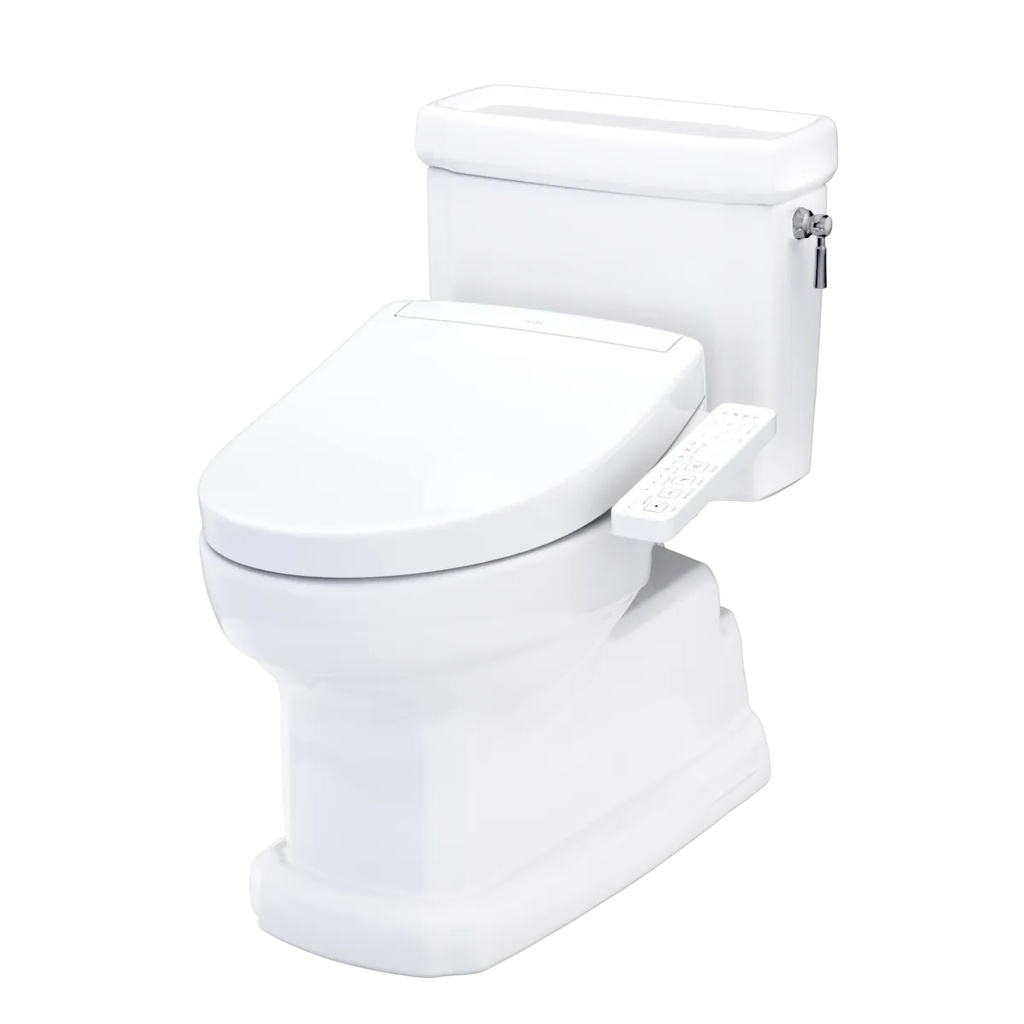

TOTO MW9743346CEFG#01 Guinevere Washlet+ S2 One Piece Toilet Cotton
Guinevere® WASHLET®+ S2 One-Piece Toilet - 1.28 GPF
SKU: MW9743346CEFG#01
The WASHLET+ bidet seat system neatly conceals the WASHLET power cord and water supply hose for a clean installation. The system is comprised of a WASHLET and toilet which are specially designed for a seamless installation that compliments your bathroom's décor.
Product Components
CST974CEFGAT40#01 - Bowl
SW3346#01 - WASHLET Bidet Seat
MODELS
MW9743346CEFG (#01)
With CEFIONTECT ceramic glaze, WASHLET+ S2 with contemporary design
CST974CEFGAT40
Elongated bowl with CEFIONTECT
SW3346
WASHLET+ S2
OPTIONAL COMPONENTS
TSU03W.10R
10" Unifit Rough-In
TSU03W.14R
14" Unifit Rough-In
THU458(#01, #BN, #PN, #MBL)
Trip Lever - Cotton, Brushed Nickel, Polished Nickel, Matte Black
Features
High-tech Electronic Bidet Seat and Toilet Combination
Concealed supply connection for seamless installation
High-efficiency TORNADO FLUSH® system - 1.28 GPF (4.8 LPF)
CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
Decorative one-piece with skirted design
Universal Height
Chrome plated trip lever
12" Rough-in
Elongated front bowl and WASHLET+ C2 and tank set
EWATER+® auto-cleans wand and bowl after every use
PREMIST® automatically mists the bowl before each use
Convenient arm control panel
SPECIFICATIONS
Shipping Dimensions
CST974CEFG
30" L x 19" W x 29-5/8" H1 x 18-1/2" H2
SW3346
24-3/8" L x 21" W x 7-7/16" H
Shipping Weight CST974CEFG: 120 lbs
SW3346: 16 lbs
Material Vitreous China
Warranty One Year Limited Warranty
Trap Seal 2-3/16"
Rough-in 12" (10" and 14" options available)
Trap Diameter 2-1/8"
Water Surface 7-7/8" x 9-7/8"
Flush System TORNADO FLUSH®
PRODUCT SPECIFICATION
The one-piece high-efficiency TORNADO FLUSH system toilet shall be 1.28 GPF (4.8 LPF).
Toilet shall be 12" Unifit rough-in.
Toilet shall have optional CEFIONTECT ceramic glaze and be at Universal Height.
Toilet shall have elongated front bowl with SoftClose seat and Polished Chrome trip lever. Toilet shall be TOTO Model MW9743346CEFG#01.
CODES/STANDARDS
Meets and exceeds ASME A112.19.2/CSA B45.1
Certifications: IAPMO (cUPC®), EPA WaterSense®, State of Massachusetts, City of Los Angeles, and others
Code compliance: UPC, IPC, NSPC, NPC Canada, and others
Legislative Compliance: California AB715, California Green Building Code, City of Los Angeles Water Efficiency Ordinance, and others
ADA compliant for residential use when installed with trip lever located on the approach side
Complies with CA Prop 65 warning requirements
Product Specifications

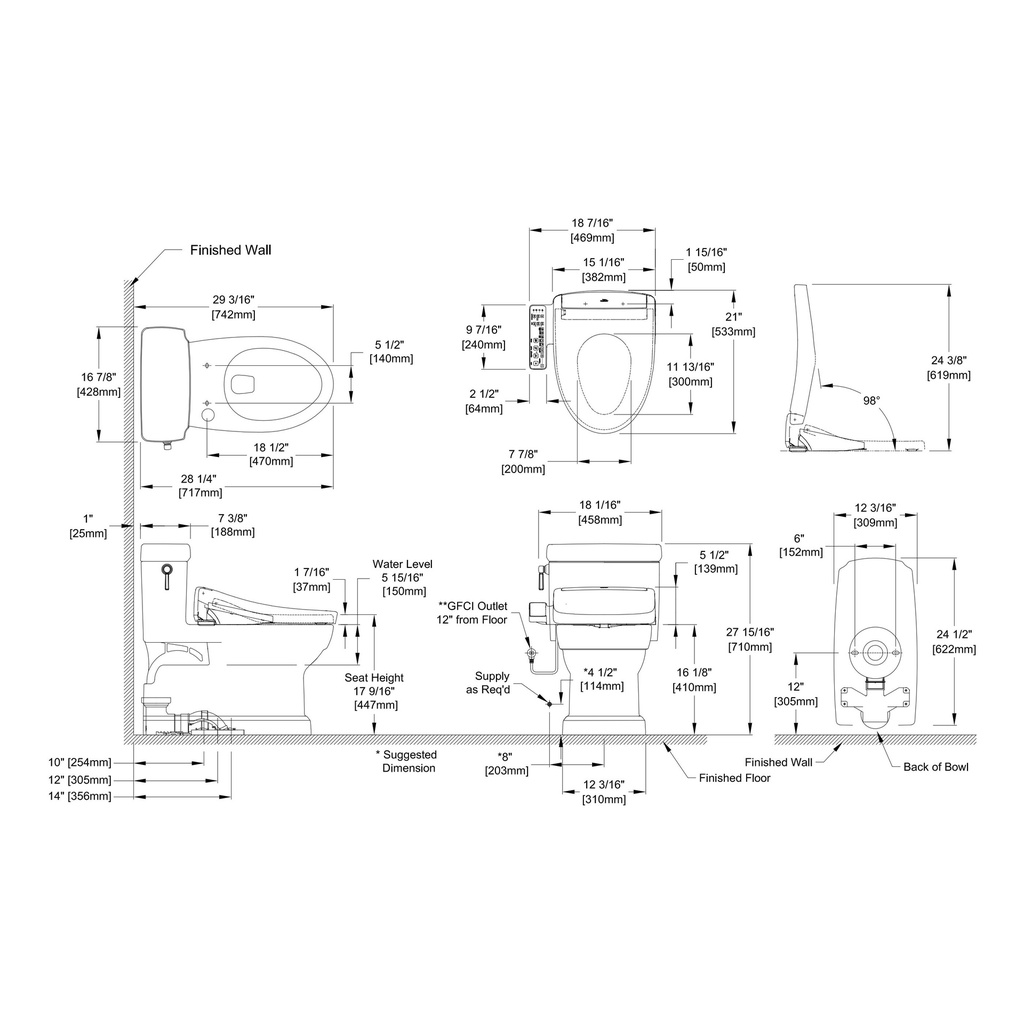

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
