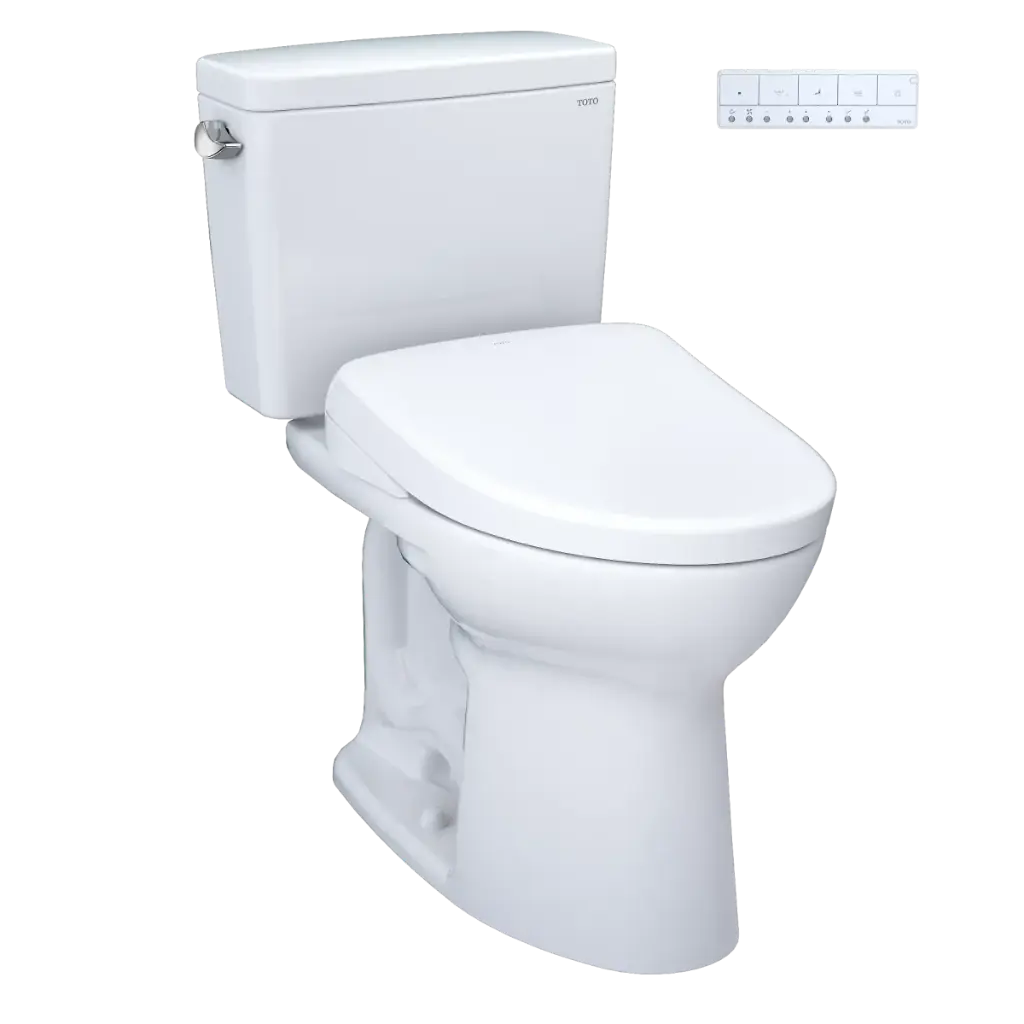

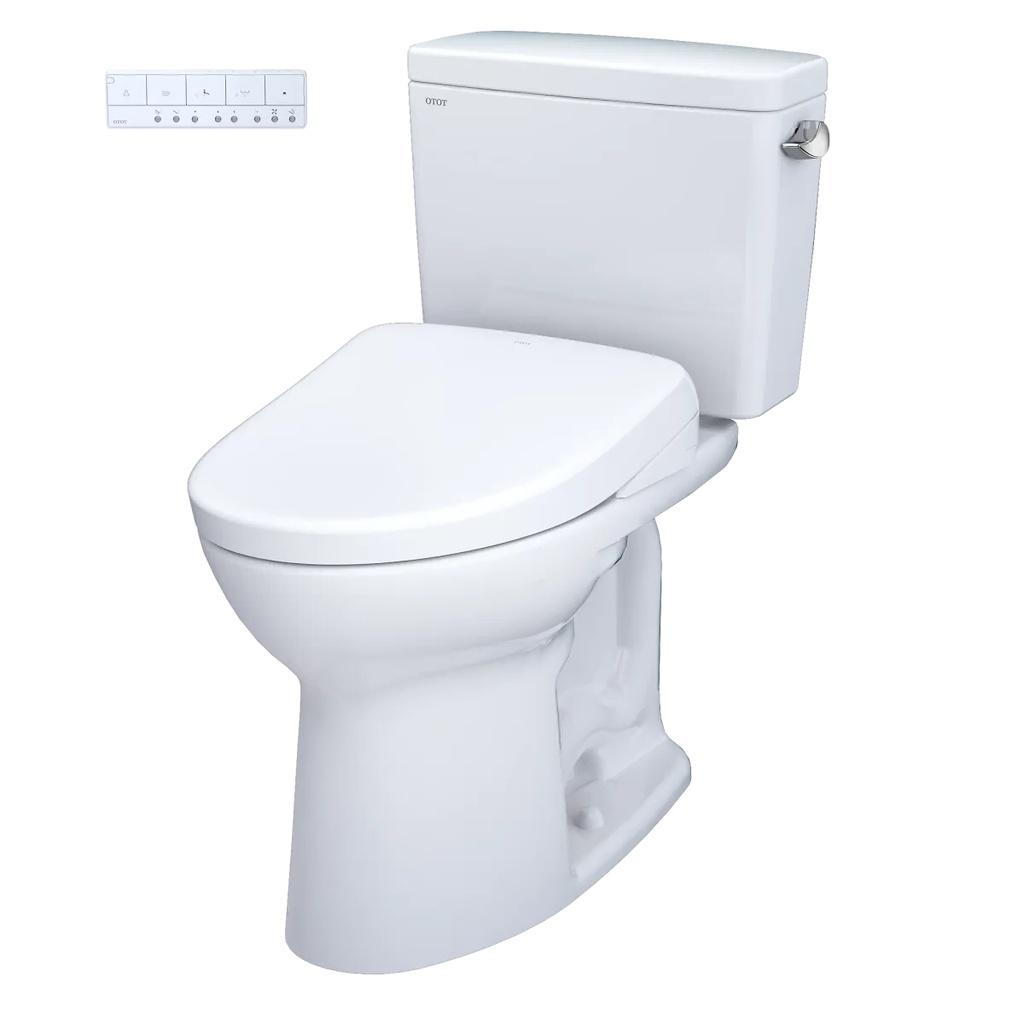

TOTO MW7764736CSFG#01 Drake Washlet+ S7A Two Piece Toilet Cotton
Drake® WASHLET®+ S7A Two-Piece Toilet - 1.6 GPF - Universal Height
SKU: MW7764736CSFG#01
Auto Flush: Without Auto Flush
The WASHLET+ system neatly conceals the WASHLET power cord and water supply hose for a clean installation. The system is comprised of a WASHLET bidet seat and toilet which are specially designed for a seamless installation that compliments your bathroom's décor.
Product Components
C776CEFGT40#01 - Bowl
ST776SA#01 - Tank and Cover
SW4736AT40#01 - WASHLET Bidet Seat
MODELS
MW7764736CSFGA (#01)
With CEFIONTECT ceramic glaze, WASHLET+ S7A with contemporary design and Auto Flush
C776CEFGT40
Elongated bowl with CEFIONTECT
ST776SA
Tank and cover only
SW4736AT40
WASHLET+ S7A
THU857
Auto Flush Kit
MW7764736CSFG (#01)
Same as MW7764736CSFGA without Auto Flush
OPTIONAL COMPONENTS
THU808(#01, #03, #11, #12, #51, #BN, #PN, #RB)-A
Trip Lever (Cotton, Bone, Colonial White, Sedona Beige, Ebony, Brushed Nickel, Polished Nickel, Oil Rubbed Bronze)
Features
High-tech Electronic Bidet Seat and Toilet Combination
Concealed supply connection for seamless installation
TORNADO FLUSH® system - 1.6 GPF (6.0 LPF)
CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
Universal Height
Chrome plated trip lever
12" Rough-in
Elongated front bowl and WASHLET+ S7A and tank set
EWATER+® auto-cleans wand and bowl after every use
PREMIST® automatically mists the bowl before each use
Auto Open/Close
Multifunction pearl white block-style remote control
Auto flush available as upgrade (see option above)
SPECIFICATIONS
Shipping Dimensions
C776CEFGT40
30-1/8" L x 15-1/4" W1 x 10-7/8" W2 x 17-3/4" H
ST776SA
18-3/4" L x 8-7/8" W x 16-1/4" H
SW4736AT40
23-3/8" L x 17-5/8" W x 6-1/4" H
Shipping Weight
C776CEFGT40: 62 lbs
ST776SA: 32 lbs
SW4736AT40: 15 lbs
Material Vitreous China
Warranty One Year Limited Warranty
Trap Seal 2-1/8"
Rough-in 12"
Trap Diameter 2-1/8"
Water Surface 9" x 6-7/8"
Min. Water Pressure 8 psi (flowing)
Flush System TORNADO FLUSH®
PRODUCT SPECIFICATION
The two-piece TORNADO FLUSH toilet shall be 1.6 GPF (6.0 LPF).
Universal Height Toilet with CEFIONTECT glaze finish.
Toilet shall have high-profile tank, elongated front bowl and chrome trip lever.
Toilet shall be TOTO Model MW7764736CSFG___#01
CODES/STANDARDS
Meets and exceeds ASME A112.19.2/CSA B45.1
Certifications: IAPMO (cUPC®)
Code compliance: UPC, IPC, NSPC, NPC Canada, and others
ADA compliant for residential use with autoflush feature model, or with trip lever located on the approach side
Complies with CA Prop 65 warning requirements
Product Specifications

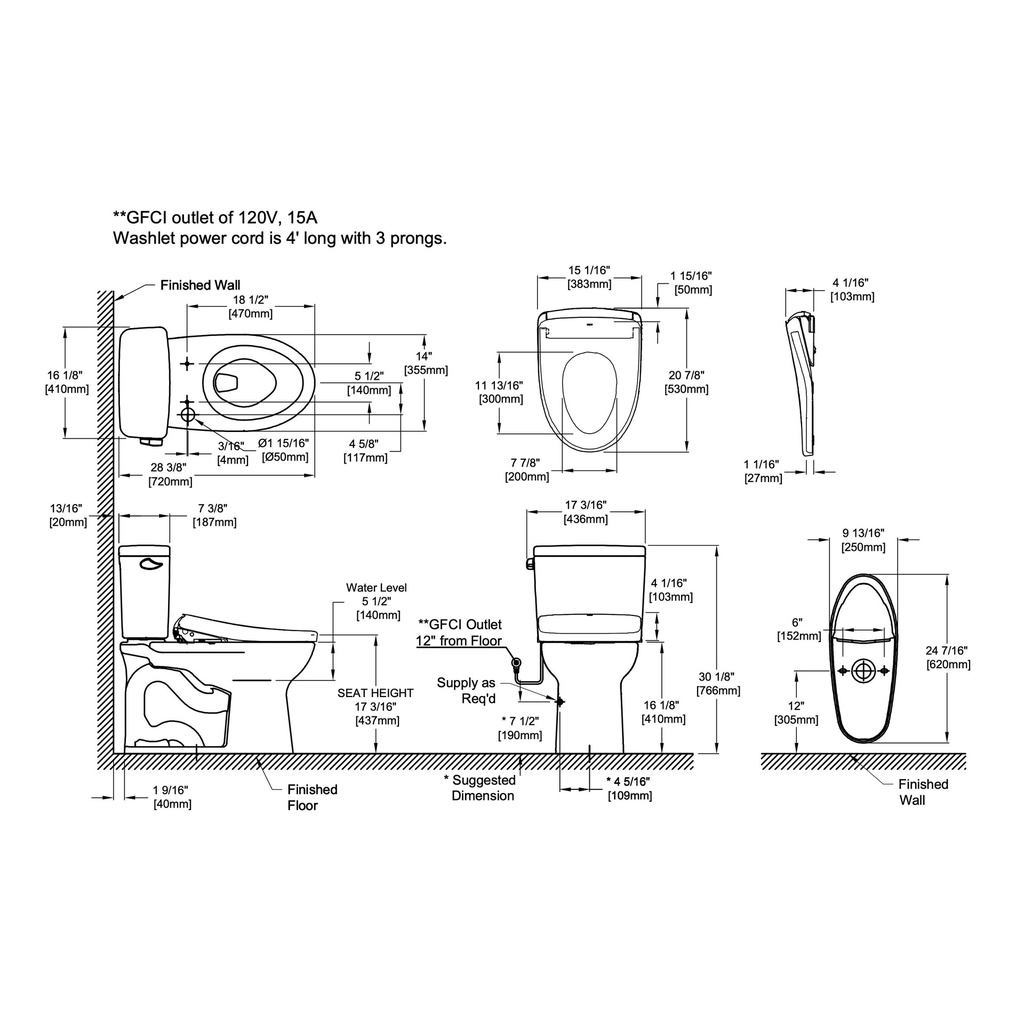

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
