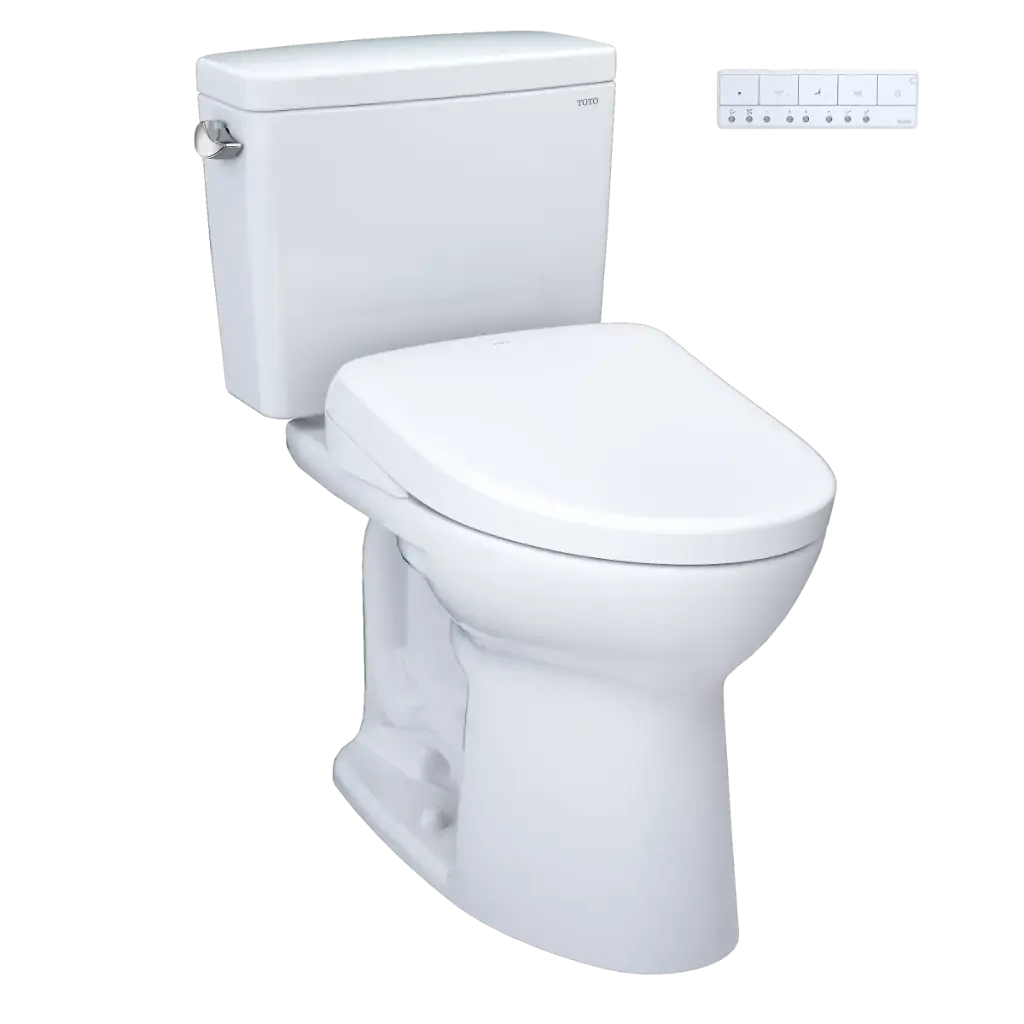

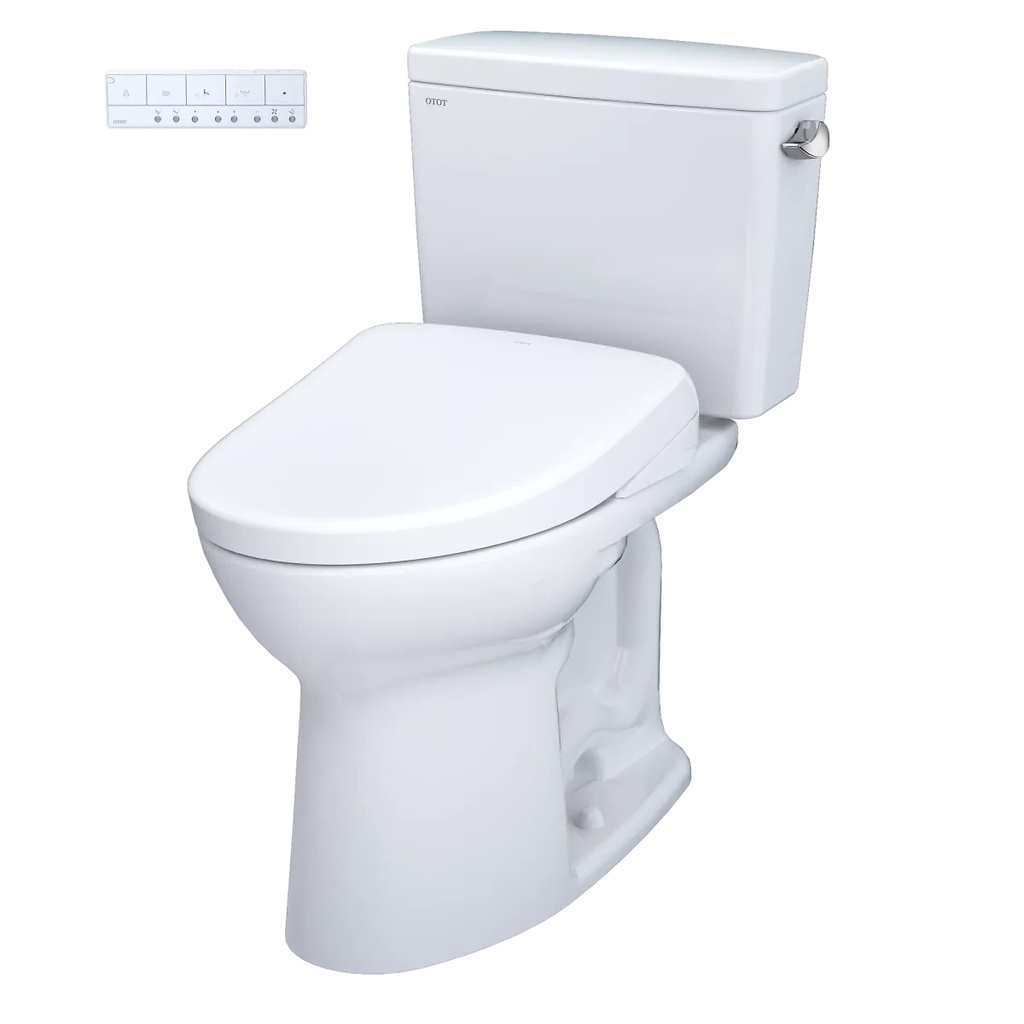

TOTO MW7764726CSGA#01 Drake Washlet+ S7 Two Piece Toilet Cotton
Drake® WASHLET®+ S7 Two-Piece Toilet - 1.6 GPF
SKU: MW7764726CSGA#01
Auto Flush: With Auto Flush
The WASHLET+ system neatly conceals the WASHLET power cord and water supply hose for a clean installation. The system is comprised of a WASHLET bidet seat and toilet which are specially designed for a seamless installation that compliments your bathroom’s décor.
Product Components
C776CEGT40#01 - Bowl
ST776SA#01 - Tank and Cover
SW4726AT40#01 - WASHLET Bidet Seat
MODELS
MW7764726CSGA (#01)
With CEFIONTECT ceramic glaze, WASHLET+ S7 with contemporary design and Auto Flush
C776CEGT40
Elongated bowl with CEFIONTECT
ST776SA
Tank and cover only
SW4726AT40
WASHLET+ S7
THU857
Auto Flush Kit
MW7764726CSG (#01)
Same as MW7764726CSGA without Auto Flush
OPTIONAL COMPONENTS
THU808(#01, #03, #11, #12, #51, #BN, #PN, #PB, #RB, #MBL)-A
Trip Lever - Cotton, Bone, Colonial White, Sedona Beige, Ebony, Brushed Nickel, Polished Nickel, Polished Brass, Oil Rubbed Bronze, Matte Black
Features
High-tech Electronic Bidet Seat and Toilet Combination
Concealed supply connection for seamless installation
TORNADO FLUSH® system - 1.6 GPF (6.0 LPF)
CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
Chrome plated trip lever
12" Rough-in
Elongated front bowl and WASHLET+ S7 and tank set
EWATER+® auto-cleans wand and bowl after every use
PREMIST® automatically mists the bowl before each use
Multifunction pearl white block-style remote control
Auto flush available as upgrade (see option above)
SPECIFICATIONS
Shipping Dimensions
C776CEGT40
29-3/4" L x 15" W1 x 10-5/8" W2 x 16-1/4" H
ST776SA
18-3/4" L x 8-7/8" W x 16-1/4" H
SW4726AT40
23-3/8" L x 17-5/8" W x 6-1/4" H
Shipping Weight
C776CEGT40: 57 lbs
ST776SA: 32 lbs
SW4726AT40: 14.5 lbs
Material Vitreous China
Warranty One Year Limited Warranty
Trap Seal 2-1/8"
Rough-in 12"
Trap Diameter 2-1/8"
Water Surface 9" x 6-7/8"
Min. Water Pressure 8 psi (flowing)
Flush System TORNADO FLUSH®
PRODUCT SPECIFICATION
The two-piece TORNADO FLUSH toilet shall be 1.6 GPF (6.0 LPF).
Regular Height Toilet with CEFIONTECT glaze finish.
Toilet shall have high-profile tank, elongated front bowl and chrome trip lever.
Toilet shall be TOTO Model MW7764726CSG___#01.
CODES/STANDARDS
Meets and exceeds ASME A112.19.2/CSA B45.1
Certifications: IAPMO (cUPC®)
Code compliance: UPC, IPC, NSPC, NPC Canada, and others
Complies with CA Prop 65 warning requirements
Product Specifications

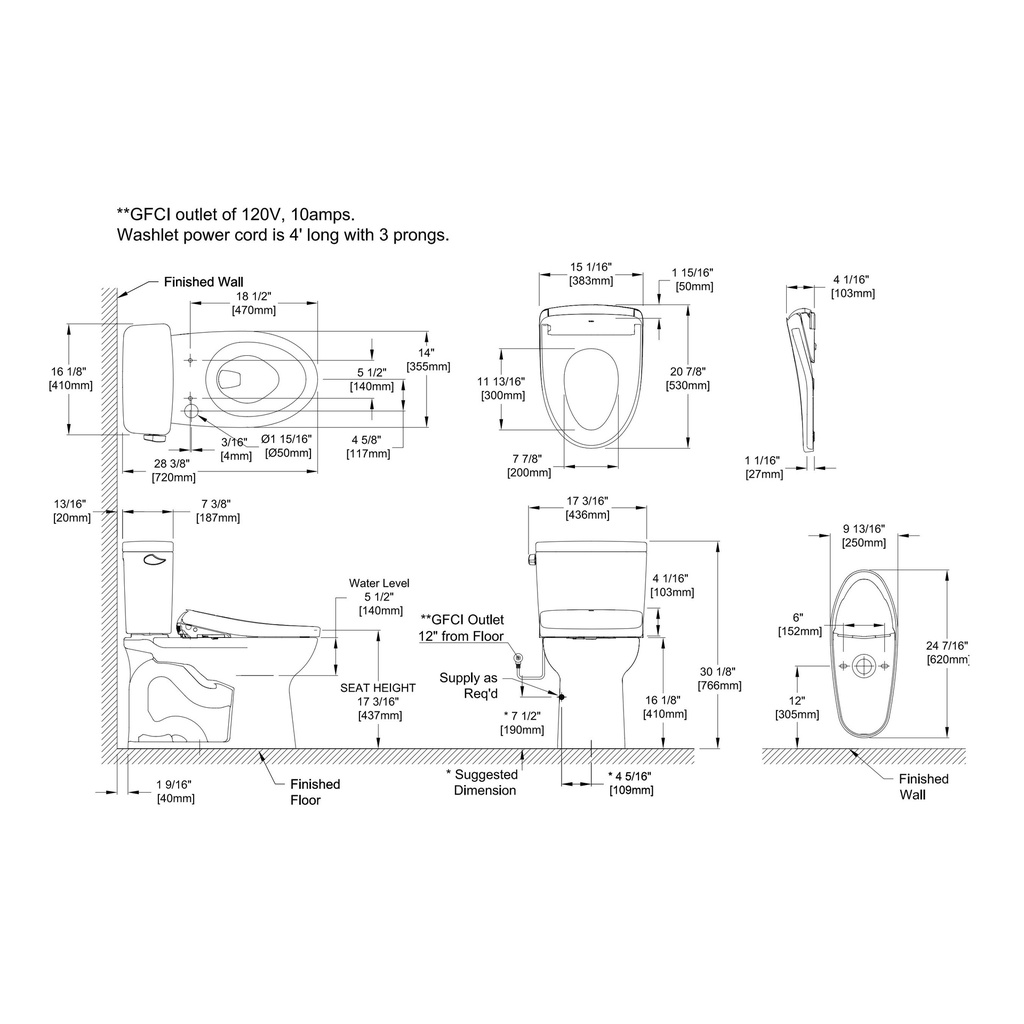

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
