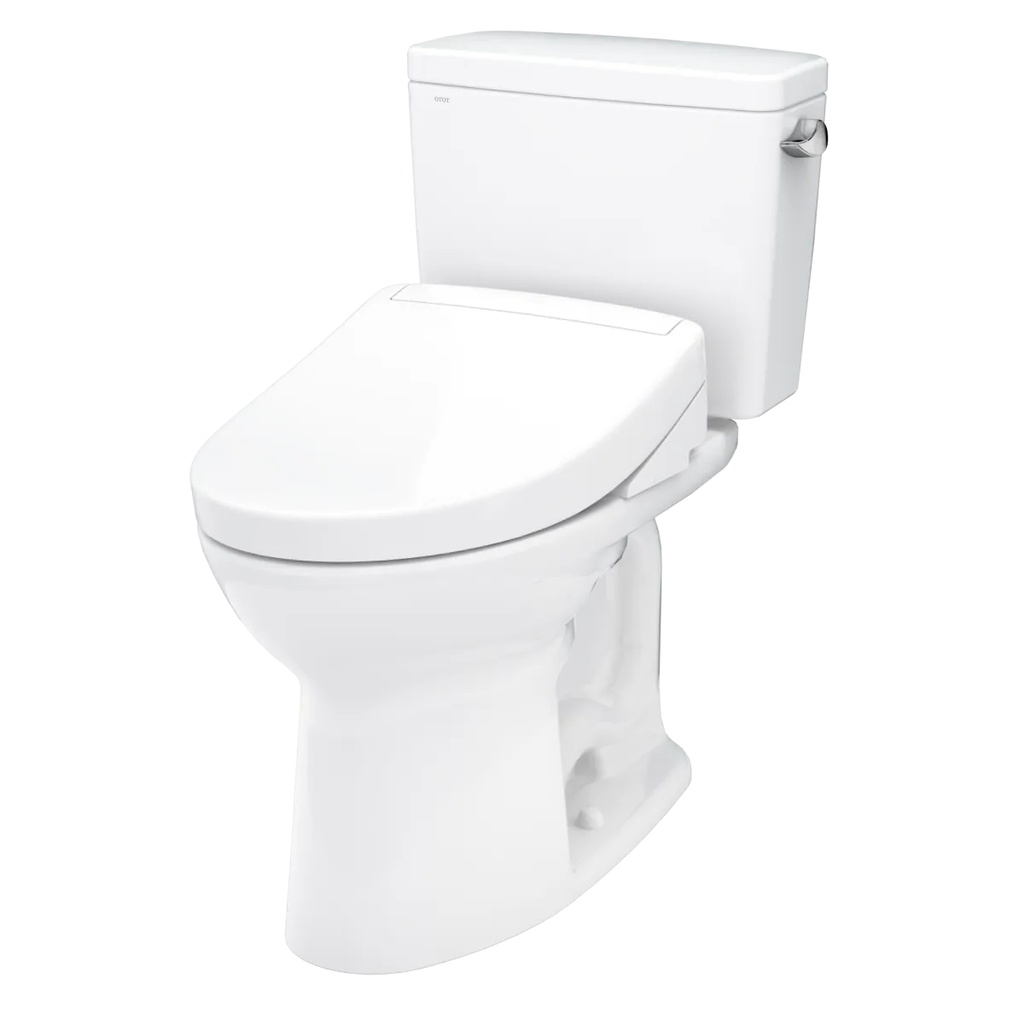

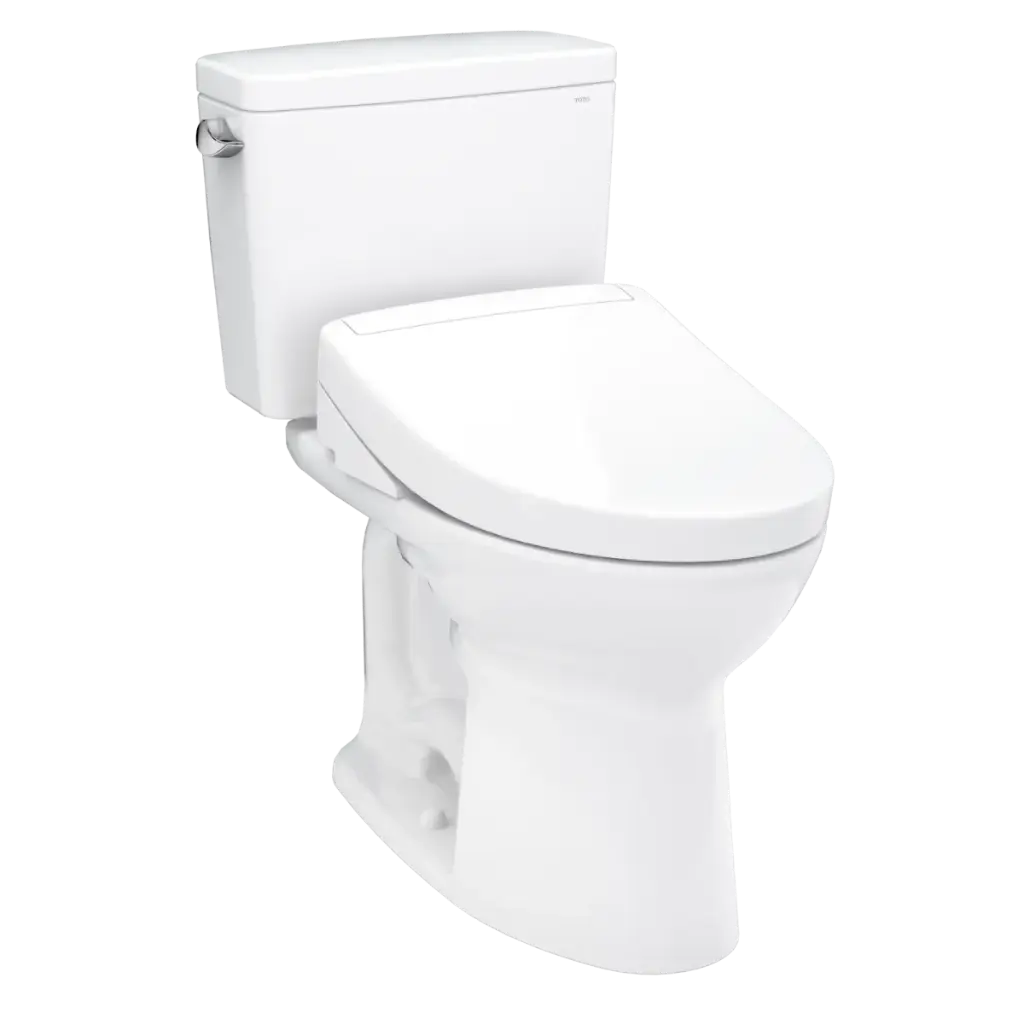

TOTO MW7763446CEFG#01 Drake Washlet+ S5 Two Piece Toilet Cotton
Drake® WASHLET®+ S5 Two-Piece Toilet - 1.28 GPF - Universal Height
SKU: MW7763446CEFG#01
Rough-In: 12 Inch Rough-In
The WASHLET+ bidet seat system neatly conceals the WASHLET power cord and water supply hose for a clean installation. The system is comprised of a WASHLET and toilet which are specially designed for a seamless installation that compliments your bathroom's décor.
Product Components
C776CEFGT40#01 - Bowl
ST776EA#01 - Tank and Cover
SW3446#01 - WASHLET Bidet Seat
MODELS
MW7763446CEFG (#01)
With CEFIONTECT ceramic glaze, WASHLET+ S5 with contemporary design
C776CEFGT40
Elongated bowl with CEFIONTECT
ST776EA
Tank and cover only
SW3446
WASHLET+ S5
OPTIONAL COMPONENTS
THU808(#01, #03, #11, #12, #51, #BN, #PN, #PB, #RB, #MBL)-A
Trip Lever - Cotton, Bone, Colonial White, Sedona Beige, Ebony, Brushed Nickel, Polished Nickel, Polished Brass, Oil Rubbed Bronze, Matte Black
Features
High-tech Electronic Bidet Seat and Toilet Combination
Concealed supply connection for seamless installation
TORNADO FLUSH® system
CEFIONTECT® ceramic glaze
Elongated front bowl and tank set with WASHLET
12" Rough-in, Less supply
EWATER+® auto cleans the wand
Convenient slim wireless remote, with illuminated touchpad
PREMIST® on bowl before use
Front and rear warm water cleansing with adjustable temperature and pressure control
Heated seat with temperature control
Automatic air deodorizer
Warm air drying with three variable temperature settings
Docking Station for easy cleaning and installation
SPECIFICATIONS
Shipping Dimensions
C776CEFGT40
30-1/8" L x 15-1/4" W1 x 10-7/8" W2 x 17-3/4" H
ST776EA
18-3/4" L x 8-7/8" W x 16-1/4" H
SW3446
24-3/8" L x 17-9/16" W x 7-7/16" H
Shipping Weight
C776CEFGT40: 62 lbs
ST776EA: 32 lbs
SW3446: 15.4 lbs
Material Vitreous China
Warranty One Year Limited Warranty
Trap Seal 2-1/8"
Rough-in 12"
Trap Diameter 2-1/8"
Water Surface 9" x 6-7/8"
Min. Water Pressure 8 psi (Flowing)
Flush System TORNADO FLUSH®
PRODUCT SPECIFICATION
The two-piece high-efficiency TORNADO FLUSH toilet shall be 1.28 GPF (4.8 LPF).
UNIVERSAL HEIGHT Toilet with CEFIONTECT glaze finish.
Toilet shall have highprofile tank, elongated front bowl and chrome trip lever.
Toilet shall be TOTO Model MW7763446CEFG#01.
CODES/STANDARDS
Meets and exceeds ASME A112.19.2/CSA B45.1
Certifications: IAPMO (cUPC®), EPA WaterSense®, State of Massachusetts, City of Los Angeles, and others
Code compliance: UPC, IPC, NSPC, NPC Canada, and others
Legislative Compliance: California AB715, California Green Building Code, City of Los Angeles Water Efficiency Ordinance, and others
ADA compliant for residential use when installed with trip lever located on the approach side
Complies with CA Prop 65 warning requirements
Product Specifications

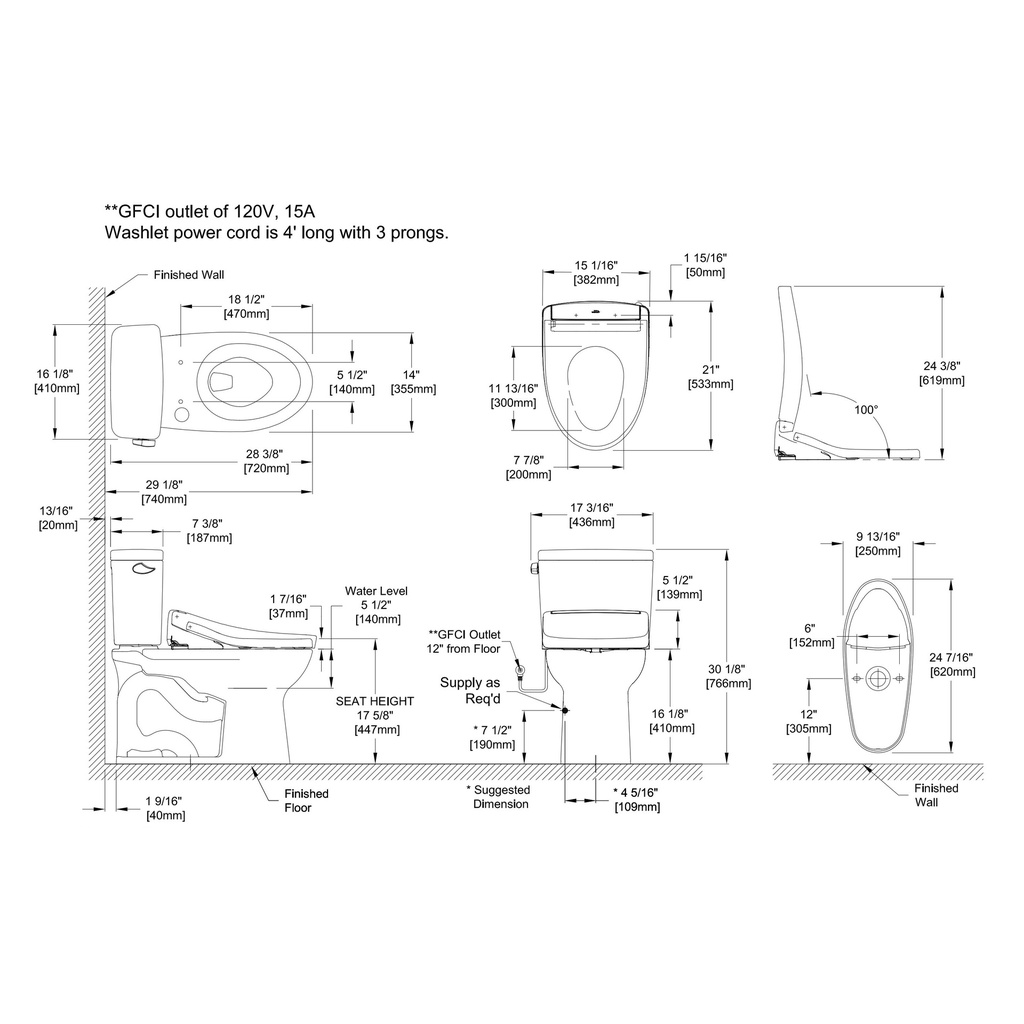

CAD Drawing
