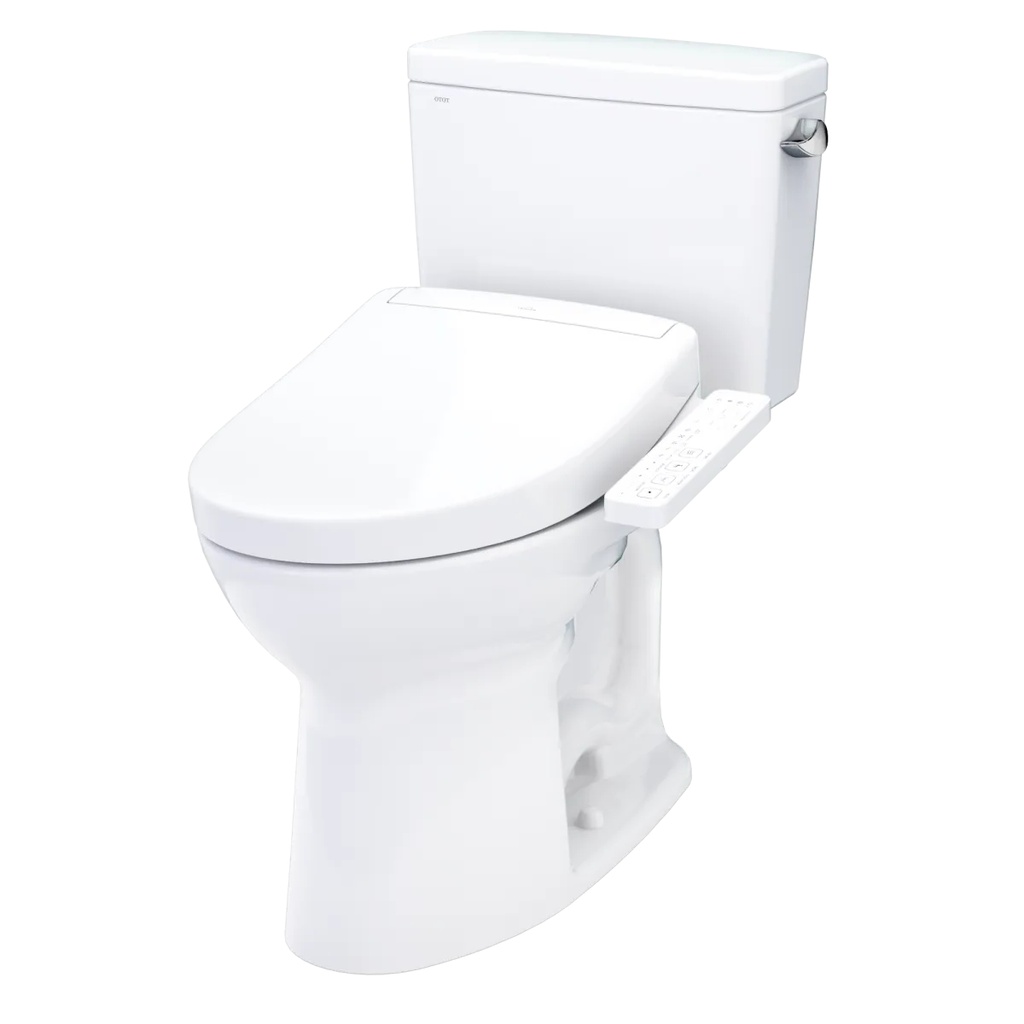

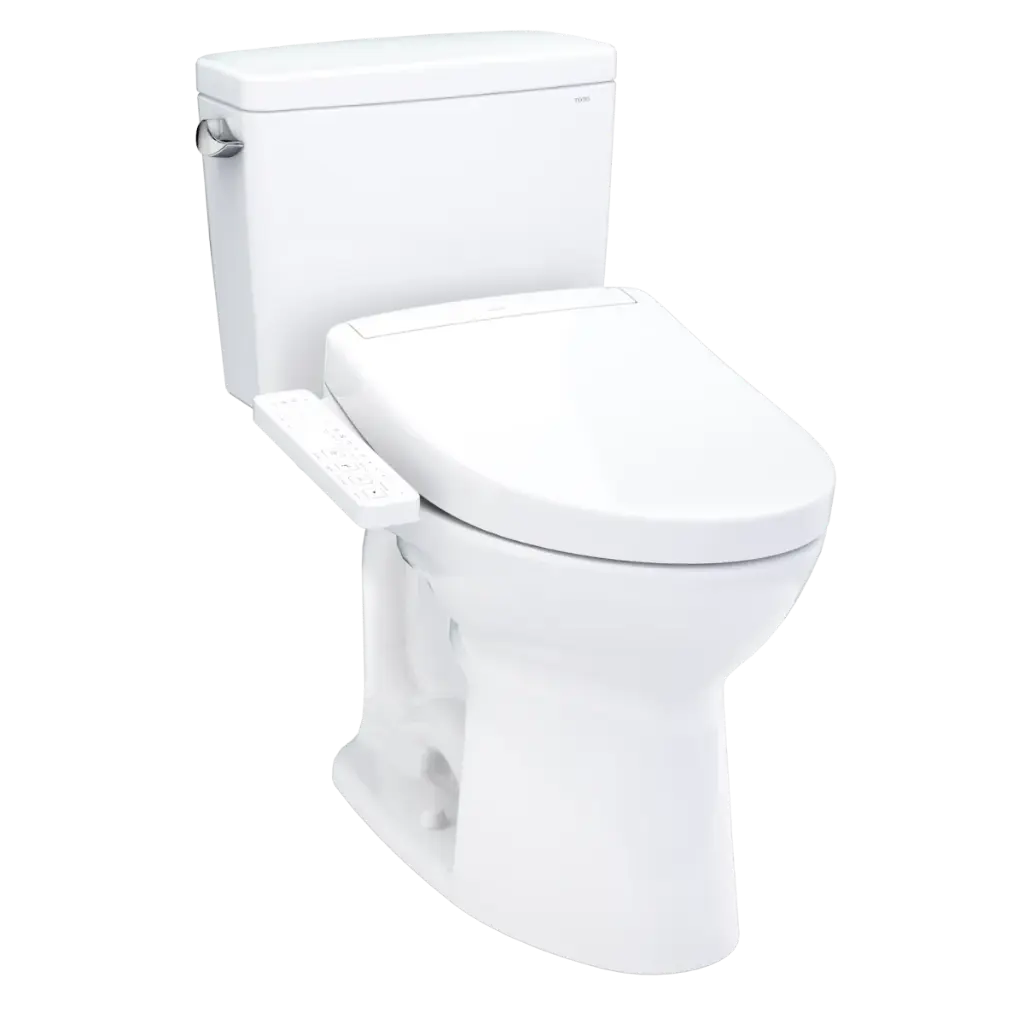

TOTO MW7763346CSFG.10#01 Drake Washlet+ S2 Two Piece Toilet Cotton
Drake® WASHLET®+ S2 Two-Piece Toilet - 1.6 GPF - Universal Height
SKU: MW7763346CSFG.10#01
Rough-In: 10 Inch Rough-In
The WASHLET+ system neatly conceals the WASHLET power cord and water supply hose for a clean installation. The system is comprised of a WASHLET bidet seat and toilet which are specially designed for a seamless installation that compliments your bathroom's décor.
Product Components
C776CEFGT40.10#01 - Bowl
ST776SA#01 - Tank and Cover
SW3346#01 - WASHLET Bidet Seat
MODELS
MW7763346CSFG (#01)
With CEFIONTECT ceramic glaze, WASHLET+ S2 with contemporary design
C776CEFGT40
Elongated bowl with CEFIONTECT
ST776SA
Tank and cover only
SW3346
WASHLET+ S2
OPTIONAL COMPONENTS
THU808(#01, #03, #11, #12, #51, #BN, #PN, #PB, #RB, #MBL)-A
Trip Lever - Cotton, Bone, Colonial White, Sedona Beige, Ebony, Brushed Nickel, Polished Nickel, Polished Brass, Oil Rubbed Bronze, Matte Black
Features
High-tech Electronic Bidet Seat and Toilet Combination
Concealed supply connection for seamless installation
TORNADO FLUSH® system
CEFIONTECT® ceramic glaze
Universal Height
Elongated front bowl and tank set with WASHLET
EWATER+® auto cleans the wand
Water PREMIST® of bowl before each use
Convenient arm control panel
Gentle Aerated, Warm Water, Dual Action Spray with Oscillating and Pulsating feature
Heated seat with temperature control
Automatic air deodorizer
Warm air Drying with three variable temperature settings
Quick release feature
Adjustable water temperature and volume
Chrome plated trip lever included
SPECIFICATIONS
Shipping Dimensions
C776CEFGT40
30-1/8" L x 15-1/4" W1 x 10-7/8" W2 x 17-3/4" H
ST776SA
18-3/4" L x 8-7/8" W x 16-1/4" H
SW3346
24-3/8" L x 21" W x 7-7/16" H
Shipping Weight
C776CEFGT40: 62 lbs
ST776SA: 32 lbs
SW3346: 16 lbs
Material Vitreous China
Warranty One Year Limited Warranty
Trap Seal 2-1/8"
Rough-in 12"
Trap Diameter 2-1/8"
Water Surface 9" x 6-7/8"
Min. Water Pressure 8 psi (Flowing)
Flush System TORNADO FLUSH®
PRODUCT SPECIFICATION
The two-piece TORNADO FLUSH toilet shall be 1.6 GPF/6.0 LPF.
UNIVERSAL HEIGHT Toilet with CEFIONTECT glaze finish.
Toilet shall have high-profile tank, elongated front bowl and chrome trip lever.
Toilet shall be TOTO Model MW7763346CSFG#01.
CODES/STANDARDS
Meets and exceeds ASME A112.19.2/CSA B45.1
Certifications: IAPMO (cUPC®)
Code compliance: UPC, IPC, NSPC, NPC Canada, and others
ADA compliant for residential use when installed with trip lever located on the approach side
Complies with CA Prop 65 warning requirements
Product Specifications

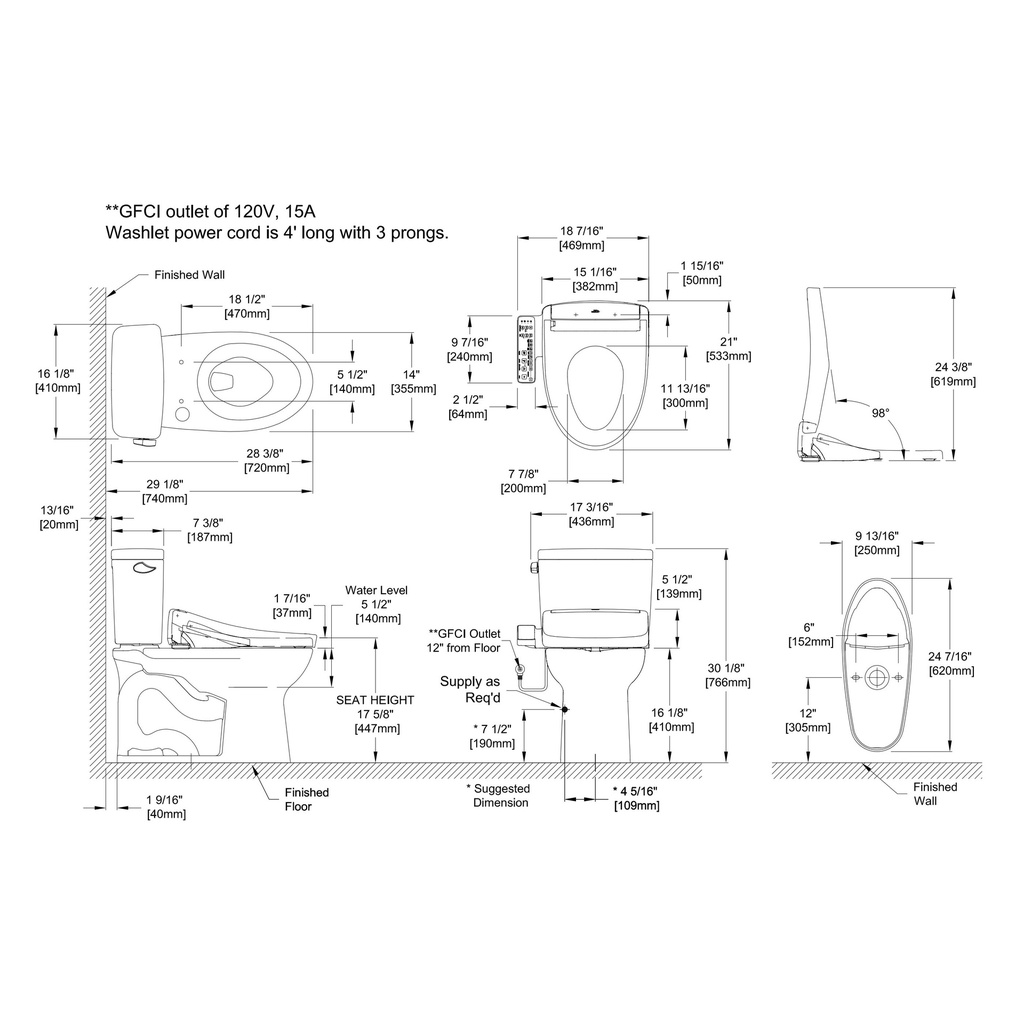

CAD Drawing
