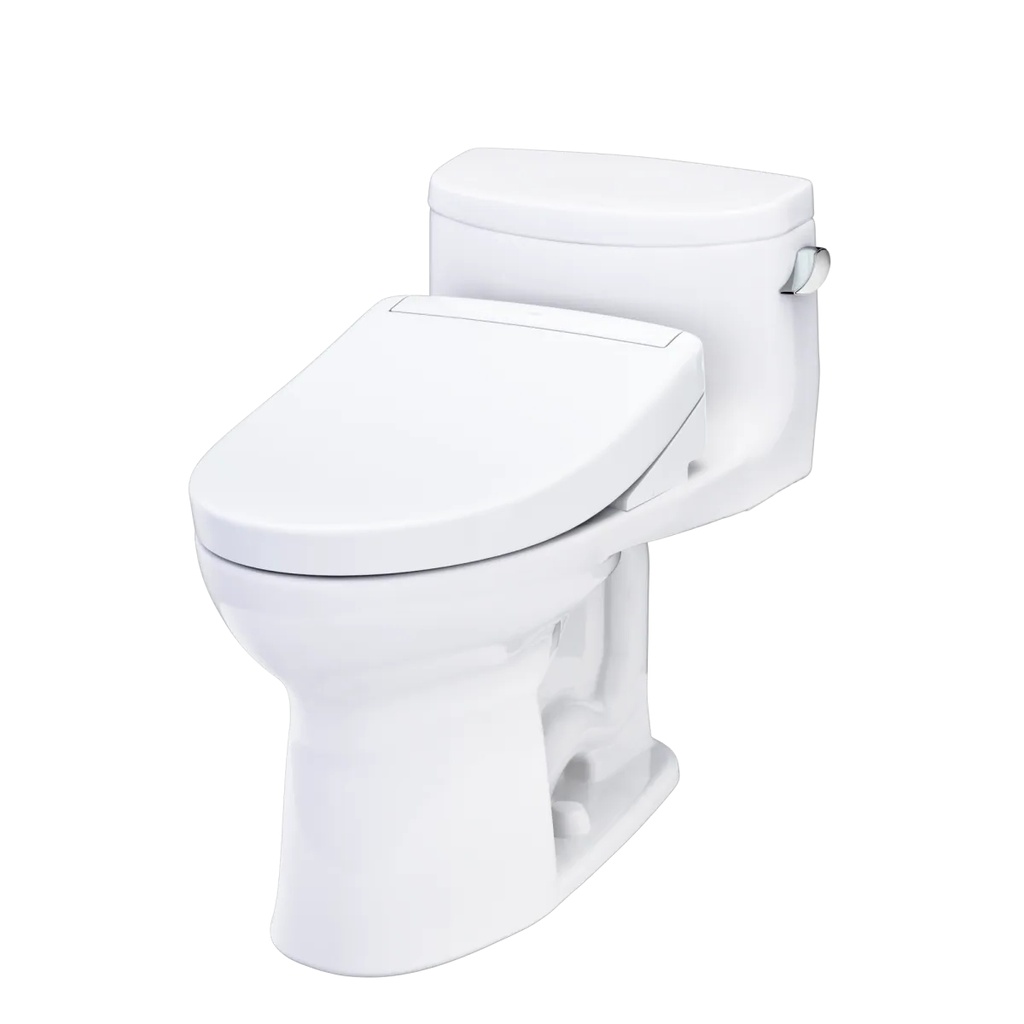

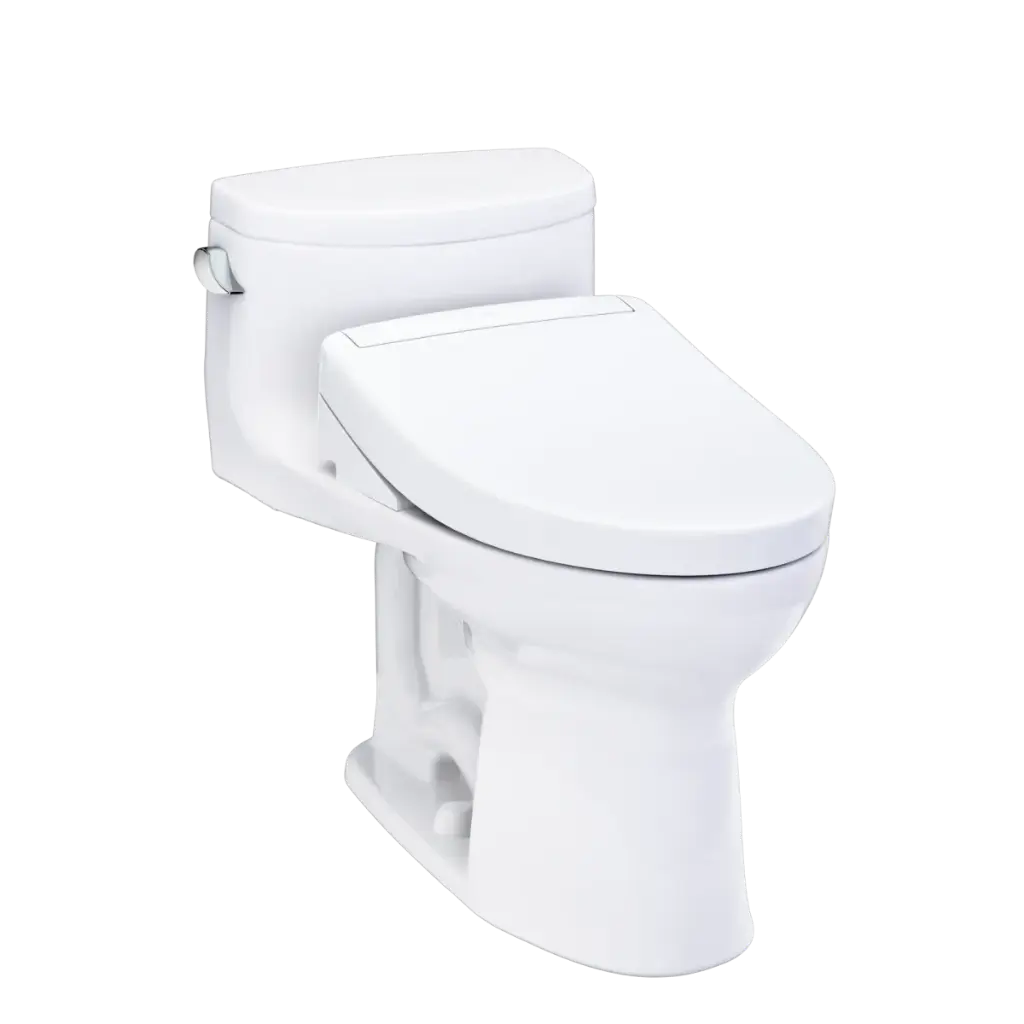

TOTO MW6343446CEFG#01 Supreme II Washlet+ S5 One Piece Toilet Cotton
Supreme® II WASHLET®+ S5 One-Piece Toilet - 1.28 GPF
SKU: MW6343446CEFG#01
This Supreme II toilet with included bidet seat WASHLET+ for a seamless installation that complements your bathoroom décor
Product Components
CST634CEFGT40#01 - Bowl
SW3446#01 - WASHLET Bidet Seat
MODELS
MW6343446CEFG (#01)
With CEFIONTECT ceramic glaze, WASHLET+ S5 with contemporary design
CST634CEFGT40
Elongated bowl with CEFIONTECT
SW3446
WASHLET+ S5
OPTIONAL COMPONENTS
THU808(#01, #03, #11, #12, #51, #BN, #PN, #PB, #RB, #MBL)-A
Trip Lever - Cotton, Bone, Colonial White, Sedona Beige, Ebony, Brushed Nickel, Polished Nickel, Polished Brass, Oil Rubbed Bronze, Matte Black
Features
High-tech Electronic Bidet Seat and Toilet Combination
System includes toilet and WASHLET®
Concealed supply connection for Seamless Installation
TORNADO FLUSH™ flushing system
CEFIONTECT® Glaze prevents debris from sticking to ceramic surfaces, making them easier to clean
ADA Compliant
Universal Height
EWATER+® auto-cleans the wand
Elongated front bowl
Docking Station for easy cleaning and installation
12" Rough-in, less supply
Remote Control operation
Heated Seat with Temperature Control
PREMIST® on bowl before each use
Automatic air deodorizer
Warm air drying with three variable temperature settings
Adjustable water temperature and volume
Gentle Aerated, Warm Water, Dual Action Spray with oscillating and pulsating feature
SPECIFICATIONS
Shipping Dimensions
CST634CEFGT40
30" L x 19" W x 29-5/8" H1 x 18-1/2" H2
SW3446:
24-3/8" L x 17-9/16" W x 7-7/16" H
Shipping Weight CST634CEFGT40: 99 lbs
SW3446: 15.4 lbs
Material Vitreous China
Warranty One Year Limited Warranty
Trap Seal 2-1/8"
Rough-in 12"
Trap Diameter 2-1/8"
Water Surface 6-5/8" x 9-1/8"
Flush System TORNADO FLUSH®
PRODUCT SPECIFICATION
The one-piece high-efficiency TORNADO FLUSH system toilet shall be 1.28 GPF (4.8 LPF).
Toilet shall have optional CEFIONTECT ceramic glaze and be at Universal Height.
Toilet shall have elongated front bowl with SoftClose seat and Polished Chrome trip lever.
Toilet shall be TOTO Model MW6343446CEFG#01.
CODES/STANDARDS
Meets and exceeds ASME A112.19.2/CSA B45.1
Certifications: IAPMO (cUPC®), EPA WaterSense®, State of Massachusetts, City of Los Angeles, and others
Code compliance: UPC, IPC, NSPC, NPC Canada, and others
Legislative Compliance: California AB715, California Green Building Code, City of Los Angeles Water Efficiency Ordinance, and others
ADA compliant for residential use when installed with trip lever located on the approach side
Complies with CA Prop 65 warning requirements
Product Specifications

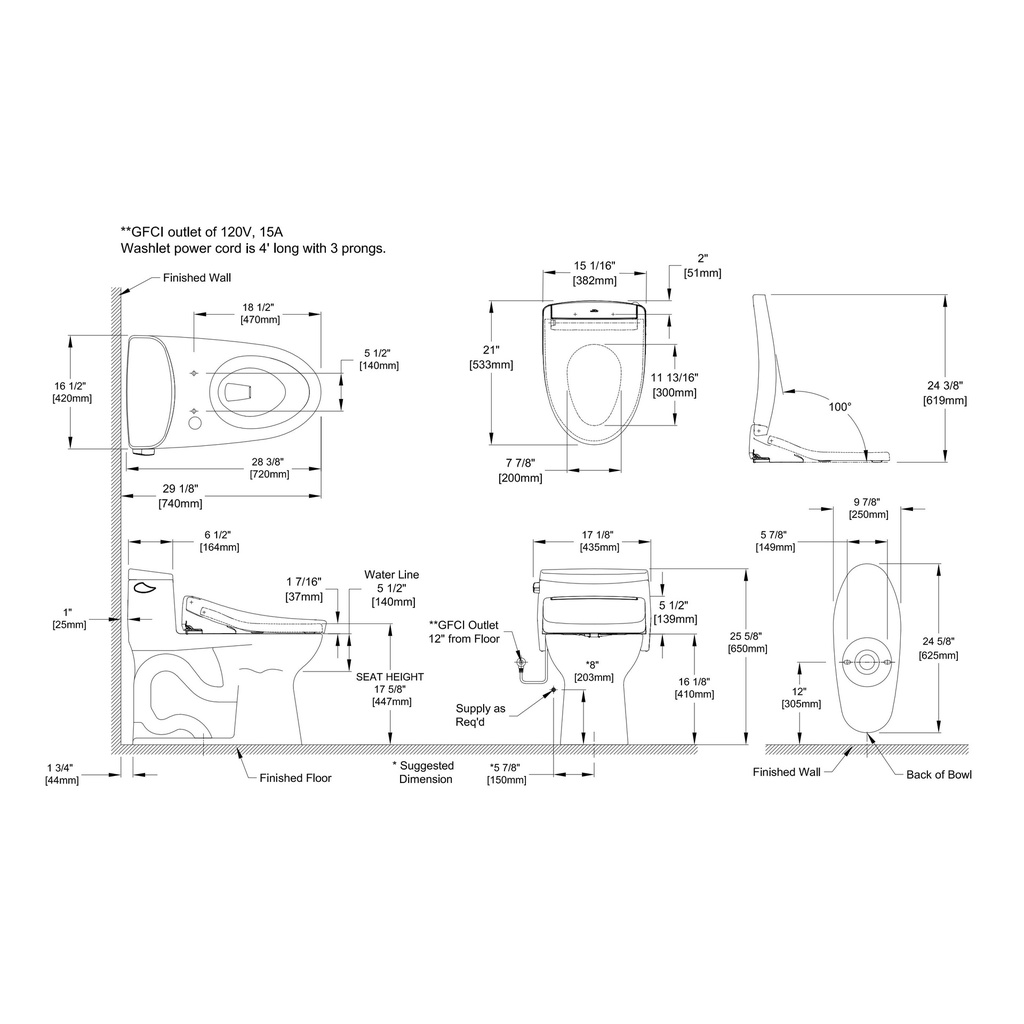

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
