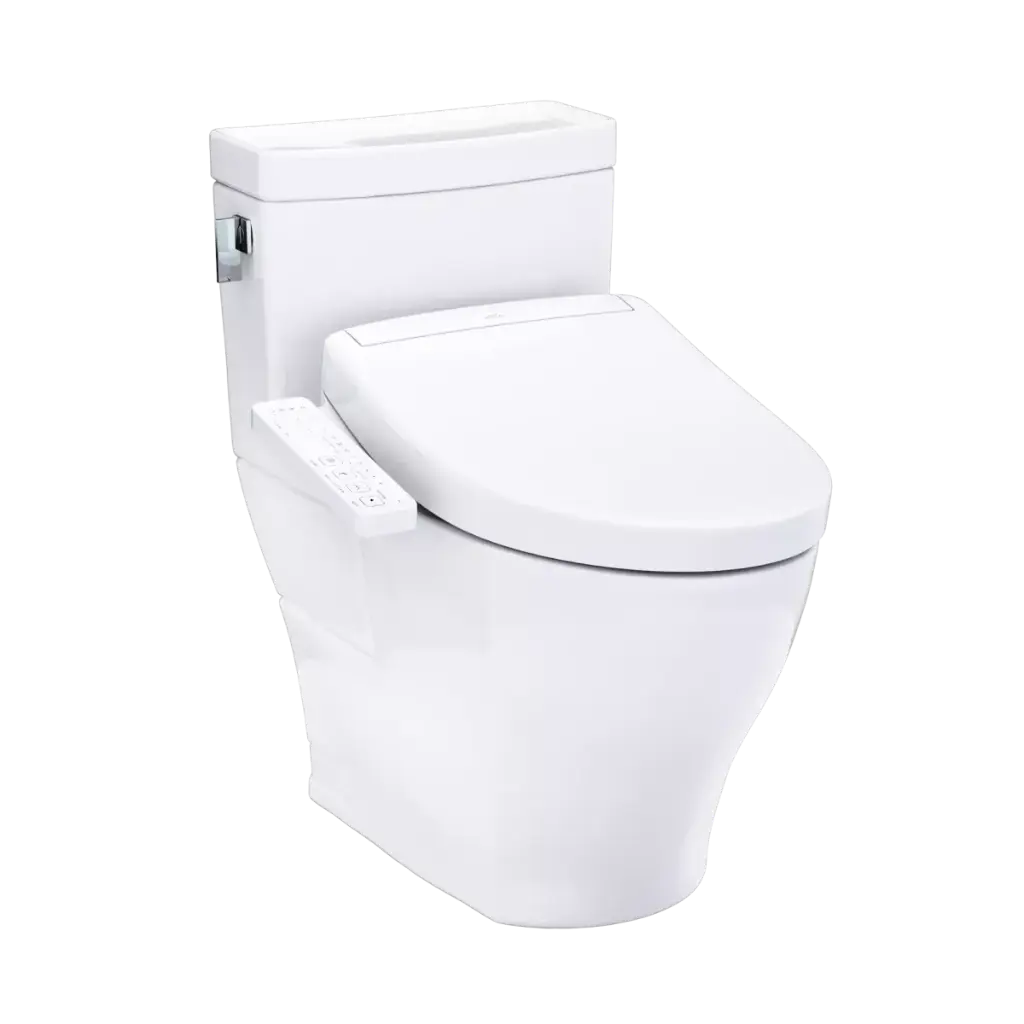

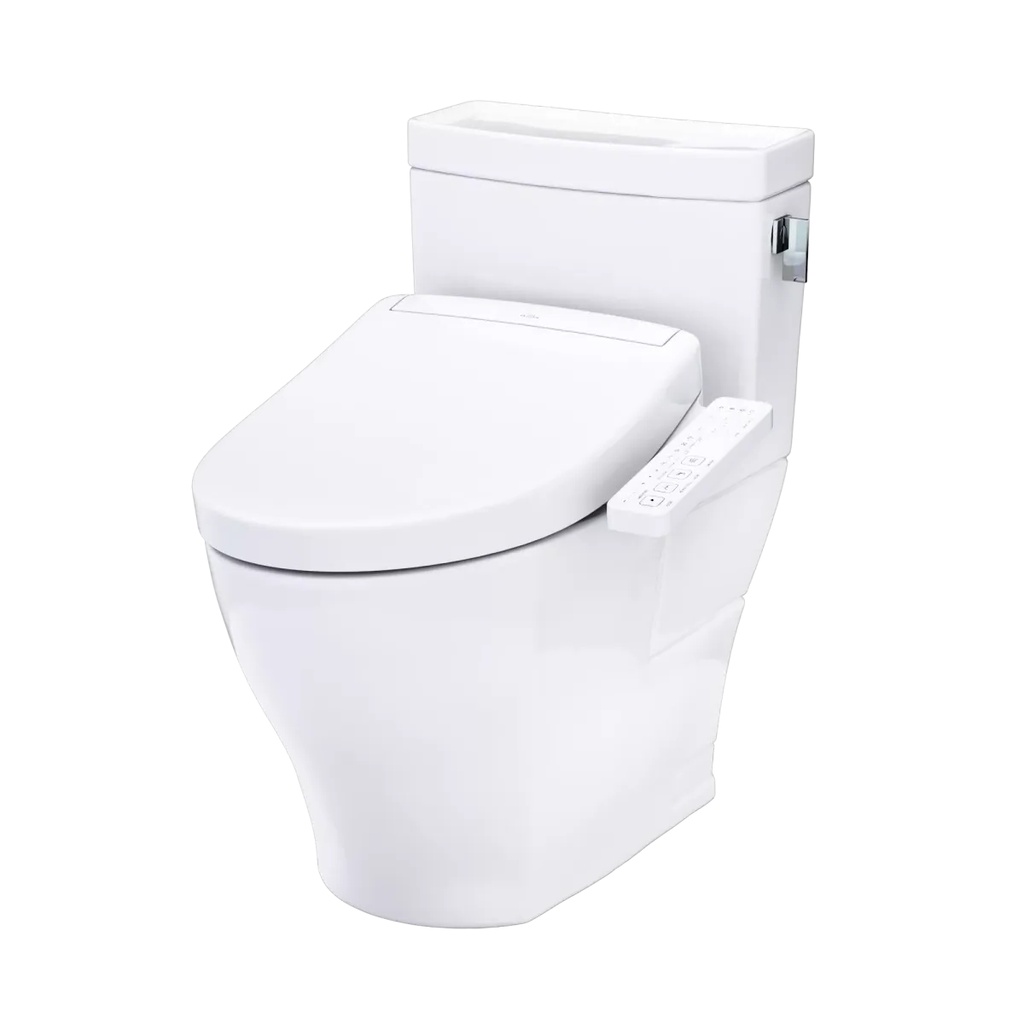

TOTO MW6243346CEFG#01 Legato Washlet+ S2 One Piece Toilet Cotton
Legato® WASHLET®+ S2 One-Piece Toilet - 1.28 GPF
SKU: MW6243346CEFG#01
Specially designed Legato toilet with included bidet seat WASHLET+ for a seamless installation that complements your bathoroom décor
Product Components
CST624CEFGAT40#01 - Bowl
SW3346#01 - WASHLET Bidet Seat
MODELS
MW6243346CEFG (#01)
With CEFIONTECT ceramic glaze, WASHLET+ S2 with contemporary design
CST624CEFGAT40
Elongated toilet with CEFIONTECT
SW3346
WASHLET+ S2
OPTIONAL COMPONENTS
TSU03W.10R
10" Unifit Rough-In
TSU03W.14R
14" Unifit Rough-In
THU312N(#BN, #PN)
Trip Lever (Brushed Nickel, Polished Nickel)
Features
High-tech Electronic Bidet Seat and Toilet Combination
System includes toilet and WASHLET
Concealed supply connection for seamless installation
TORNADO FLUSH® system
CEFIONTECT® glaze prevents debris from sticking to ceramic surfaces, making them easier to clean
ADA Compliant
Universal Height
One-piece decorative high profile toilet
Elongated front bowl
Chrome trip lever included
12" Rough-in
Elongated front WASHLET toilet seat with cover
EWATER+® auto cleans the wand
PREMIST® of bowl before use
Convenient arm control panel
Front and rear warm water cleansing with adjustable temperature and pressure control
Heated seat with temperature control
Automatic air deodorizer
Warm air drying with three variable temperature settings
Docking Station for easy cleaning and installation
SPECIFICATIONS
Shipping Dimensions
CST624CEFGAT40
30" L x 19" W x 29-5/8" H1 x 18-1/2" H2
SW3346
24-3/8" L x 21" W x 7-7/16" H
Shipping Weight CST624CEFGAT40: 119 lbs
SW3346: 16 lbs
Material Vitreous China
Warranty One Year Limited Warranty
Trap Seal 2-1/8"
Rough-in 12" (10" and 14" options available)
Trap Diameter 2-1/8"
Water Surface 7-3/4" x 9-3/8"
Flush System TORNADO FLUSH®
PRODUCT SPECIFICATION
The one-piece high-efficiency TORNADO FLUSH system toilet shall be 1.28 GPF (4.8 LPF).
Toilet shall be 12" Unifit rough-in.
Toilet shall have optional CEFIONTECT ceramic glaze and be at Universal Height.
Toilet shall have elongated front bowl with Polished Chrome trip lever.
Toilet shall be TOTO Model MW6243346CEFG#01.
CODES/STANDARDS
Meets and exceeds ASME A112.19.2/CSA B45.1
Certifications: IAPMO (cUPC®), EPA WaterSense®, State of Massachusetts, City of Los Angeles, and others
Code compliance: UPC, IPC, NSPC, NPC Canada, and others
Legislative Compliance: California AB715, California Green Building Code, City of Los Angeles Water Efficiency Ordinance, and others
ADA compliant for residential use when installed with trip lever located on the approach side
Complies with CA Prop 65 warning requirements
Product Specifications

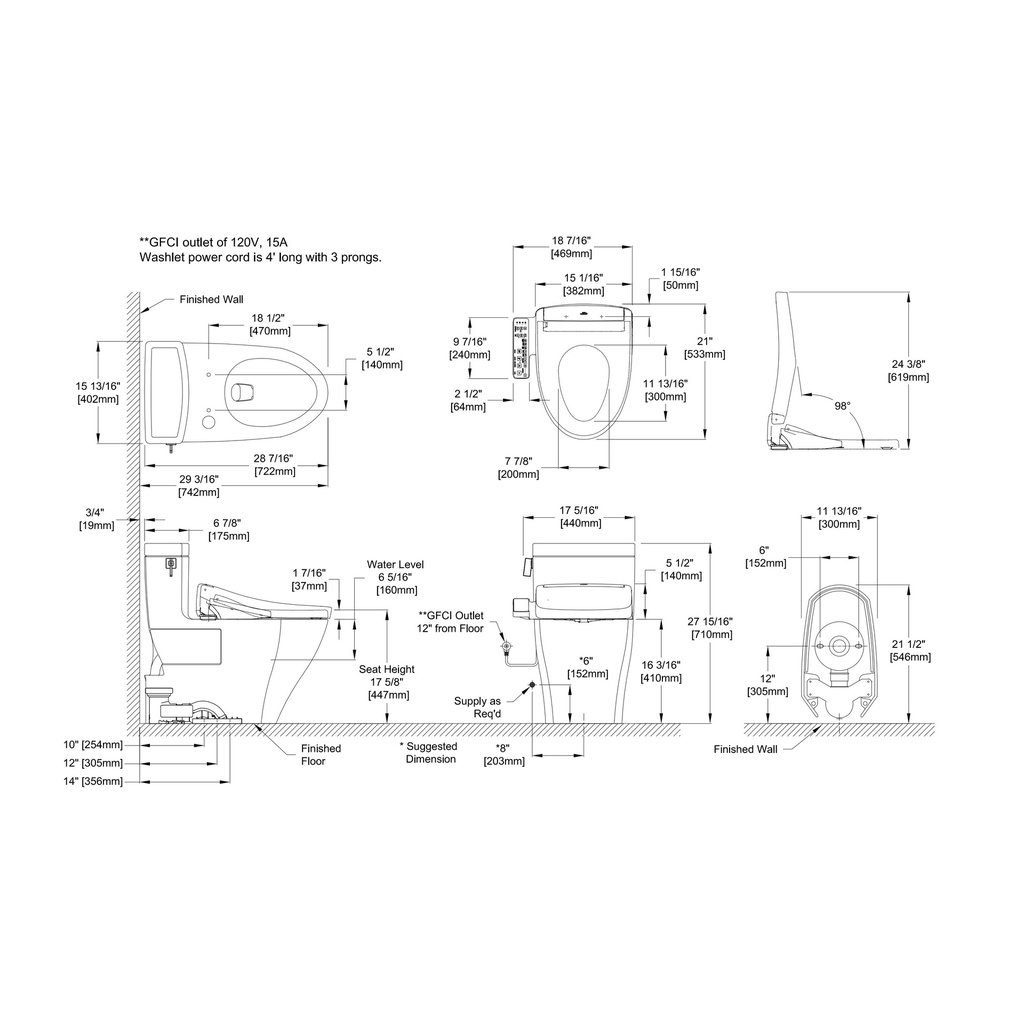

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
