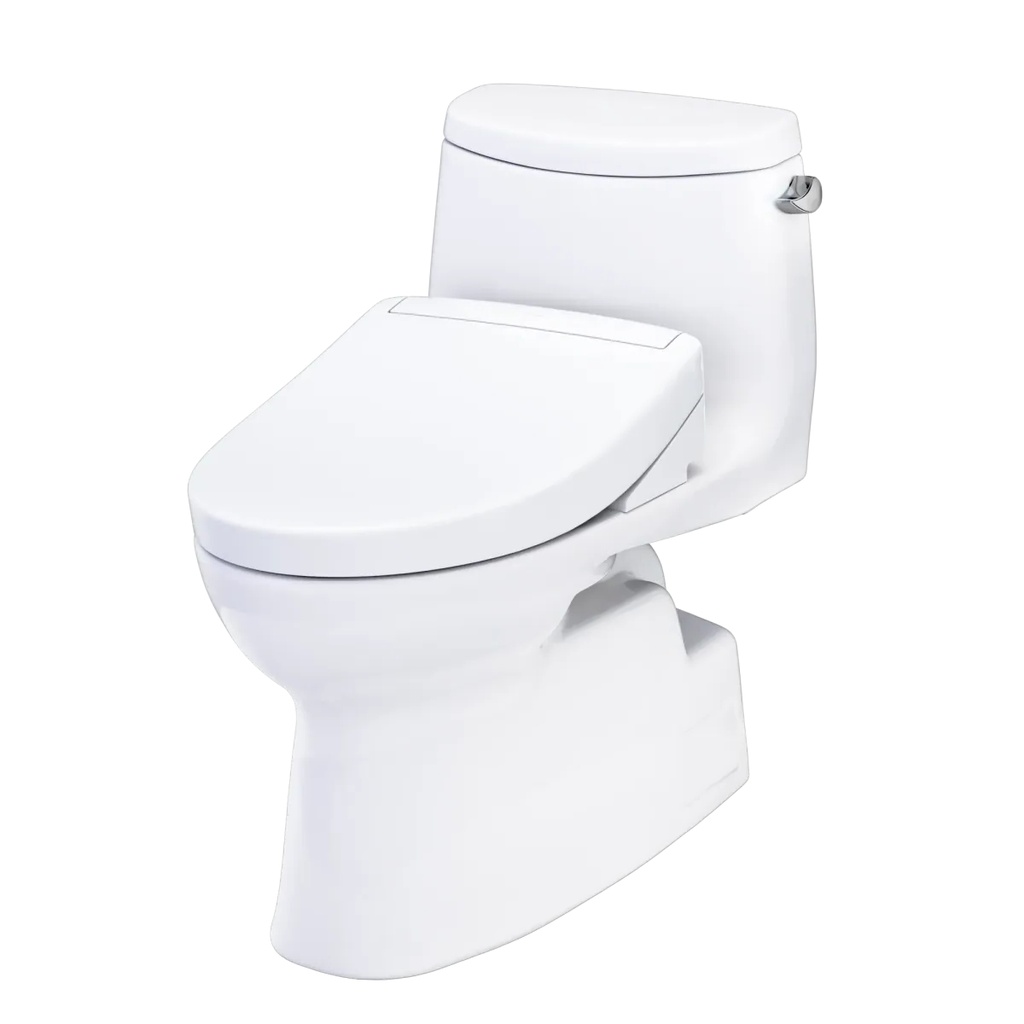

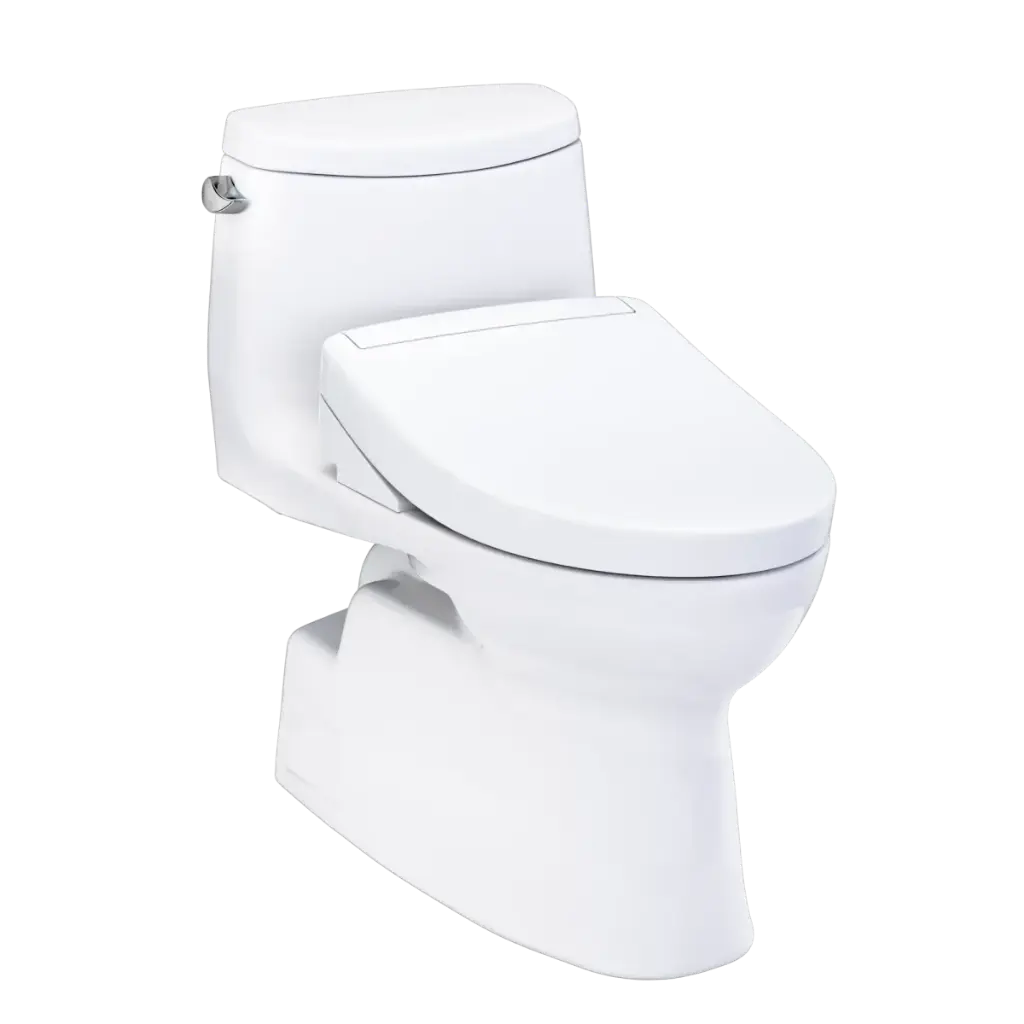

TOTO MW6143446CEFG#01 Carlyle II Washlet+ S5 One Piece Toilet Cotton
Carlyle® II WASHLET®+ S5 One-Piece Toilet - 1.28 GPF
SKU: MW6143446CEFG#01
The WASHLET+ system neatly conceals the WASHLET power cord and water supply hose for a clean installation. The system is comprised of a bidet seat WASHLET and toilet which are specially designed for a seamless installation that compliments your bathroom's décor.
Product Components
CST614CEFGAT40#01 - Bowl
SW3446#01 - WASHLET Bidet Seat
MODELS
MW6143446CEFG (#01)
With CEFIONTECT ceramic glaze, WASHLET+ S5 with contemporary design
CST614CEFGAT40
Elongated toilet with CEFIONTECT
SW3446
WASHLET+ S5
OPTIONAL COMPONENTS
TSU01W.10R
10" Unifit Rough-In
TSU01W.14R
14" Unifit Rough-In
THU808(#01, #03, #11, #12, #51, #BN, #PN, #PB, #RB, #MBL)-A
Trip Lever - Cotton, Bone, Colonial White, Sedona Beige, Ebony, Brushed Nickel, Polished Nickel, Polished Brass, Oil Rubbed Bronze, Matte Black
Features
High-tech Electronic Bidet Seat and Toilet Combination
System includes toilet and WASHLET
Concealed supply connection for seamless installation
TORNADO FLUSH® system, High-efficiency
CEFIONTECT® ceramic glaze
Skirted Design
Non-clog 2.5" trapway with clear glaze coating
Universal Height
12" Rough-in (optional 10" & 14" rough-in)
Elongated front WASHLET toilet seat with cover
EWATER+® auto cleans the wand
PREMIST® of bowl before use
Convenient slim wireless remote, with illuminated touchpad
Front and rear warm water cleansing with adjustable temperature and pressure control
Heated seat with temperature control
Automatic air deodorizer
Warm air drying with three variable temperature settings
Quick release feature
Chrome trip lever included
SPECIFICATIONS
Shipping Dimensions
CST614CEFGAT40
30" L x 18-1/4" W x 28-1/4" H1 x 20-3/4" H2
SW3446:
24-3/8" L x 17-9/16" W x 7-7/16" H
Shipping Weight CST614CEFGAT40:106 lbs
SW3446: 15.4 lbs
Material Vitreous China
Warranty One Year Limited Warranty
Trap Seal 2-1/8"
Rough-in 12" (10" and 14" options available)
Trap Diameter 2-1/8"
Water Surface 6-7/8" x 9-3/4"
Flush System TORNADO FLUSH®
PRODUCT SPECIFICATION
The one-piece high-efficiency Tornado Flush toilet shall be 1.28 GPF (4.8 LPF).
Universal Height Toilet with CEFIONTECT glaze finish.
Toilet shall have high-profile tank, elongated front bowl and chrome trip lever.
Toilet shall be TOTO Model MW6143446CEFG#01.
CODES/STANDARDS
Meets and exceeds ASME A112.19.2/CSA B45.1
Certifications: IAPMO (cUPC®), EPA WaterSense®, State of Massachusetts, City of Los Angeles, and others
Code compliance: UPC, IPC, NSPC, NPC Canada, and others
Legislative Compliance: California AB715, California Green Building Code, City of Los Angeles Water Efficiency Ordinance, and others
ADA compliant for residential use when installed with trip lever located on the approach side
Complies with CA Prop 65 warning requirements
Product Specifications

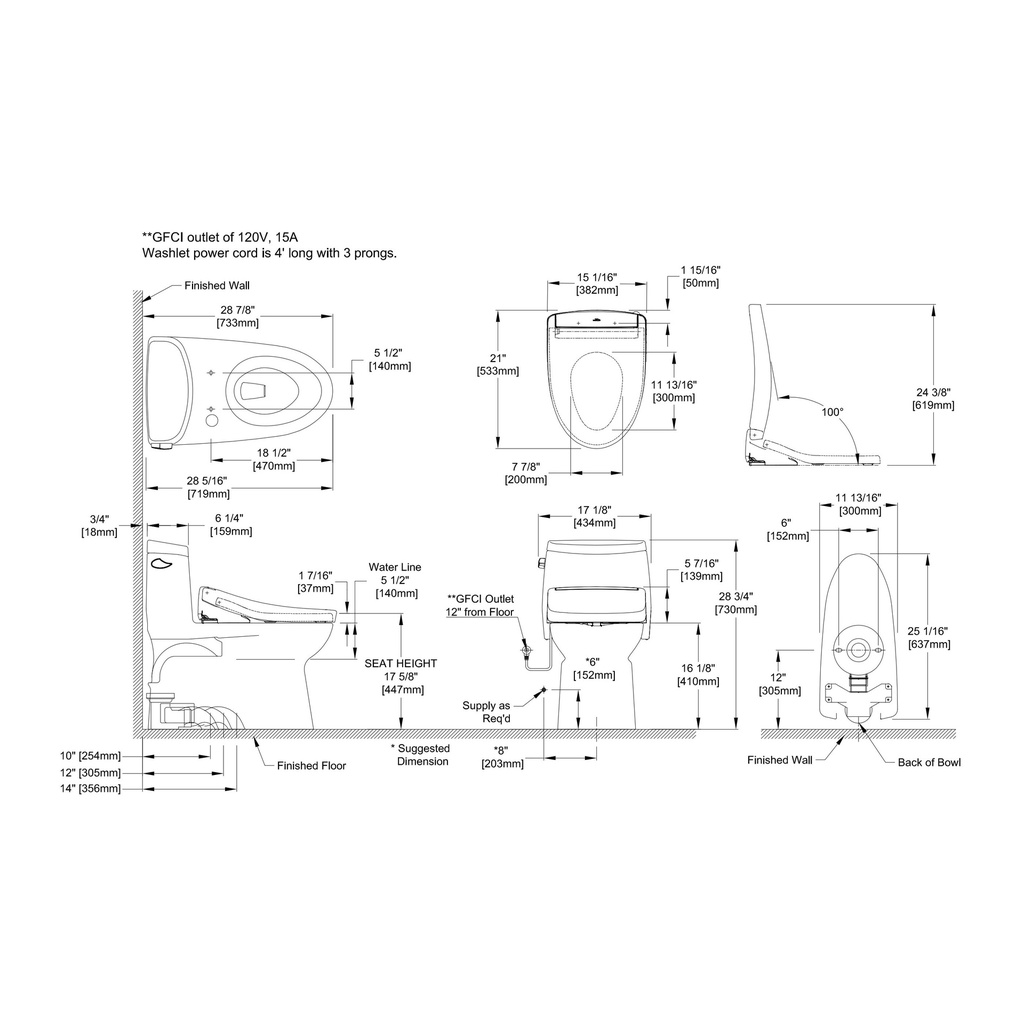

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
