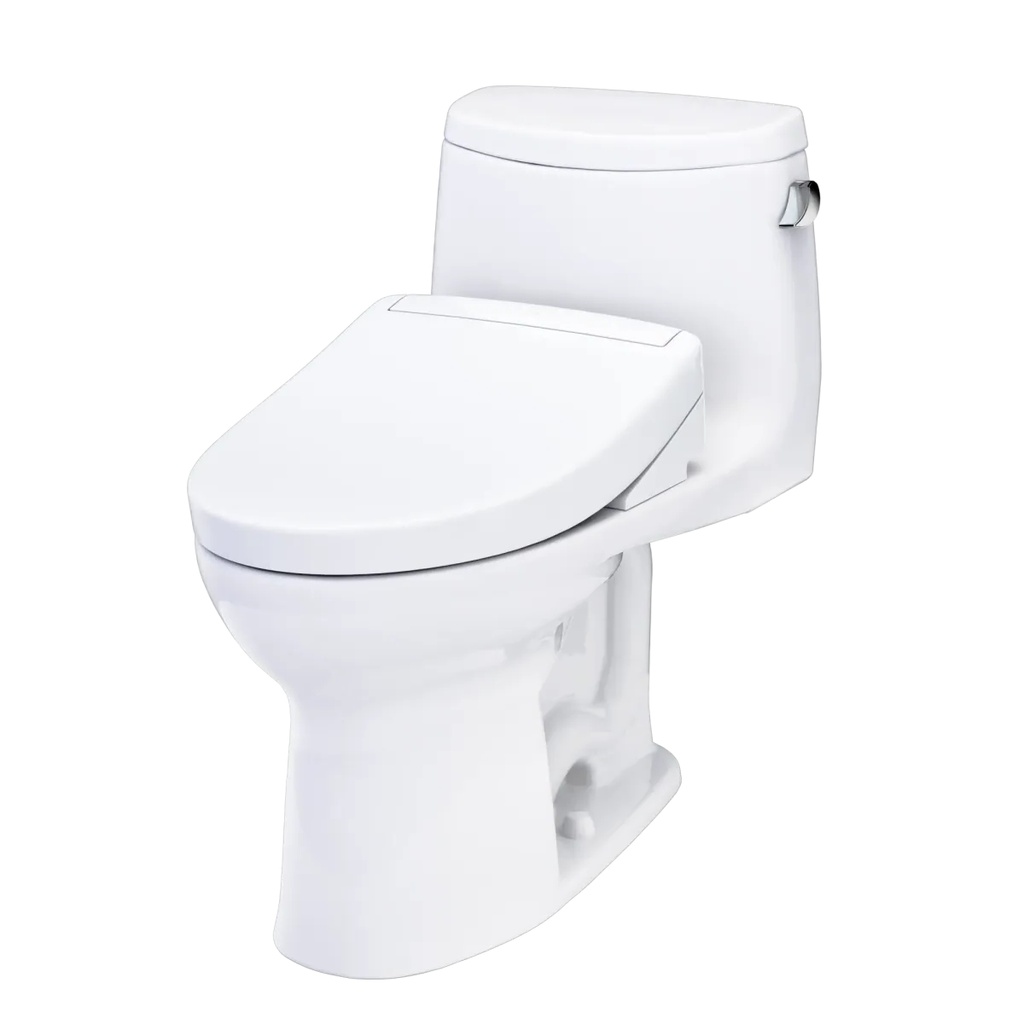

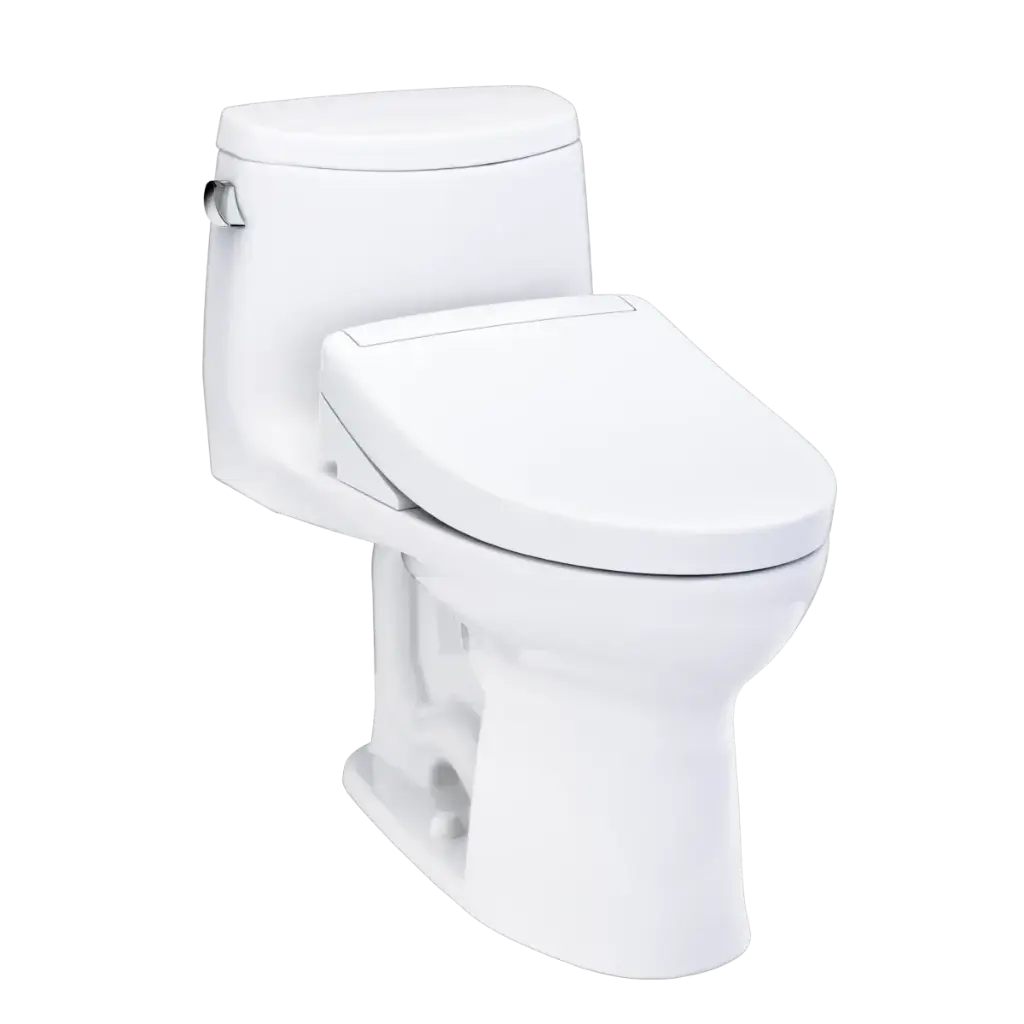

TOTO MW6043446CUFG#01 Ultramax II IG Washlet S5 One Piece Toilet Cotton
UltraMax® II 1G® WASHLET®+ S5 One-Piece Toilet - 1.0 GPF
SKU: MW6043446CUFG#01
The WASHLET+ bidet seat system neatly conceals the WASHLET power cord and water supply hose for a clean installation. The system is comprised of a WASHLET and toilet which are specially designed for a seamless installation that compliments your bathroom's décor.
Product Components
CST604CUFGAT40#01 - Bowl
SW3446#01 - WASHLET Bidet Seat
MODELS
MW6043446CEFG (#01)
With CEFIONTECT ceramic glaze, WASHLET+ S5 with contemporary design
CST604CEFGAT40
Elongated bowl with CEFIONTECT
SW3446
WASHLET+ S5
OPTIONAL COMPONENTS
THU808(#01, #03, #11, #12, #51, #BN, #PN, #PB, #RB, #MBL)-A
Trip Lever - Cotton, Bone, Colonial White, Sedona Beige, Ebony, Brushed Nickel, Polished Nickel, Polished Brass, Oil Rubbed Bronze, Matte Black
Features
High-tech Electronic Bidet Seat and Toilet Combination
System includes toilet and WASHLET®
Concealed supply connection for Seamless Installation
TORNADO FLUSH® flushing system
CEFIONTECT® Glaze prevents debris from sticking to ceramic surfaces, making them easier to clean
ADA Compliant
Universal Height
Elongated front bowl
12" Rough-in, less supply
One-piece decorative high profile toilet
EWATER+® auto cleans the wand
PREMIST® on bowl before each use
Remote Control operation
Front and rear warm water cleansing with adjustable temperature and pressure control
Heated seat with temperature control
Automatic air deodorizer
Warm air drying with three variable temperature settings
Docking Station for easy cleaning and installation
SPECIFICATIONS
Shipping Dimensions
CST604CEFGAT40
29-3/4" L x 18-1/8" W x 28-3/4" H1 x 20-
1/2" H2
SW3446:
24-3/8" L x 17-9/16" W x 7-7/16" H
Shipping Weight CST604CEFGAT40: 99 lbs
SW3446: 15.4 lbs
Material Vitreous China
Warranty One Year Limited Warranty
Trap Seal 2-1/8"
Rough-in 12"
Trap Diameter 2-1/8"
Water Surface 6-3/4" x 8-5/8"
Flush System TORNADO FLUSH®
PRODUCT SPECIFICATION
The one-piece high-efficiency TORNADO FLUSH toilet shall be 1.28 GPF (4.8 LPF).
Universal Height Toilet with CEFIONTECT glaze finish.
Toilet shall have high-profile tank, elongated front bowl and chrome trip lever.
Toilet shall be TOTO Model MW6043446CEFG#01.
CODES/STANDARDS
Meets and exceeds ASME A112.19.2/CSA B45.1
Certifications: IAPMO (cUPC®), EPA WaterSense®, State of Massachusetts, City of Los Angeles, and others
Code compliance: UPC, IPC, NSPC, NPC Canada, and others
Legislative Compliance: California AB715, California Green Building Code, City of Los Angeles Water Efficiency Ordinance, and others
ADA compliant for residential use when installed with trip lever located on the approach side
Complies with CA Prop 65 warning requirements
Product Specifications

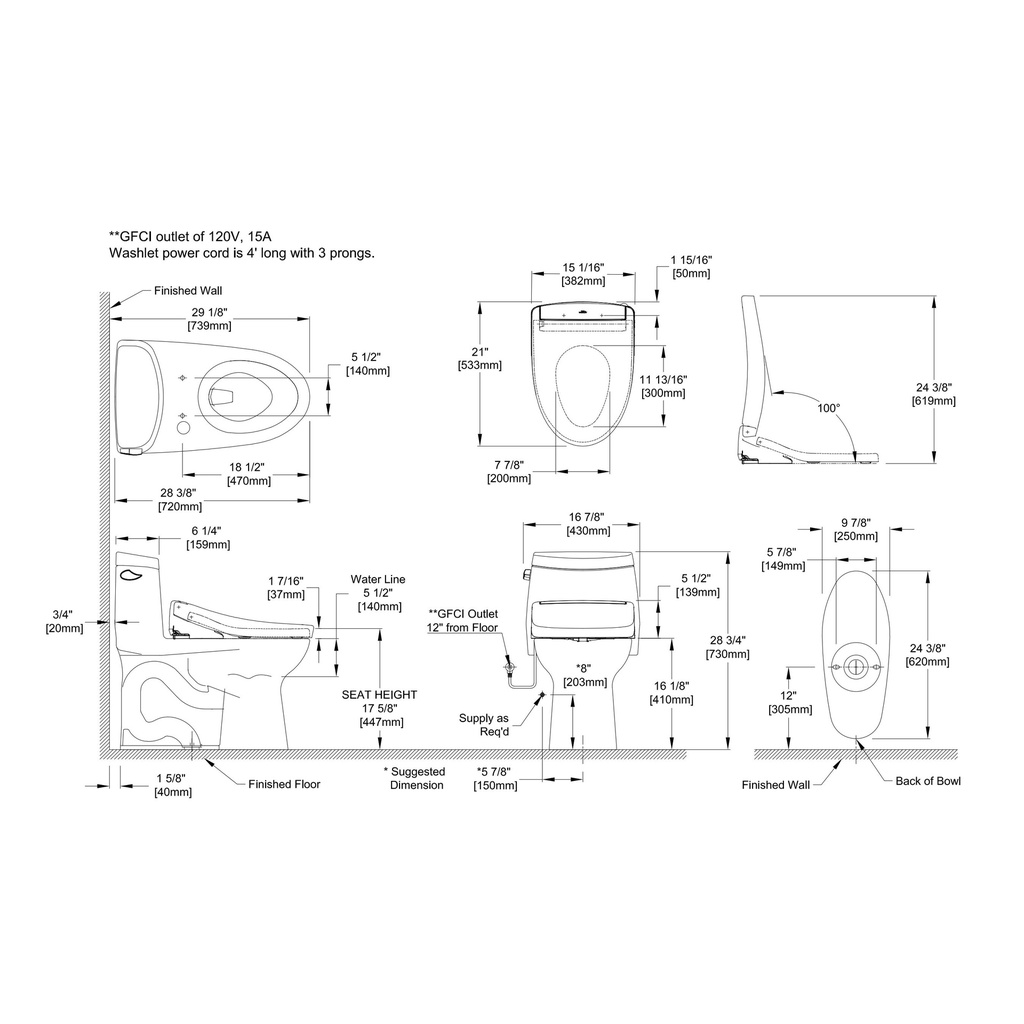

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
