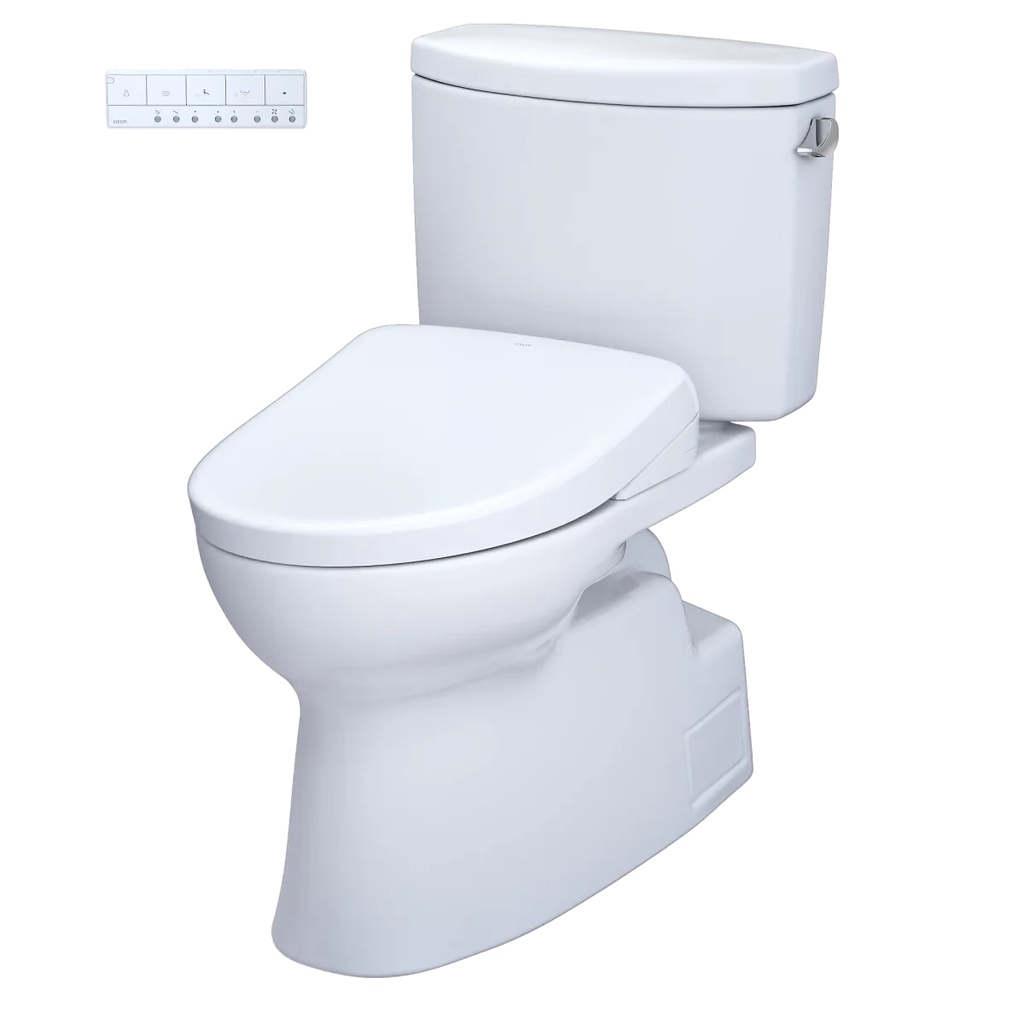

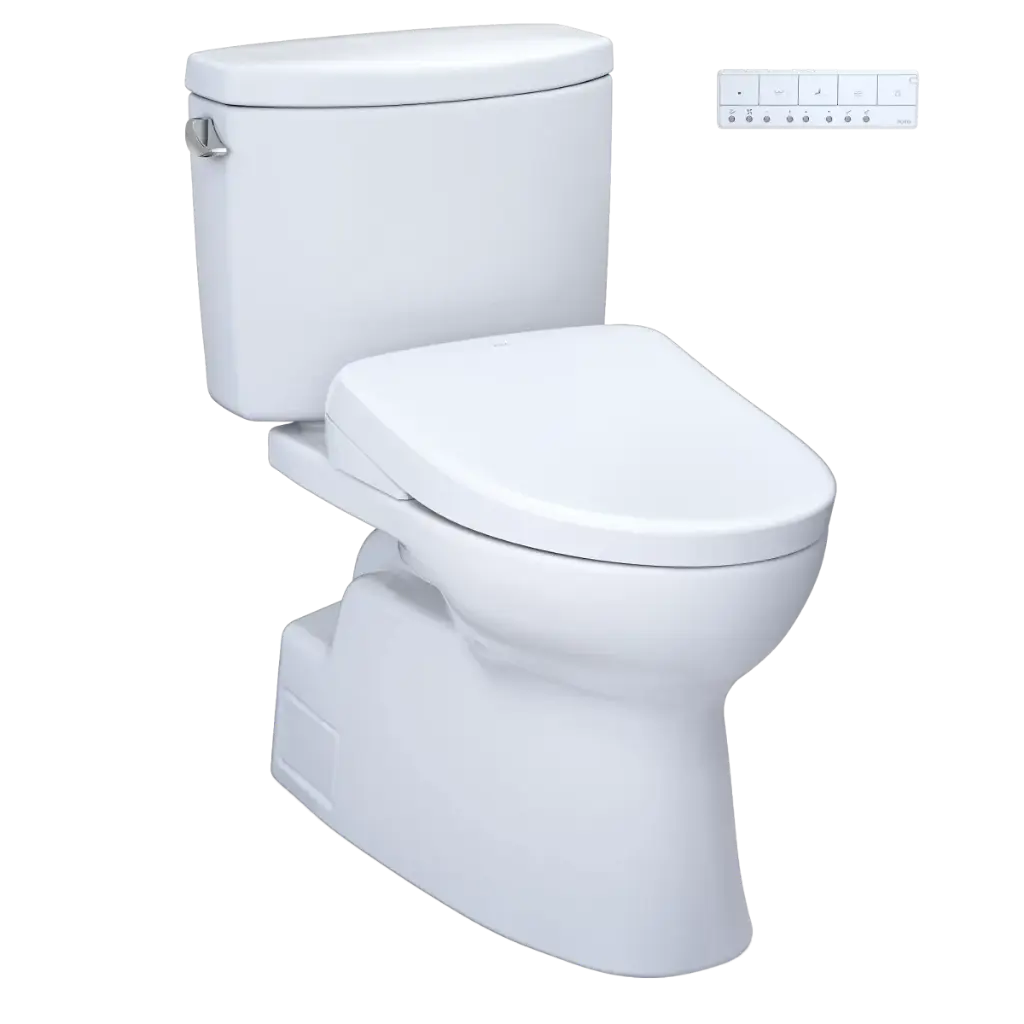

TOTO MW4744726CEFGA#01 Vespin II Washlet+ S7 Two Piece Toilet Cotton
Vespin® II WASHLET®+ S7 Two-Piece Toilet - 1.28 GPF
SKU: MW4744726CEFGA#01
Auto Flush: With Auto Flush
The WASHLET+ bidet seat system neatly conceals the WASHLET power cord and water supply hose for a clean installation. The system is comprised of a WASHLET and toilet which are specially designed for a seamless installation that compliments your bathroom's décor.
Product Components
CT474CUFGT40#01 - Bowl
ST454EA#01 - Tank and Cover
SW4726AT40#01 - WASHLET Bidet Seat
MODELS
MW4744726CEFGA (#01)
With CEFIONTECT ceramic glaze, WASHLET+ S7 with contemporary design and Auto Flush
CT474CUFGT40
Elongated bowl with CEFIONTECT
ST454EA
Tank and cover only
SW4726AT40
WASHLET+ S7
THU857
Auto Flush Kit
MW4744726CEFG (#01)
Same as MW4744726CEFGA without Auto Flush
OPTIONAL COMPONENTS
TSU01W.10R
10" Rough-In
TSU01W.14R
14" Rough-In
THU808(#01, #03, #11, #12, #51, #BN, #PN, #PB, #RB, #MBL)-A
Left Hand Trip Lever - Cotton, Bone, Colonial White, Sedona Beige, Ebony, Brushed Nickel, Polished Nickel, Polished Brass, Oil Rubbed Bronze, Matte Black
Features
High-tech Electronic Bidet Seat and Toilet Combination
Concealed supply connection for a Seamless Installation
High-efficiency TORNADO FLUSH® system - 1.28 GPF (4.8 LPF)
CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
Skirted Design
Universal Height
Chrome plated trip lever
12" Unifit Rough-in (Optional 10" and 14" Unifit Rough-in), less supply
Elongated front bowl and WASHLET+ S7 and tank set
EWATER+® auto-cleans wand and bowl after every use
PREMIST® automatically mists the bowl before each use
Multifunction pearl white block-style remote control
Night light
Auto flush available as upgrade (see option above)
SPECIFICATIONS
Shipping Dimensions
CT474CUFGT40
30-1/8"L x 16-3/4"W x 22"H
ST454EA
18" L x 9" W x 16" H
SW4726AT40
23-3/8" L x 17-5/8" W x 6-1/4" H
Shipping Weight
CT474CUFGT40: 75 lbs
ST454EA: 31 lbs
SW4726AT40: 14.5 lbs
Material Vitreous China
Warranty One Year Limited Warranty
Trap Seal 2-1/8"
Rough-in 12" (10" and 14" options available)
Trap Diameter 2-1/8"
Water Surface 6-3/4" x 8-5/8"
Min. Water Pressure 8 psi (Flowing)
Flush System TORNADO FLUSH®
PRODUCT SPECIFICATION
The two-piece high-efficiency TORNADO FLUSH toilet shall be 1.28 GPF (4.8 LPF).
Universal Height Toilet with CEFIONTECT glaze finish.
Toilet shall have high-profile tank, elongated front bowl and chrome trip lever.
Toilet shall be TOTO Model MW4744726CEFG___#01.
CODES/STANDARDS
Meets and exceeds ASME A112.19.2/CSA B45.1
Certifications: IAPMO (cUPC®), EPA WaterSense®, State of Massachusetts, City of Los Angeles, and others
Code compliance: UPC, IPC, NSPC, NPC Canada, and others
Legislative Compliance: California AB715, California Green Building Code, City of Los Angeles Water Efficiency Ordinance, and others
ADA compliant for residential use with autoflush feature model, or with trip lever located on the approach side
Complies with CA Prop 65 warning requirements
Product Specifications

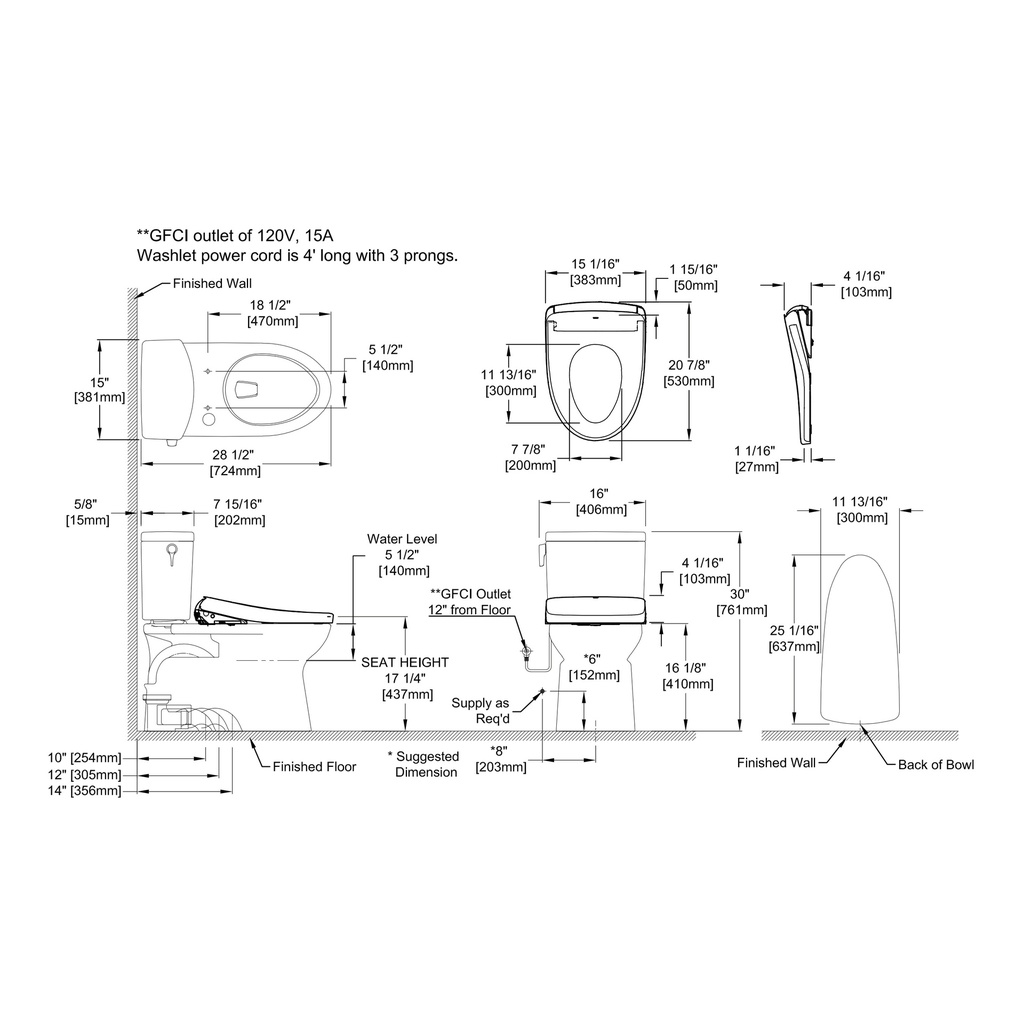

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
