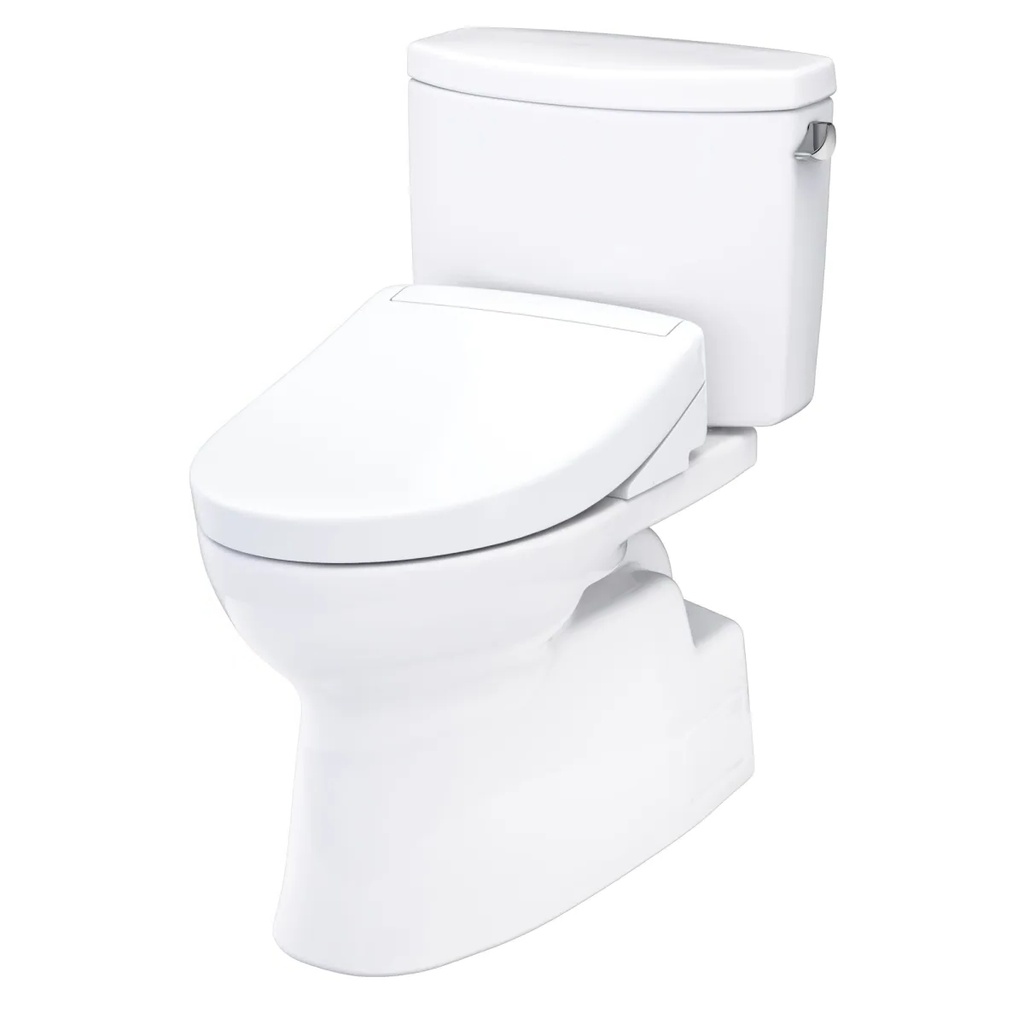

TOTO MW4743446CEFG#01 Vespin II Washlet+ S5 Two Piece Toilet Cotton
Vespin® II WASHLET®+ S5 Two-Piece Toilet - 1.28 GPF
SKU: MW4743446CEFG#01
The WASHLET+ bidet seat system neatly conceals the WASHLET power cord and water supply hose for a clean installation. The system is comprised of a WASHLET and toilet which are specially designed for a seamless installation that compliments your bathroom's décor.
Product Components
CT474CUFGT40#01 - Bowl
ST454EA#01 - Tank and Cover
SW3446#01 - WASHLET Bidet Seat
MODELS
MW4743446CEFG (#01)
With CEFIONTECT ceramic glaze, WASHLET+ S5 with contemporary design
CT474CUFGT40
Elongated bowl with CEFIONTECT
ST454EA
Tank and cover only
SW3446
WASHLET+ S5
OPTIONAL COMPONENTS
TSU01W.10R
10" Rough-In
TSU01W.14R
14" Rough-In
THU808(#01, #03, #11, #12, #51, #BN, #PN, #PB, #RB, #MBL)-A
Left Hand Trip Lever - Cotton, Bone, Colonial White, Sedona Beige, Ebony, Brushed Nickel, Polished Nickel, Polished Brass, Oil Rubbed Bronze, Matte Black
Features
High-tech Electronic Bidet Seat and Toilet Combination
System includes toilet and WASHLET®
Concealed supply connection for a Seamless Installation
TORNADO FLUSH® flushing system
CEFIONTECT® Glaze prevents debris from sticking to ceramic surfaces, making them easier to clean
ADA Compliant
Universal Height
EWATER+® auto cleans the wand
PREMIST® of bowl before each use
Heated Seat with temperature control
Remote Control operation
Warm air Drying with three variable temperature settings
Adjustable water temperature and volume
Elongated front bowl
Chrome trip lever
12" Unifit Rough-in (Optional 10" and 14" Unifit Rough-in), less supply
Decorative two-piece design with high-profile tank
SPECIFICATIONS
Water Use 1.28 GPF (4.8 LPF)
Flush System TORNADO FLUSH®
Min. Water Pressure 8 psi (Flowing)
Water Surface 6-3/4" x 8-5/8"
Trap Diameter 2-1/8"
Rough-in 12" (10" and 14" options available)
Trap Seal 2-1/8"
Warranty One Year Limited Warranty
Material Vitreous China
Shipping Weight
CT474CUFGT40: 75 lbs
ST454EA: 31 lbs
SW3446: 15.4 lbs
Shipping Dimensions
CT474CUFGT40
30-1/8"L x 16-3/4"W x 22"H
ST454EA
18" L x 9" W x 16" H
SW3346
24-3/8" L x 17-9/16" W x 7-7/16" H
PRODUCT SPECIFICATION
The two-piece high-efficiency TORNADO FLUSH toilet shall be 1.28 GPF (4.8 LPF).
UNIVERSAL HEIGHT Toilet with CEFIONTECT glaze finish.
Toilet shall have highprofile tank, elongated front bowl and chrome trip lever.
Toilet shall be TOTO Model MW4743446CEFG#01.
CODES/STANDARDS
Meets and exceeds ASME A112.19.2/CSA B45.1
Certifications: IAPMO(cUPC®), EPA WaterSense,
State of Massachusetts, and others
Code Compliance: UPC, IPC, NSPC, NPC Canada, and others
Legislative Compliance: California AB715, California Green Building Code, City of Los Angeles Water Efficiency Ordinance, and others
ADA compliant for residential use when installed with trip lever located on the approach side
Complies with CA Prop 65 warning requirements
Product Specifications

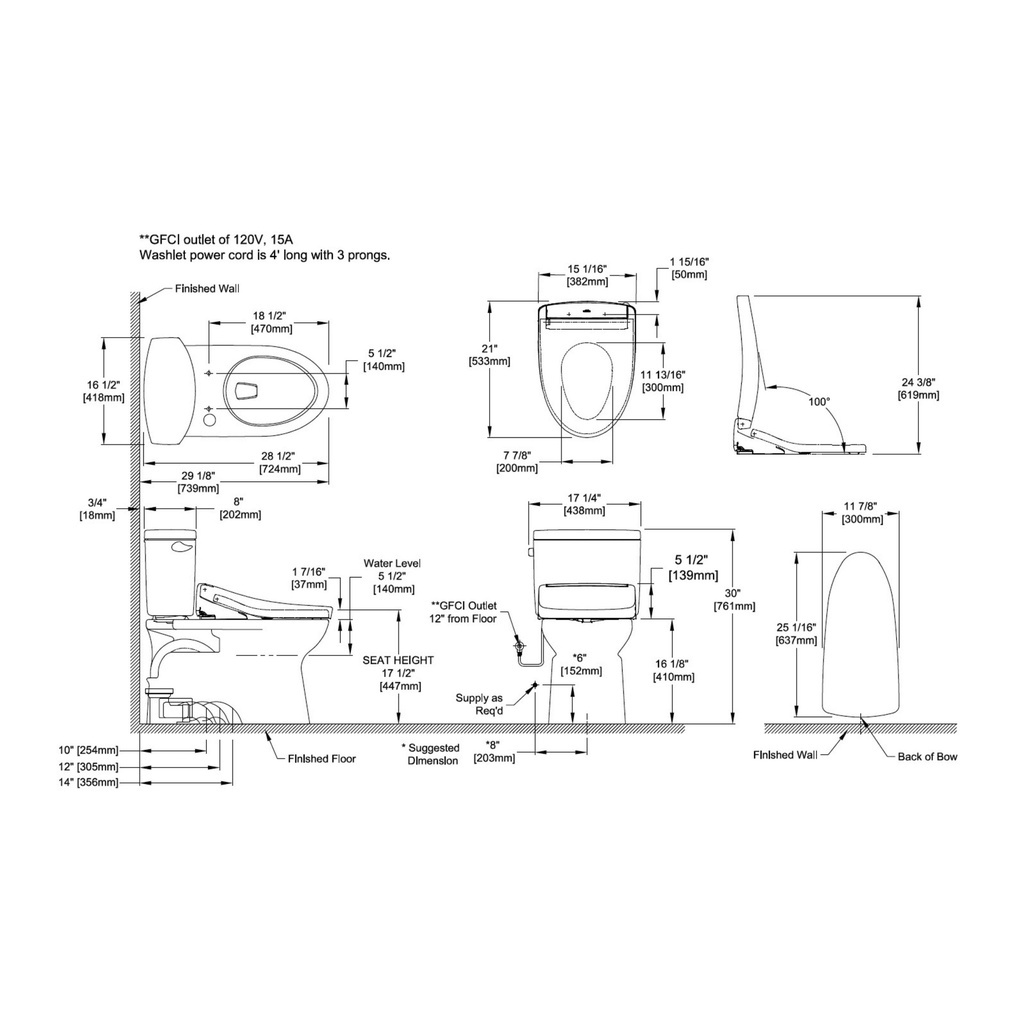

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
