TOTO MW4543446CUFG#01 Drake II 1G Washlet+ S5 Two Piece Toilet Cotton
Drake® II 1G® WASHLET®+ S5 Two-Piece Toilet - 1.0 GPF
SKU: MW4543446CUFG#01
An elongated, beautifully sleek two-piece design. Features our industry-leading Tornado flushing system (see SmartFact below) and CEFIONTECT ceramic glaze, which creates an extraordinarily smooth, ion-barrier surface to help keep the bowl cleaner with every flush. Universal Height. This toilet only sold with a compatible WASHLET®+ bidet seat.
Product Components
C454CUFGT40#01 - Bowl
ST453UA#01 - Tank and Cover
SW3446#01 - WASHLET Bidet Seat
MODELS
MW4543446CEFGA (#01)
With CEFIONTECT ceramic glaze, WASHLET+ S5 with contemporary design
C454CUFGT40
Elongated bowl with CEFIONTECT
ST454EA
Tank and cover only
SW3446
WASHLET+ S5
OPTIONAL COMPONENTS
THU808(#01, #03, #11, #12, #51, #BN, #PN, #PB, #RB, #MBL)-A
Trip Lever - Cotton, Bone, Colonial White, Sedona Beige, Ebony, Brushed Nickel, Polished Nickel, Polished Brass, Oil Rubbed Bronze, Matte Black
Features
High-tech Electronic Bidet Seat and Toilet Combination
System includes toilet and WASHLET®
Concealed supply connection for a Seamless Installation
TORNADO FLUSH® flushing system
CEFIONTECT® ceramic glaze prevents debris from sticking to ceramic surfaces, making them easier to clean
Universal Height
EWATER+® auto cleans the wand
PREMIST® of bowl before use
Heated seat with temperature control
Convenient slim wireless remote, with illuminated touchpad
Warm air drying with three variable temperature settings
Gentle Aerated, Warm Water, Dual Action Spray with oscillating and pulsating feature
Quick release feature
Chrome trip lever included
12" Unifit Rough-in (Optional 10" and 14" Unifit Rough-in), less supply
SPECIFICATIONS
Shipping Dimensions
C454CUFGT40
29" L x 14-3/4" W1 x 11-1/2" W2 x 16-1/4" H
ST454EA
18" L x 9" W x 16" H
SW3446
24-3/8" L x 17-9/16" W x 7-7/16" H
Shipping Weight
C454CUFGT40: 57 lbs
ST454EA: 31 lbs
SW3446: 15.4 lbs
Material Vitreous China
Warranty One Year Limited Warranty
Trap Seal 2-1/8"
Rough-in 12"
Trap Diameter 2-1/8"
Water Surface 6-3/4" x 8-5/8"
Min. Water Pressure 8 psi (Flowing)
Flush System TORNADO FLUSH®
PRODUCT SPECIFICATION
The two-piece high-efficiency TORNADO FLUSH toilet shall be 1.28 GPF (4.8 LPF).
UNIVERSAL HEIGHT Toilet with CEFIONTECT glaze finish. Toilet shall have highprofile tank, elongated front bowl and chrome trip lever.
Toilet shall be TOTO Model MW4543446CEFG#01.
CODES/STANDARDS
Meets and exceeds ASME A112.19.2/CSA B45.1
Certifications: IAPMO (cUPC®), EPA WaterSense®, State of Massachusetts, City of Los Angeles, and others
Code compliance: UPC, IPC, NSPC, NPC Canada, and others
Legislative Compliance: California AB715, California Green Building Code, City of Los Angeles Water Efficiency Ordinance, and others
ADA compliant for residential use when installed with trip lever located on the approach side
Complies with CA Prop 65 warning requirements
Product Specifications

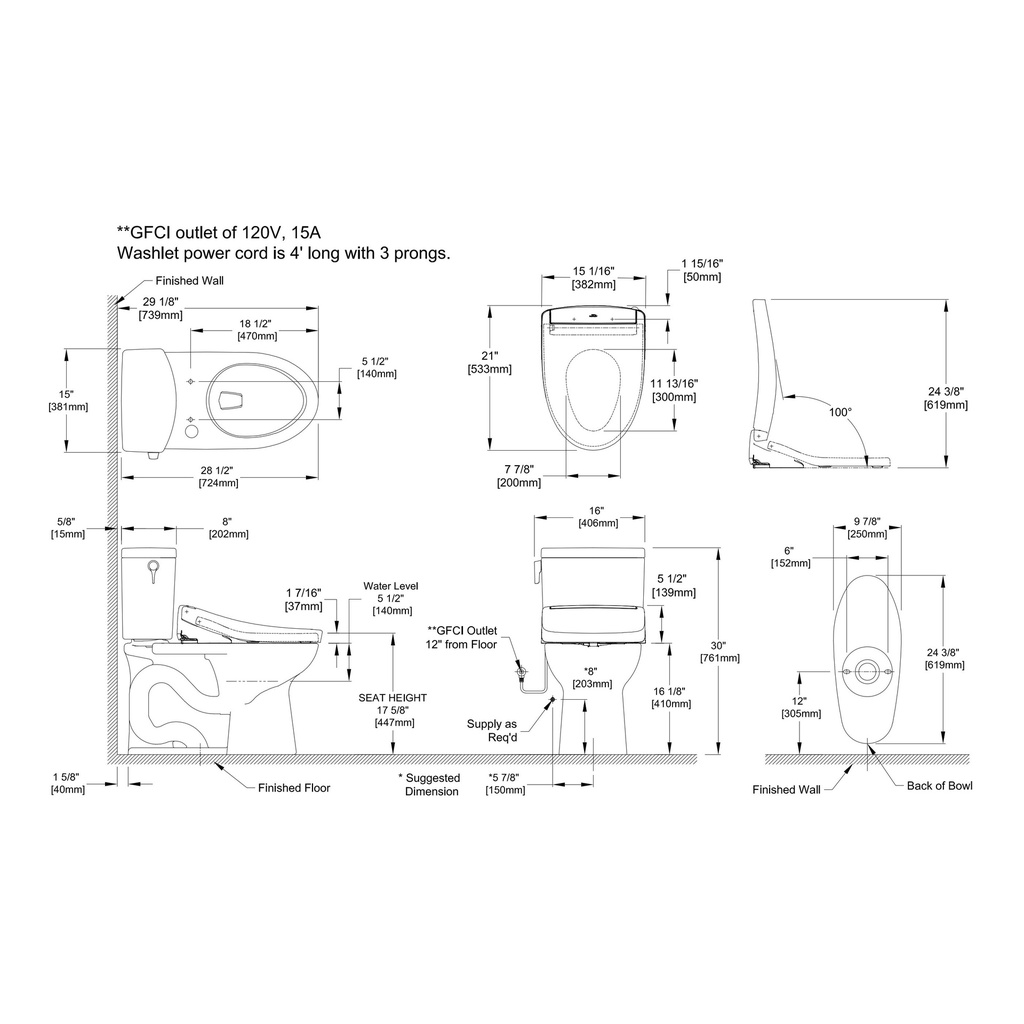

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
