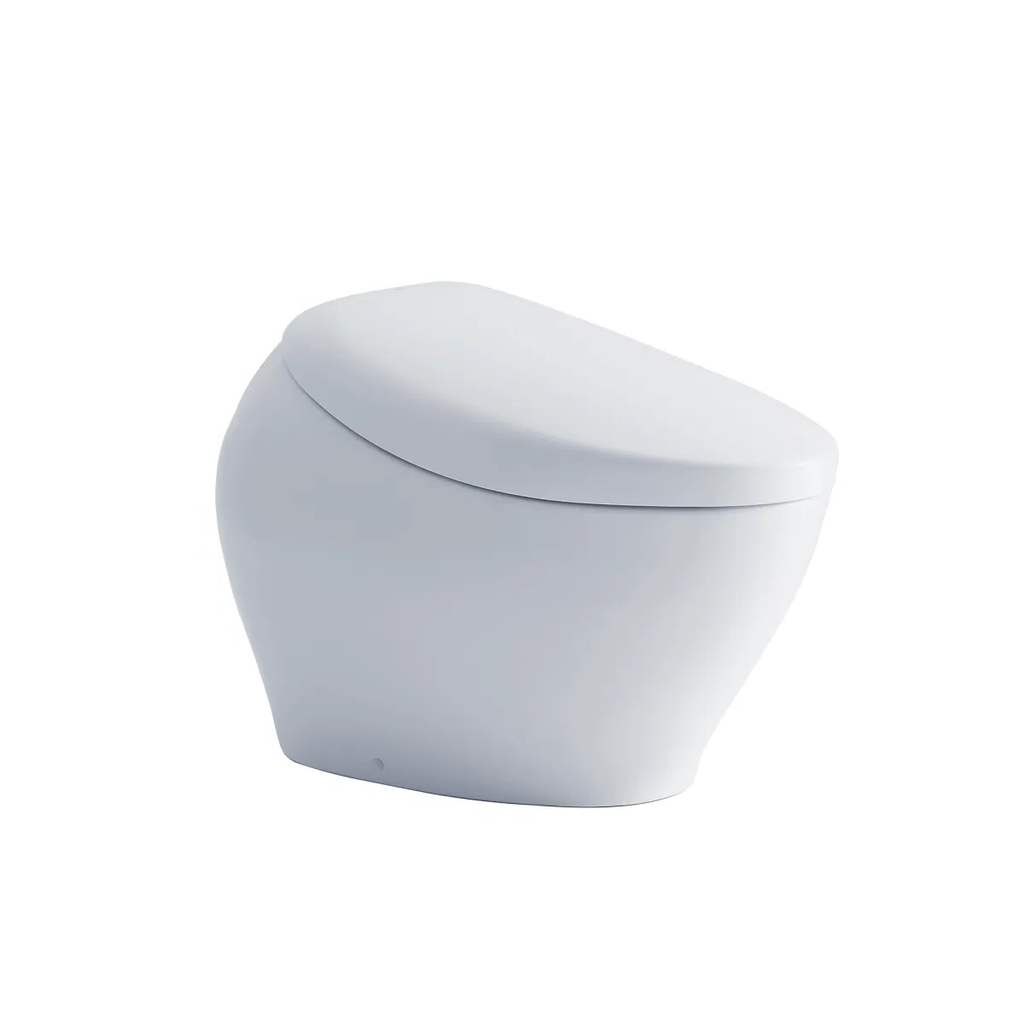

TOTO MS902CUMFG#01 Neorest NX1 Dual Flush Toilet Cotton
NEOREST® NX1 Dual-Flush Toilet - 1.0 GPF & 0.8 GPF
SKU: MS902CUMFG#01
The NEOREST NX smart toilet’s sophisticated elliptical silhouette is inspired by the simple, organic beauty of an earthen vase hand thrown by a craftsman on a pottery wheel. The artistry of these soft curves and smooth surfaces is found throughout the NEOREST Collection.
Features
Sleek, low profile one-piece skirted Smart Bidet Toilet with integrated personal cleansing and comfort features
Ultra high-efficiency dual flush functionality - 1.0 GPF / 0.8 GPF (3.8 LPF / 3.0 LPF)
TORNADO FLUSH® System utilizes 360° cleaning power to reach every part of the hole-free rim design bowl
Auto flush - with back-up manual flush for power outages
Auto open/close lid
PREMIST® automatically mists the bowl before each use
CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
Gentle aerated, warm water, dual-action spray with oscillating and pulsating features
Instantaneous water heater for continuous warm water and energy savings
Adjustable spray position, water temperature, and water pressure
EWATER+® auto-cleans wand, bowl, and under-seat after every use
Heated seat with temperature control
Seamless seat design eliminates the gap where dirt collects
Warm air dryer with five variable temperature settings
Automatic air deodorizer
Automatic and programmable energy saving systems
Multifunction ergonomic stick-style remote control
4-users' personalized memory settings
Universal Height, ADA compliant
Night light
SPECIFICATIONS
Water Use 1.0 GPF / 0.8 GPF
(3.8 LPF / 3.0 LPF)
Flush System TORNADO FLUSH®
Water Pressure Min: 7.25 PSI (0.05MPa)
Flowing Max: 108.75 PSI (0.75MPa) Static
Water Surface 8-5/8” x 7-1/4”
Trap Diameter 2” (51 mm)
Trap Seal 2-1/8” (54 mm)
Warranty Three Year Limited (Residential)
One Year Limited (Commercial)
Material Bowl: Vitreous China
Seat + Cover: Plastic
Power Rating AC 120 V, 60 Hz, 1290 W
Power Cord 3.9 ft (1.2m)
Rear Washing Approx. 0.08 - 0.11 gal/min
Soft Washing Approx. 0.08 - 0.11 gal/min
Front Washing Approx. 0.08 - 0.11 gal/min
Wide Front Washing Approx. 0.09 - 0.11 gal/min
Washing Spray
Temperature Approx. 86ºF - 104ºF (30ºC - 40ºC)
Safety Feature Temperature Fuse
Drying Feature Air Temperature:
Approx. 95ºF - 140ºF (35ºC - 60ºC)
Airflow Volume 8.83 ft3/min
Dryer Safety Feature Temperature Fuse
Seat Warming Feature Surface Temperature:
Approx. 82ºF - 97ºF (28ºC - 36ºC)
Seat Heater Capacity 540 W
Air Purifying Feature O2 Deodorizer
Air Volume 5.65 ft3/min
Product Size 31-1/2” L x 18-3/8” W x 23” H
Product Weight 141 lbs
Floor to Seat Height 17-5/16” (440mm)
Shipping Weight
MS902CUMFG: 161 lbs
Shipping Dimensions
MS902CUMFG: 36-3/4” L x 21-1/2” W x 31-5/8” H
CODES/STANDARDS
Meets and exceeds ASME A112.4.2, ASME A112.19.2/CSA B45.1, ASME A112.18.1/CSA B125.1, UL 1431, CSA C22.2 # 68
Certifications: IAPMO(cUPC), State of Massachusetts, City of Los Angeles and others
Code Compliance: UPC, IPC, NSPC, and others
ADA Compliant
Complies with CA Prop 65 warning requirements
Product Specifications

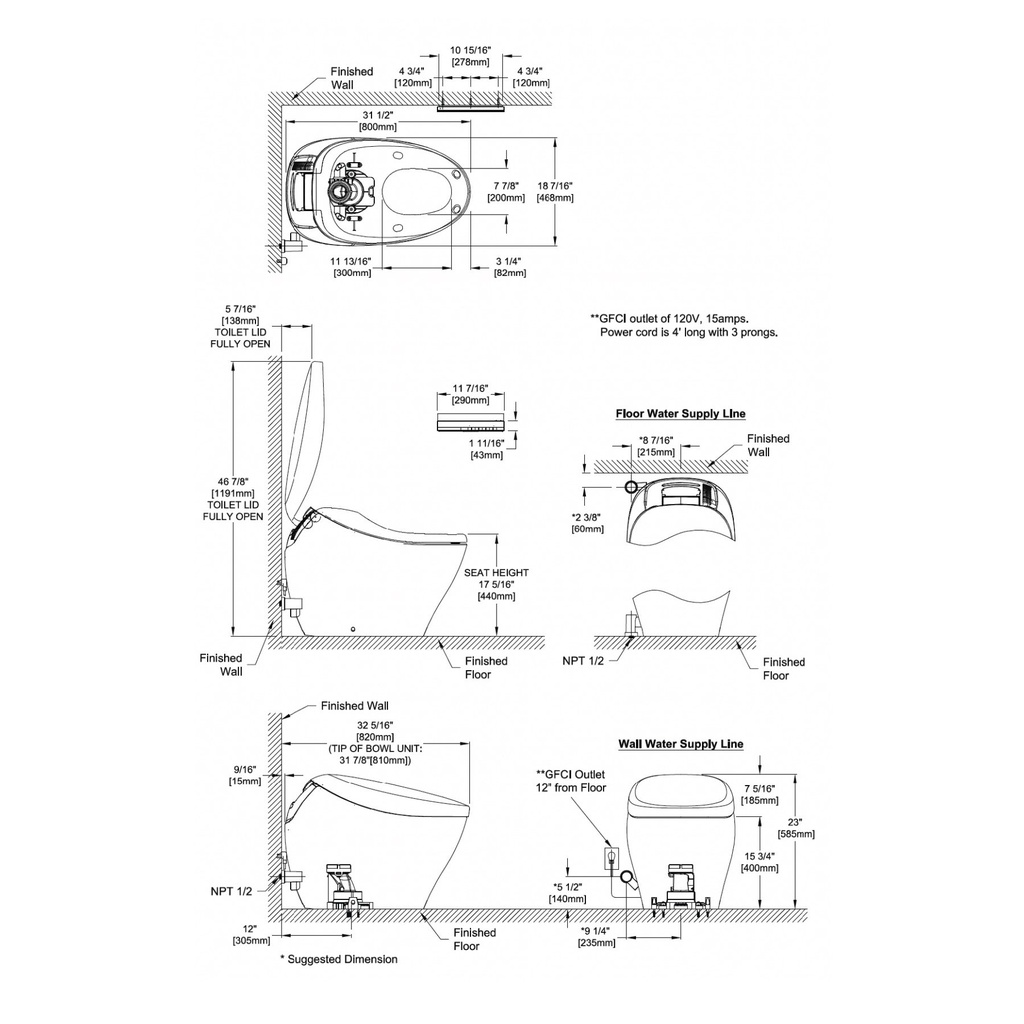

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
