TOTO MS8732CUMFG#01S NEOREST LS Dual Flush Toilet Silver Trim
NEOREST® LS Dual Flush Toilet - 1.0 GPF & 0.8 GPF
SKU: MS8732CUMFG#01S
The linear design of the NEOREST LS pursues the ultimate simplicity to accentuate any modern space. The LS has an edgy shape that leaves a sharp impression when seen from any angle. Its straight lines and distinctive, dignified presence enhances spaces that are modern and edgy. With decorative metallic trim and matching remote control finish options: silver, nickel, or black.
Product Components
CT8732CUMFG#01 - Bowl
SN8732M#01N - Top Unit
COMPONENTS
SN8732M#01S - Top Unit with Silver Trim
SN8732M#01N - Top Unit with Nickel Trim
SN8732M#01B - Top Unit with Black Trim
SN8732M#MBL - Matte Black Top Unit
SN8732M#MW - Matte White Top Unit
CT8732CUMFG - Elongated Bowl Unit
COLOR/FINISHES
#01S Cotton with Silver Trim
#01N Cotton with Nickel Trim
#01B Cotton with Black Trim
Features
Sleek, low profile one-piece skirted Smart Bidet Toilet with integrated personal cleansing and comfort features
Decorative metallic trim and matching remote control finish options: silver, nickel, or black
Ultra high-efficiency dual flush functionality - 1.0 GPF / 0.8 GPF (3.8 LPF / 3.0 LPF)
TORNADO FLUSH® System utilizes 360° cleaning power to reach every part of the hole-free rim design bowl
Auto flush - with back-up manual flush for power outages Auto open/close lid
Auto open/close lid
PREMIST® automatically mists the bowl before each use
CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
Gentle aerated, warm water, dual-action spray with oscillating and pulsating features
Instantaneous water heater for continuous warm water and energy savings
Adjustable spray position, water temperature, and water pressure
EWATER+® auto-cleans wand, bowl, and under-seat after every use
Heated seat with temperature control
Seamless seat design eliminates the gap where dirt collects
Warm air dryer with five variable temperature settings
Automatic air deodorizer
Automatic and programmable energy saving systems

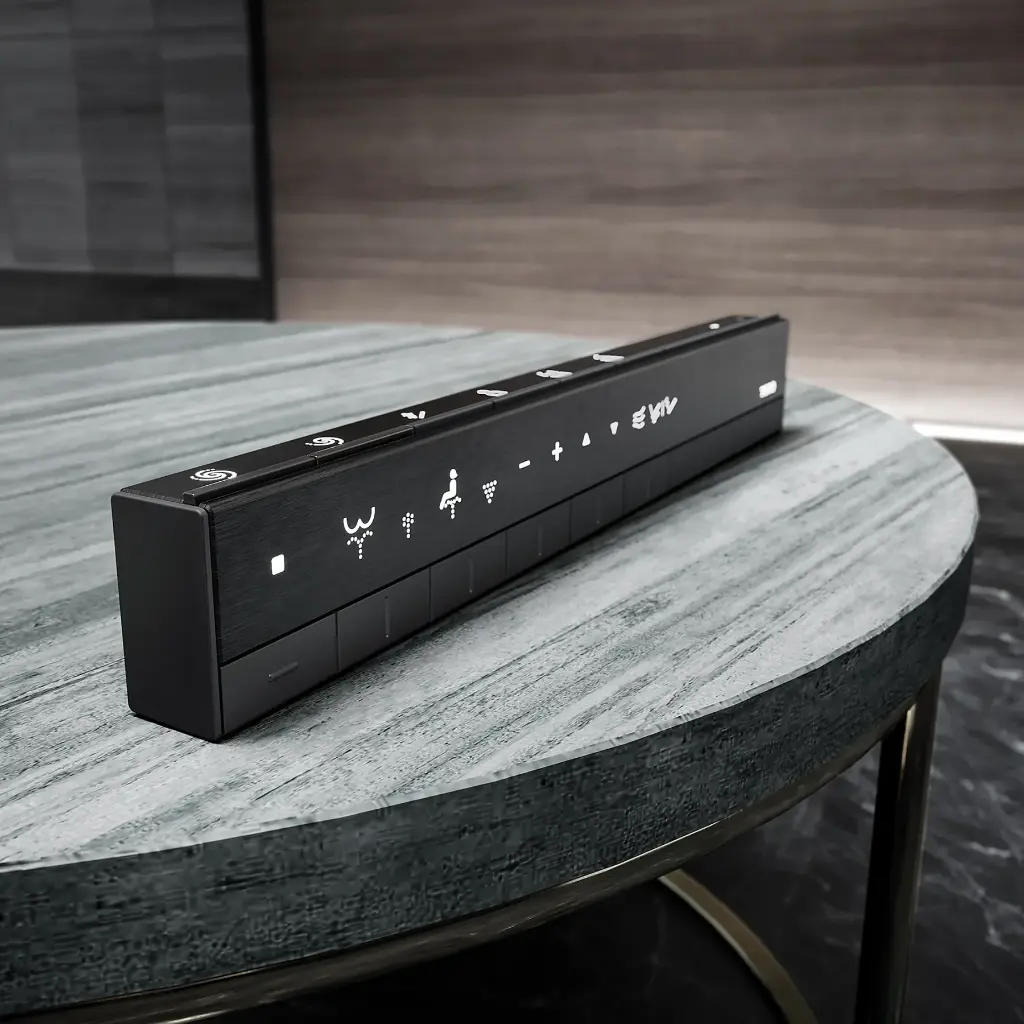

Multifunction ergonomic stick-style remote control
4-users' personalized memory settings
Universal Height, ADA compliant
Night light
SPECIFICATIONS
Water Use 1.0 GPF / 0.8 GPF (3.8 LPF / 3.0 LPF)
Flush System TORNADO FLUSH®
Water Pressure Min: 7.25 PSI (0.05MPa) Flowing
Max: 108.75 PSI (0.75MPa) Static
Water Surface 8-5/8” x 7-1/4”
Trap Diameter 2” (51 mm)
Trap Seal 2-1/8” (54 mm)
Warranty Three Year Limited (Residential)
One Year Limited (Commercial)
Material Bowl: Vitreous China
Seat + Cover: Plastic
Power Rating AC 120 V, 60 Hz, 1290 W
Power Cord 3.9 ft (1.2m)
Rear Washing Approx. 0.08 - 0.11 gal/min
Soft Washing Approx. 0.08 - 0.11 gal/min
Front Washing Approx. 0.08 - 0.11 gal/min
Wide Front Washing Approx. 0.09 - 0.11 gal/min
Washing Spray Temperature Approx. 86ºF - 104ºF (30ºC - 40ºC)
Safety Feature Temperature Fuse
Drying Feature Air Temperature:
Approx. 95ºF - 140ºF (35ºC - 60ºC)
Airflow Volume 8.83 ft3/min
Dryer Safety Feature Temperature Fuse
Seat Warming Feature Surface Temperature:
Approx. 82ºF - 97ºF (28ºC - 36ºC)
Seat Heater Capacity 540 W
Air Purifying Feature O2 Deodorizer
Air Volume 5.65 ft3/min
Ambient Temperature Range 32°F - 104°F (0°C - 40°C)
Product Size 28-1/2” L x 16-1/8” W x 20-7/8” H
Product Weight 112 lbs
Floor to Seat Height 17-5/16” (440mm)
Shipping Weight
SN8732M: 21 lbs
CT8732CUMFG: 106 lbs
Shipping Dimensions
SN8732M: 32-1/8” L x 19-1/8” W x 7-7/8” H
CT8732CUMFG: 30-7/8” L x 16-3/8” W x 22-3/8” H
PRODUCT SPECIFICATION
The NEOREST LS with the TORNADO FLUSH system toilet shall be 1.0 GPF / 0.8 GPF (3.8 LPF / 3.0 LPF).
Toilet shall have CEFIONTECT ceramic glaze and be at Universal Height.
Toilet shall be of skirted design, elongated front bowl with auto open and close seat.
Toilet shall be TOTO Model MS8732CUMFG#___.
CODES/STANDARDS
Meets and exceeds ASME A112.4.2, ASME
A112.19.2/CSA B45.1, ASME A112.18.1/CSA B125.1, UL 1431, CSA C22.2 # 68
Certifications: IAPMO(cUPC), State of Massachusetts, City of Los Angeles and others
Code Compliance: UPC, IPC, NSPC, and others
ADA Compliant
Complies with CA Prop 65 warning requirements
Product Specifications

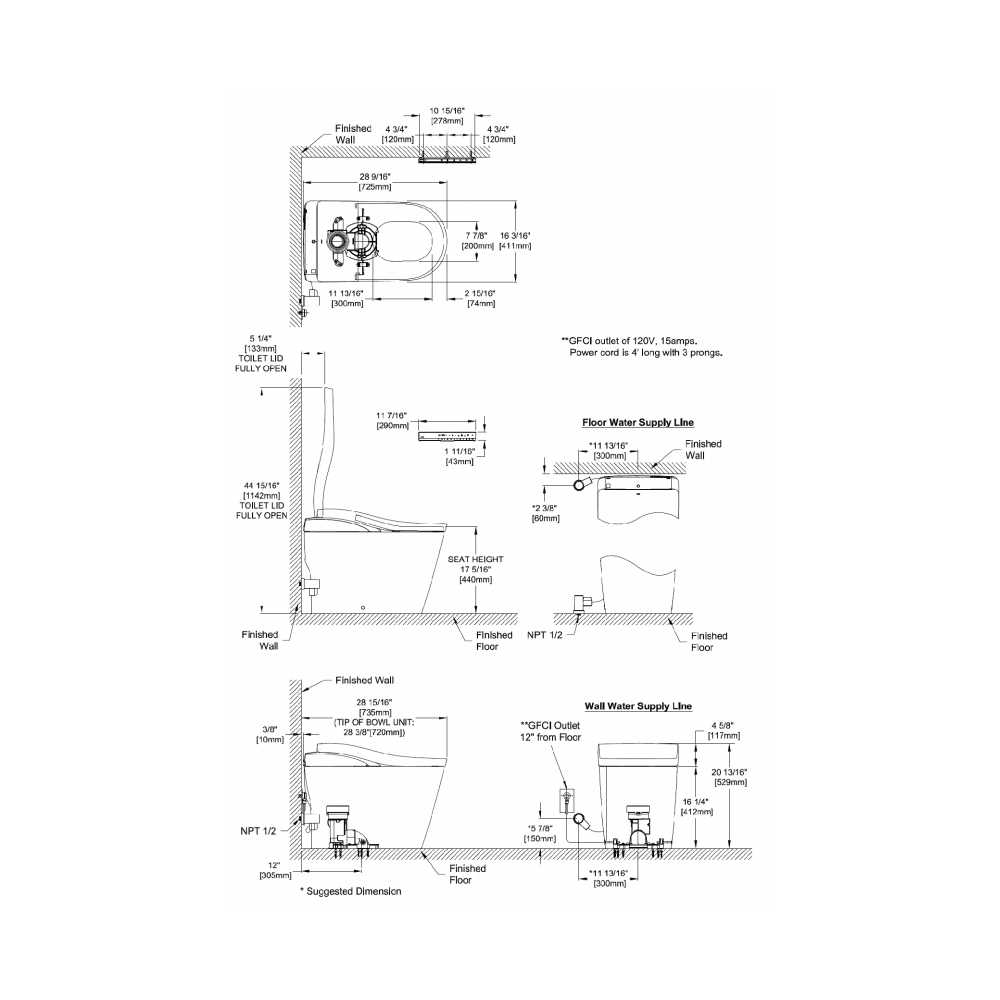

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
