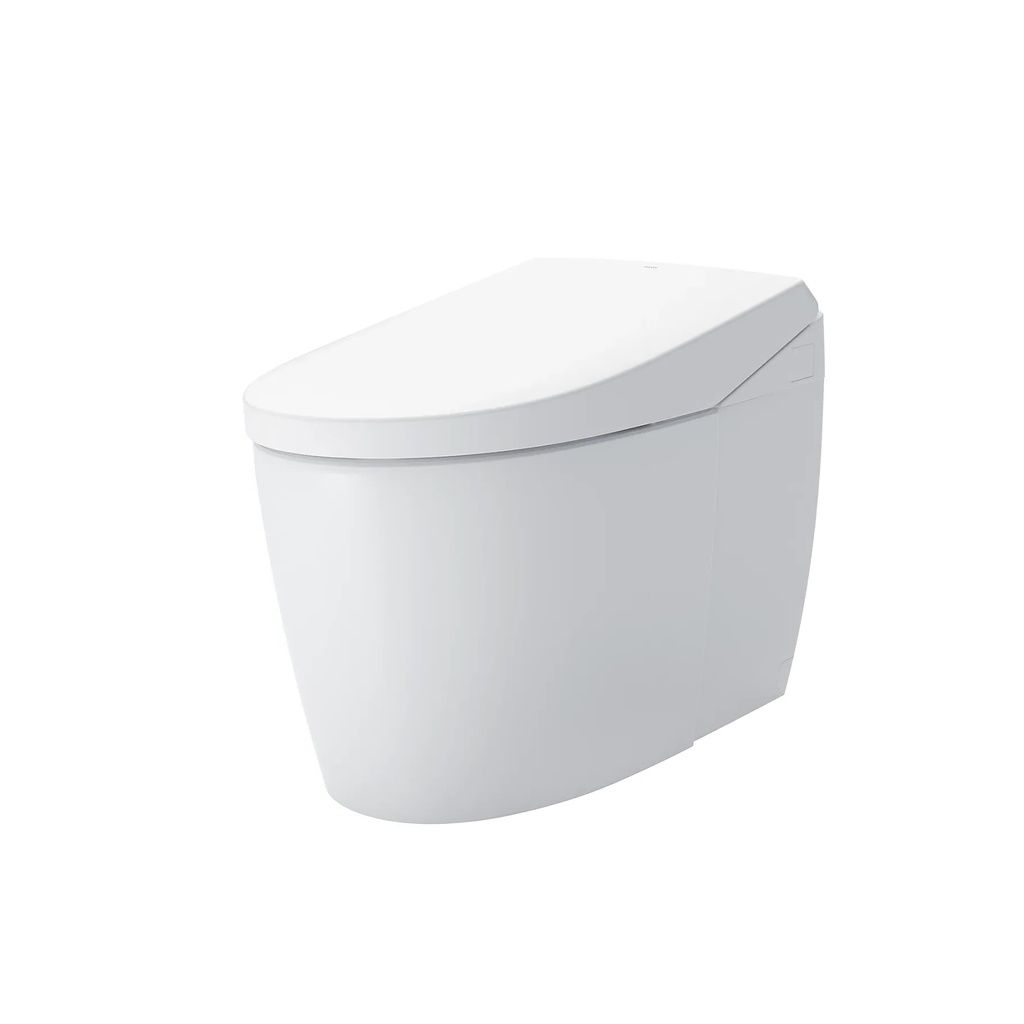

TOTO MS8551CUMFG#01 NEOREST AS Dual Flush Toilet Cotton
NEOREST® AS Dual Flush Toilet - 1.0 GPF & 0.8 GPF
SKU: MS8551CUMFG#01
The linear design of the NEOREST AS pursues the ultimate simplicity to accentuate any modern space. The AS has an edgy shape that leaves a sharp impression when seen from any angle. Its straight lines and distinctive, dignified presence enhances spaces that are modern and edgy.
Product Components
CT8551CUMFG - Bowl
SN8551M - Top Unit
Features
Sleek, low profile one-piece skirted Smart Bidet Toilet with integrated personal cleansing and comfort features
Ultra high-efficiency dual flush functionality - 1.0 GPF / 0.8 GPF (3.8 LPF / 3.0 LPF)
TORNADO FLUSH® System utilizes 360° cleaning power to reach every part of the hole-free rim design bowl
Auto flush - with back-up manual flush for power outages
Auto open/close lid
PREMIST® automatically mists the bowl before each use
CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
Gentle aerated, warm water, dual-action spray with oscillating and pulsating features
Instantaneous water heater for continuous warm water and energy savings
Adjustable spray position, water temperature, and water pressure
EWATER+® auto-cleans wand, bowl, and under-seat after every use
Heated seat with temperature control
Seamless seat design eliminates the gap where dirt collects
Warm air dryer with five variable temperature settings
Automatic air deodorizer
Automatic and programmable energy saving systems
Multifunction ergonomic stick-style remote control
4-users' personalized memory settings
Universal Height, ADA compliant
Night light
CLEAN LIFT® allows easy cleaning between the top and bowl unit
SPECIFICATIONS
Water Use 1.0 GPF / 0.8 GPF (3.8 LPF / 3.0 LPF)
Flush System TORNADO FLUSH®
Water Pressure Min: 7.25 PSI (0.05MPa) Flowing
Max: 108.75 PSI (0.75MPa) Static
Water Surface 8-5/8” x 7-1/4”
Trap Diameter 2” (51 mm)
Trap Seal 2-1/8” (54 mm)
Warranty Three Year Limited (Residential)
One Year Limited (Commercial)
Material Bowl: Vitreous China
Seat + Cover: Plastic
Power Rating AC 120 V, 60 Hz, 1290 W
Power Cord 3.9 ft (1.2m)
Rear Washing Approx. 0.08 - 0.11 gal/min
Soft Washing Approx. 0.08 - 0.11 gal/min
Front Washing Approx. 0.08 - 0.11 gal/min
Wide Front Washing Approx. 0.09 - 0.11 gal/min
Washing Spray Temperature Approx. 86ºF - 104ºF (30ºC - 40ºC)
Safety Feature Temperature Fuse
Drying Feature Air Temperature:
Approx. 95ºF - 140ºF (35ºC - 60ºC)
Airflow Volume 8.83 ft3/min
Dryer Safety Feature Temperature Fuse
Seat Warming Feature Surface Temperature:
Approx. 82ºF - 97ºF (28ºC - 36ºC)
Seat Heater Capacity 50 W
Air Purifying Feature O2 Deodorizer
Air Volume 5.65 ft3/min
Ambient Temperature Range 32°F - 104°F (0°C - 40°C)
Product Size 27-1/4” L x 15-1/4” W x 21-3/8” H
Product Weight 97 lbs
Floor to Seat Height 17-1/4” (439mm)
Shipping Weight
SN8551M: 20 lbs
CT8551CUMFG: 91 lbs
Shipping Dimensions
SN8551M: 30-7/8” L x 18-1/8” W x 8-3/4” H
CT8551CUMFG: 30-3/4” L x 17-3/8” W x 23-1/2” H
PRODUCT SPECIFICATION
The NEOREST AS with the TORNADO FLUSH system toilet shall be 1.0 GPF / 0.8 GPF (3.8 LPF / 3.0 LPF).
Toilet shall have CEFIONTECT ceramic glaze and be at Universal Height.
Toilet shall be of skirted design, elongated front bowl with auto open and close seat.
Toilet shall be TOTO Model MS8551CUMFG#01.
CODES/STANDARDS
Meets and exceeds ASME A112.4.2, ASME
A112.19.2/CSA B45.1, ASME A112.18.1/CSA
B125.1, UL 1431, CSA C22.2 # 68
Certifications: IAPMO(cUPC), State of Massachusetts, City of Los Angeles and others
Code Compliance: UPC, IPC, NSPC, and others
ADA Compliant
Complies with CA Prop 65 warning requirements
Product Specifications

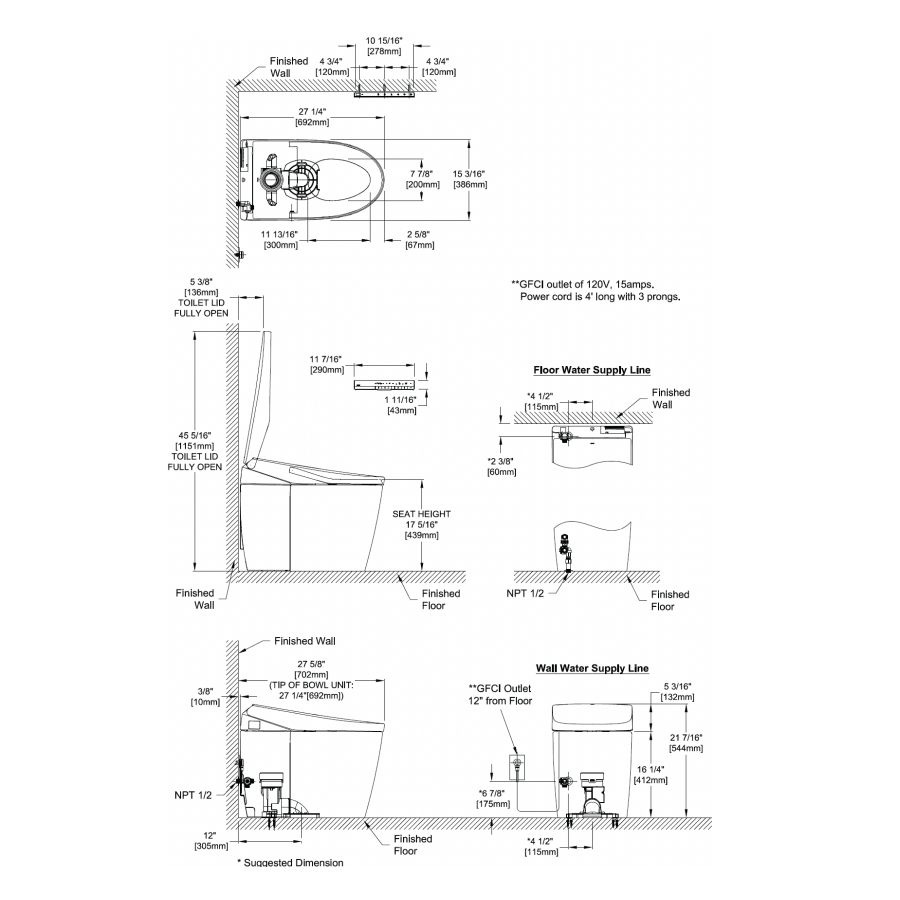

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
