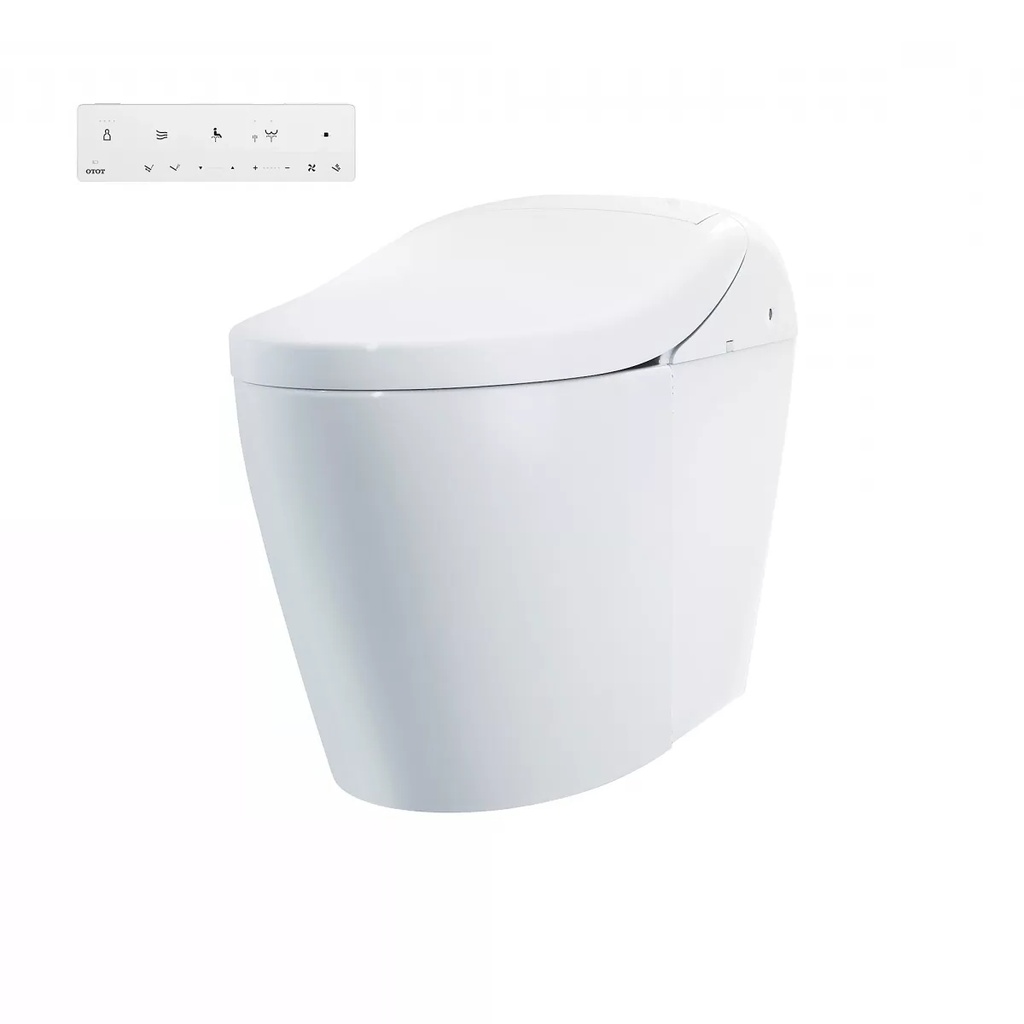

TOTO MS7631CEMFG#01 G5A Integrated Smart Toilet Cotton
WASHLET® G5A Integrated Smart Toilet - 1.2 GPF/1.0 GPF
SKU: MS7631CEMFG#01
Meet the G5A — TOTO’s latest smart toilet. It features a compact, modern design, as well as our TORNADO FLUSH® system that uses an efficient 1.2 or 1.0 GPF. Complete with our CEFIONTECT® ion barrier glaze and a larger water spot, the G5A minimizes debris from sticking to ceramic surfaces, keeping your toilet cleaner, longer.
Product Components
CT7631CEMFG#01 - Bowl
SN7631M#01 - Top Unit
Features
High-efficiency dual flush functionality 1.2 GPF / 1.0 GPF (4.5 LPF / 3.8 LPF)
TORNADO FLUSH® system utilizes 360° cleaning power to reach every part of the hole-free rim design bowl
Auto flush - with back-up manual flush for power outages
Auto open/close lid
PREMIST® automatically mists the bowl before each use
CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
Gentle aerated, warm water, dual-action spray with oscillating and pulsating features
Instantaneous water heater for continuous warm water and energy savings
Adjustable spray position, water temperature, and water pressure
EWATER+® auto-cleans wand
Seamless seat design eliminates the gap where dirt collects
Warm air dryer with five variable temperature settings
Automatic air deodorizer
Automatic and programmable energy saving systems
Multifunction remote control with 4-users personalized memory settings
Universal Height, ADA compliant
Night light
SPECIFICATIONS
Water Use 1 GPF / 1.0 GPF ( LPF / 3.8 LPF)
Flush System TORNADO FLUSH®
Water Pressure Min: 7.25 PSI (0.05MPa) Flowing Max:
108.75 PSI (0.75MPa) Static
Water Surface 8-5/8" x 7-1/4"
Trap Diameter 2” (51 mm)
Trap Seal 2-1/8” (54 mm)
Rough-in 12”
Warranty One Year Limited (Residential)
One Year Limited (Commercial)
Material Bowl: Vitreous China Seat + Cover:
Plastic
Shipping Weight SN7631M: 19 lbs CT7631CEMFG: 94 lbs
Shipping Dimensions
SN7631M:
31-3/16" L x 17-1/2" W x 10-3/4" H
CT7631CEMFG:
31-5/8" L x 15-3/4" W x 22-5/8" H
Power Rating AC 120 V, 60 Hz, 1276 W
Power Cord Length 3.9ft
Water Pressure Min: 7.25 PSI (0.05MPa) Flowing Max:
108.75 PSI (0.75MPa) Static
Drying Feature Air Temperature: Approx. 95ºF - 140ºF (35ºC - 60ºC)
Rear Washing Approx. 0.07- 0.11 gal/min
Rear Soft Washing Approx. 0.07- 0.11 gal/min
Front Washing Approx. 0.08 - 0.11 gal/min
Washing Spray
Feature Approx. 95ºF - 104ºF (35ºC - 40ºC)
Safety Feature Temperature Fuse
Drying Feature Air Temperature: Approx. 95ºF - 140ºF (35ºC - 60ºC)
Airflow Volume 8.83 ft3/min
Dryer Safety Feature Temperature Fuse
Seat Warming Feature
Surface Temperature: Approx. 82ºF -
97ºF (28ºC - 36ºC)
Seat Heater Capacity 50 W
Air Volume Normal mode: Approx. 3.17 ft3/min|
Power mode: Approx. 5.65 ft3/min
Air Purifying Feature O2 Deodorizer
CODES/STANDARDS
Meets and exceeds ASME A112.4.2, ASME A112.19.2/CSA B45.1, ASME A112.18.1/CSA B125.1, UL 1431, CSA C22.2 # 68
Certifications: IAPMO(cUPC), State of Massachusetts, City of Los Angeles and others
Code Compliance: UPC, IPC, NSPC, and others
ADA Compliant
Complies with CA Prop 65 warning requirements
Product Specifications

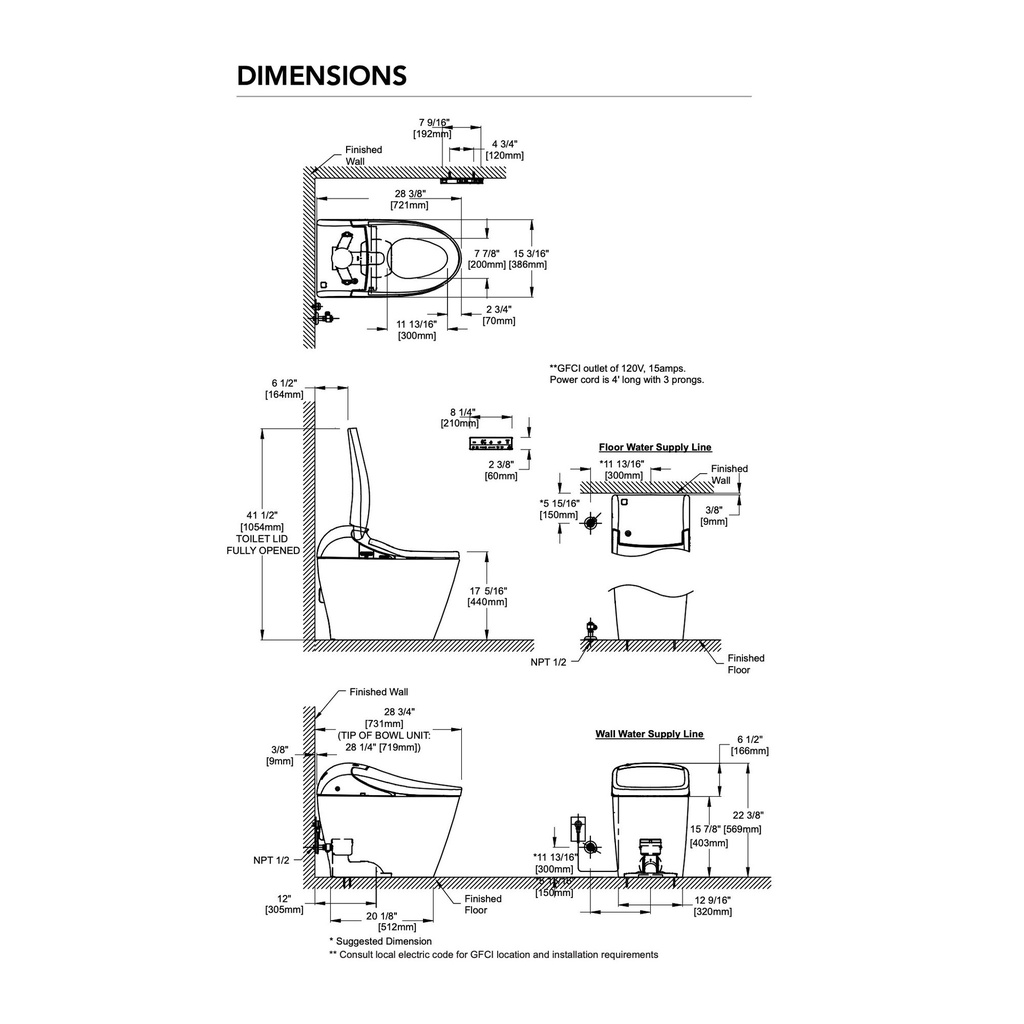

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
