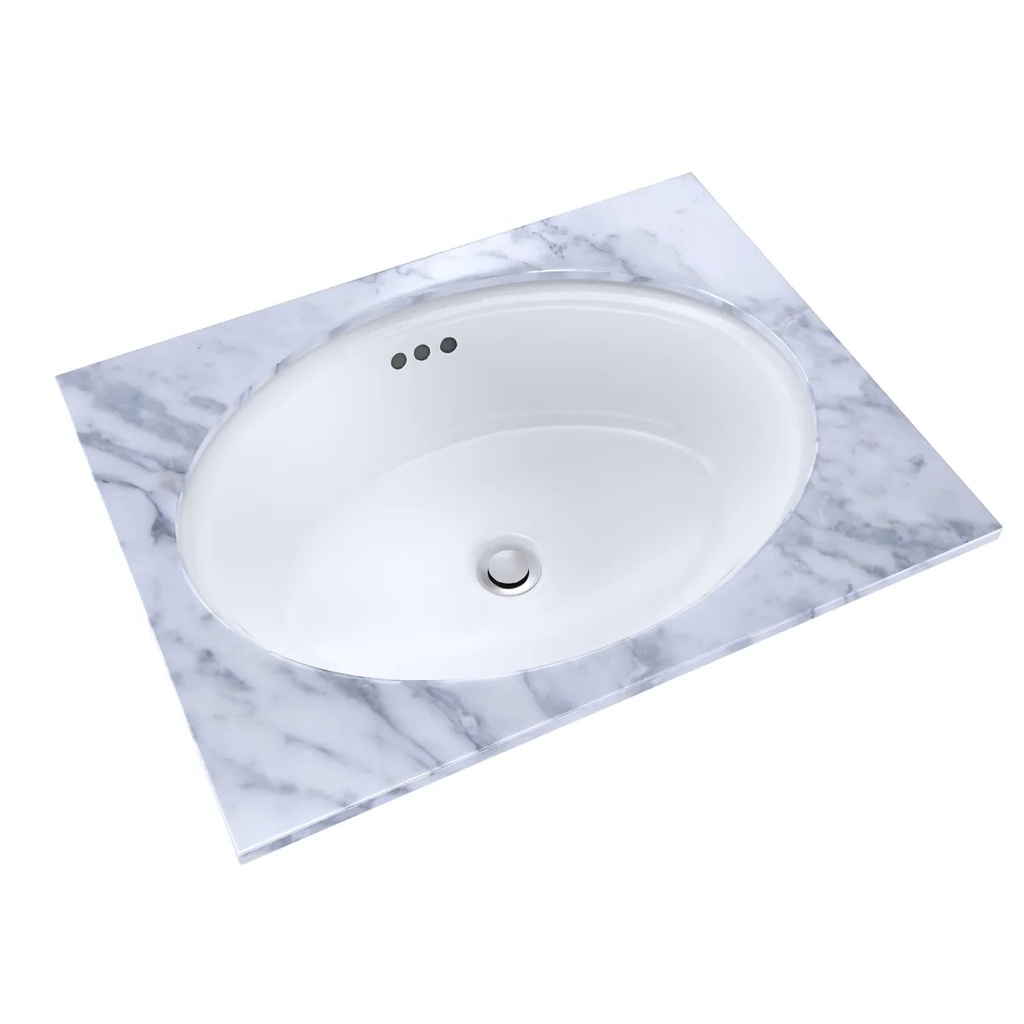

TOTO LT643#01 Dartmouth Undercounter Lavatory Cotton
Dartmouth? Undercounter Lavatory
SKU: LT643#01
This oval lavatory features an intricate traditional design and has a generously wide basin with the option of front or rear overflow. ADA compliant.
COLORS/FINISHES
#01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
#51 Ebony
Features
Installation Template and Mounting Hardware Included
Spacious Basin
Front or Rear Overflow
FEATURES
17-1/4" x 12-7/8" Undercounter lavatory
4-3/4" Basin depth
Oval design for undercounter installation
Overflow drain
Mounting assembly complete with installation template and mounting screw set for wood countertops
THU410 is required for marble/granite type counter top installation and must be purchased separately
SPECIFICATIONS
Waste 1-1/4" O.D.
Size 19-1/4"W x 14-7/8"D
Basin 17-1/4"W x 12-7/8"D
Warranty One Year Limited Warranty
Material Vitreous china
Shipping Weight 17 lbs.
Shipping Dimensions 22-1/4"W x 18-3/4"D x 9-3/4"H
PRODUCT SPECIFICATION
The undercounter lavatory shall be made of vitreous china.
Lavatory shall be 18-3/4"in length and 13-3/4" in width.
Product shall be with overflow and lavatory shall include mounting assembly.
Lavatory shall be TOTO Model LT643______.
CODES/STANDARDS
Meets and exceeds ASME A112.19.2/CSA B45.1
Certifications: IAPMO(cUPC), State of Massachusetts , City of Los Angeles, and others

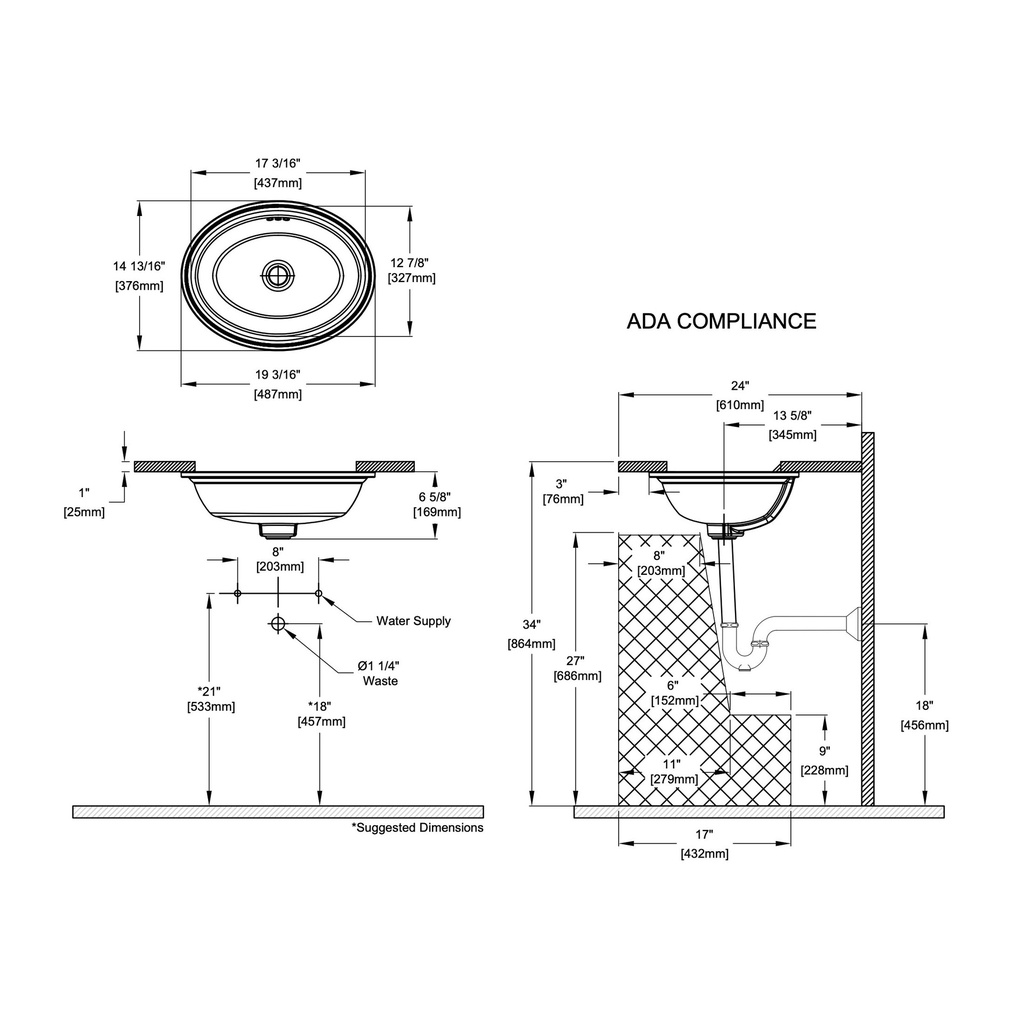

Meets ADA guidelines and ANSI A117.1 requirements when countertop is installed 864mm (34") from finished floor and lavatory is installed 205mm (8-1/8") minimum from front edge.
Complies with CA Prop 65 warning requirements
