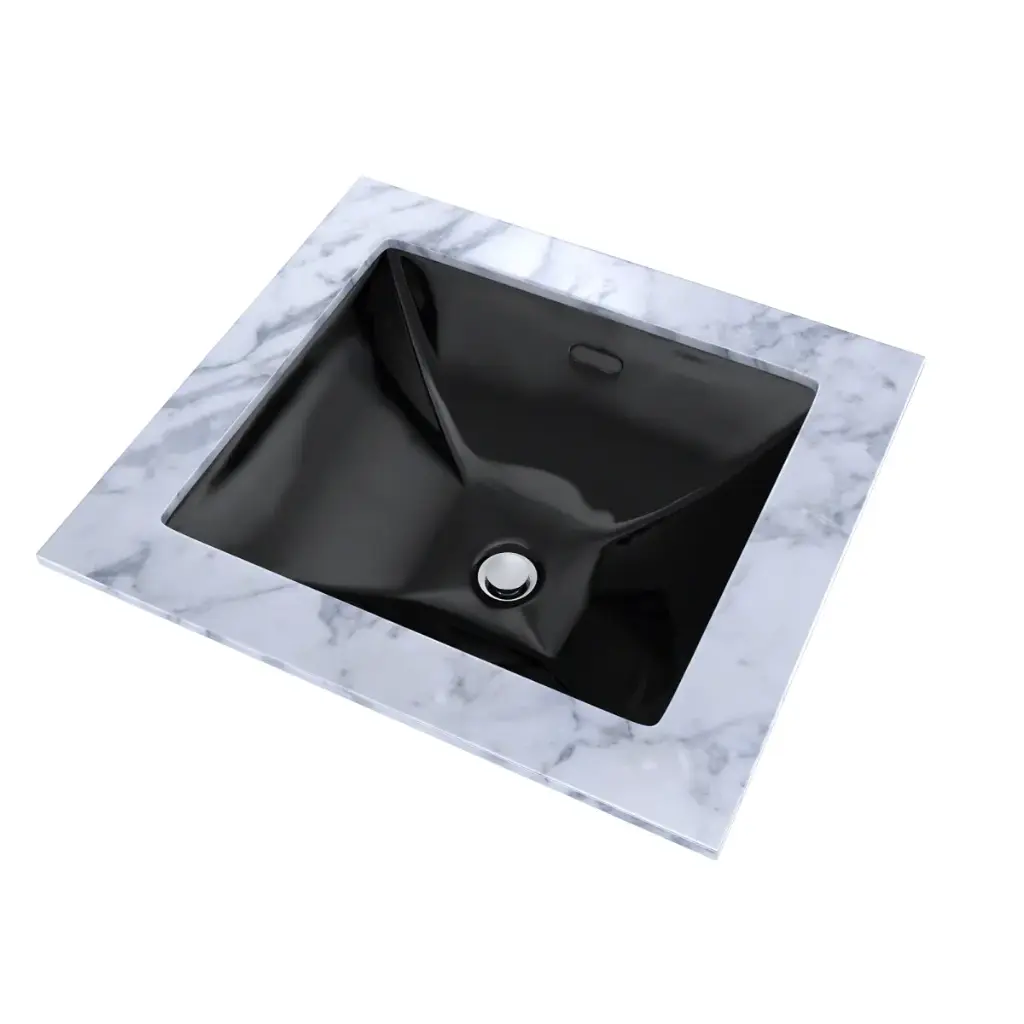

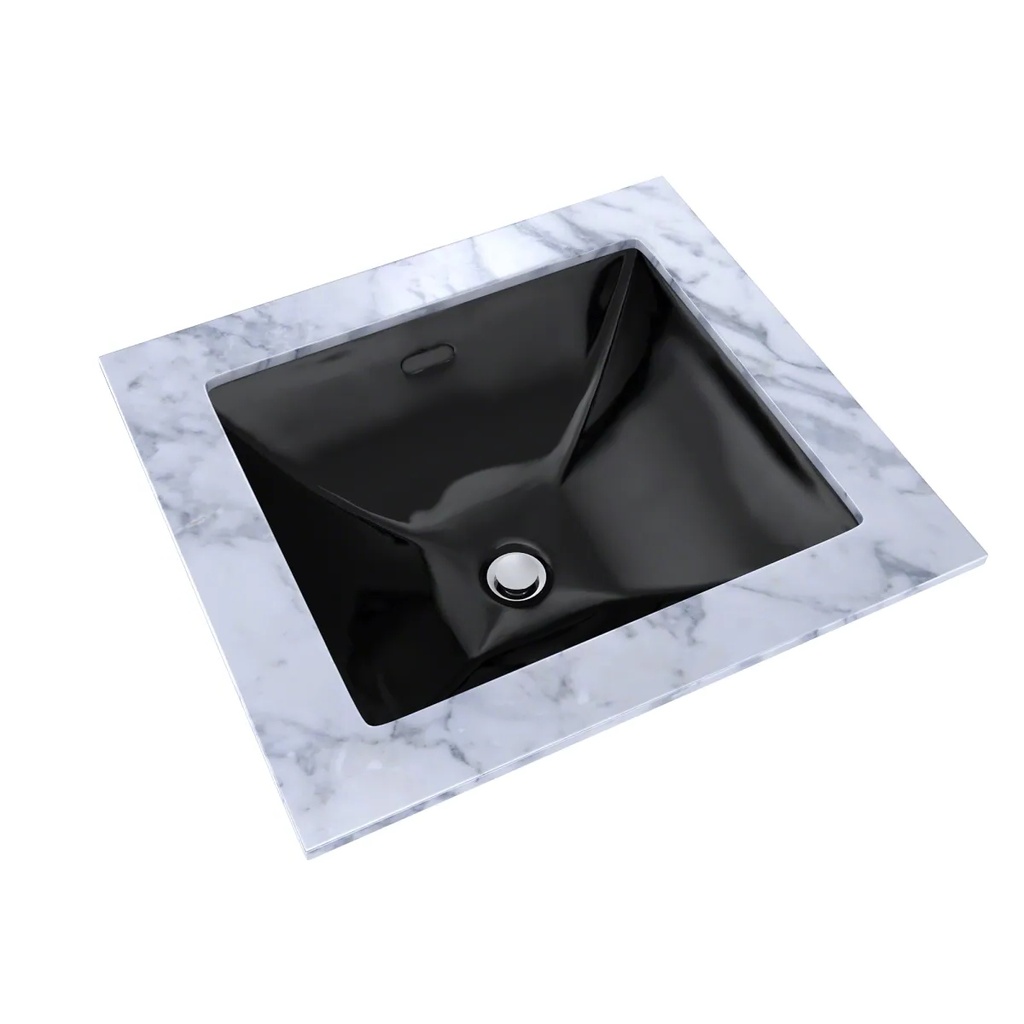

TOTO LT624#51 Legato Undercounter Lavatory Ebony
Legato? Undercounter Lavatory
SKU: LT624#51
This lavatory offers a contemporary design and a generously wide basin. Features CEFIONTECT, an extraordinarily smooth, ion-barrier surface that helps to keep the lavatory cleaner longer. ADA compliant.
MODELS
LT624G
With CEFIONTECT glazing (#01, #03, #11, #12)
LT624
Without CEFIONTECT glazing (#51 only)
COLORS/FINISHES
#01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
#51 Ebony (not available with CEFIONTECT)
Features
CEFIONTECT Ceramic Glaze
Installation Template and Mounting Hardware Included
Spacious Basin
Rear Overflow
FEATURES
17" x 15"
Rimless, rectangle design for undercounter installation
Rear overflow
CEFIONTECT? ceramic glaze minimizes waste from sticking to porous ceramic surfaces
Vitreous china
Mounting assembly complete with installation template and mounting screw set for wood countertops
THU410 is required for marble/granite type counter top installation and must be purchased separately
SPECIFICATIONS
Waste 1-1/4" O.D.
Size 19"W x 17"D
Basin 17"W x 15"D
Warranty One Year Limited Warranty
Material Vitreous china
Shipping Weight 24.5 lbs.
Shipping Dimensions 22-1/4"W X 18-3/4"D X 9-3/4H"
PRODUCT SPECIFICATION
The undercounter lavatory shall be made of vitreous china.
Lavatory shall be 17"in length and 15" in width.
Product shall be with overflow and lavatory shall include mounting assembly.
Lavatory model LT626G shall have CEFIONTECT ceramic glaze.
Lavatory shall be TOTO Model LT624______.
CODES/STANDARDS
Meets and exceeds ASME A112.19.2/CSA B45.1
Certifications: IAPMO(cUPC), State of Massachusetts, City of Los Angeles, and others

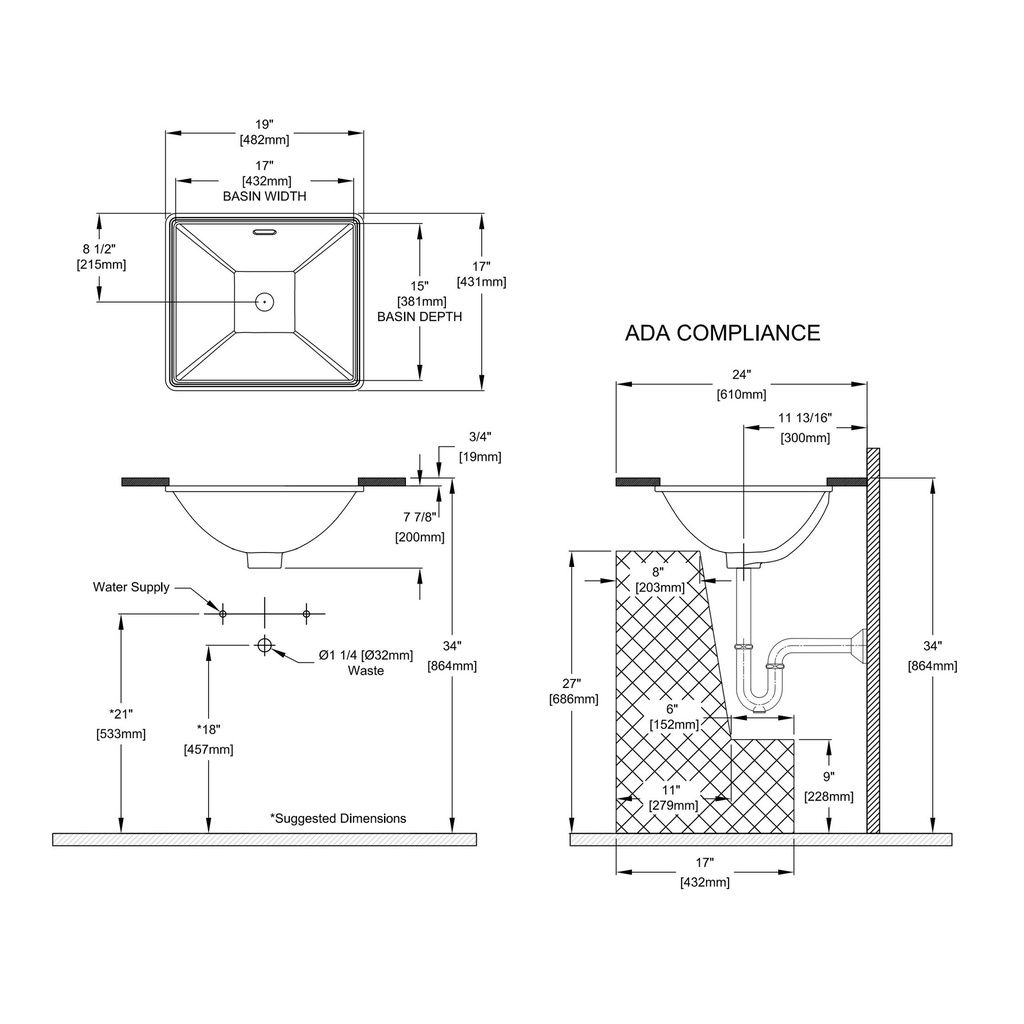

Meets ADA guidelines and ANSI A117.1 requirements when countertop is installed 864mm (34") from finished floor and lavatory is installed 205mm (8-1/8") minimum from front edge.
Complies with CA Prop 65 warning requirements
Product Specifications
CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
