TOTO LT481#51 Maris Undercounter Lavatory Ebony
Maris? Undercounter Lavatory
SKU: LT481#51
LIMITED INVENTORY
This lavatory offers a beautifully rimless, oval design. Features a generously wide basin and rear overflow. ADA compliant.
MODELS
LT481G - with CEFIONTECT
(#01, #03, #11, #12)
LT481 - without CEFIONTECT (#51)
COLORS/FINISHES
#01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
#51 Ebony
Features
20-5/16 x 15-9/16" Under counter lavatory with mounting hardware and template
CEFIONTECT? ceramic glaze
ADA Compliant
Rear Overflow
FEATURES
20-5/16"x 15-9/16" Undercounter lavatory
Optional CEFIONTECT? ceramic glaze - prevents debris and mold from sticking to ceramic surfaces, leading to fewer chemicals and less water in cleaning
ADA compliant (with overfow to the rear)
Mounting assembly complete with installation template and mounting screw set for wood countertops
THU410 is required for marble/granite type counter top installation and must be purchased separately
SPECIFICATIONS
Waste 1-1/4" O.D.
Size 22-5/8"W x 17-7/8"D
Basin 20-5/16"W x 15-9/16"D
Warranty One Year Limited Warranty
Material Vitreous china
Shipping Weight 22lbs.
Shipping Dimensions 25"W X 19-1/4"D X 10-1/2"H
PRODUCT SPECIFICATION
The undercounter lavatory shall be made of vitreous china.
Lavatory shall be 20-5/16"in length and 15-9/16" in width.
Product shall be with overfow and lavatory shall include mounting assembly.
Lavatory shall be TOTO Model LT481______.
CODES/STANDARDS
Meets and exceeds ASME A112.19.2/CSA B45.1
Certifcations: IAPMO(cUPC), State of Massachusetts, City of Los Angeles, and others
Meets ADA guidelines and ANSI A117.1 requirements when countertop is installed 864mm (34") from fnished foor and lavatory is installed 51mm (2") minimum from front edge.
Complies with CA Prop 65 warning requirements
Product Specifications

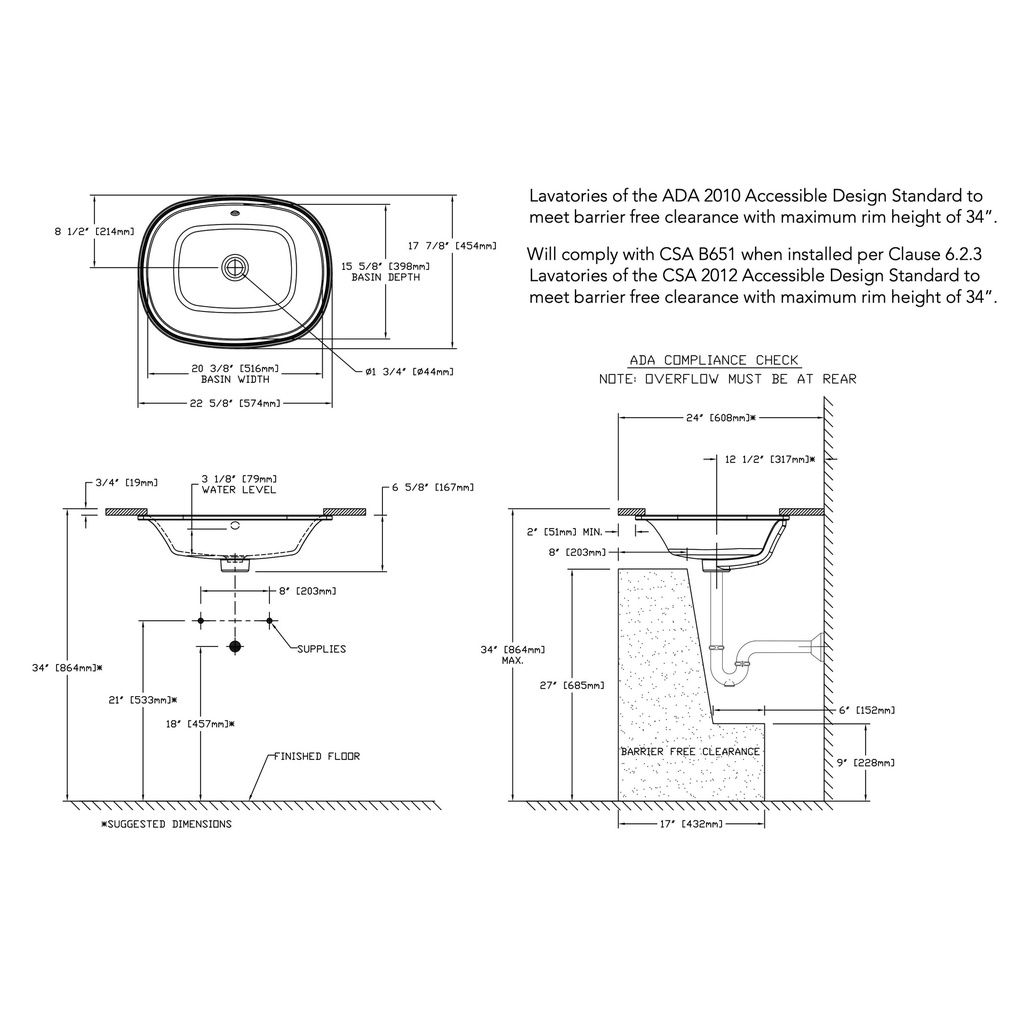

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
