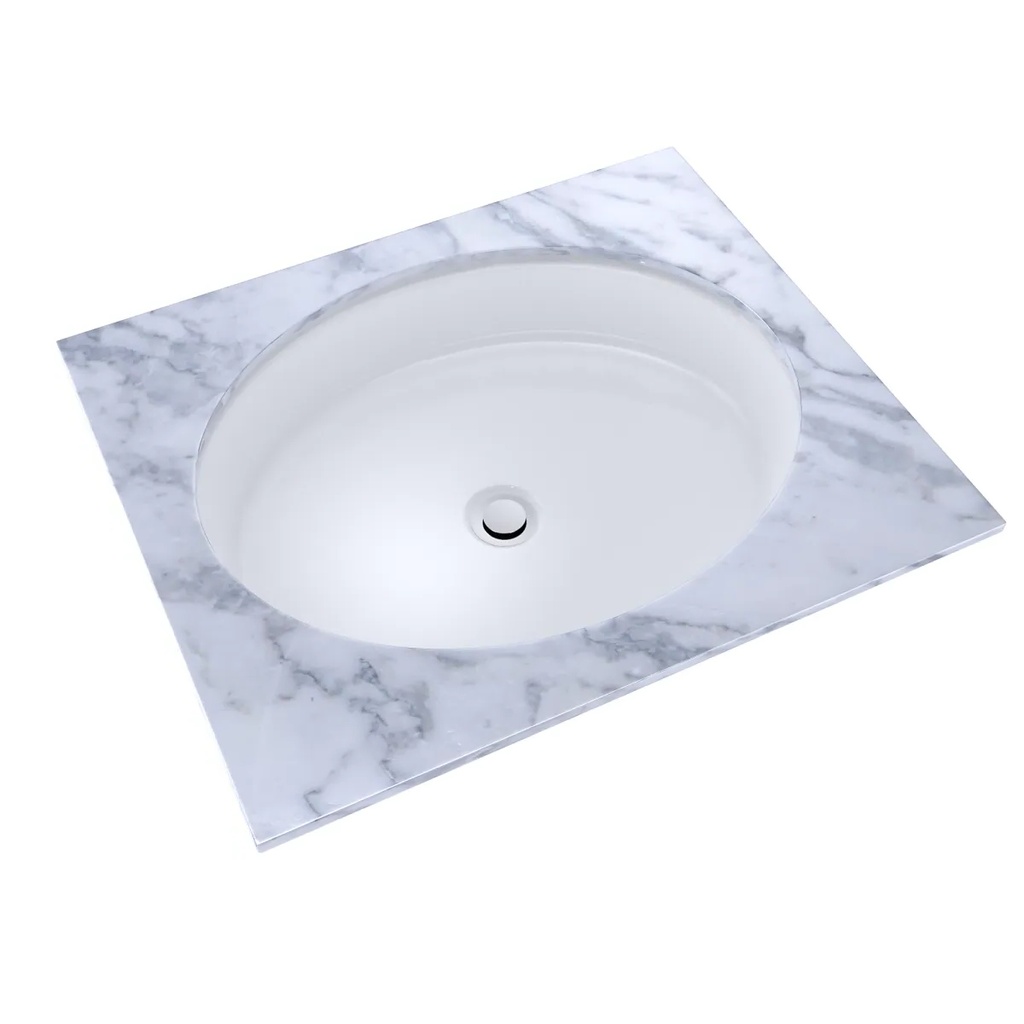

TOTO LT233#01 Atherton Oval 19 X 15 Undercounter Lavatory Cotton
Atherton? Undercounter Lavatory
SKU: LT233#01
This lavatory offers a rimless, oval design and concealed front overflow. Features a generously deep basin with more vertical sides. ADA compliant.
COMPONENTS
THP5067#CP (Sold Separately)
Grid drain 1-1/2" opening with 4" tail piece
Features
ADA compliant
Vitreous china
Counter cutout: 18" 5/8" X 14-3/4"
Mounting assembly complete with installation template and mounting screw set
19"x 15"
Oval Undercounter Lavatory
ADA compliant
Vitreous china
Front overfl ow
Mounting assembly complete with installation template and mounting screw set for wood countertops
THU410 is required for marble/granite type counter top installation and must be purchased separately
SPECIFICATIONS
Waste: 1-1/4" (32 mm)
Overall Size: 22-5/8" (575 mm) x 18-3/8" (466 mm)
Cutout: 18-5/8"(473mm) x 14-3/4" (375mm)
Basin Depth: 4" (103 mm)
Basin: 19-3/8" (493 mm) x 15-1/2" (395 mm)
Warranty: One Year Limited Warranty
Material: Vitreous china
Shipping Weight: 22.5lbs (10 kg)
Shipping Dimensions: 23-1/2" x 19-1/2" x 7-1/2"
PRODUCT SPECIFICATION
The undercounter lavatory shall be made of vitreous china.
Lavatory shall be 19-3/8"in width and 15-1/2" in depth.
Product shall be with overfl ow and lavatory shall include mounting assembly and be ADA compliant.
TOTO Model LT233_________.
CODES/STANDARDS
Meets ADA guidelines and ANSI A117.1 requirements when countertop is installed 864mm (34") from fi nished fl oor and lavatory is installed 25mm (1") minimum from front edge.
Meets and exceeds ASME A112.19.2/CSA B45.1
Certifi cations: IAPMO(cUPC), State of Massachusetts, City of Los Angeles, and others.
Product Specifications

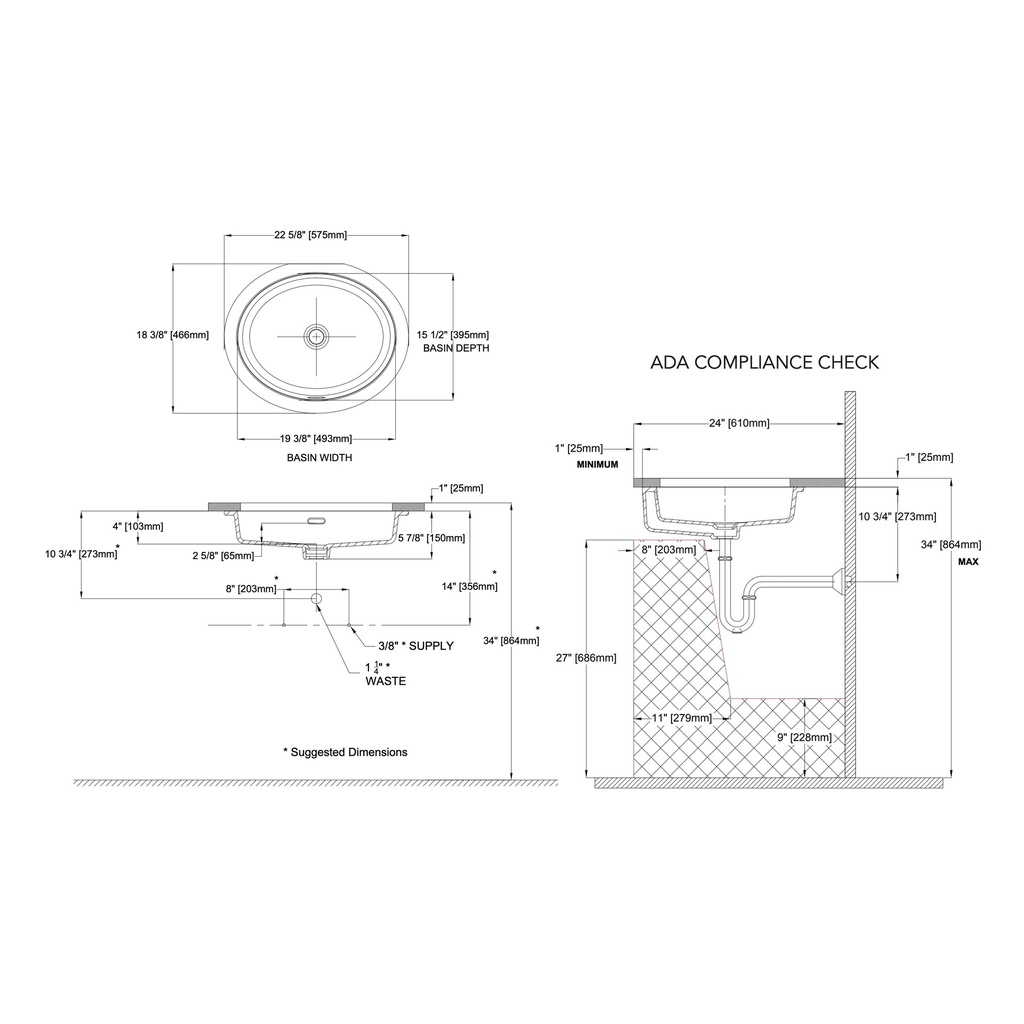

CAD Drawing
