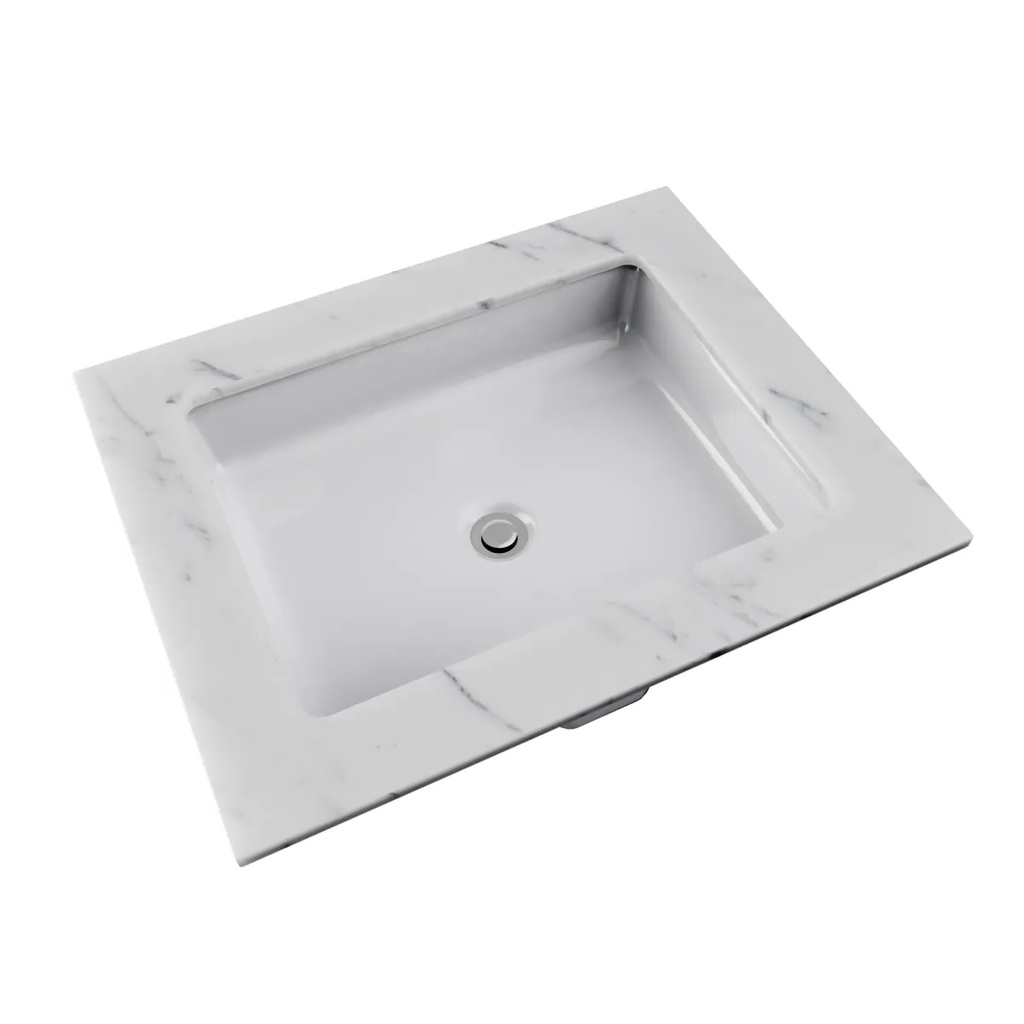

TOTO LT221#01 Atherton Rectangular Undercounter Lavatory Cotton
Atherton? Undercounter Lavatory
SKU: LT221#01
This lavatory offers a rimless, rectangular design and concealed front overflow. Features a generously deep basin with more vertical sides. ADA compliant.
COMPONENTS
THP5067#CP (Sold Separately)
Grid drain 1-1/2" opening with 4" tail piece
COLORS/FINISHES
#01 Cotton
Features
17" x 13"
Rectangular Undercounter Lavatory
ADA compliant
Vitreous china
Mounting assembly complete with installation template and mounting screw set
Rectangular Undercounter Lavatory
Front overflow
Mounting assembly complete with installation template and mounting screw set for wood countertops
THU410 is required for marble/granite type counter top installation and must be purchased separately

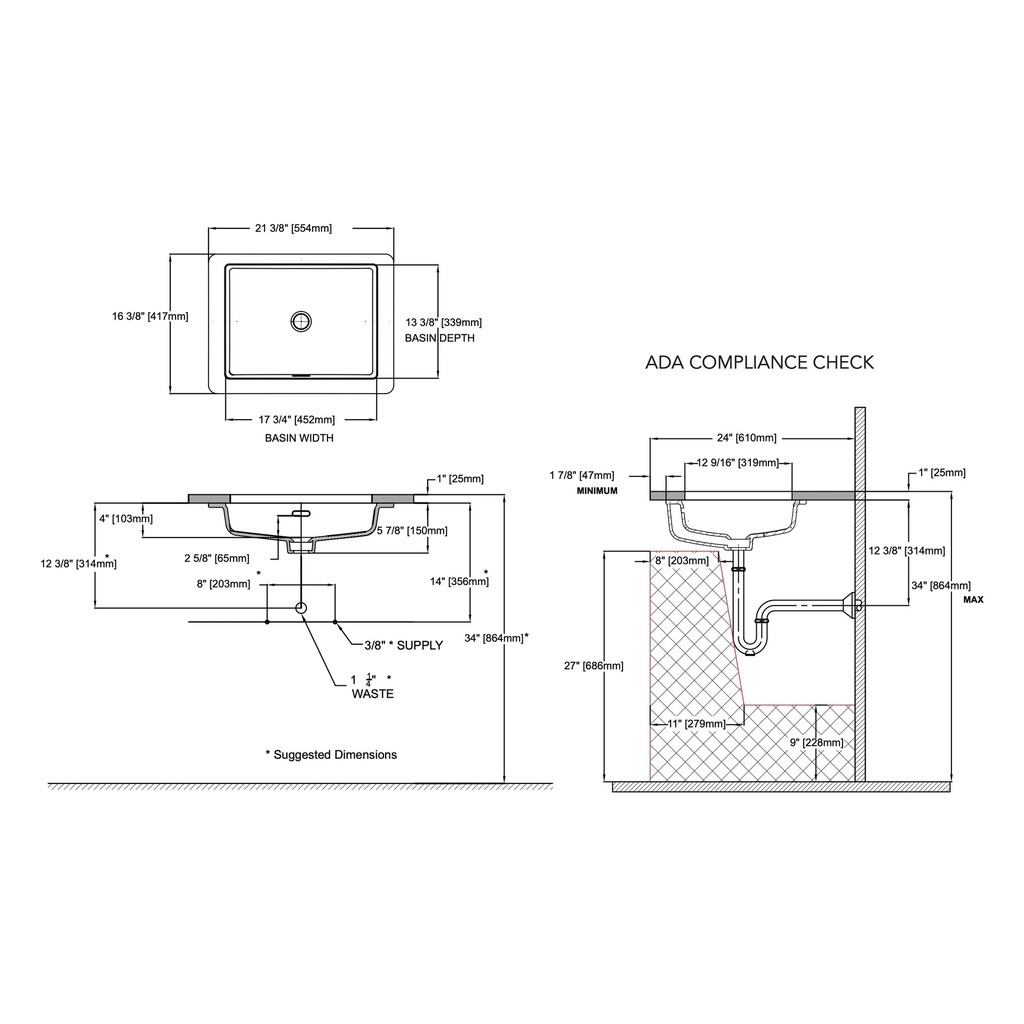

SPECIFICATIONS INSTALLATION NOTES
Waste: 1-1/4" (32 mm)
Overall Size: 21-3/8" (544mm) x 16-3/8" (417mm)
Cutout: 17(432mm) x 12-5/8"(321mm)
Basin Depth: 4" (103 mm)
Basin: 17-3/4" (452mm) x 13-3/8" (339mm)
Warranty: One Year Limited Warranty
Material: Vitreous china
Shipping Weight: 23lbs (10.4 kg)
Shipping Dimensions: 22-1/4" x 17-3/8" x 7-1/8"
PRODUCT SPECIFICATION
The undercounter lavatory shall be made of vitreous china.
Lavatory shall be 17-3/4"in width and 13-3/8" in depth.
Product shall be with overflow and lavatory shall include mounting assembly and be ADA compliant.
TOTO Model LT221_________.
CODES/STANDARDS
Meets ADA guidelines and ANSI A117.1 requirements when countertop is installed 864mm (34") from finished floor and lavatory is installed 47mm ( 1 7/8" ) minimum from front edge.
Meets and exceeds ASME A112.19.2/CSA B45.1
Certifications: IAPMO(cUPC), State of Massachusetts, City of Los Angeles, and others
