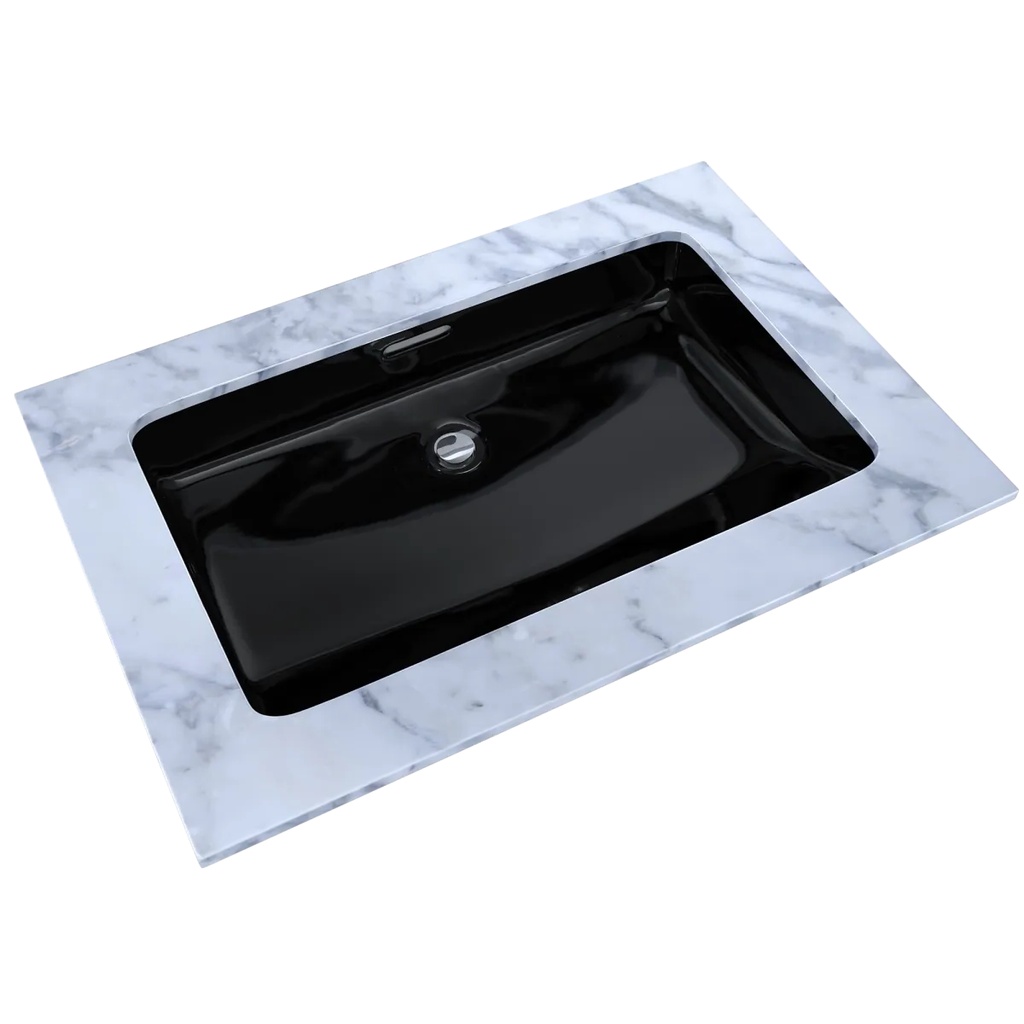

TOTO LT191#51 Undercounter Lavatory Ebony
Undercounter Lavatory
SKU: LT191#51
Created with modern simplicity, this lavatory offers a beautifully rimless, rectangle design. Features a generously wide basin, large backsplash and rear overflow. ADA compliant.
MODELS
LT191G
With CEFIONTECT glazing (#01, #03, #11, #12)
LT191
Without CEFIONTECT glazing (#51 only)
COLORS/FINISHES
#01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
#51 Ebony (not available with CEFIONTECT)
Features
CEFIONTECT Ceramic Glaze
Installation Template, Mounting Hardware Included
Spacious Basin
Large Backsplash
Rear Overflow
20-1/2" x 12-3/8"
Rimless, rectangle design for undercounter installation
Rear overfow
CEFIONTECT? ceramic glaze minimizes waste from sticking to porous ceramic surfaces
Vitreous china
Mounting assembly complete with installation template and mounting screw set for wood countertops
THU410 is required for marble/granite type counter top installation and must be purchased separately
SPECIFICATIONS
Waste 1-1/4" O.D.
Size 23-3/4"W x 14-3/8"D
Basin 20-1/2"W x 12-3/8"D
Warranty One Year Limited Warranty
Material Vitreous china
Shipping Weight 24.8 lbs.
Shipping Dimensions 24-5/8"W x 15-3/8"D x 7-1/2"H
PRODUCT SPECIFICATION
The undercounter lavatory shall be made of vitreous china.
Lavatory shall be 17"in length and 15" in width.
Product shall be with overfow and lavatory shall include mounting assembly.
Lavatory model LT191G shall have CEFIONTECT ceramic glaze.
Lavatory shall be TOTO Model LT191______.
CODES/STANDARDS
Meets and exceeds ASME A112.19.2/CSA B45.1
Certifcations: IAPMO(cUPC), State of Massachusetts , City of Los Angeles, and others
Meets ADA guidelines and ANSI A117.1 requirements when countertop is installed 864mm (34") from fnished foor and lavatory is installed 205mm (8-1/8") minimum from front edge
Complies with CA Prop 65 warning requirements
