TOTO LPT530N#12 Promenade Single Hole Pedestal Lavatory Sedona Beige
Promenade? Pedestal Lavatory
SKU: LPT530N#12
Faucet Mount: Single Hole Mount
Traditionally elegant with distinctive lines, this pedestal lavatory is bold in design. Features spacious basin, large backsplash and rear overflow. Universal height.
Product Components
LT530#03 - Lavatory
PT530N#03 - Pedestal
MODELS
LPT530N
Pedestal lavatory with single hole
LPT530.4N
Pedestal lavatory with 4" faucet centers
LPT530.8N
Pedestal lavatory with 8" faucet centers
COLORS/FINISHES
#01 Cotton
#03 Bone
#11 Colonial White
#12 Sedona Beige
#51 Ebony
Features
Universal Height
Mounting Set Included
Spacious Basin
Large Backsplash
Rear Overflow
SPECIFICATIONS
Waste 1-1/4" O.D.
Size 27-1/2"W x 22-1/4"D
Basin 20-1/8" x 13-1/4"
Height: Floor to Rim 34-3/8"
Warranty One Year Limited Warranty
Material Vitreous china
Shipping Weight
LT530/LT530.4/LT530.8 - 53 lbs.
PT530N - 28 lbs.
Shipping Dimensions
LT530/LT530.4/LT530.8
29-7/8"L x 24-3/4"W x 12-3/8"H
PT530N
28"L x 11-3/8"W x 11"H
PRODUCT SPECIFICATION
The lavatory shall be 27-1/2" width and 22-1/4" depth.
The basin shall be 20-1/8" by 13-1/4".
The lavatory shall be made of vitreous china and be 34" universal height with rear overflow. Lavatory shall be TOTO Model LPT530______.
CODES/STANDARDS
Meets and exceeds ASME A112.19.2/CSA B45.1
Certifications: IAPMO(cUPC), State of Massachusetts, City of Los Angeles, and others
Code compliance: UPC, IPC, NSPC, NPC Canada, and others
Complies with CA Prop 65 warning requirements
Product Specifications

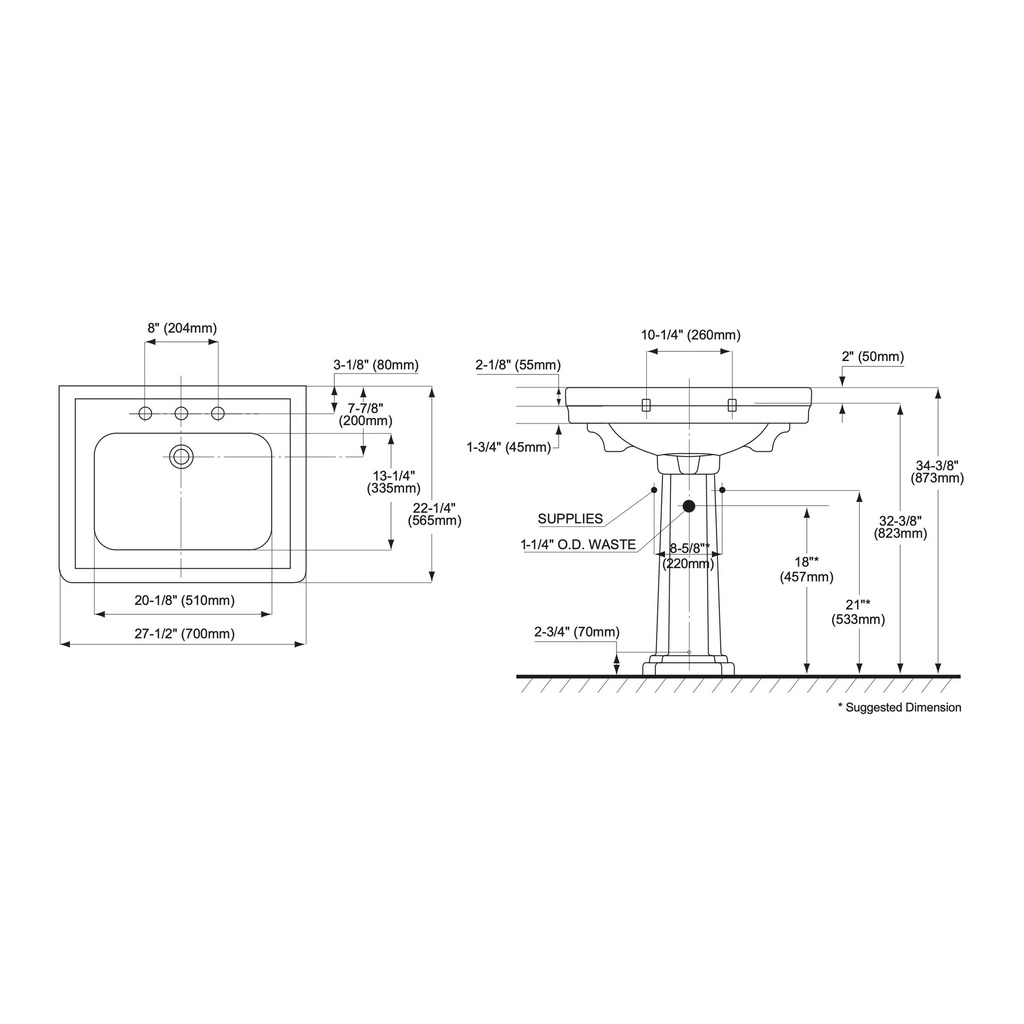

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
