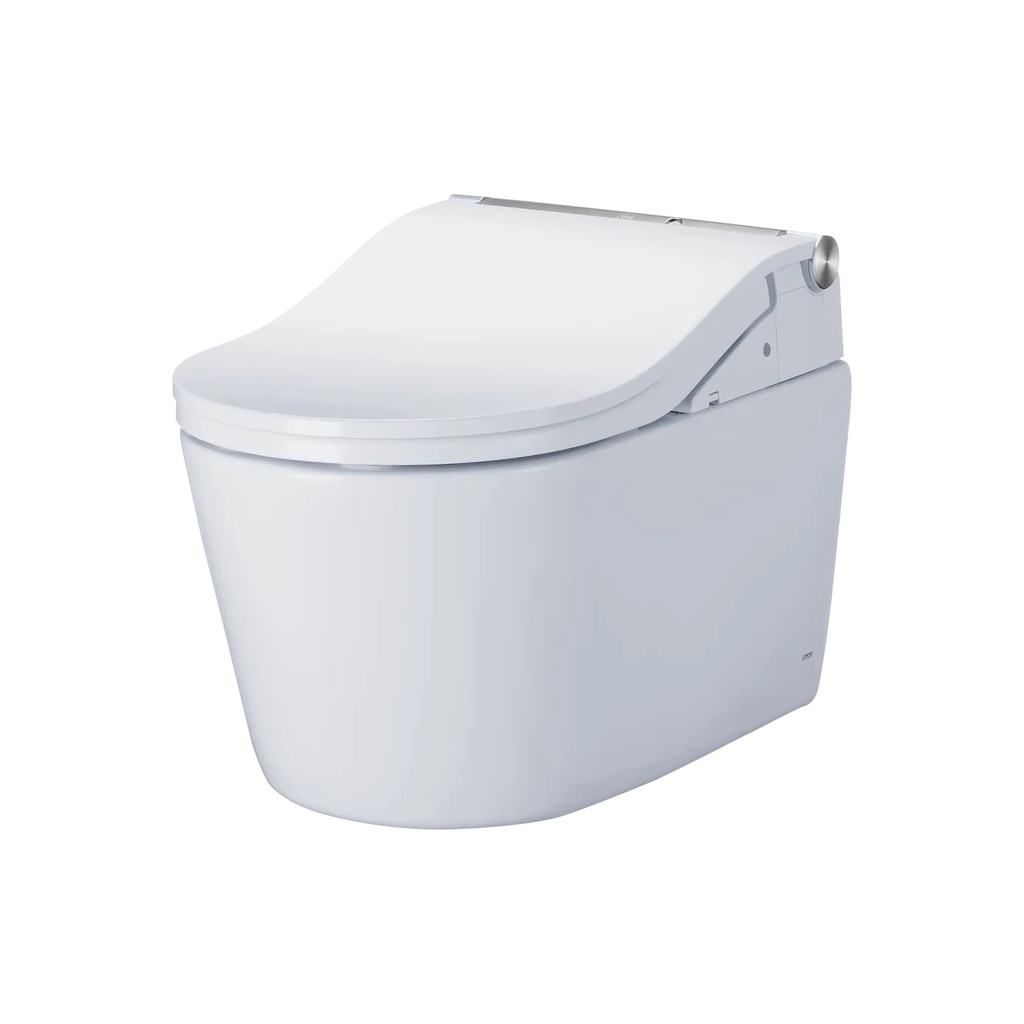

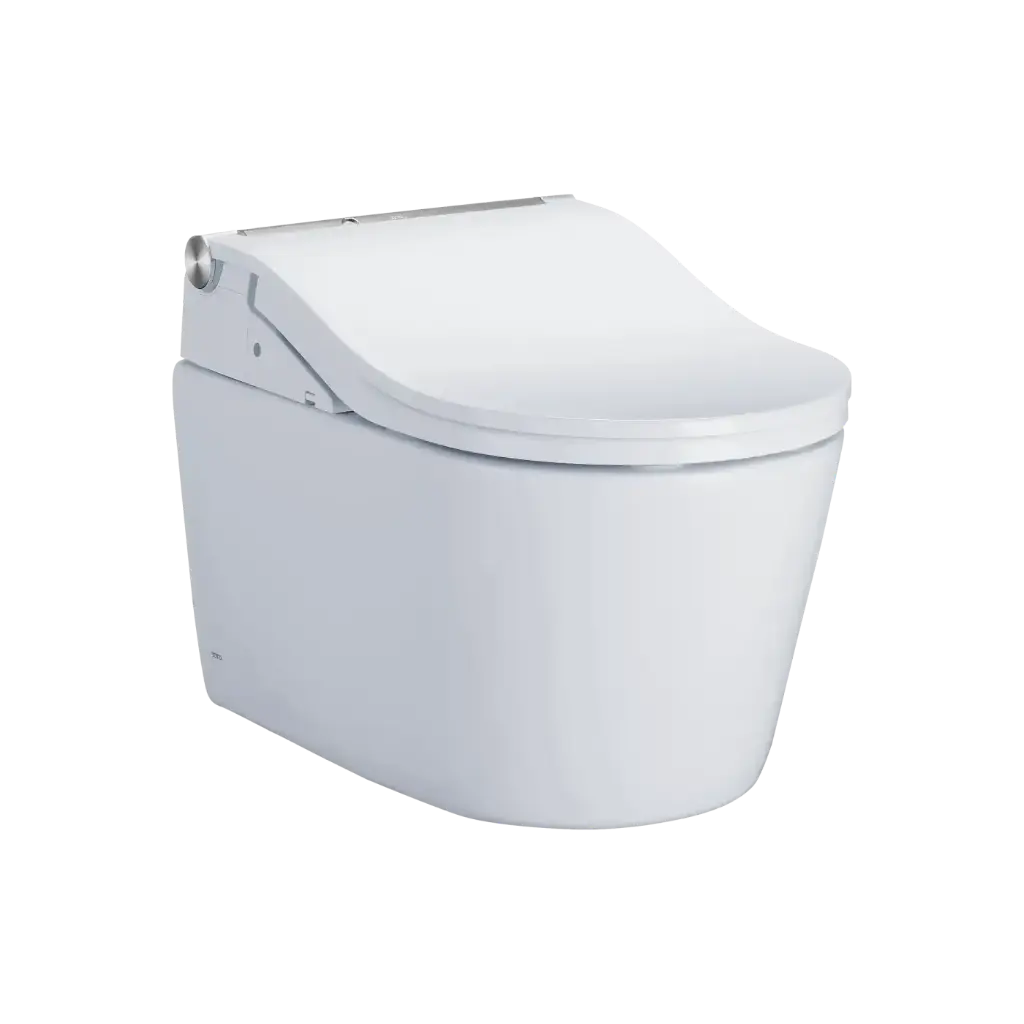

TOTO CWT4474547CMFGA#MS RW Wall Hung Toilet With Auto Flush Washlet Cotton
RP WASHLET®+ RW Wall-Hung Toilet - 1.28 GPF & 0.9 GPF - Auto Flush
SKU: CWT4474547CMFGA#MS
Complete wall-hung toilet package with WASHLET bidet seat and dual-flush in-wall tank system
COMPONENTS

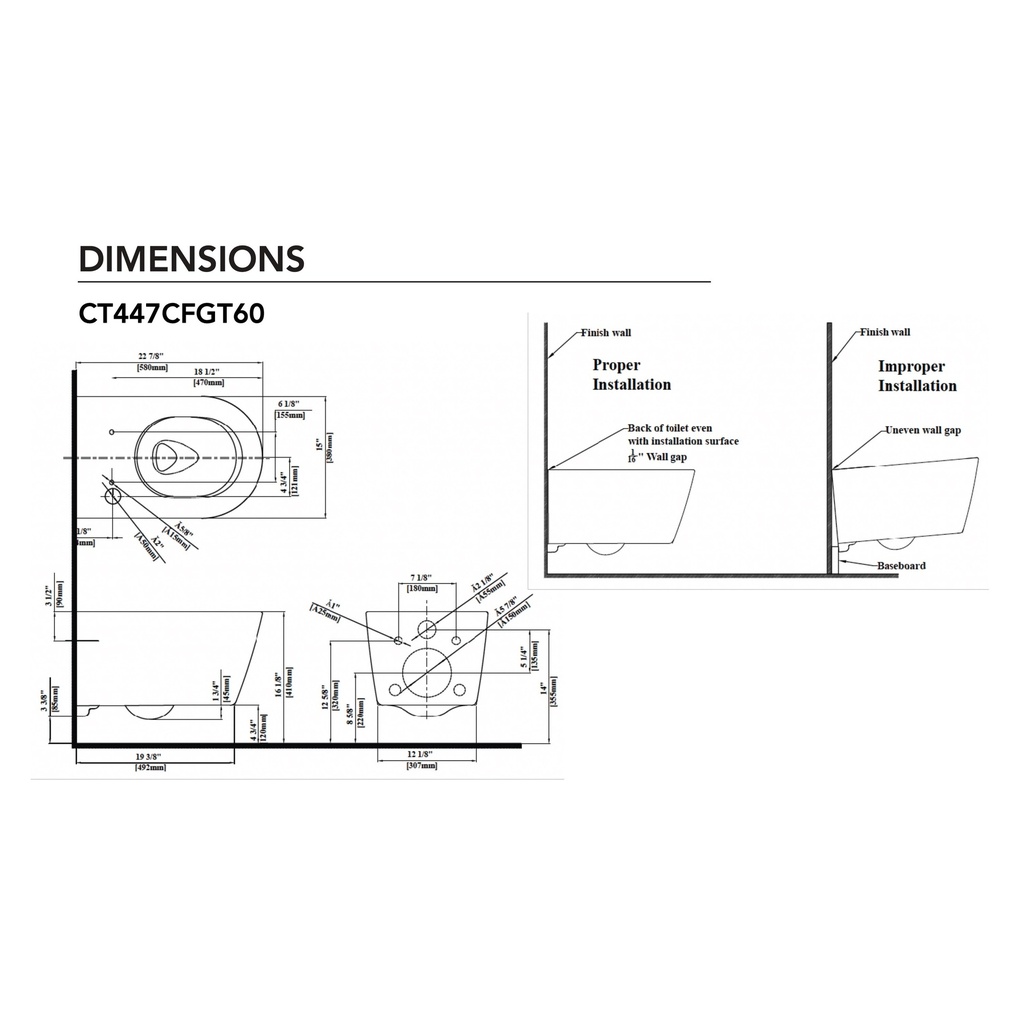

CT447CFGT60
RP Wall-Hung Toilet

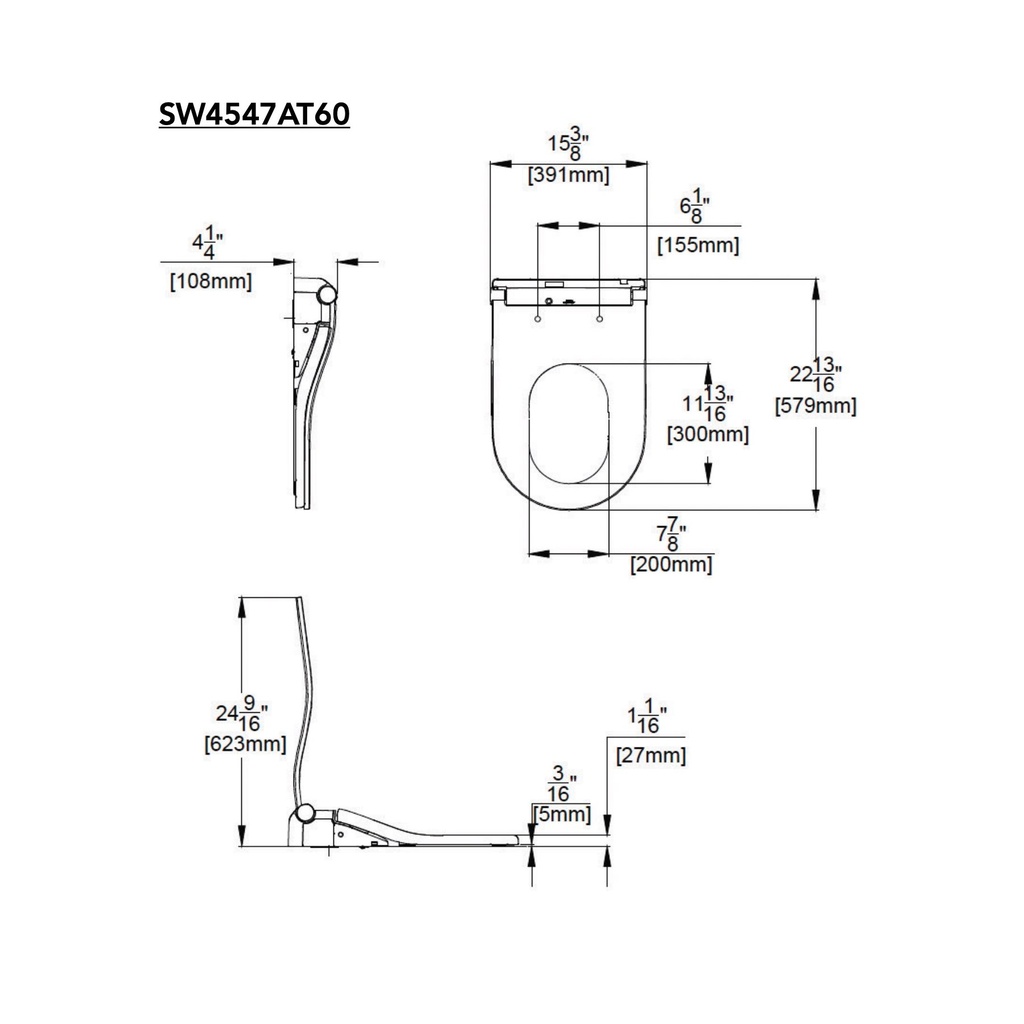

SW4547AT60(N)
WASHLET+ RW

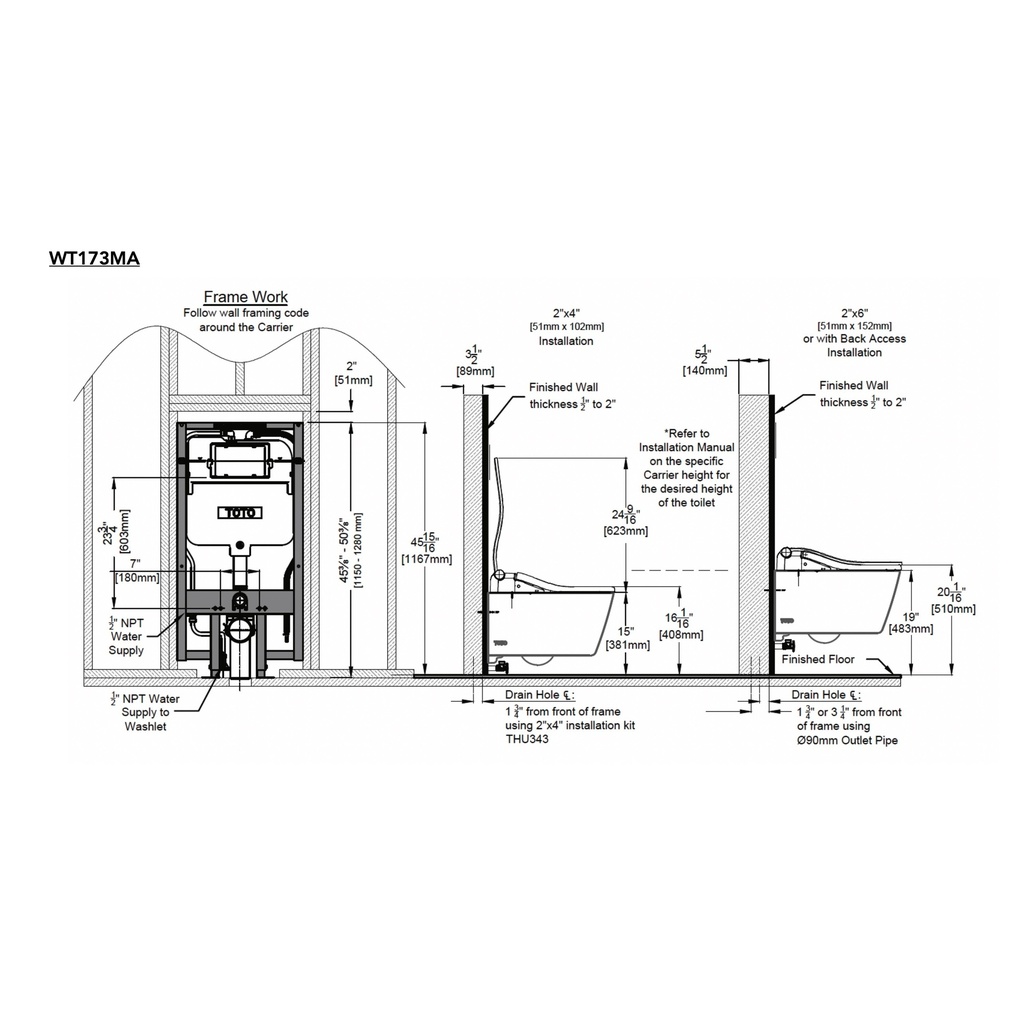

WT173MA
In-Wall Tank System (1.28 GPF/0.9 GPF)
YT930 – For #MS / YT970 – For #MBL and #MW
Round Push Plate
COLORS/FINISHES
MS
Bowel and Washllet in #01 Cotton with YT930#MS
Matte Silver Push Plate
Made to Order
#MBL
Bowl and Washlet in #MBL Matte Black with
YT970#B Black Push Plate
#MW
Bowl and Washlet in #MW Matte White with
YT970#W White Push Plate
FEATURES
RP Bowl
DYNAMAX TORNADO FLUSH® system, high efficiency (1.28GPF/0.9GPF)
CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
Universal Height
WASHLET+ RW
Auto Flush
Touchless auto open/close lid
EWATER+® auto-cleans wand and bowl after every use
PREMIST® automatically mists the bowl before each use
Gentle aerated, warm water, front and rear spray with adjustable pressure and oscillating pulsating features
Adjustable variable temperature for spray and seat
Automatic air deodorizer
Multifunction remote control with personalized memory settings for up to 4 users
Warm air dryer with five variable temperature settings
Night light illuminates the side and the inside of the bowl
DuoFit In-Wall Tank
Dual flushing system, high-efficiency
(1.28 GPF/4.8 LPF & 0.9 GPF/3.4 LPF) Avg. flush 1.1 GPF
Adjustable 15”-19” mounting height
Saves up to 9” of floor space compared to standard floor-mounted toilet
Supports up to 880lbs
Commercial 2” x 6” or optional residential installation with 2” x 4” wall studs with waste outlet kit
SW4547AT60
Power Rating AC 120V-60Hz, 1282W
Flush System 2.95 ft/120 cm Length 3 Wire / 4 Pin
Plug Harness
Water Feature (Flow
Rates)
Rear: 9.1-14.5 oz/min
Front: 9.8-14.5 oz/min
Soft Rear: 9.1-14.5 oz min
Washing Spray Temp. Min: 86°F/30°C Max: 104°F/40°C
Safety Device Thermal Fuse
Air Dryer Temp. Min: About 95°F/35°C Max: About
140°F/60°C
Dryer Air Capacity 10.24 ft3/min
Seat Warming Temp. Min: 82°F/28°C Max: 97°F/36°C
Water Supply Pressure Min: 7.25 psi Max: 108.75 psi
Ambient Temp. Min: 32°F/0°C Max: 104°F/40°C
Warranty One Year Limited Warranty
Water Pressure Min: 7.25 PSI (0.05MPa) Flowing Max:
108.75 PSI (0.75MPa) Static
Shipping Weight 16 lbs
Shipping Dimensions 26” L x 17-11/16” W x 7-3/16” H
CT447CFGT60
Water Use 1.28 GPF & 0.9 GPF
Flush System DYNAMAX TORNADO
Min. Water Pressure 8 psi (static)
Water Surface 5-1/2” X 4-1/8”
Trap Diameter 2-1/8”
Height 15” to 19”
Trap Seal 2-1/8”
Warranty One Year Limited
Material Vitreous China Various
Shipping Weight 76 lbs.
Shipping Dimensions 16” L x 14”W x 24” H
Product Specifications
CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
