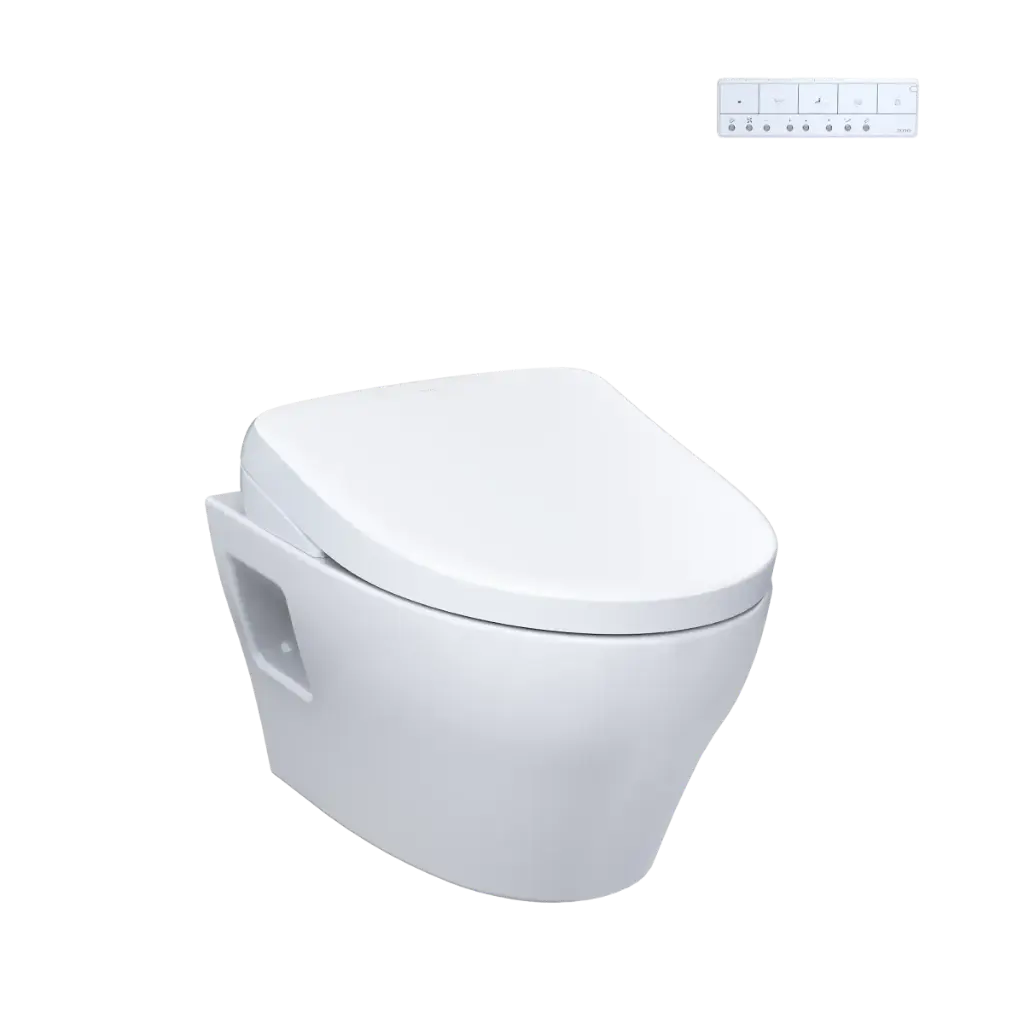

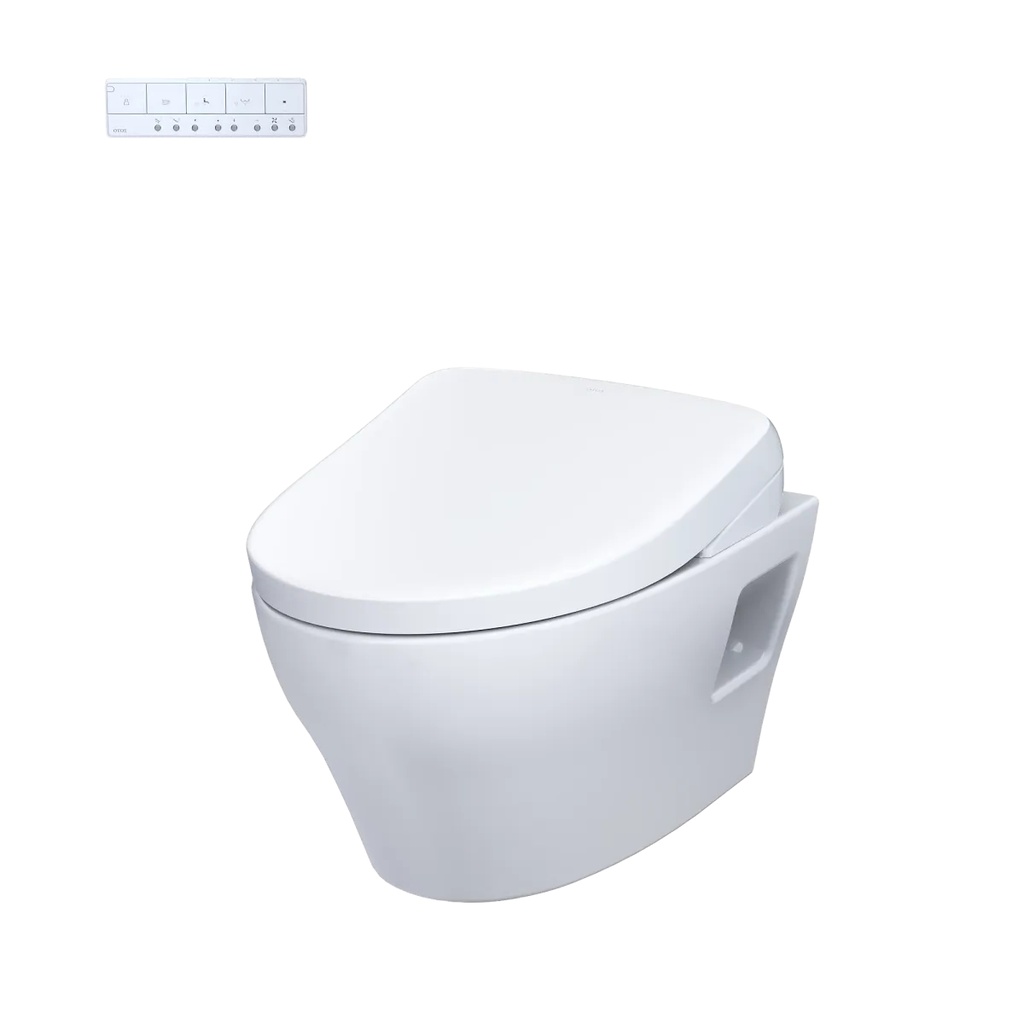

TOTO CWT4284736CMFGA#MS S7A Wall Hung Toilet With Washlet Cotton
EP WASHLET®+ S7A Wall-Hung Toilet - 1.28 GPF & 0.9 GPF - Auto Flush
SKU: CWT4284736CMFGA#MS
Complete wall-hung toilet package with WASHLET bidet seat and dual-flush in-wall tank system.
MODELS
CWT4284736CMFGA#MS
EP WASHLET+ with S7A
CT428CFGT40#01
EP Wall-Hung Toilet
WT173MA
In-Wall Tank System (Copper Pipe)
SW4736AT40#01
S7A WASHLET
Elongated WASHLET
THU859
WASHLET connection kit
YT930#MS
Matte Silver Basic Round Push Plate
FEATURES
EP Bowl
Ultra high-efficiency DYNAMAX TORNADO FLUSH® system -1.28 GPF / 0.9 GPF (4.8 LPF / 3.4 LPF)
CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
Universal Height
Elongated shape front bowl
S7A WASHLET
Elongated front WASHLET toilet with seat cover
See spec sheet SW4736AT40 for WASHLET features
DuoFit In-Wall Tank
Ultra high-efficiency dual flushing system - 1.28 GPF / 0.9 GPF (4.8 LPF / 3.4 LPF) Avg. flush 1.03 GPF
Adjustable 15”-19” mounting height
Saves up to 9” of floor space compared to standard floor-mounted toilet
Supports up to 880lbs
Commercial 2” x 6” or optional residential installation with 2” x 4” wall studs with waste outlet kit
Copper supply line
Push Plate
YT930#MS
Matte Silver Basic Round
SPECIFICATIONS
CT428CFGT40
Water Use 1.28 / 0.9 GPF (4.8 / 3.4 LPF)
Flush System DYNAMAX TORNADO FLUSH
Min. Water Pressure 8 psi (static
Max. Water Pressure 108.75 psi (static)
Water Surface 5-1/2” X 4-1/8”
Trap Diameter 2-1/8”
Installation Height 15” to 19”
Trap Seal 2-1/8"
Material Vitreous China
Shipping Weight 68 lbs
Shipping Dimensions 22” L x 14.6” W x 16.5 H
Product Specifications

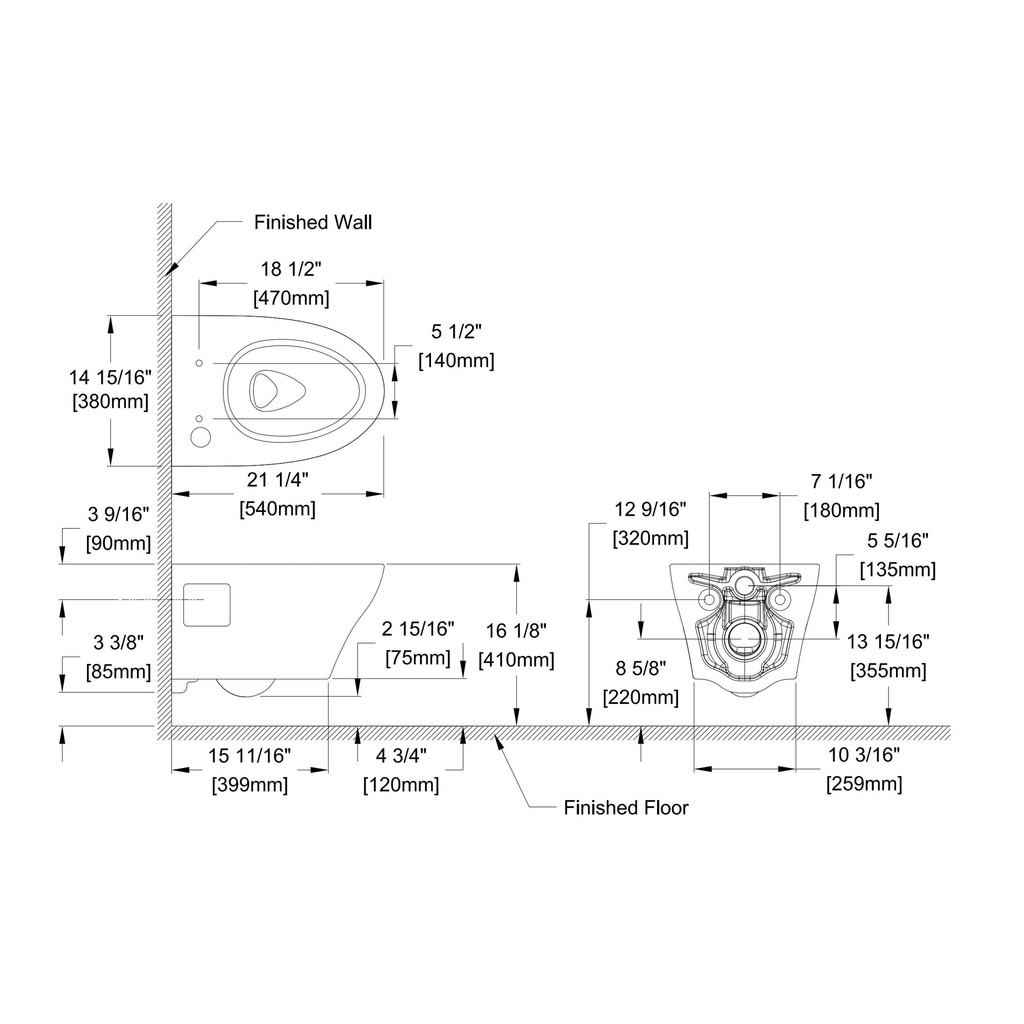

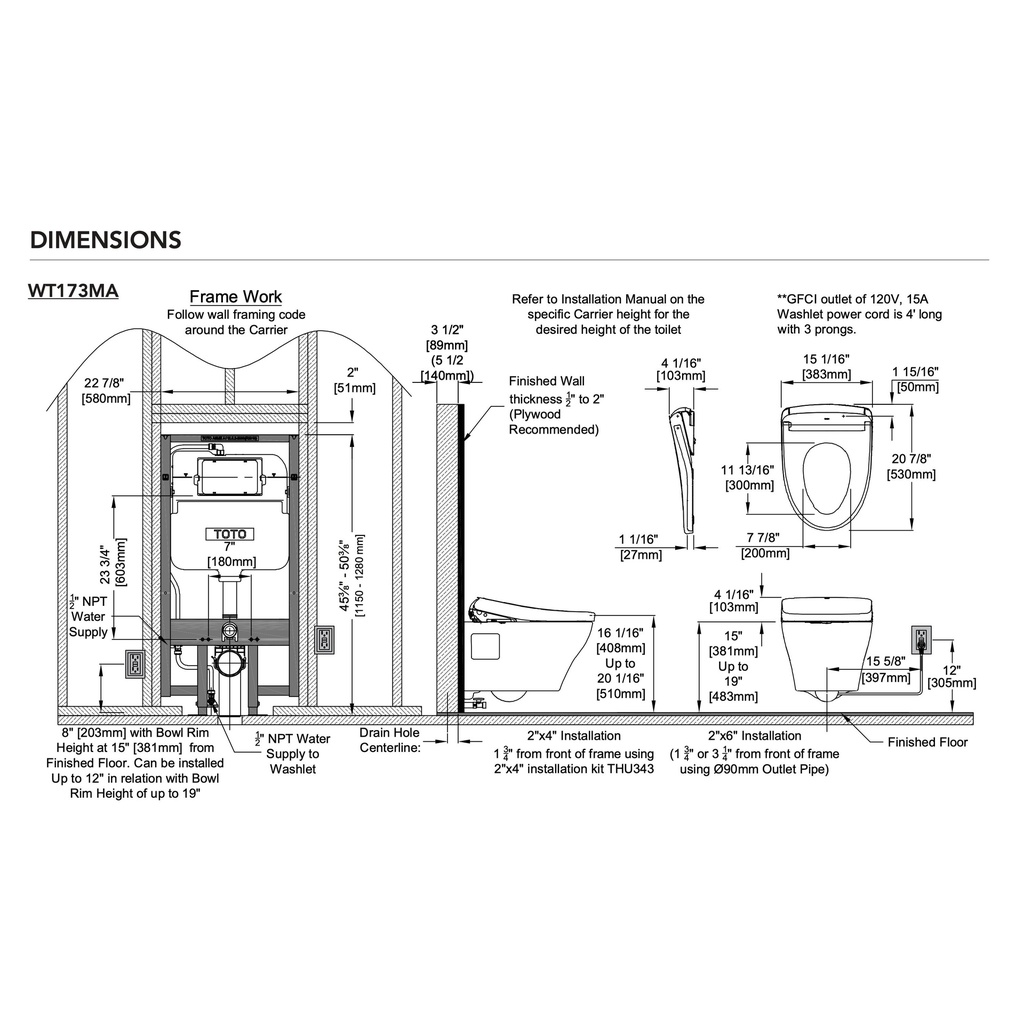

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
