TOTO CWT427227CMFG#WH RP Compact Wall Hung Toilet With In-Wall Tank System
RP Compact Wall-Hung Toilet & In-Wall Tank System - 1.28/0.9 GPF
SKU: CWT427227CMFG#WH
Because it’s wall-mounted, this toilet takes up less floor space, giving your bathroom a more open feeling and making it easier to clean. Modern design, with our DYNAMAX TORNADO FLUSH® system. Universal height.
Product Components
CT427CFG#01 - Toilet
WT172M - In-Wall Tank System
SS227#01 - SoftClose Seat
YT930#MS - Push Plate
KIT COMPONENTS
CWT427227CMFG#MS
CT427CFG#01

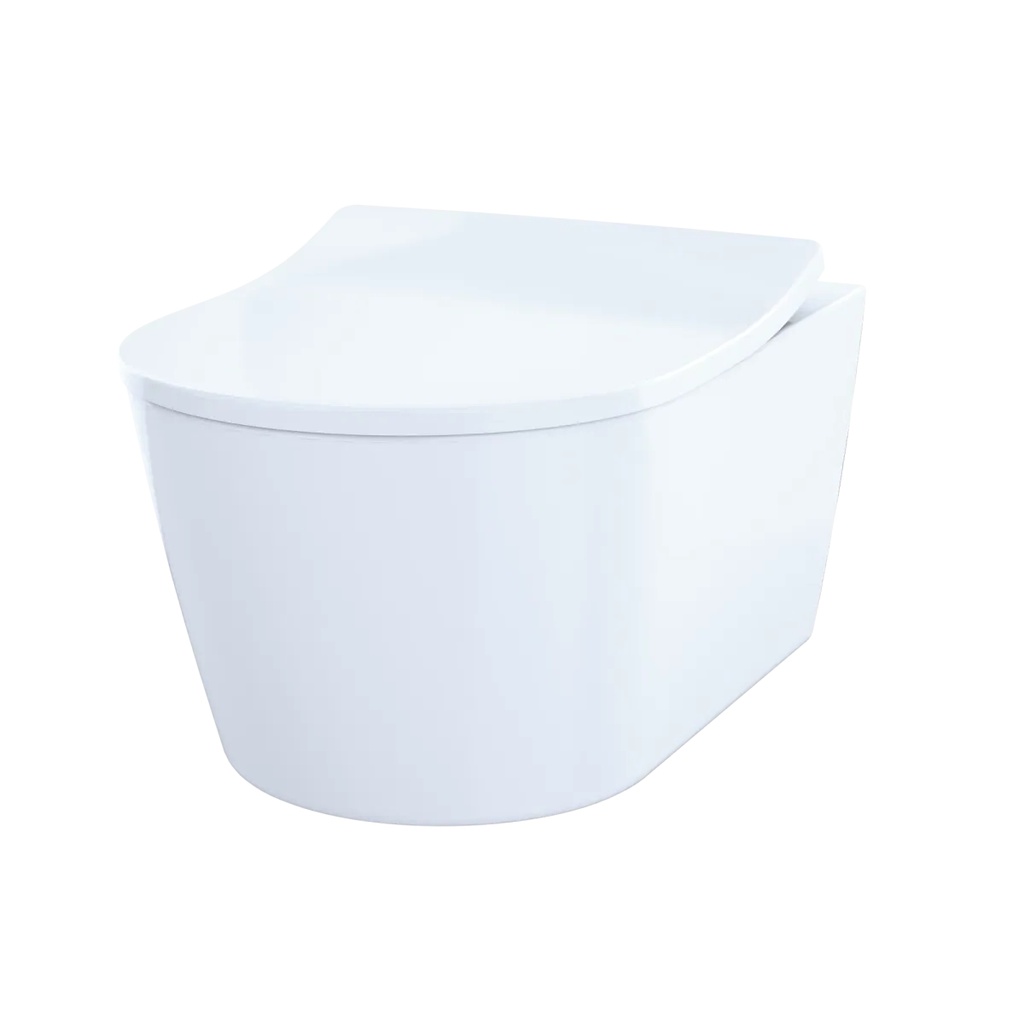

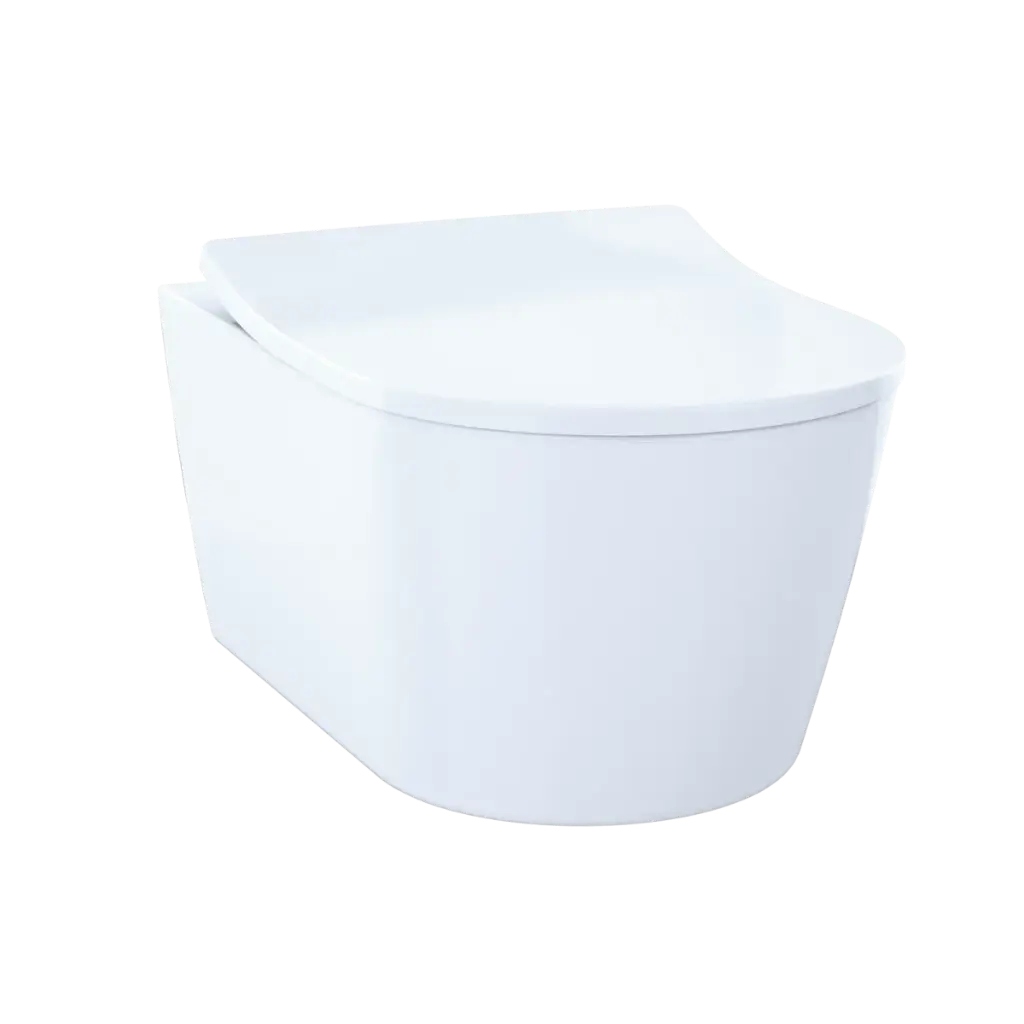

RP Compact Wall-Hung Toilet
WT172M
In-Wall Tank System (Copper Pipe)
SS227#01
Slim D-Shape SoftClose Seat
YT930#MS
Basic Round Push Plate - Matte Silver
CWT427227CMFG#WH
Same as CWT427227CMFG#MS except:
YT930#WH
Basic Round Push Plate - White Matte
COLORS/FINISHES
#SS - Stainless Steel
#B - Black
#W - White
#N - Nickel
FEATURES
RP Compact Bowl
DYNAMAX TORNADO FLUSH® system, high efficiency (1.28GPF/0.9GPF)
CEFIONTECT® ceramic glaze - prevents debris, mold from sticking to ceramic surfaces
Universal Height
D-shape front bowl
SoftClose® Seat
D-shape closed front toilet seat and cover with SoftClose hinge system
Mounting hardware included
Made from urea resin
Quick release hinges for easier cleaning

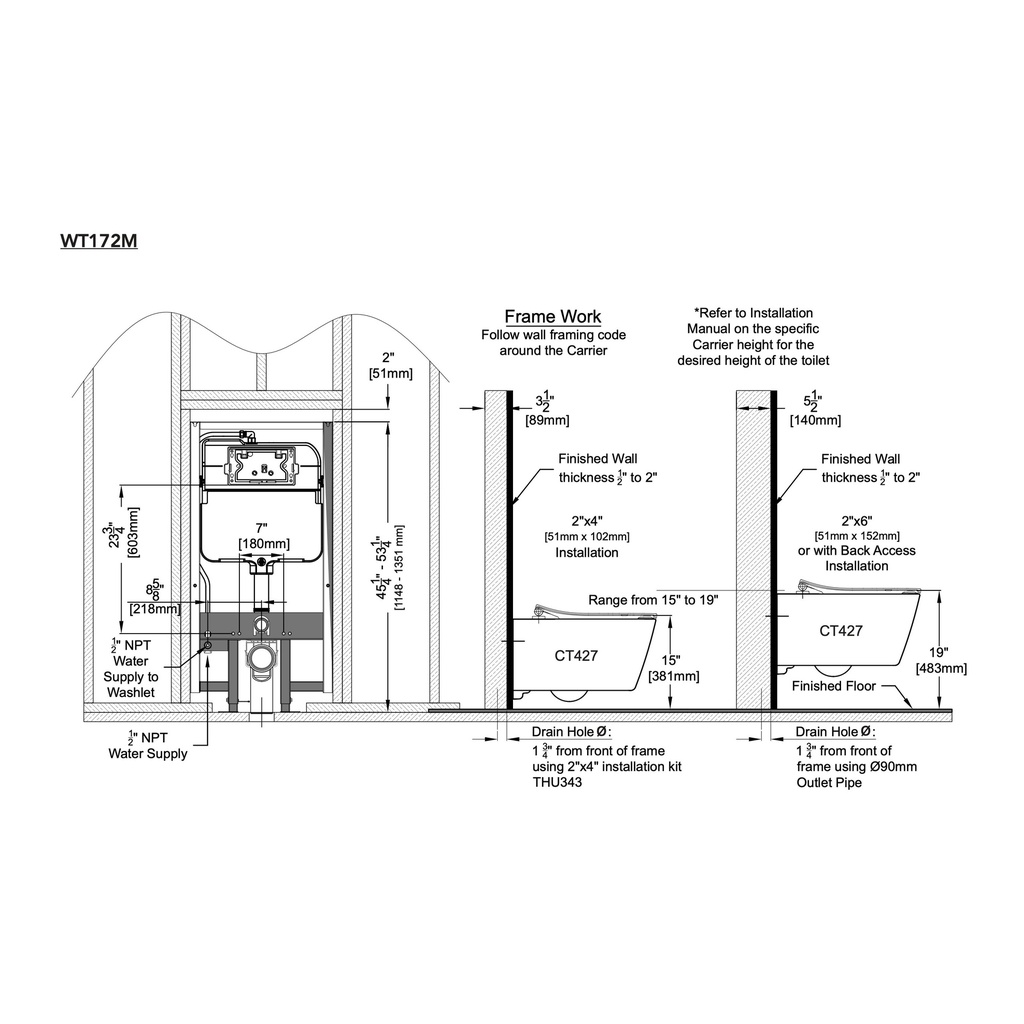

DuoFit® In-Wall Tank
High-efficiency dual flush 1.28 & 0.9 GPF (4.8 & 3.4 LPF) Avg. flush 1.03 GPF
Adjustable 15"-19" mounting height
Saves up to 10" of floor space compared to standard floor-mounted toilet
Compact size is 490mm from wall to front of bowl
Supports up to 880lbs
Commercial 2" x 6" or optional residential installation with 2" x 4" wall studs with waste outlet kit
Copper supply line
Push Plate

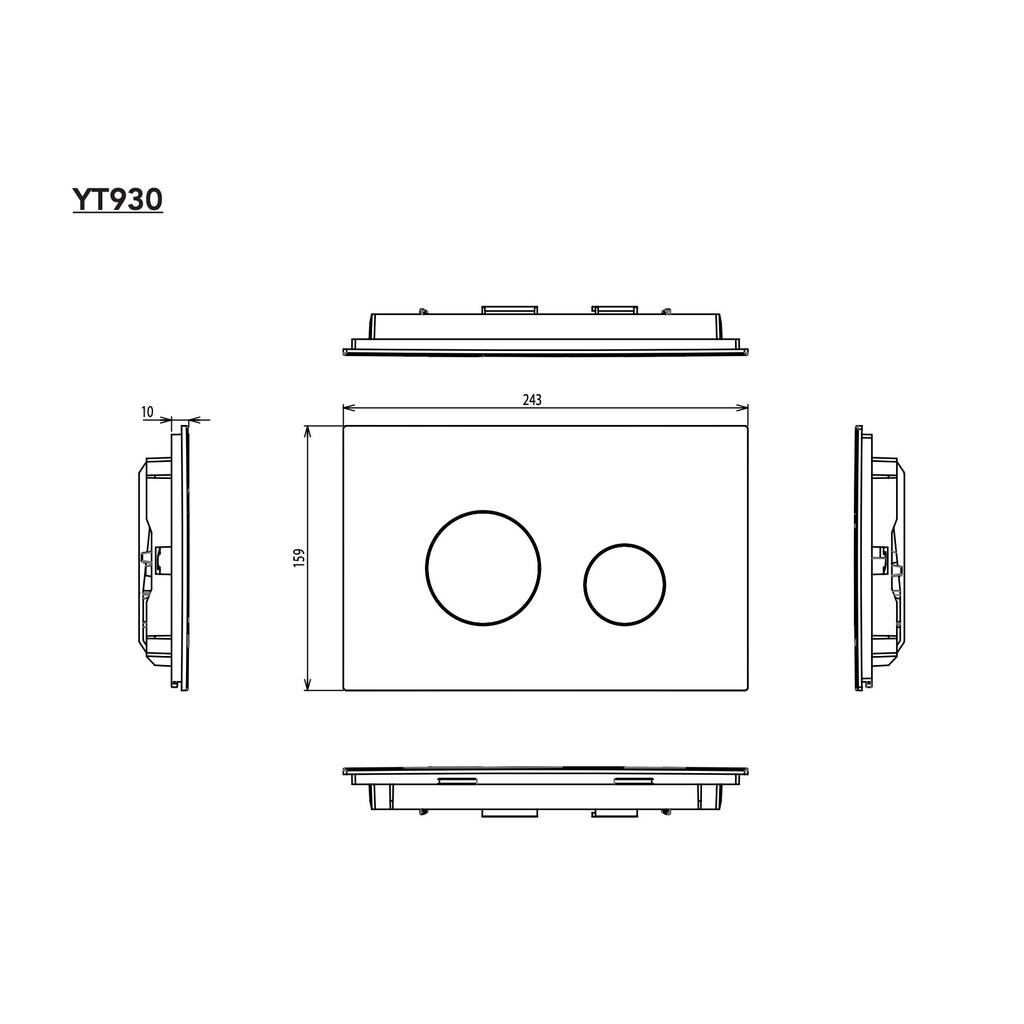

Basic Round Push Plate - YT930#WH or YT930#MS
SPECIFICATIONS
Water Use 1.28 GPF & 0.9 GPF (4.8 LPF & 3.4 LPF)
Flush System DYNAMAX TORNADO FLUSH
Min. Water Pressure 8 psi (static
Water Surface 5-5/8” X 4-1/8”
Trap Diameter 2-1/8"
Installation Height 15” to 19”
Trap Seal 2-1/8”
Warranty One Year
Material Vitreous China
Shipping Weight 64 lbs
Shipping Dimensions
21-3/8” H x 14-3/4” W x 16-1/8” L
Product Specifications

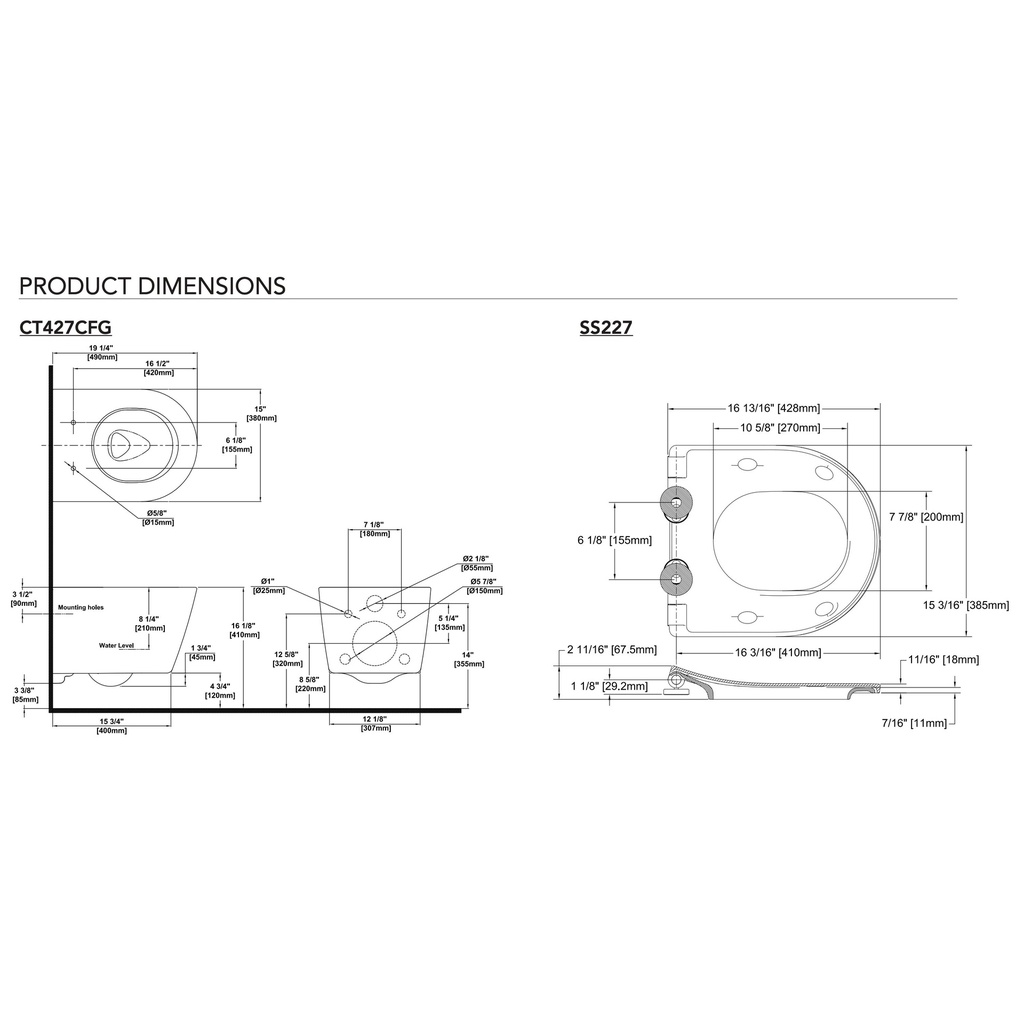

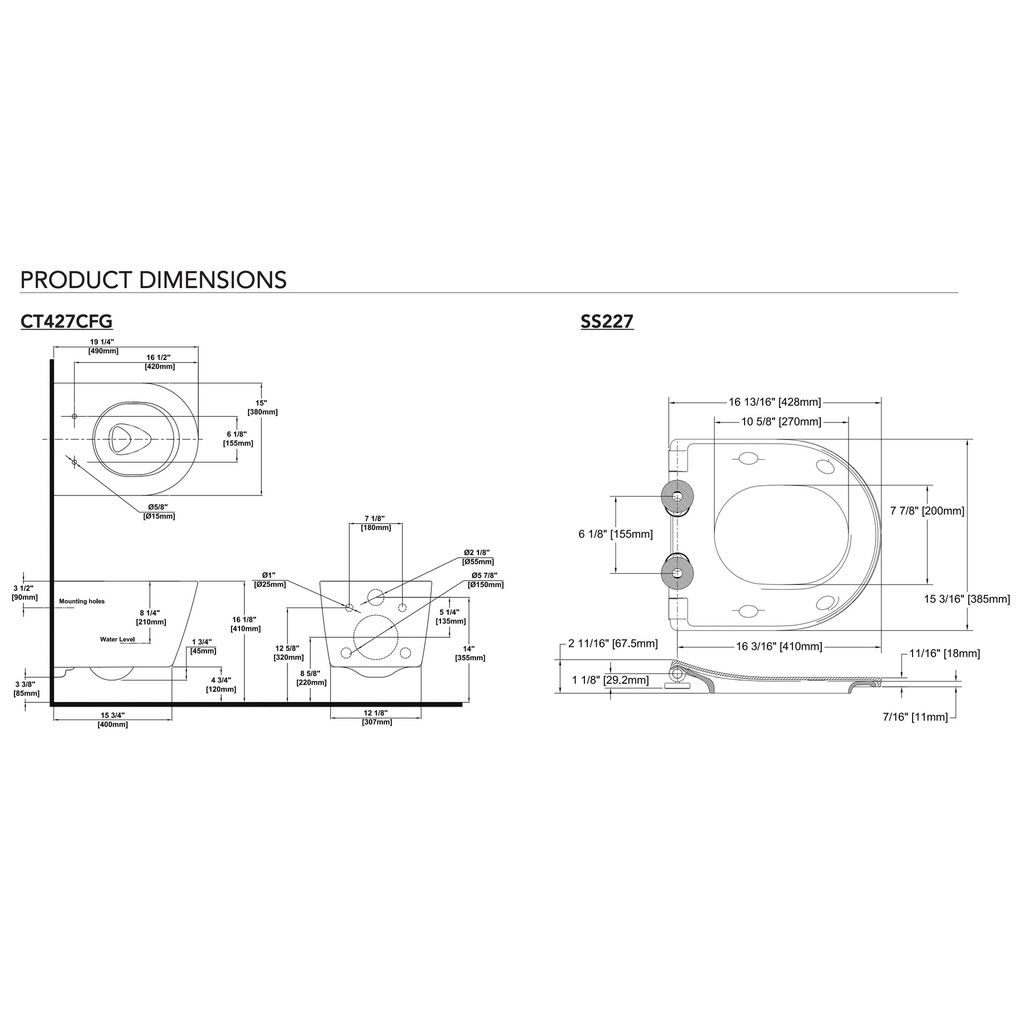

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
