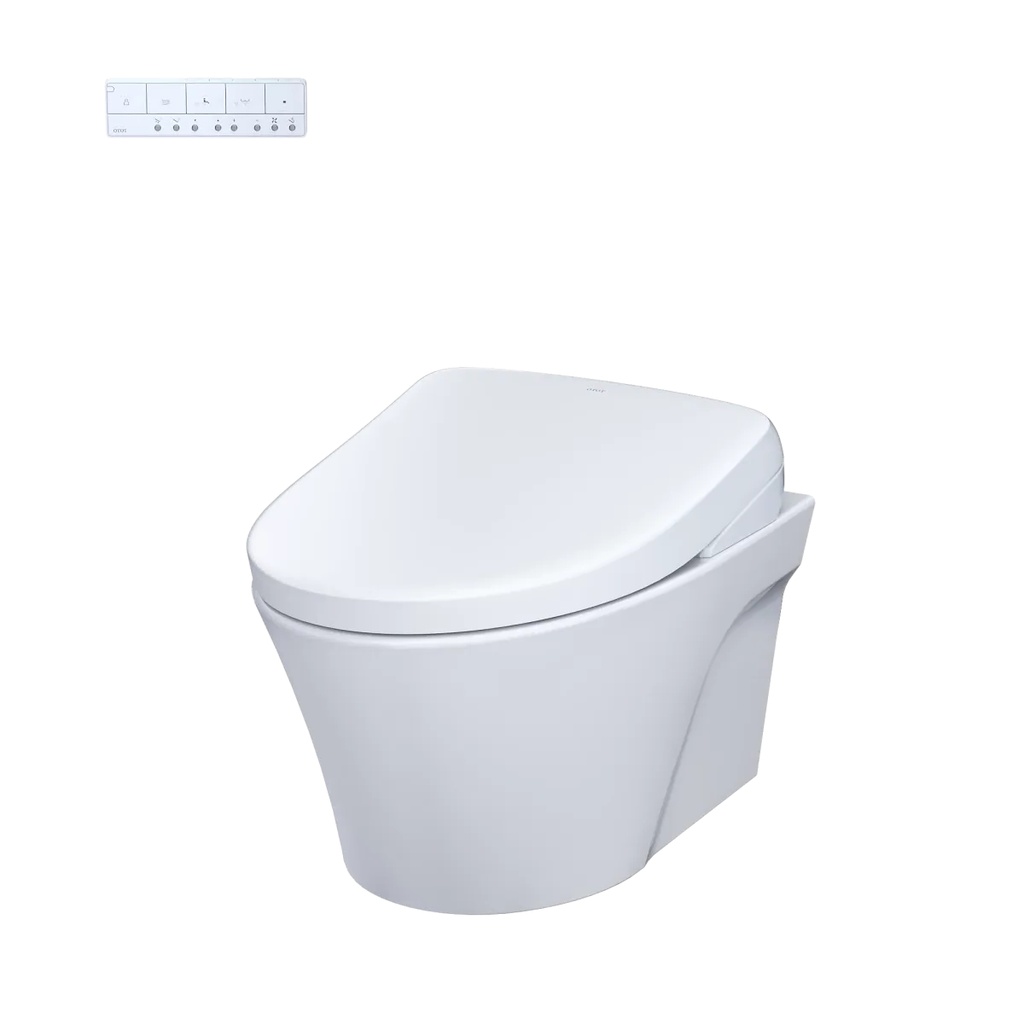

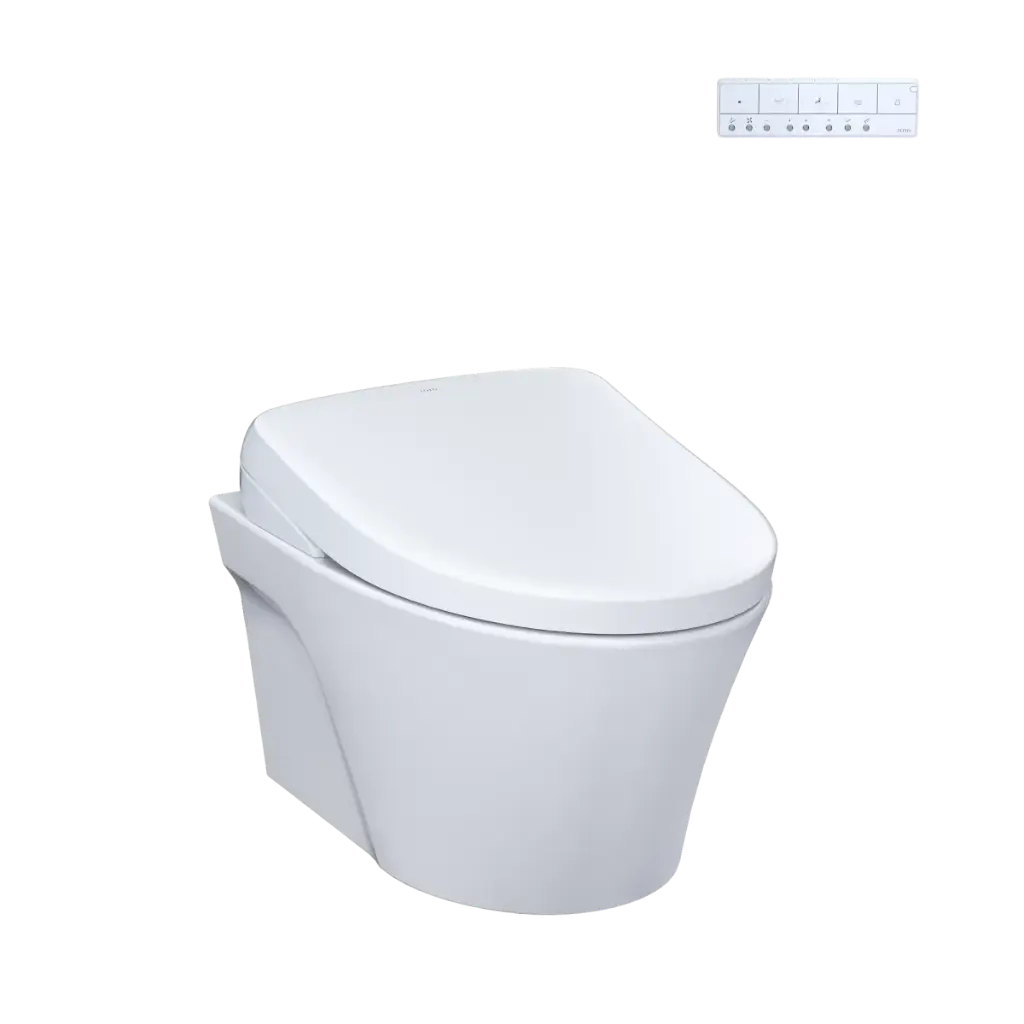

TOTO CWT4264736CMFGA#MS S7A Wall Hung Toilet With Washlet Cotton
AP WASHLET®+ S7A Wall-Hung Toilet - 1.28 GPF & 0.9 GPF - Auto Flush
SKU: CWT4264736CMFGA#MS
Complete wall-hung toilet package with WASHLET bidet seat and dual-flush in-wall tank system.
Product Components
CT426CFGT40#01 - Bowl
WT173MA - In-Wall Tank System
SW4736AT40#01 - WASHLET Bidet Seat
YT930#MS - Push Plate
THU859 - WASHLET Connection Kit
MODELS
CWT4264736CMFGA#MS
AP WASHLET+ with S7A
CT426CFGT40#01
AP Wall-Hung Toilet
WT173MA
In-Wall Tank System (Copper Pipe)
SW4736AT40#01
S7A WASHLET
Elongated WASHLET
THU859
WASHLET connection kit
YT930#MS
Matte Silver Basic Round Push Plate
Features
High-tech Electronic Bidet Seat and Toilet Combination
Ultra high-efficiency DYNAMAX TORNADO FLUSH® system -1.28 GPF / 0.9 GPF (4.8 LPF / 3.4 LPF)
CEFIONTECT® ceramic glaze minimizes waste from sticking to porous ceramic surfaces
Universal Height
Elongated front WASHLET toilet with seat cover
See spec sheet SW4736AT40 for WASHLET features
Auto Open/Close
Adjustable 15”-19” mounting height
Saves up to 9” of floor space compared to standard floor-mounted toilet
Supports up to 880lbs
Commercial 2” x 6” or optional residential installation with 2” x 4” wall studs with waste outlet kit
Copper supply line
Matte Silver Basic Round Push Plate
Auto Flush
SPECIFICATIONS
Water Use 1.28 / 0.9 GPF (4.8 / 3.4 LPF)
Flush System DYNAMAX TORNADO FLUSH®
Min. Water Pressure 8 psi (static)
Max. Water Pressure 108.75 psi (static)
Water Surface 5-1/2” X 4-1/8”
Trap Diameter 2-1/8”
Installation Height 15” to 19”
Trap Seal 2-1/8"
Warranty One Year Limited Warranty
Material Vitreous China
Shipping Weight 68 lbs
Shipping Dimensions 22” L x 14.6” W x 16.5 H
Product Specifications

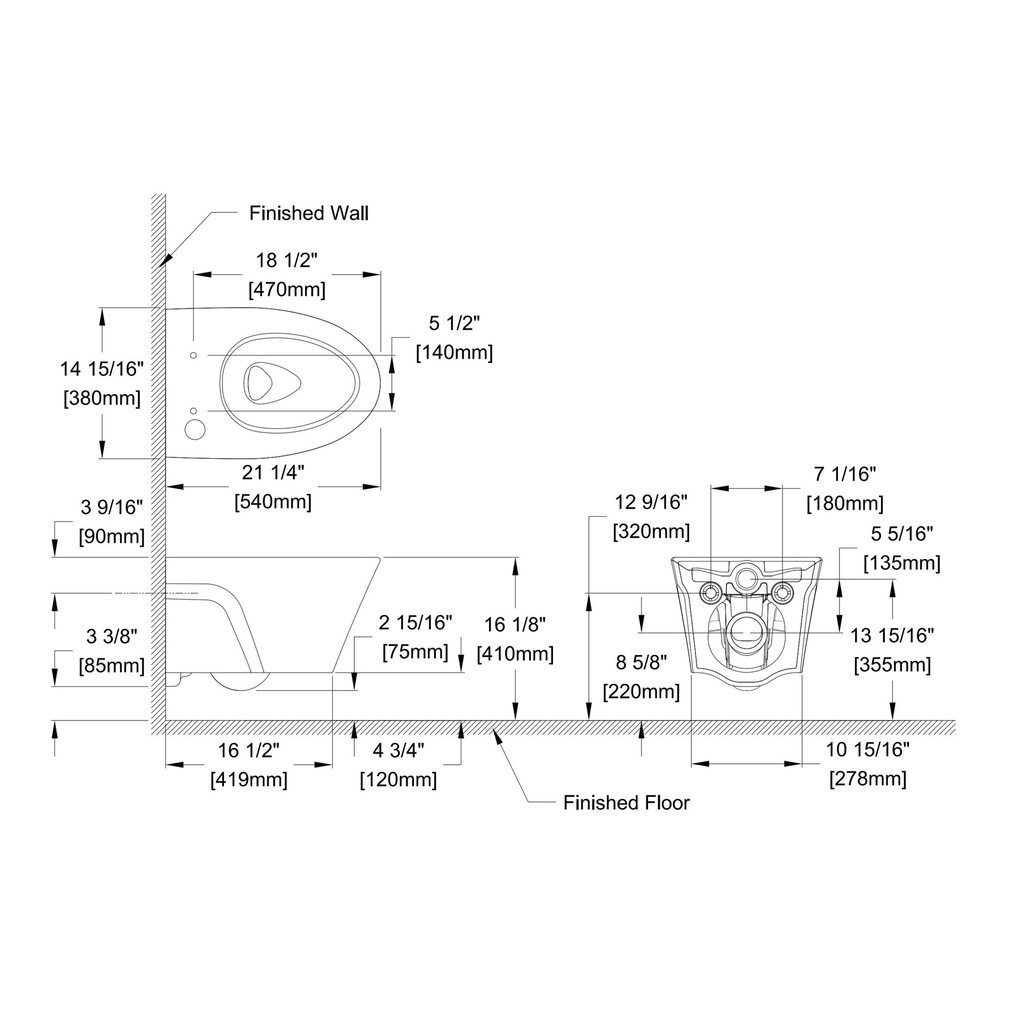

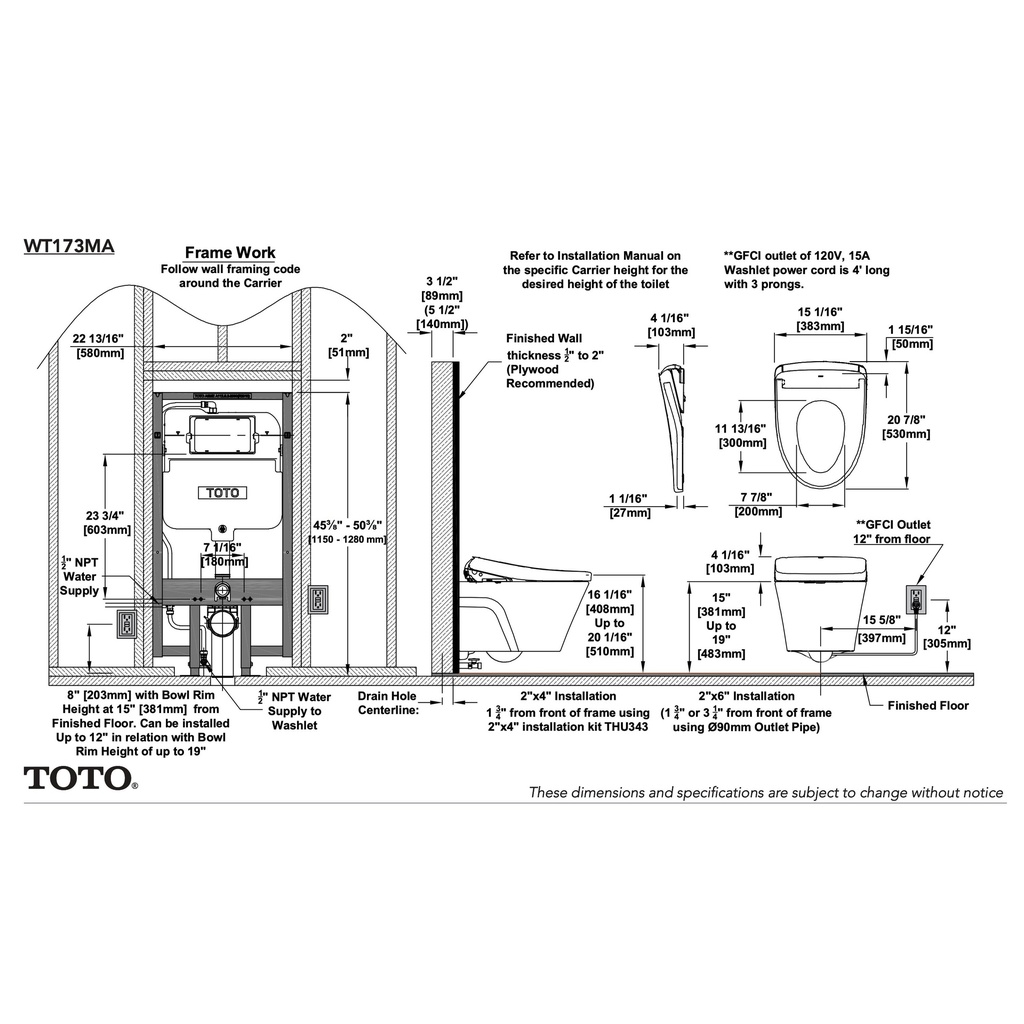

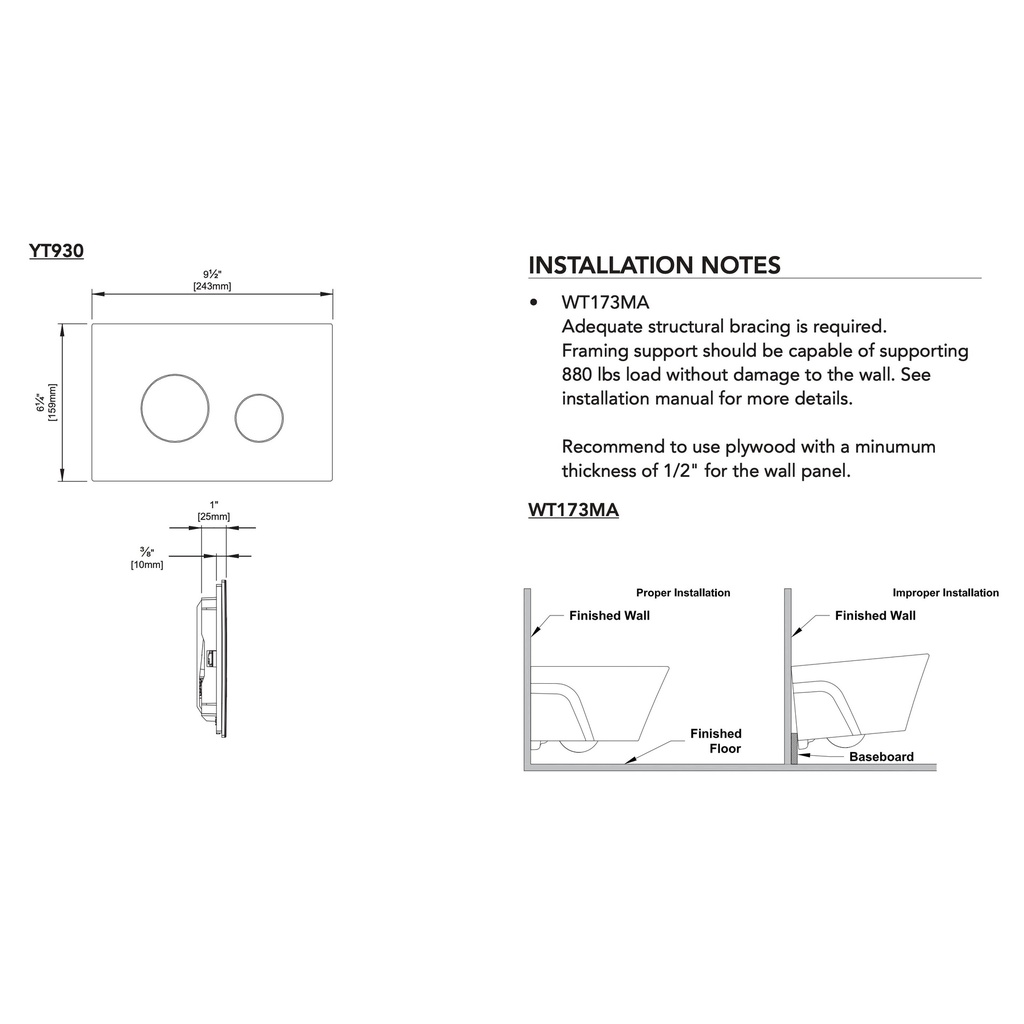

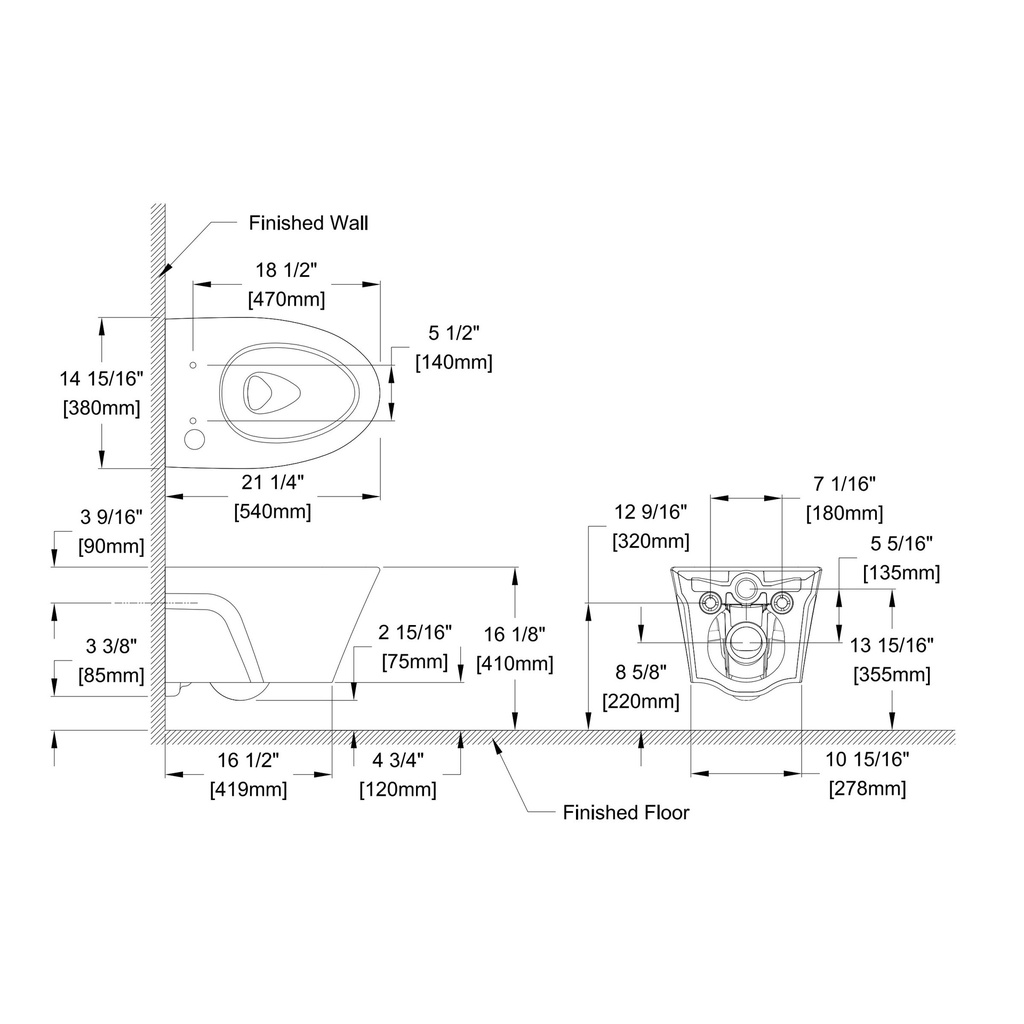

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
