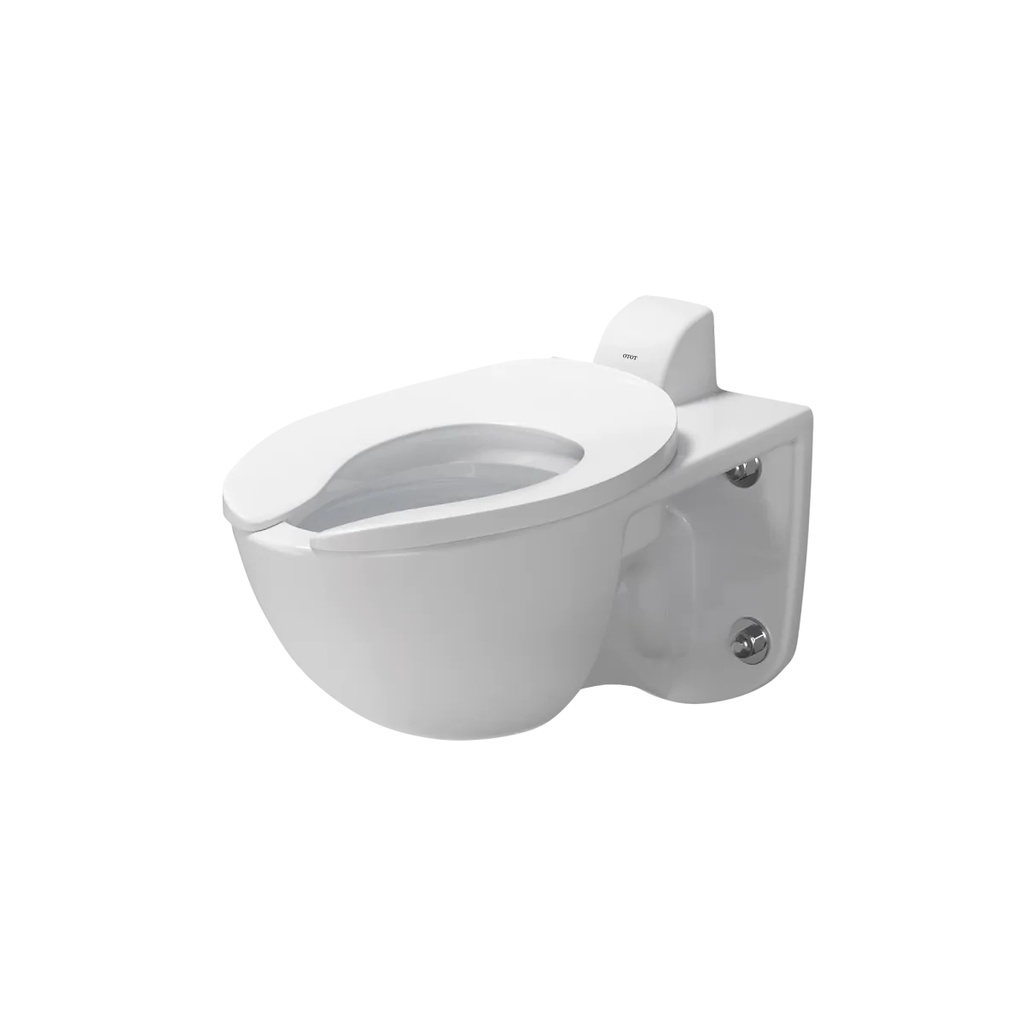

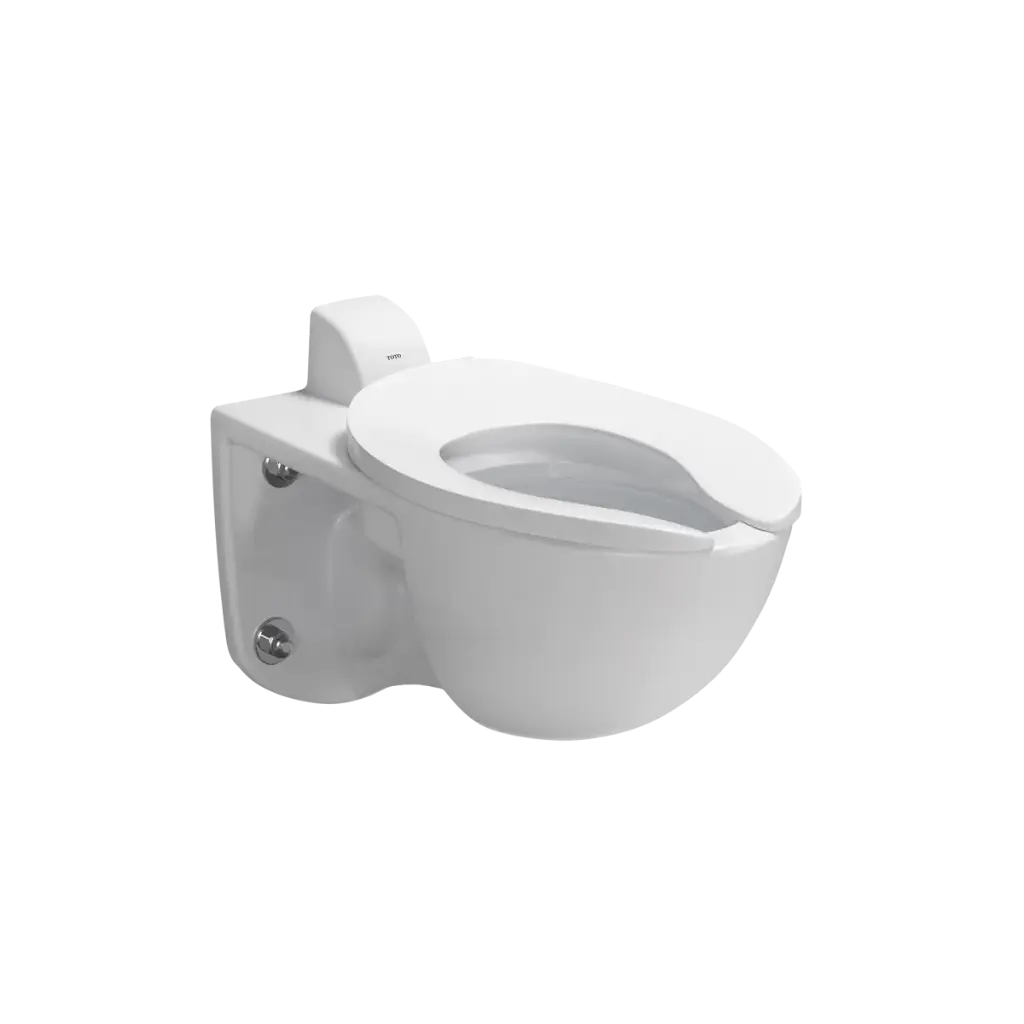

TOTO CT728CUVG#01 Commercial Wall Mount Tornado Flush Toilet Cotton
Commercial Flushometer TORNADO FLUSH®, Back Spud Wall-Hung Toilet – 1.0/1.28/1.6 GPF
SKU: CT728CUVG#01
This wall-mounted, low consumption TORNADO FLUSH toilet works as a 1.0, 1.28, or 1.6 GPF (3.8, 4.8, or 6.0 LPF) toilet when paired with a flush valve of corresponding flush volume. Toilet can be mounted at ADA height.
MODELS
CT728CUV
Commercial wall-mounted toilet with 1-1/2" back spud inlet, less seat
CT728CUVG
Commercial wall-mounted toilet with 1-1/2" back spud inlet, less seat with CEFIONTECT
ADDITIONAL ITEMS
SC534 seat
SC134 seat
THU111 Retro-fit mounting bolt cap set (4 pcs)
Features
TORNADO FLUSH® is a sustainable, high-performance system that effectively removes waste, utilizing 360º of cleaning power to scour the bowl and rim
Elongated Front Bowl
Wall-Mounted
Designed to work with TOTO 1.0, 1.28, and 1.6 EcoPower Flush Valves
Maximum static load rating of 1000 lbs when used with appropriate wall carrier
Back Spud inlet, less seat and flush valve
Flush Valve and seat not included
SPECIFICATIONS
Water Use 1.0/1.28/1.6 GPF (3.8/4.8/6.0 LPF)
Flush System Siphon Jet Flushing Action
Water Surface 9-1/4" x 7"
Water Pressure Min: 25 psi (Flowing)
Max: 80 psi (Static)
Min. Flow Rate 24 GPM
Trap Diameter 2-1/8"
Trap Seal 2-1/8"
Material Vitreous China
Warranty One Year Limited Warranty
Shipping Weight 59.5 lbs.
Shipping Dimensions 19-1/8" L x 14-3/4" W x 29-1/8" H
Product Specifications

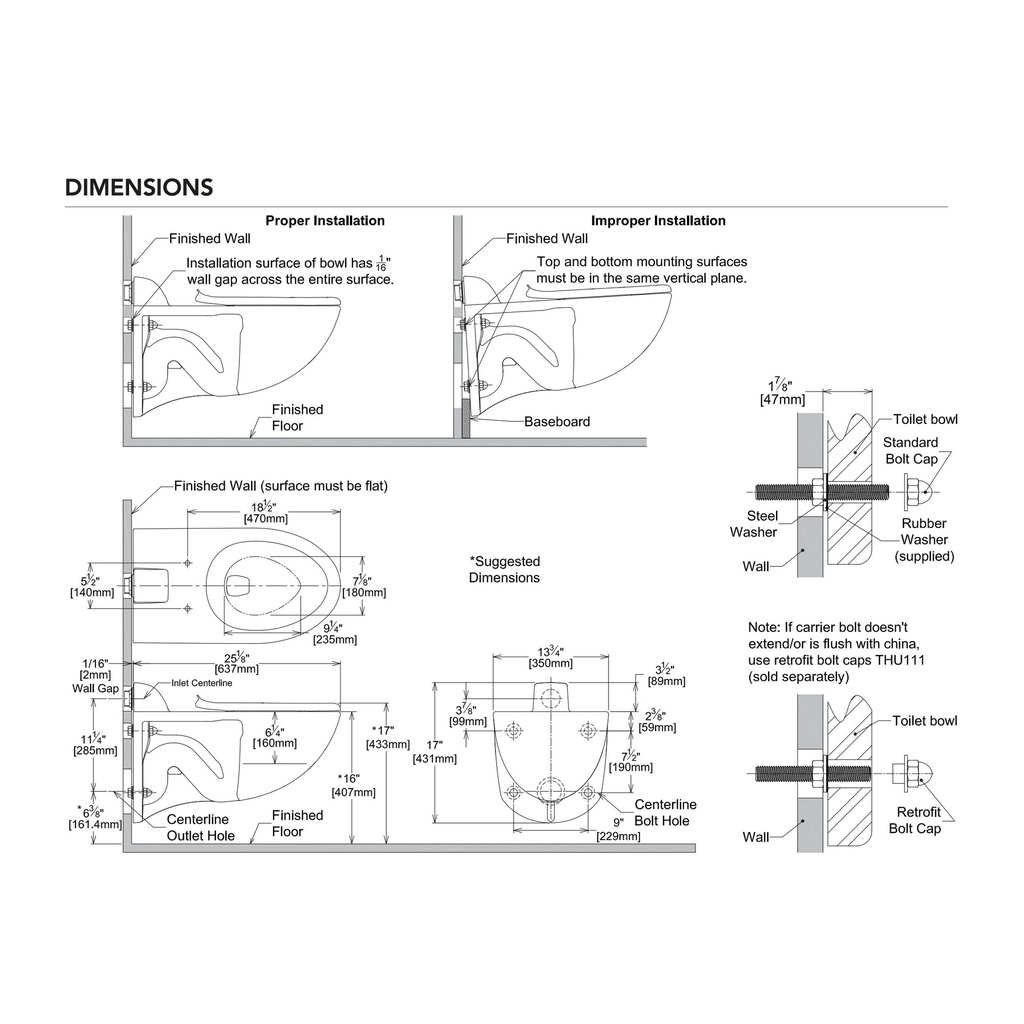

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
