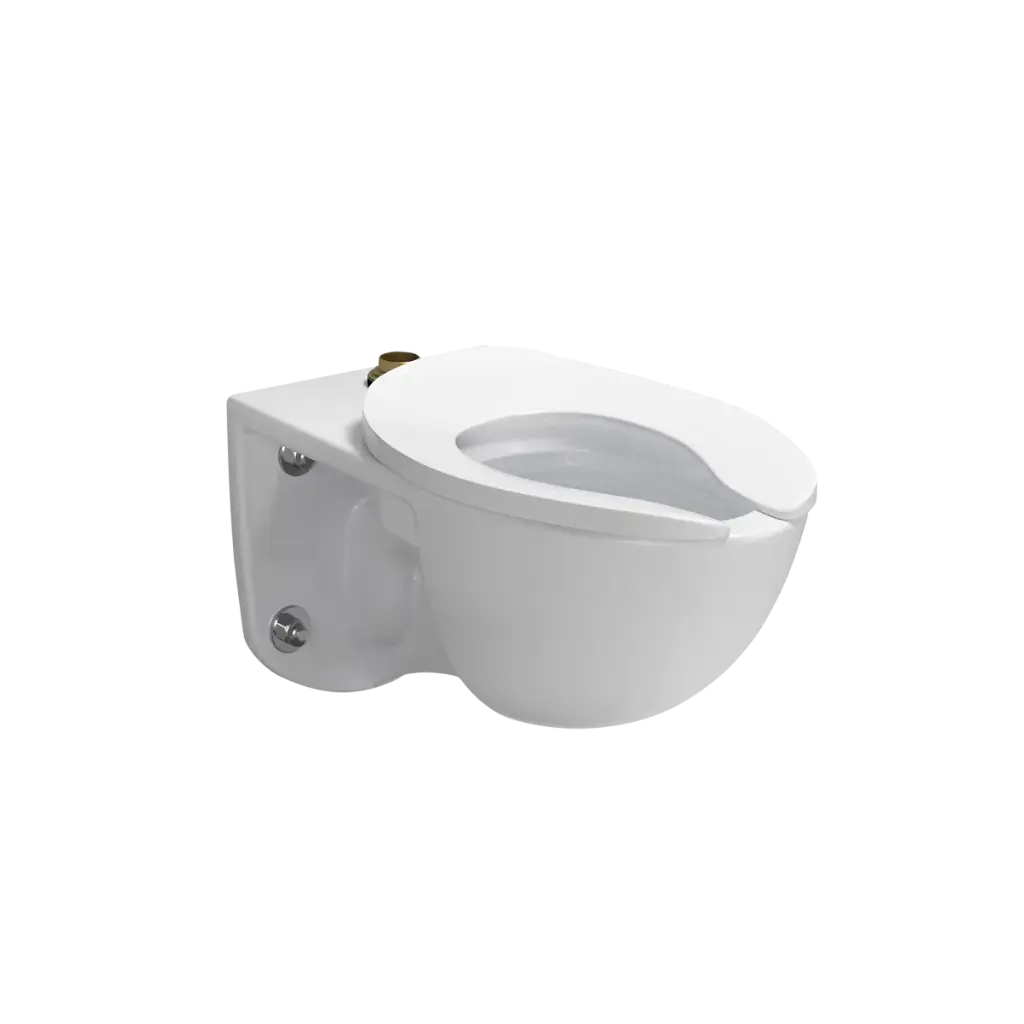

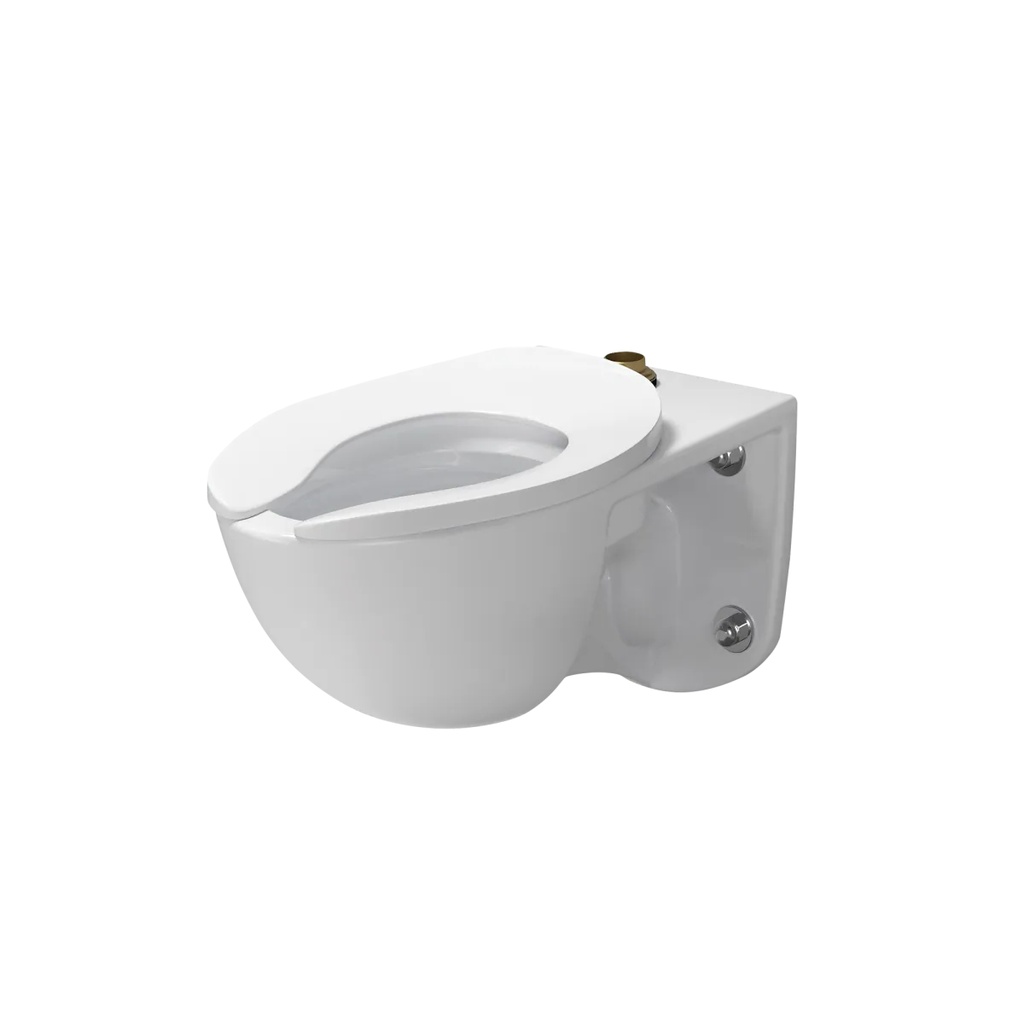

TOTO CT728CU#01 Commercial Wall Mount Tornado Flush Toilet Cotton
Commercial Flushometer TORNADO FLUSH®, Top Spud Wall-Hung Toilet – 1.0/1.28/1.6 GPF (Reclaimed Water Option)
SKU: CT728CU#01
This wall-mounted, low consumption TORNADO FLUSH toilet works as a 1.0, 1.28, or 1.6 GPF (3.8, 4.8, or 6.0 LPF) toilet when paired with a flush valve of corresponding flush volume. Toilet can be mounted at ADA height. A special version of this toilet will work with reclaimed water systems.
MODELS
CT728CU
Commercial wall-mounted toilet with 1-1/2" top spud inlet, less seat
CT728CUG
Commercial wall-mounted toilet with 1-1/2" top spud inlet, less seat with CEFIONTECT
ADDITIONAL ITEMS
SC534 seat
SC134 seat
THU111 Retro-fit mounting bolt cap set (4 pcs
Features
TORNADO FLUSH® is a sustainable, high-performance system that effectively removes waste, utilizing 360º of cleaning power to scour the bowl and rim
Elongated Front Bowl
Wall-Mounted
Designed to work with TOTO 1.0, 1.28, and 1.6 EcoPower Flush Valves
Maximum static load rating of 1000 lbs when used with appropriate wall carrier
Top Spud inlet, less seat and flush valve
Flush Valve and seat not included
Model available for use with Reclaimed Water Systems (See Options Above)
See product Spec Sheet (X) version for Reclaimed Water Quality Parameters
SPECIFICATIONS
Water Use 1.0/1.28/1.6 GPF (3.8/4.8/6.0 LPF)
Flush System Siphon Jet Flushing Action
Water Surface 9-1/4" x 7"
Water Pressure Min: 25 psi (Flowing)
Max: 80 psi (Static)
Min. Flow Rate 24 GPM
Trap Diameter 2-1/8"
Trap Seal 2-1/8"
Material Vitreous China
Warranty One Year Limited Warranty
Shipping Weight 57 lbs.
Shipping Dimensions 16-1/2" L x 14-3/4" W x 27" H
Product Specifications

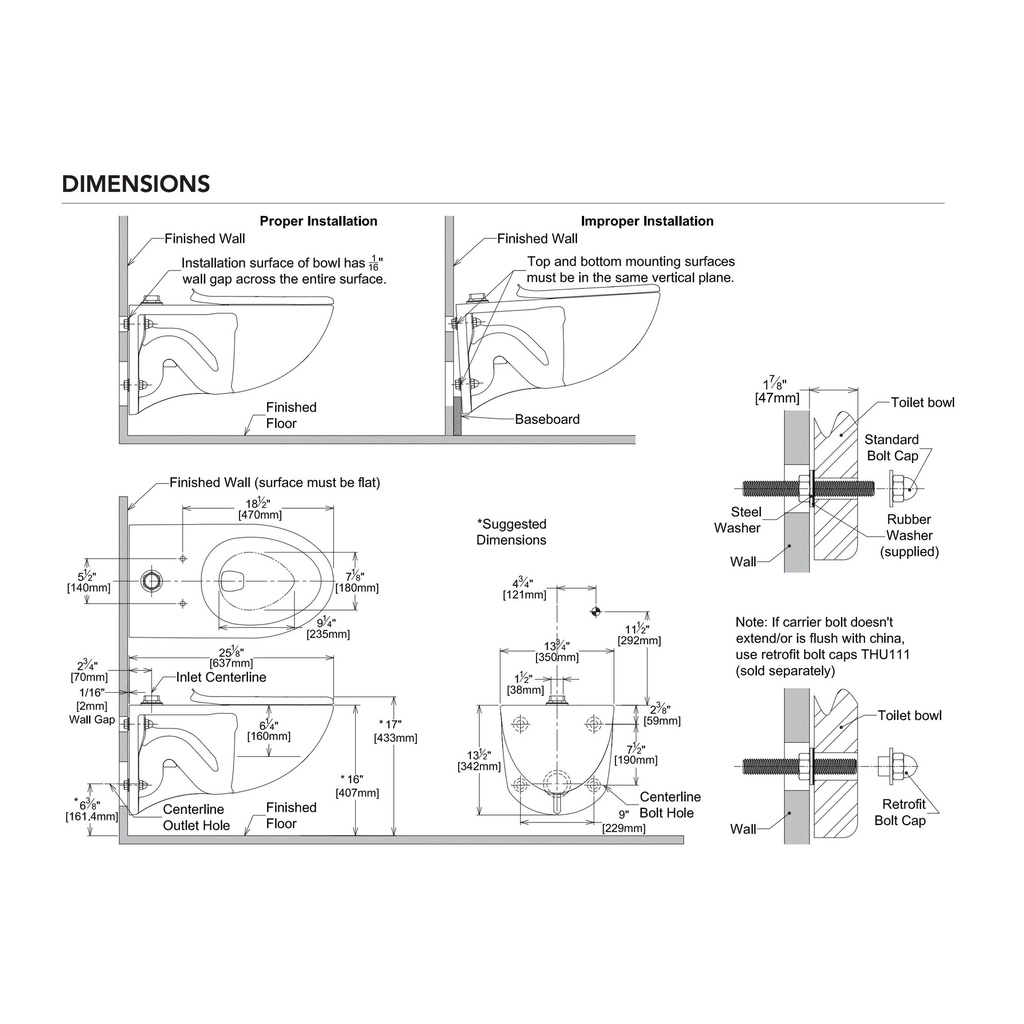

CAD Drawing
Spec Sheet
Installation and Owner's Manual
Spare Parts Manual
