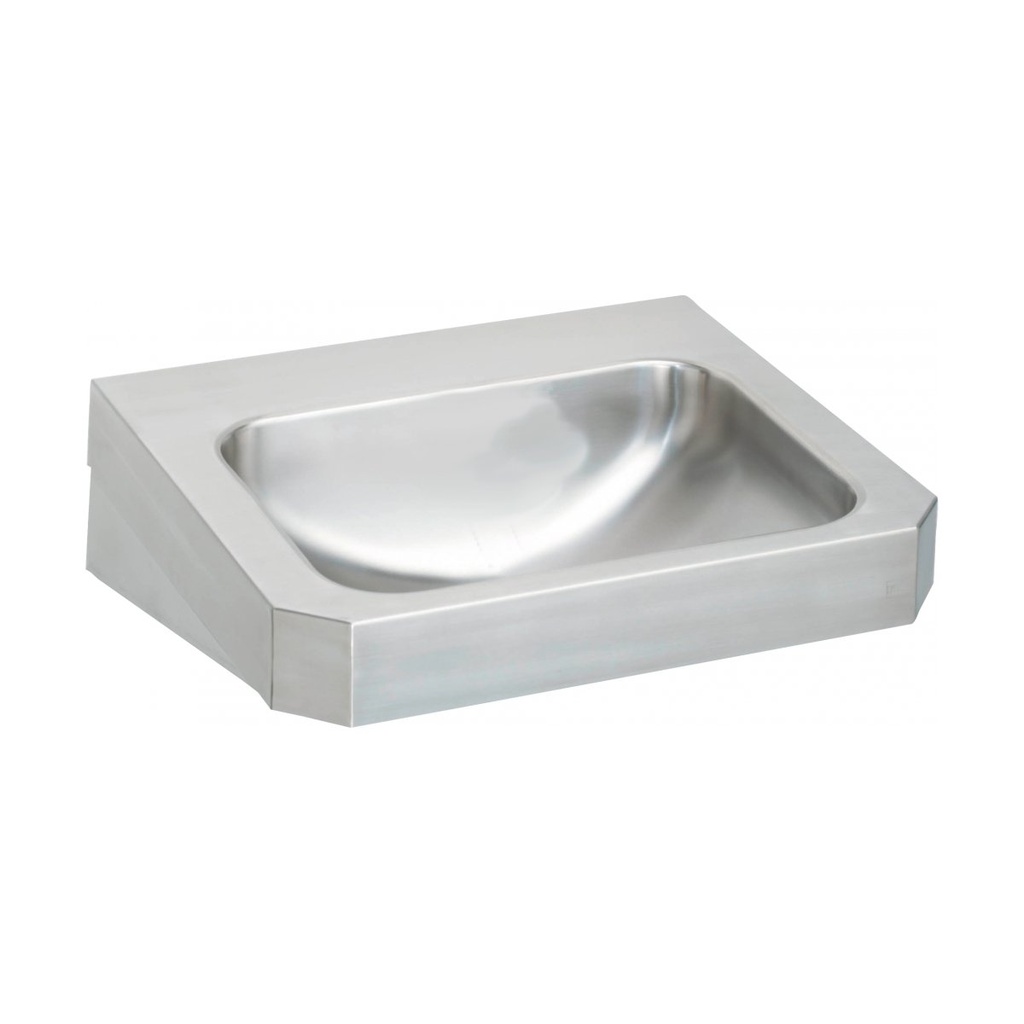

Franke WT500C-7 Wall Hung Wash Basin Stainless Steel
Hand wash basins
WT500C-7 Wall hung basin,19 ga
Article Number
214.0493.309
Single wash basin for wall mounting, stainless steel, surface satin finished, material thickness 1 mm (19 gauge), seamless welded bowl with diameter. 400x300x135 mm, rectangular shape, 105 mm tap ledge, front panel with 45° corner edges, prewelded mounting brackets, including screws and dowels. Optional shroud also available: WT-RS.
No oveflow, accepts 1 1/4" (32 mm) waste - not included. 17 9/16" x 19 11/16" (Overall D x W). 11 7/16" x 15 3/4" x 5 9/16" (Bowl D x W x H). Model Options: WT500C-7, Custom (non returnable), specify hole drilling. WT500C-7-1, 1 faucet hole 1 3/8" (35 mm).
Product Information
Features
Waste assembly Not included
Overflow location No
Product Dimensions
Overall front to back 17.559 "
Overall left to right 19.685 "
Overall height 5.906 "
Bowl dimension front to back 11.457 "
Bowl dimension left to right 15.748 "
Bowl depth 5.551 "
Installation
Installation type Wall mount
Installation system Wall hanger bracket
Product identification
Model WT500C-7
Brand FRANKE
Product category Hand wash basins
Product specifications
Gauge 19
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish Satin
Number of bowls 1
Splash location None
Number of faucet holes Specify when ordering
Waste location Center back
Waste size 1 1/4" (32mm)
