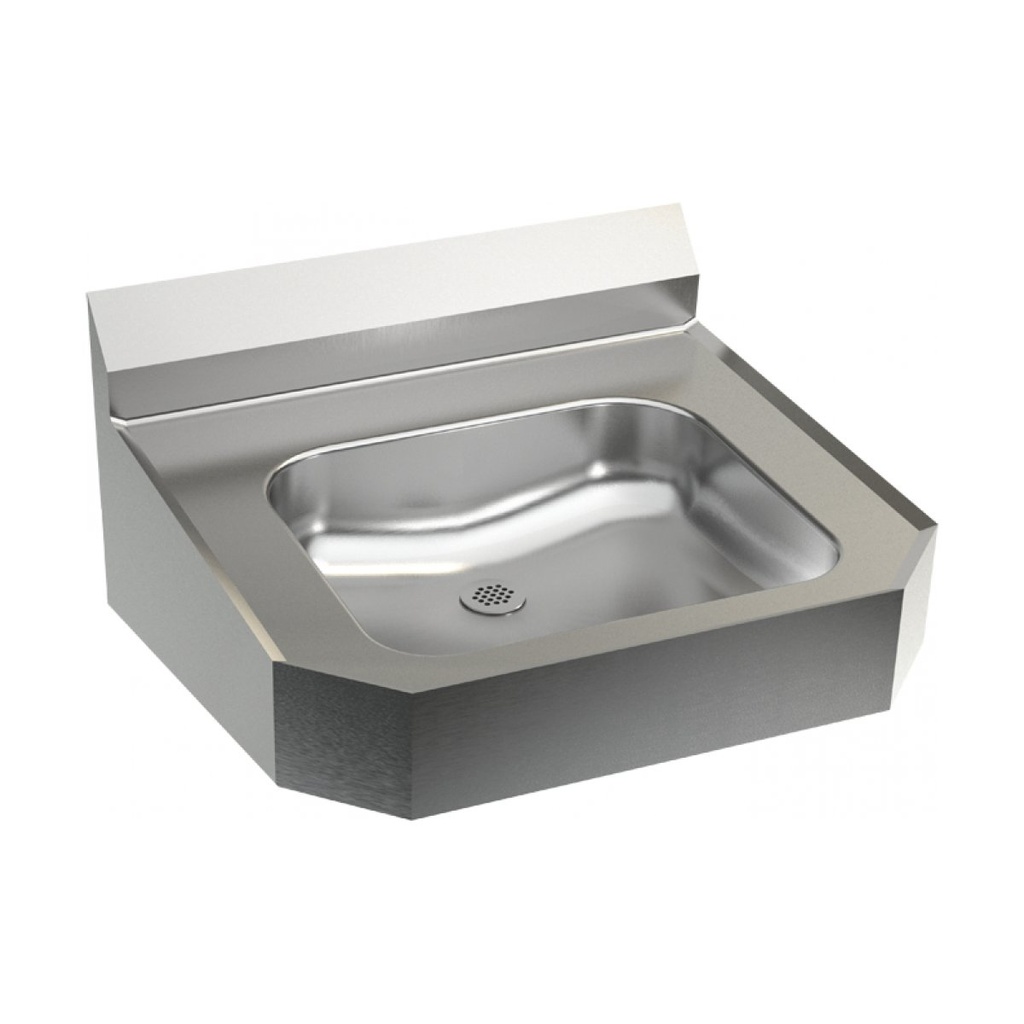

Franke WHB2221-7-1 Wall Hung Wash Basin 1 Hole Stainless Steel
Hand wash basins
WHB2221-7 Wall hung wash basin,18ga
Article Number
214.0493.295
Wall Hung Basin. Designed for either new installation or for replacement / retrofit onto select vitreous china wall carriers. Centre back waste location. 18 gauge (1.2 mm) type 304 (CNS18/10) stainless steel. Exposed surfaces are #4 satin finished. Radius coved bowl corners. One piece wall hanger bracket included. The edge is formed as an anti-spill rim. Certified to ASME A112.19.3-2008 / CSA B45.4-08. Available with optional shroud (WHB2221-RS) to cover the trap and water supplies.
A third piece may be ordered for full under enclosure (WHB2221-UC). Model complies with ADA (Americans with disabilities act guidelines), ANSI A117.1 (Accessible and usable buildings and facilities), and CSA B651-04 (Accessible design for the built environment). Check local codes to ensure compliance. Model 3719, 1 1/4" waste (DN32) kit without overflow optional.
Model Options: WHB2221-7-1, 1 faucet hole 1 1/2" (38 mm) diameter. WHB2221-7-3, 3 faucet holes 1 1/4" (32 mm) diameter, 4" (102 mm) centreset. WHB2221-7, Custom (non-returnable), specify hole drilling. 20 15/16 x 21 1/2" Overall. 13 x 14 1/2 x 5" Bowl. (FB x LR x D). 532 x 546 mm Overall. 330 x 368 x 127 mm Bowl. (FB x LR x D).
Product Information
Features
Waste assembly Not included
Overflow location No
Product Dimensions
Overall front to back 20.945 "
Overall left to right 21.496 "
Overall height 11.89 "
Bowl dimension front to back 12.992 "
Bowl dimension left to right 14.488 "
Bowl depth 5 "
Installation
Installation type Wall mount
Installation system Wall hanger bracket
Recommended wall carrier IWC2203 sold separately
Product identification
Model WHB2221-7
Brand FRANKE
Product category Hand wash basins
Product specifications
Gauge 18
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish #4 Satin
Number of bowls 1
Splash location Back
Number of faucet holes Specify when ordering
Waste location Center back
Waste size 1 1/4" (32mm)
