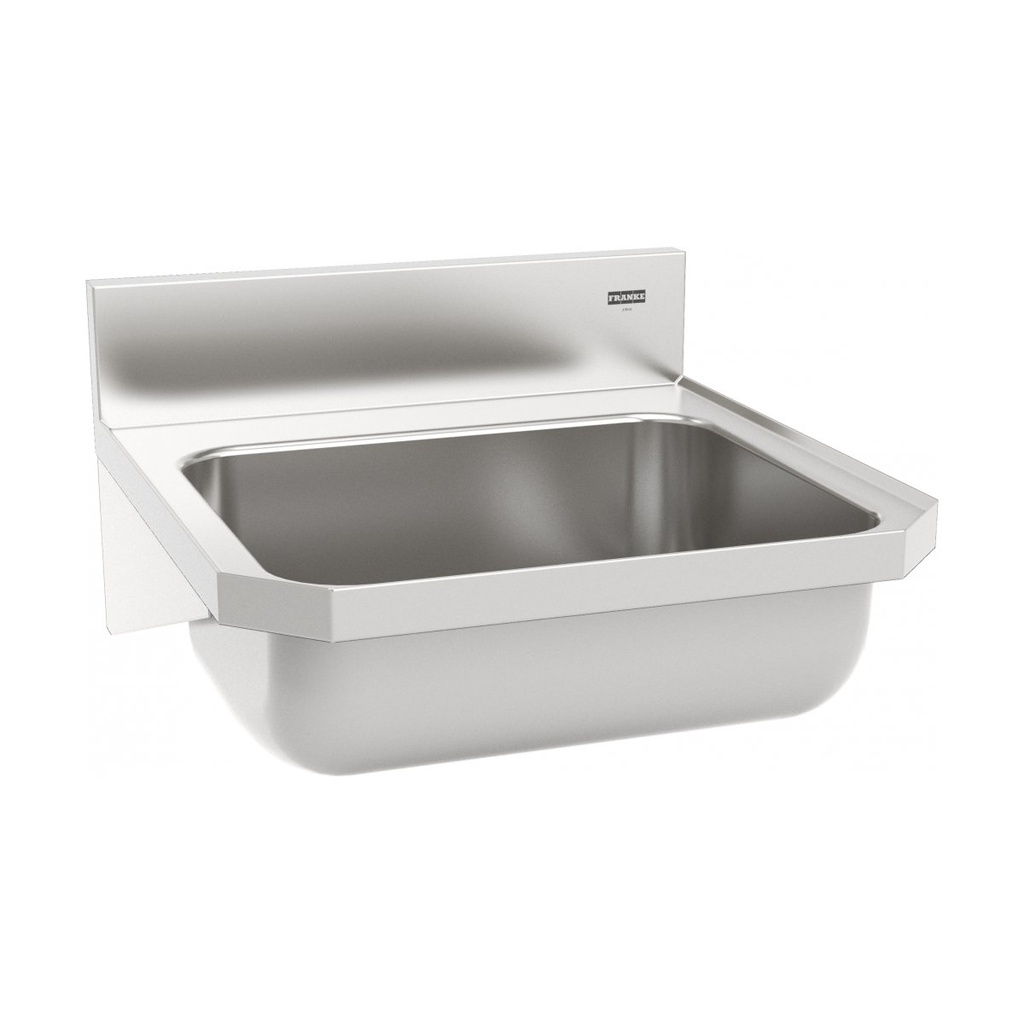

Franke WHB1617-7 Wall Hung Wash Basin Stainless Steel
Hand wash basins
WHB1617-7 Wall hung wash basin,18ga
Article Number
214.0493.275
Wall hung basin. Centre back waste location. 18 gauge (1.2 mm), type 304 (CNS 18/10) stainless steel. Exposed surfaces are #4 satin finished. Radius coved bowl corners. One piece wall hanger. Waste assembly is not included. Certified to ASME A112.19.3-2008 / CSA B45.4-08. Separate sink carrier is not required. Accepts 1 1/4" (32 mm) waste assembly.
Optional shroud also available: WT-RS. Model Options: WHB1617-7-1, 1 faucet hole, 1 1/2" diameter. WHB1617-7-3, 3 faucet holes, 1 1/2" diameter, 4" centreset. WHB1617-7, Custom (non-returnable). 17 x 16 1/2" Overall. 12 x 14 x 6" Bowl. (FB x LR x D). 432 x 419 mm Overall. 305 x 356 x 152 mm Bowl. (FB x LR x D).
Product Information
Features
Waste assembly Not included
Overflow location No
Product Dimensions
Overall front to back 17.008 "
Overall left to right 16.496 "
Overall height 9.724 "
Bowl dimension front to back 12.008 "
Bowl dimension left to right 14.016 "
Bowl depth 5.984 "
Installation
Installation type Wall mount
Installation system Wall hanger bracket
Recommended wall carrier IWC2203 sold separately
Product identification
Model WHB1617-7
Brand FRANKE
Product category Hand wash basins
Product specifications
Gauge 18
Certification cUPC
Type of material Type 304
Material code CNS 18/10
Surface finish #4 Satin
Number of bowls 1
Splash location Back
Number of faucet holes Specify when ordering
Waste location Center back
Waste size 1 1/4" (32mm)
